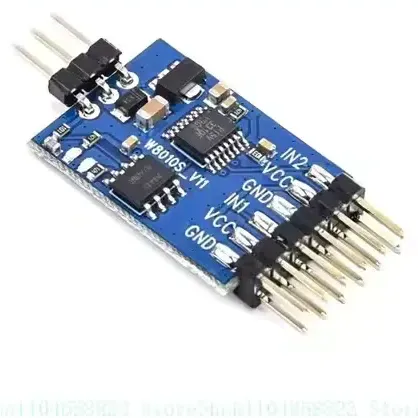

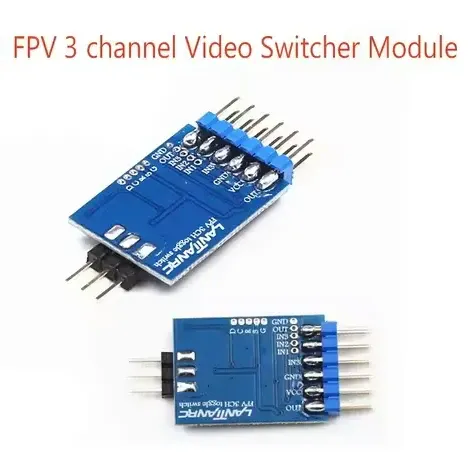

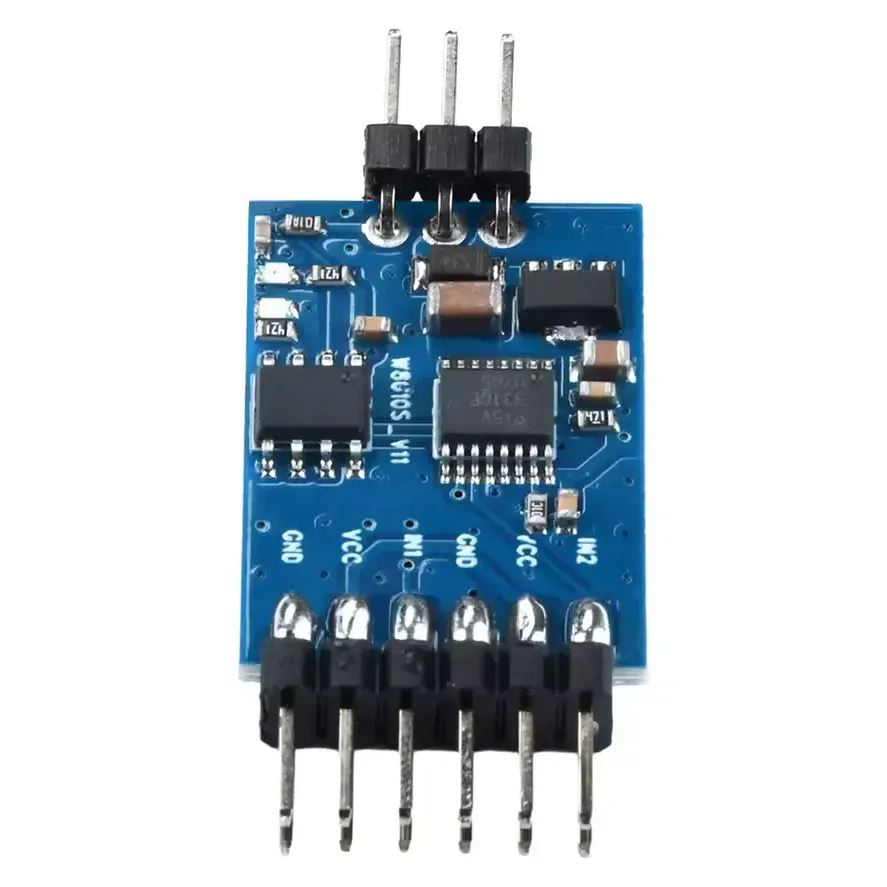

3-Channel Video Switcher Module for FPV Drones
SKU GEN-FPV-VIDEO-SWITCHER-3CH
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A three-input analog video switcher for aircraft that carry more than one camera — for example a forward FPV camera plus a downward or rear-facing camera. All three feeds go through one video transmitter, and you choose which one goes out from a switch on your radio.
Key features
- Three video inputs: connect up to three analog cameras and send the selected feed to a single VTX.
- Radio-controlled: driven by a PWM signal — assign the channel to a three-position switch, one position per camera.
- Wide supply range: runs from 5–12 V, so it can share a 5 V or 12 V rail with your cameras.
- Pins pre-soldered: ready to wire in without soldering headers yourself.
Specifications
- Video inputs: 3
- Video impedance: 75 Ω
- Control signal: PWM
- Supply voltage: 5–12 V
This module switches standard analog (composite) video only; digital HD systems such as DJI, Walksnail and HDZero carry their camera link digitally and cannot be routed through it. With a PWM receiver, plug it into a spare channel; with a serial receiver (SBUS, CRSF or ELRS), drive it from a servo output on your flight controller instead.
| Brand | Generic |
|---|---|
| Made in India | No |
