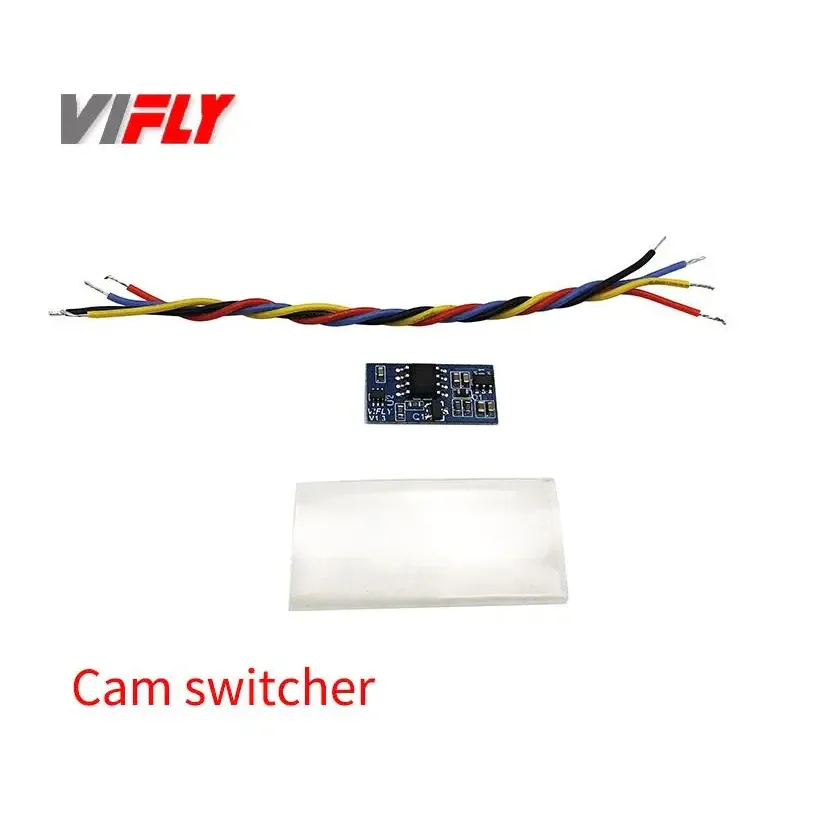

ViFly Cam Switcher

The ViFly Cam Switcher is an ultra-lightweight video routing module that allows FPV pilots to toggle between two analogue cameras mid-flight using an auxiliary switch on their radio transmitter. It is ideal for complex fixed-wing builds, scale models, or cinematic drones requiring dual perspectives, such as a traditional forward view combined with a downward- or rear-facing FPV camera.

Key features

• Broad protocol support: Decodes SBUS, IBUS, CRSF, PPM, and PWM signals directly from the receiver, bypassing complex flight controller resource mapping.

• Zero-latency switching: Routes standard analogue video feeds directly to your VTX instantly, without degrading image quality or introducing delay.

• Minimal footprint: Weighs a mere 0.5 grams and measures 9x18 mm, making it easy to tuck into crowded equipment bays or tightly packed micro builds.

• Straightforward wiring: Features logically arranged, pre-tinned solder pads for 5V power, ground, receiver signal, two camera inputs, and a single video output.

Specifications

• Weight: 0.5 g

• Dimensions: 9 x 18 mm

• Supported protocols: SBUS, IBUS, CRSF, PPM, PWM

• Input voltage: 5V

• Video compatibility: Analogue (CVBS)

By reading the RC protocol directly from your receiver, this switcher eliminates the need to configure Betaflight PINIO setups, offering a streamlined plug-and-play solution for multi-camera FPV routing.
