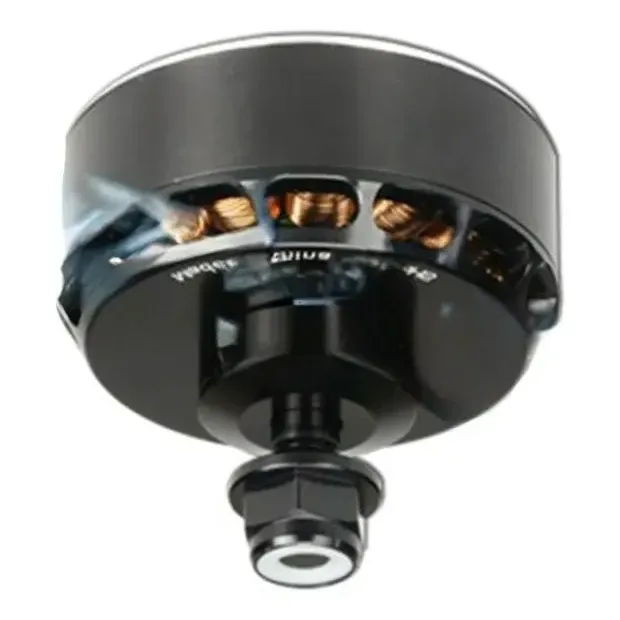

Tarot TL50P12 5012 300KV Brushless Motor

The Tarot TL50P12 is a 5012 stator, 300KV brushless motor built for hexacopter, octocopter and other heavy-lift multirotor platforms, including light agricultural spray aircraft in the 5–6kg class running large 18–21 inch propellers.

Key features

• Rated for 6S LiPo power, with a maximum continuous current of 41.1A and continuous power of 877W.
• 6mm output shaft and a 25mm motor-mounting hole spacing sized for heavy-lift frame arms.
• CNC-machined aluminium housing with a dynamically balanced rotor for smooth, high-torque running at low KV.
• Low no-load current (0.8A at 10V) and 57mΩ internal resistance keep efficiency high across the throttle range.
• Ships with a metal propeller adapter, mounting screws and a protective case.
• 225g weight and the 300KV winding suit the large, low-pitch propellers used on heavy-lift and agricultural airframes rather than a compact freestyle build.

Specifications

• Stator size: 5012
• KV: 300KV
• Shaft diameter: 6mm
• Weight: 225g
• Input voltage: 6S LiPo
• Max continuous current: 41.1A
• Max continuous power: 877W

Match ESC current rating and propeller pitch to the 6S/41A envelope, and pair motors of the same KV across the airframe for balanced thrust.
