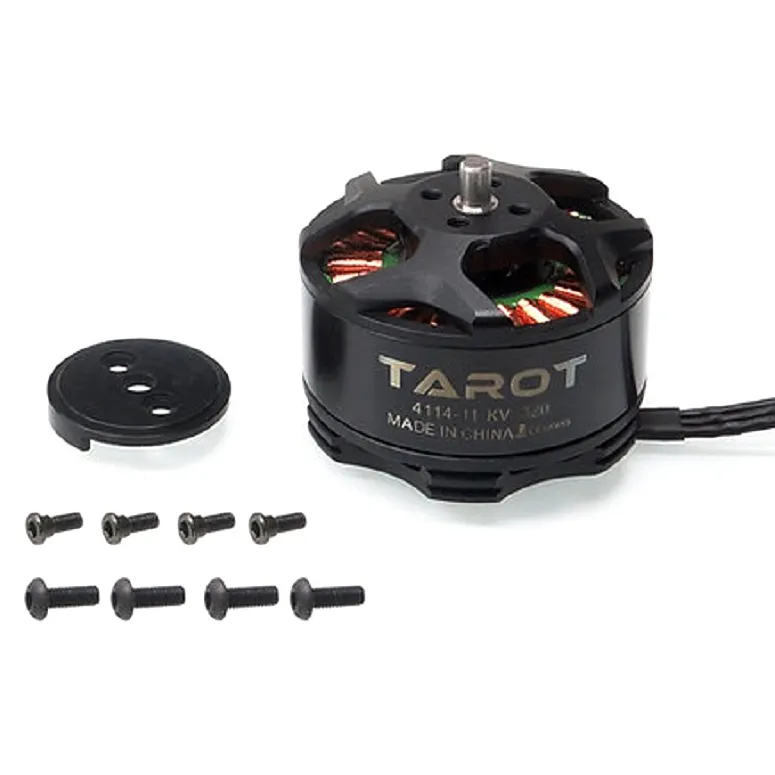

Tarot 4114 320KV Brushless Multicopter Motor
₹4,299Incl. GST
SKU TAROT-4114-320KV
Stator Size: 4114Pack Size: 1KV: 320 KVShaft: 4mm
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Tarot 4114 320KV is a brushless multicopter motor for heavy-lift and DIY drone platforms. It is a bare motor, so the frame, ESC, propeller and 6S battery are chosen separately to match its power system.
Key features
- 24N22P winding turned to 320 RPM per volt, giving 320KV on a 6S pack
- Neodymium iron boron rotor magnets and an epoxy-resin stator for consistent output and a factory-balanced spin
- Turbofan cover moulded into the motor bell improves heat dissipation under sustained heavy-lift load
- Alloy-steel motor shaft with specially fitted upper and lower bearings for low friction, impact resistance and strong radial support
- No-load current of 0.5 A and 126 mΩ ESR, useful reference points when sizing the ESC
Specifications
- Stator size: 4114
- KV: 320 KV
- Input voltage: 6S
- Shaft: 4 mm
- Motor mount: 27.7 mm, 3-hole
- Weight: 148 g
- Winding: 24N22P
- Motor length: 32 mm
- Shaft length: 37 mm
Match the propeller and ESC current rating to a 6S pack, and use identical motors across the airframe rather than mixing KV or stator sizes.
| Stator Size | 4114 |
|---|---|
| Stator Diameter | 41mm |
| Stator Height | 14mm |
| Pack Size | 1 |
| KV | 320 KV |
| Shaft | 4mm |
| Motor Mount | 27.7mm 3-hole |
| Input Voltage | 6S |
| Weight | 148 g |
| Brand | Tarot |
| Made in India | No |
| Integrated ESC | No |
