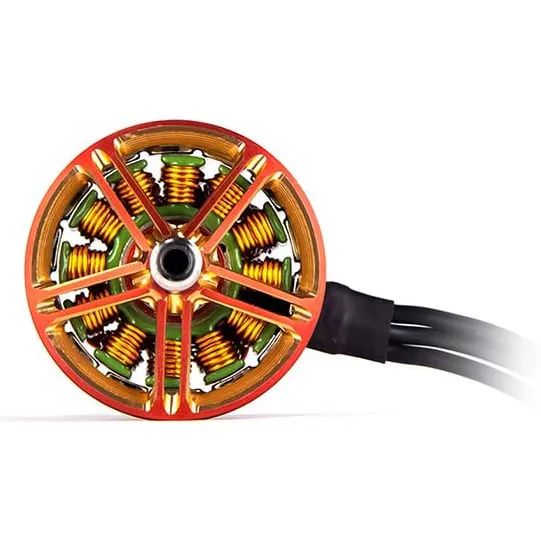

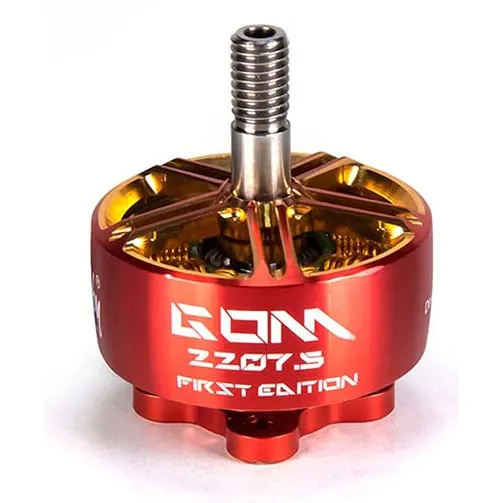

BrotherHobby GOM 2207.5 FPV Motor
SKU BH-GOM-22075-1920KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The BrotherHobby GOM 2207.5 1920KV motor delivers punchy throttle response and smooth torque delivery for 5-inch FPV freestyle and light cinematic builds. By adding a 0.5mm height bump to the standard 2207 stator, this motor extracts extra low-end torque while maintaining top-end efficiency on a 6S powertrain.
Key features

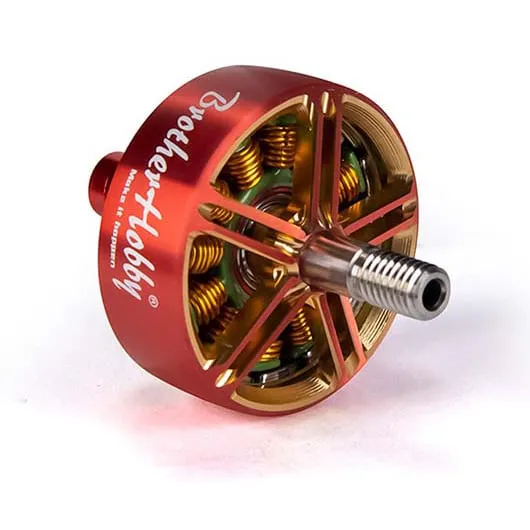

Constructed with an AL7075 aluminium base and a hollow titanium alloy shaft to balance high structural durability with low rotational mass.
Utilises N52H arc magnets and a 0.15mm Nippon Steel stator to maximise magnetic efficiency and reduce heat under heavy loads.
Fitted with high-quality Japanese NMB bearings for vibration-free, smooth motor operation.
The 1920KV rating provides an aggressive but controllable powerband ideal for modern 6S FPV setups.

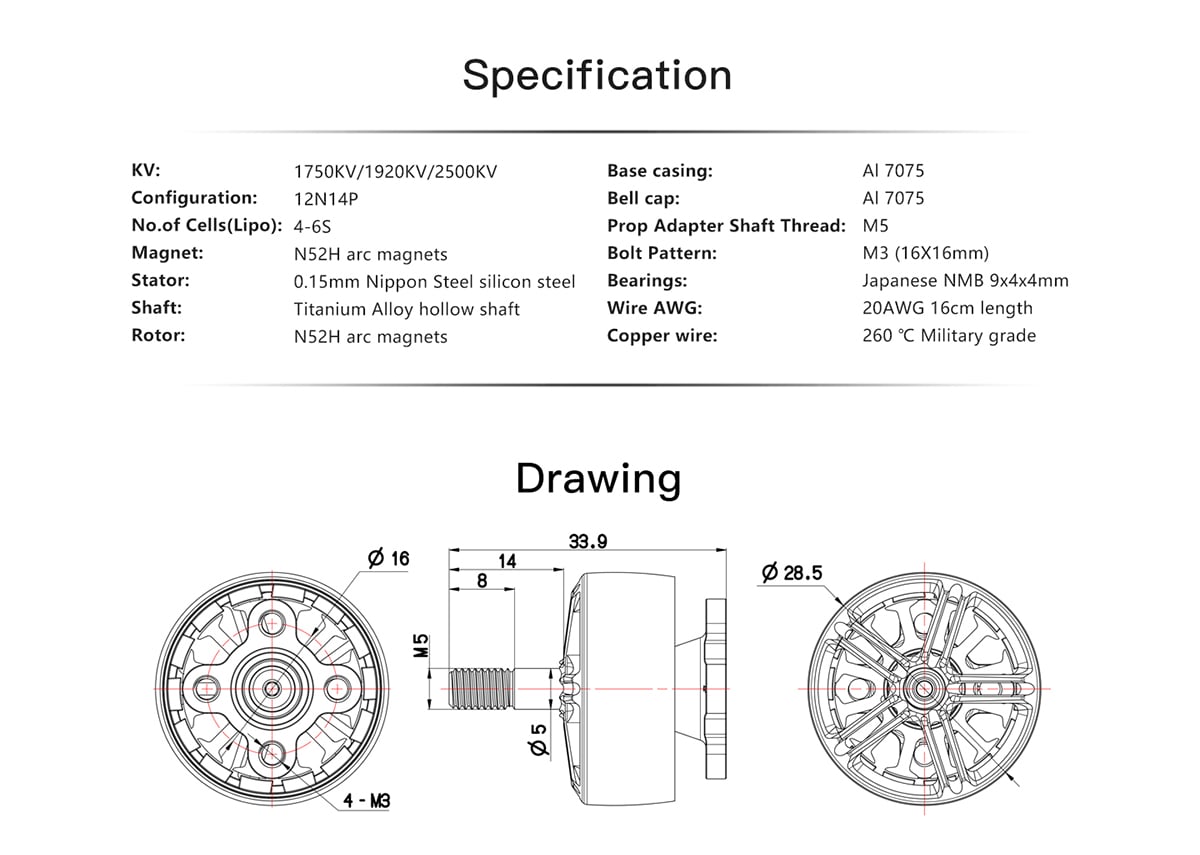

Specifications
Stator Size: 2207.5 (22mm x 7.5mm)
KV: 1920
Input Voltage: 4-6S LiPo
Configuration: 12N14P
Magnets: N52H Curved
Bearings: Japanese NMB, 9x4x4 mm
Shaft: Titanium Alloy, M5 prop thread
Motor Wire: 20AWG, 160 mm

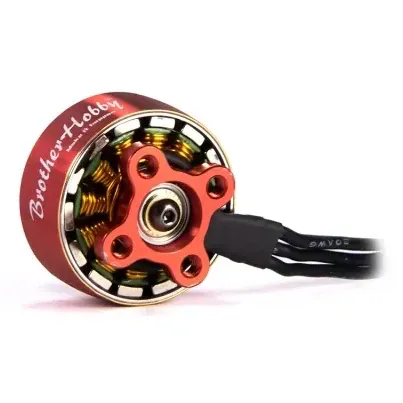

Mounting Pattern: 16x16mm, M3
Pair these motors with a 45A to 55A ESC and your favourite 5-inch freestyle propellers for a highly responsive and locked-in flight experience.
| Stator Size | 2207.5 |
|---|---|
| Stator Diameter | 22mm |
| Stator Height | 7.5mm |
| KV | 1920 KV |
| Prop Mount | M5 |
| Shaft | 5mm |
| Motor Mount | 16x16mm |
| Input Voltage | 4–6S |
| Brand | BrotherHobby |
| Made in India | No |
