T-Motor PACER V3 P2306 1750KV Freestyle Motor
₹2,699Incl. GST
SKU TMOTOR-PACER-V3-P2306-1750KV
KV: 1750KVStator Size: 2306Pack Size: 1Prop Mount: M5
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

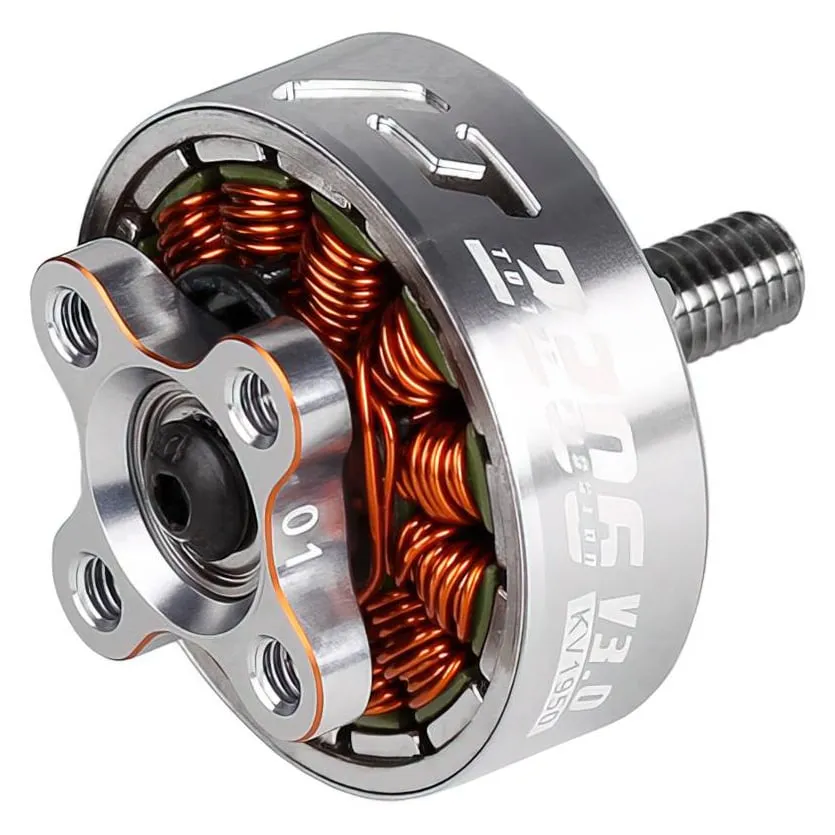

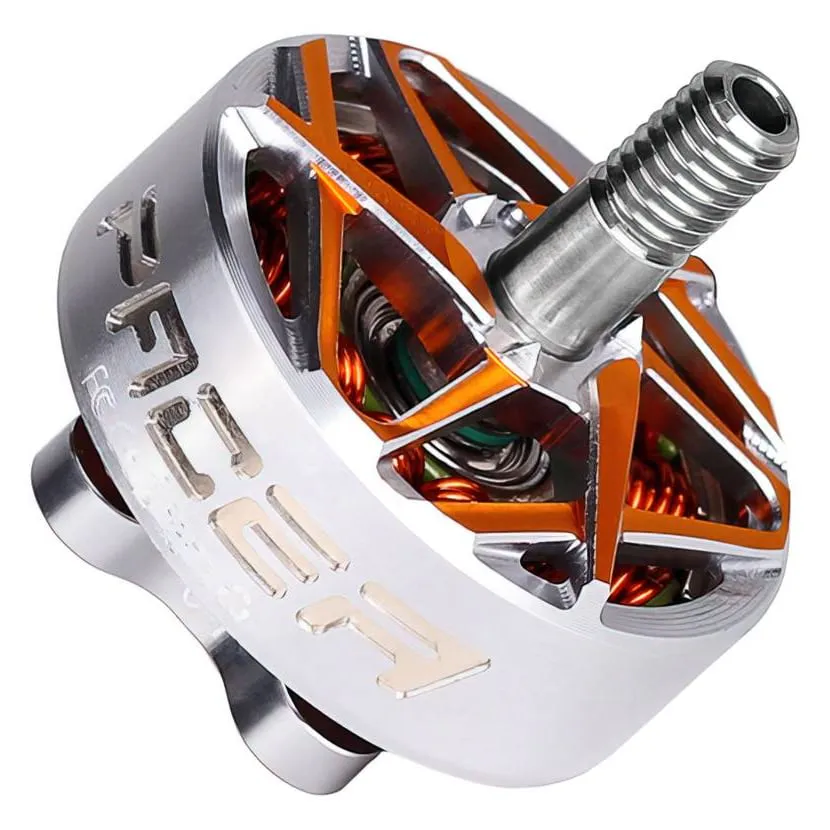

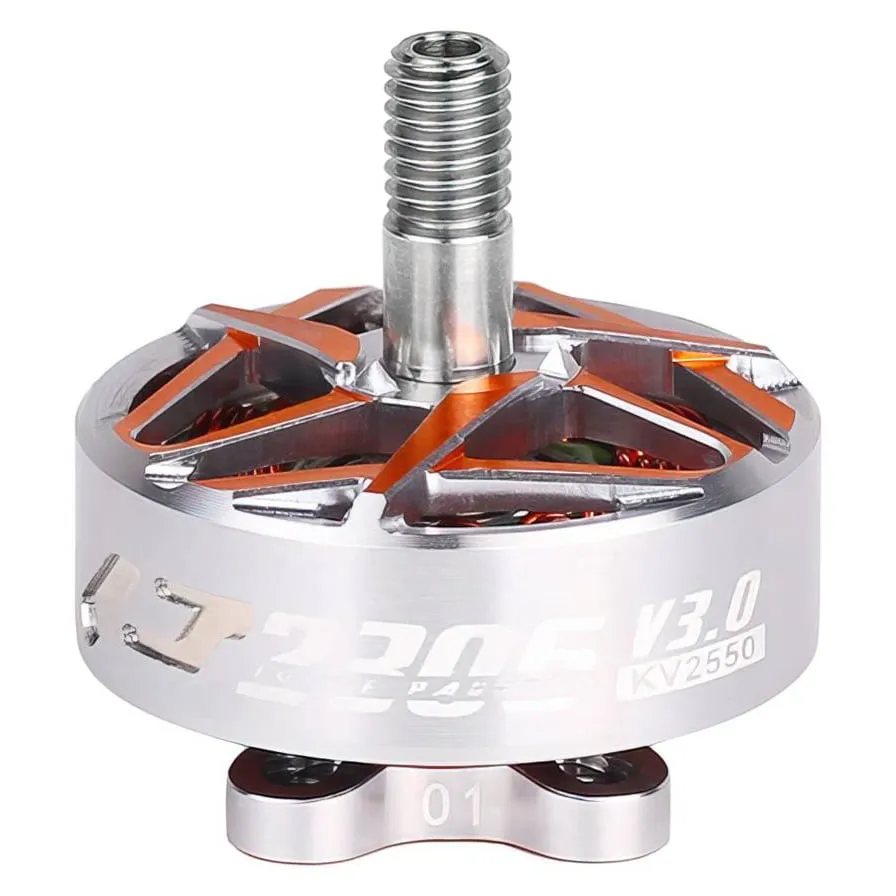

The T-Motor PACER V3 P2306 is built for 5-inch freestyle quads, balancing low-end torque with fast throttle response for tight proximity flying and quick recoveries out of dives.
Key features
- Strengthened unibell housing gives the V3 update better crash resistance in bando-style flying.
- 12N14P winding configuration and N52H magnets for smooth, linear throttle response.
- 150mm, 20AWG phase wires route cleanly to standard 4-in-1 ESCs.
- Standard 16x16mm (M3) mounting base fits common 5-inch freestyle frames.
- 1750KV winding, rated for 6S power.
Specifications
- Stator size: 2306
- KV: 1750KV
- Configuration: 12N14P
- Rated voltage: 6S LiPo
- Shaft diameter: 4mm
- Mounting pattern: 16 x 16mm (M3)
- Dimensions: 28.6 x 30 mm
- Peak current (60s): 34.8A (1750KV) / 40.4A (1950KV)
- Max power (60s): 864 W (1750KV) / 1000 W (1950KV)
- Idle current (10 V): 0.85 A (1750KV) / 1.2 A (1950KV)
- Weight: approx. 32g including wires
- In the box: 1 motor, hardware set
Pair the 1750KV winding with standard 5.1-inch props for smoother, more efficient flow, or the 1950KV winding with lower-pitch props for sharper punch-outs.
| Stator Size | 2306 |
|---|---|
| Stator Diameter | 23mm |
| Stator Height | 6mm |
| KV | 1750 KV |
| Pack Size | 1 |
| Prop Mount | M5 |
| Shaft | 4mm |
| Motor Mount | 16x16mm |
| Input Voltage | 6S |
| Weight | 31.6 g |
| Brand | T-Motor |
| Made in India | No |
