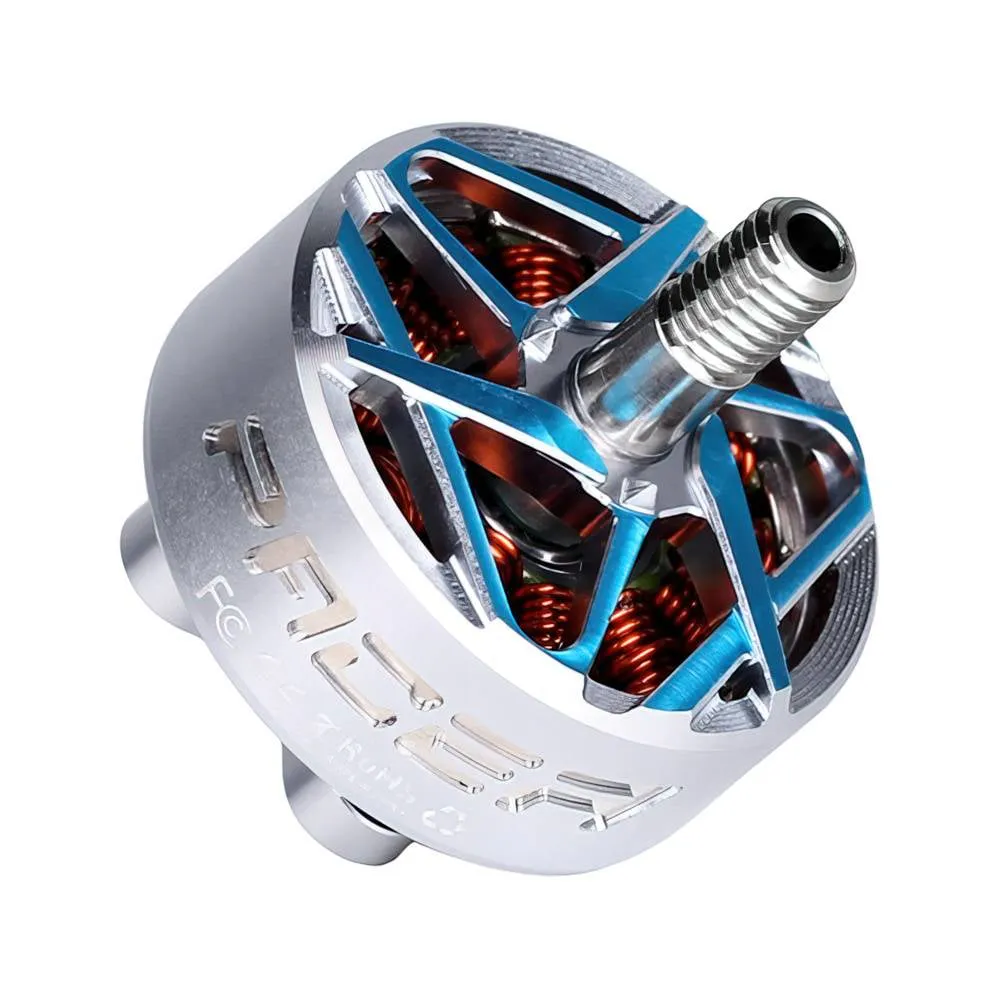

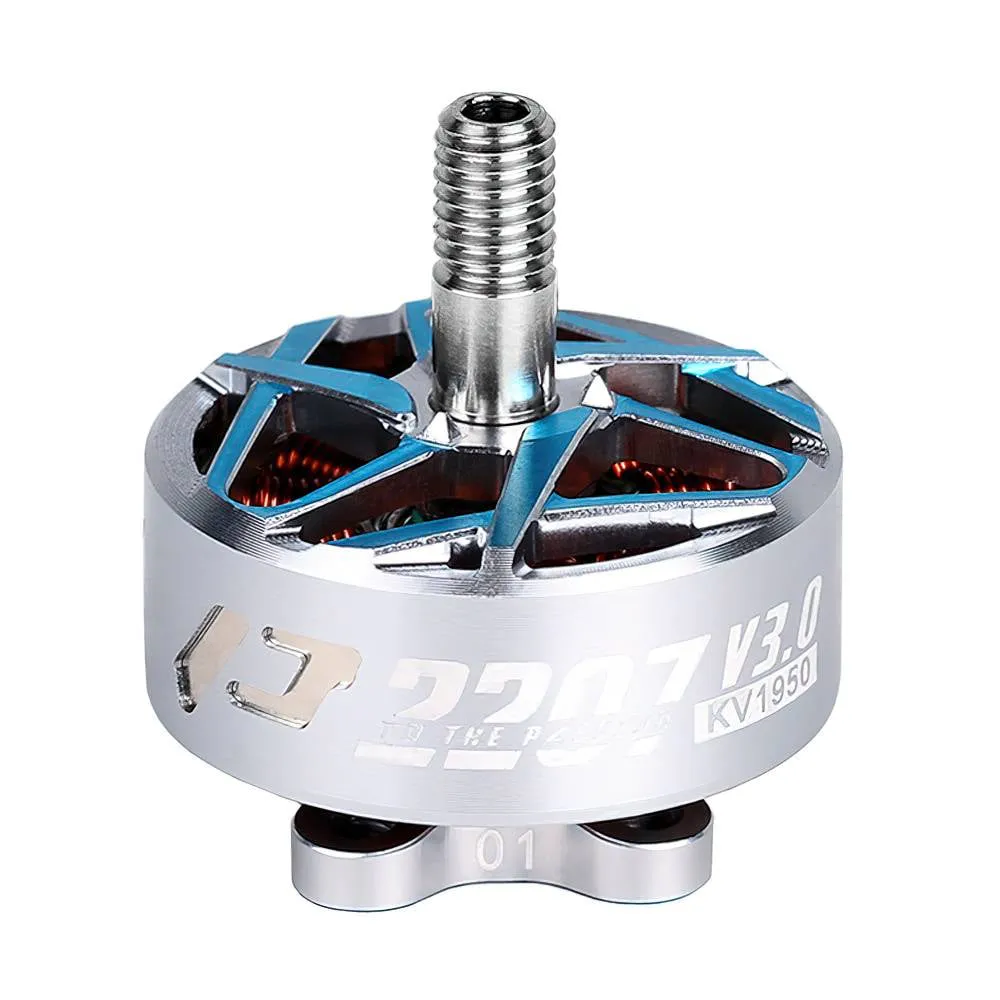

T-Motor Pacer V3 P2207 Freestyle Motor

The T-Motor Pacer V3 P2207 is a high-torque freestyle motor tailored for 5-inch and 5.1-inch FPV quadcopters. Built around a 2207 stator, it delivers the aggressive punch and fast response needed for acrobatic flight. The 1750KV variant provides efficient cruising and precise low-end control on 6S setups, while the 1950KV version spins at a higher RPM for pilots demanding maximum top-end thrust and faster acceleration.

Key features

• 2207 stator size provides a torque-heavy, locked-in flight feel for dynamic maneuvers.

• Optimised magnetic circuit with N52H arc magnets ensures linear throttle response across the power band.

• Reinforced, ribbed bell design improves crash durability without adding excess rotational mass.

• Pre-tinned 150mm 20AWG wires allow clean routing to 4-in-1 ESCs.

Specifications

• Stator size: 2207

• KV options: 1750KV, 1950KV

• Input voltage: 6S LiPo

• Configuration: 12N14P

• Shaft diameter: 5mm

• Mounting pattern: 16x16mm (M3)

• Wire: 20AWG, 150mm length

• Weight: 34.4g (including wire)

Pair these motors with a 50A or higher ESC and aggressive 5.1-inch propellers to fully utilise their power output on a modern 6S build.
