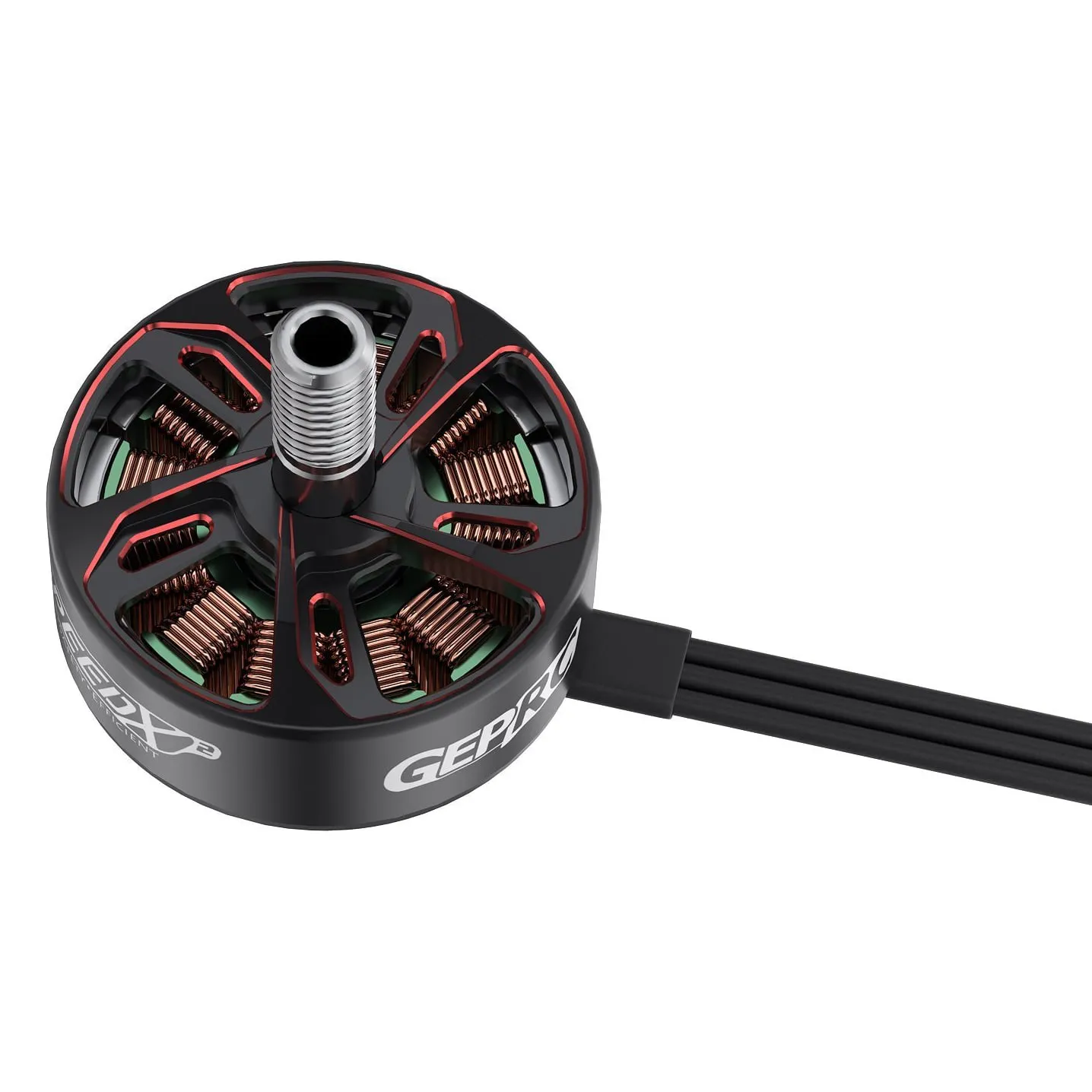

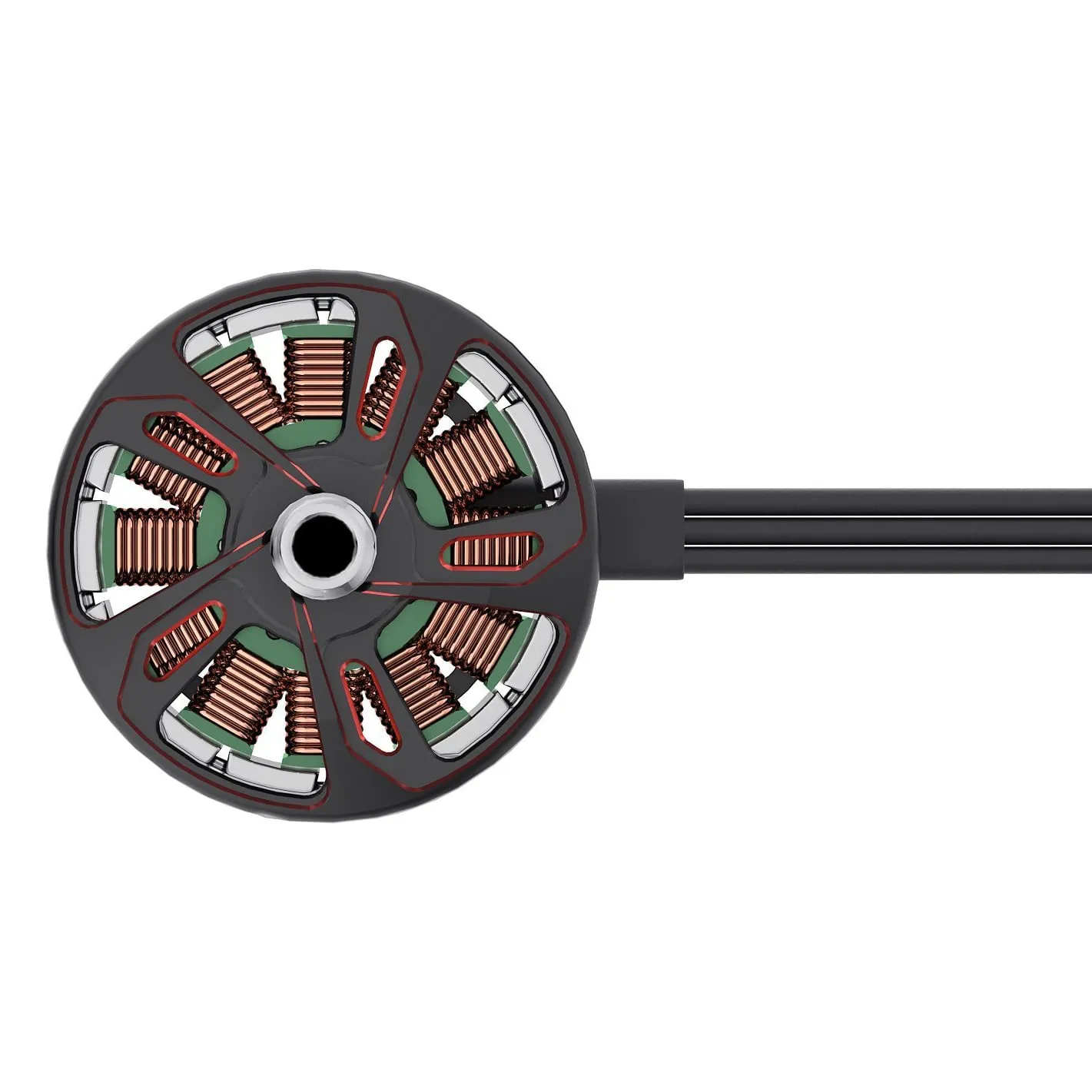

GEPRC SPEEDX2 2207 1960KV Motor

The GEPRC SPEEDX2 2207 1960KV motor is precision-engineered for 6S 5-inch freestyle and racing quads, delivering a balance of responsive low-end torque and high-speed efficiency. Built around a 12N14P configuration with curved N52H arc magnets and a lightweight rotor bell, it provides smooth throttle resolution and rapid spool-up across aggressive flight maneuvers.

Key features

• Optimised for 6S 5-inch builds: The 1960KV stator profile provides ideal RPMs for 5-inch propellers running on 22.2V nominal (6S LiPo) power setups.
• High-efficiency magnetic circuit: Uses high-temperature N52H arc magnets and a 0.15mm silicon steel stator to reduce core losses and improve thermal dissipation during extended high-throttle runs.
• Robust shaft and bearing structure: Features a durable 4mm titanium alloy inner shaft combined with a standard M5 propeller shaft and high-precision bearings for smooth, vibration-free rotation.
• Standard 16x16mm mounting: Easily fits modern 5-inch freestyle and racing frames using standard M3 motor screws.
• Pre-tinned silicone lead wires: Comes equipped with 150mm of flexible 20AWG wire, providing ample reach for clean routing to 4-in-1 ESCs on 30.5x30.5mm and 20x20mm stacks.

Specifications

• KV: 1960
• Stator dimensions: 22 mm × 7 mm
• Configuration: 12N14P
• Input voltage: 6S LiPo
• Propeller shaft: M5
• Inner shaft diameter: 4 mm
• Mounting pattern: 16x16 mm (M3)
• Lead wires: 20AWG, 150 mm length
• Weight: 34.5 g (including wires)

Pair this motor with a 45A to 60A ESC and standard 5-inch tri-blade propellers (such as 5146 or 5147.5 profiles) to extract optimal flight characteristics and current efficiency on freestyle rigs.
