SwiftCAN-HUB 6-Port Powered CAN Hub
SKU SWIFTCAN-HUB-6PORT
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
SwiftCAN-HUB is a six-port powered CAN hub for UAV systems using ArduPilot, PX4 or DroneCAN. It provides a shared connection point for compatible CAN peripherals.
Key features
Six CAN ports for connecting multiple CAN peripherals.
Powered hub design combines CAN connectivity with hub power distribution.
Supports ArduPilot, PX4 and DroneCAN systems.
Useful for expanding CAN device connections in UAV and drone builds.
Specifications
Ports: 6 CAN peripheral ports plus 1 flight-controller CAN input
Connectors: JST-GH 4-pin

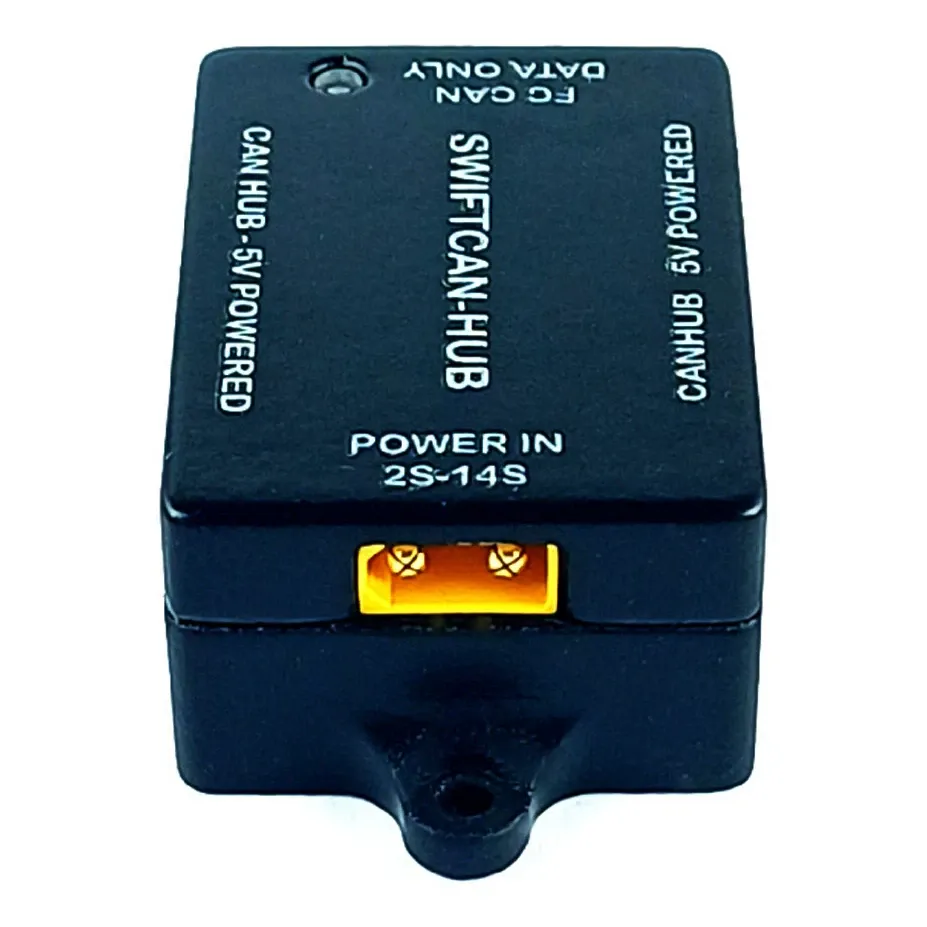

Input voltage: 2-14S LiPo via XT30
Output: 5.3 V (+/-0.15 V), up to 5 A total
Regulator efficiency: over 90%
Status indicator: red power LED
Operating temperature: -20 to +60 °C
Dimensions: 55 x 30 x 18 mm
Weight: 22 g
Supported firmware: ArduPilot / PX4 / DroneCAN
In the box: hub, 1 x JST-GH 4-pin cable

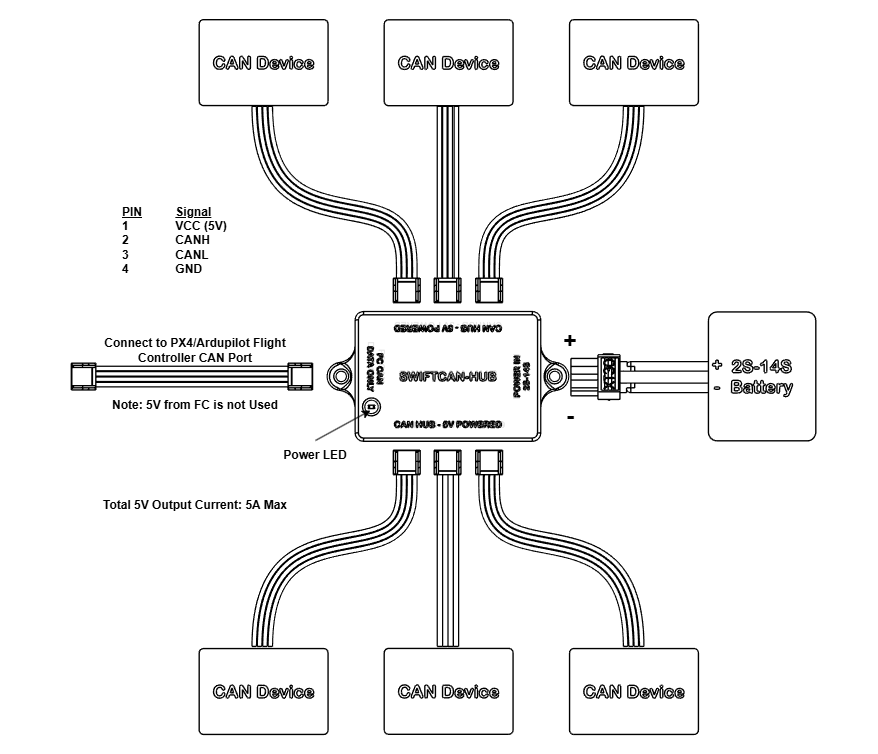

Place the hub between the flight-control system and compatible CAN devices, and follow the system wiring requirements for bus termination and power connections.
| Brand | SwiftCAN |
|---|---|
| Input Voltage | 2–14S |
| Supported Firmware | ArduPilot / PX4 / DroneCAN |
| Weight | 22 g |
