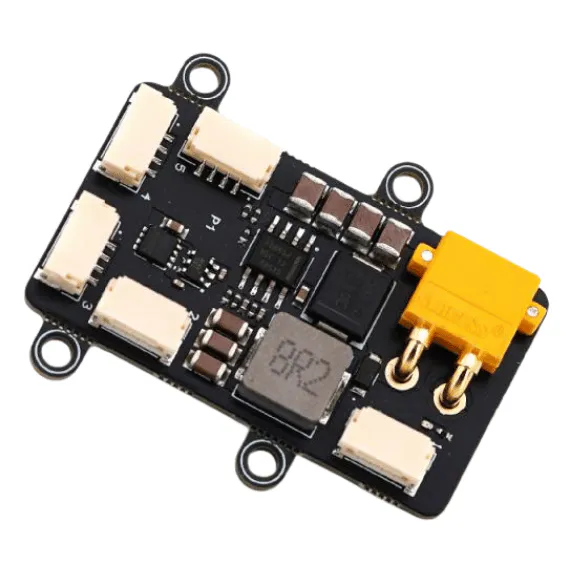

TBS Lucid DroneCAN Splitter with 4A BEC

The TBS Lucid DroneCAN Splitter turns a single DroneCAN bus into five JST-GH ports, making it straightforward to wire multiple CAN peripherals onto one ArduPilot or PX4 build without a tangle of daisy-chained cables.

Key features

• Splits one DroneCAN connection into 5 JST-GH ports for GPS, compass, airspeed and telemetry nodes.
• Built-in 4A BEC powers connected peripherals directly from the splitter, so each node doesn't need its own regulator.
• Removes the need for a separate CAN hub or hand-wired splitter harness on multi-sensor builds.
• Compatible with ArduPilot and PX4 flight stacks over the standard DroneCAN protocol.
• A single shared bus keeps wiring tidy compared with running separate UART or I2C leads to each sensor.

Specifications

• Ports: 5x JST-GH DroneCAN
• BEC output: 4A
• Output voltage: 5 V
• Current per port: 1.5 A
• Input voltage: 9-52 V (3-12S LiPo)
• Power input: XT30
• CAN connectors: JST-GH 4-pin
• Dimensions: 44 x 25 x 8 mm
• Weight: 12 g

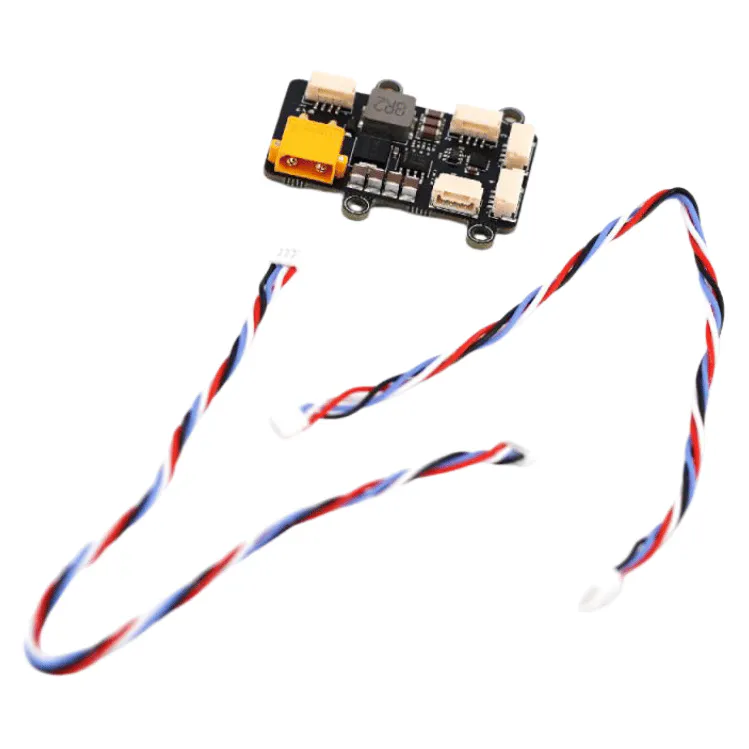

• In the box: splitter, 2x 4-pin CAN cables (20 cm)

Useful on long-range and mapping builds running several CAN sensors off one flight controller port, keeping the wiring loom compact.
