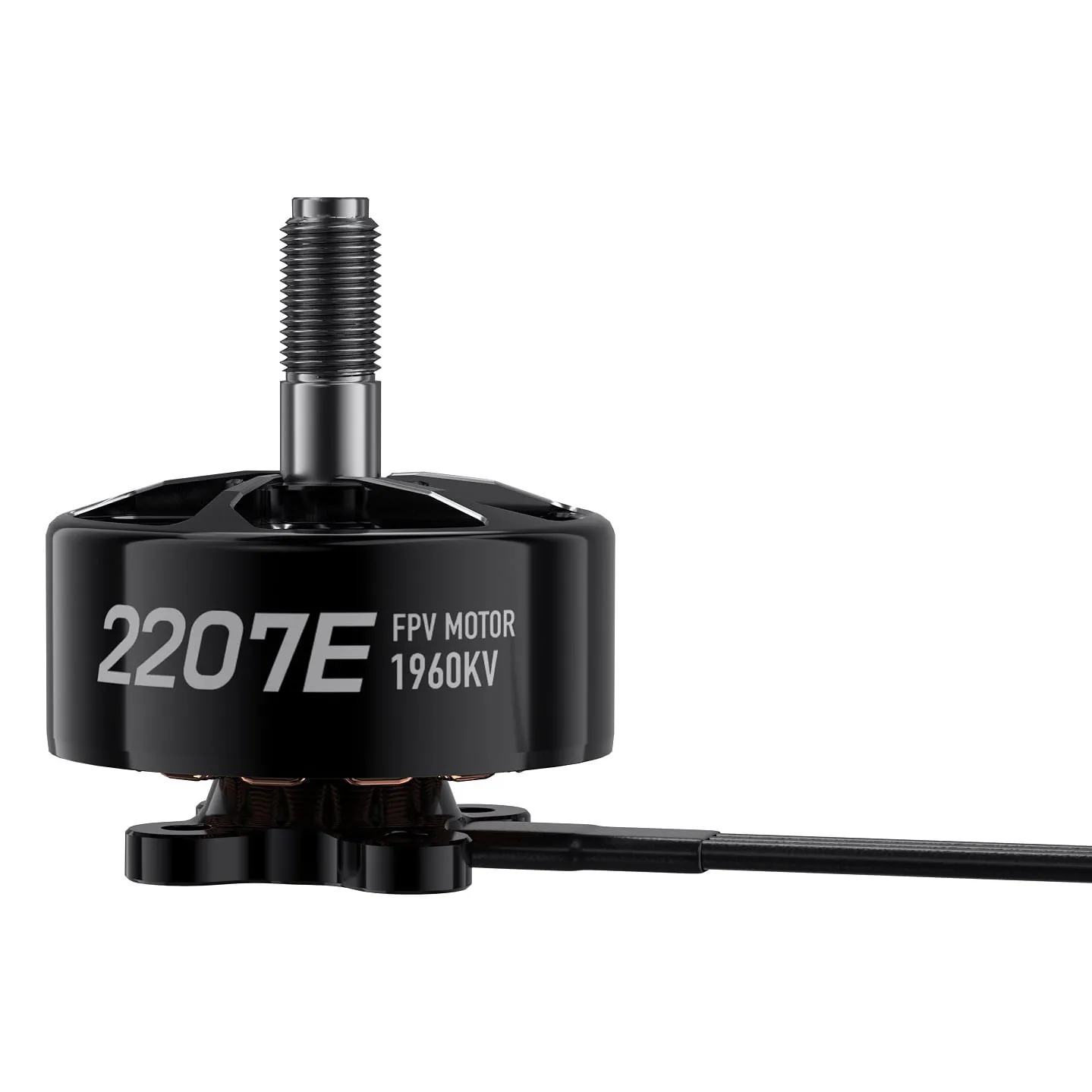

GEPRC SPEEDX2 2207E 1960KV Motor

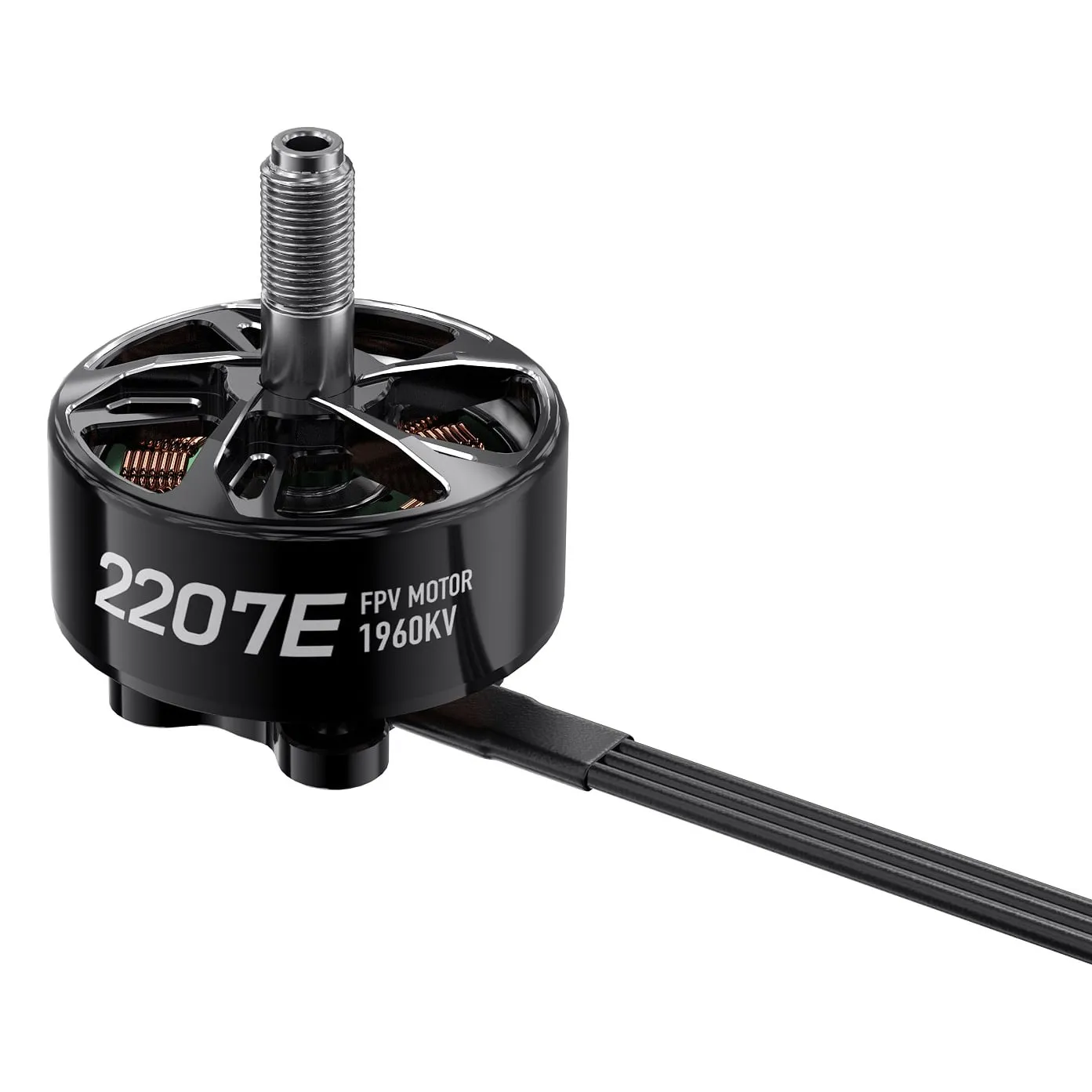

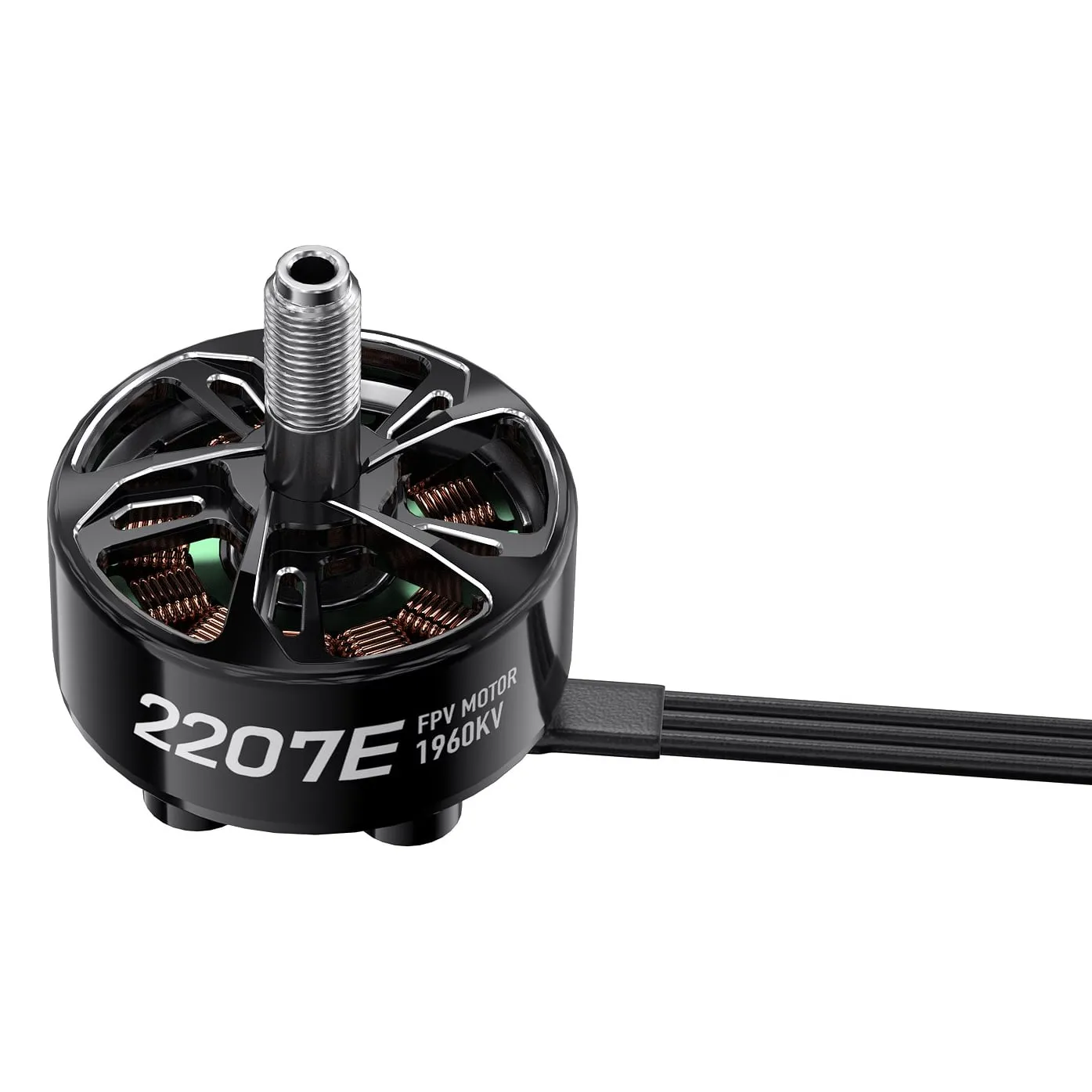

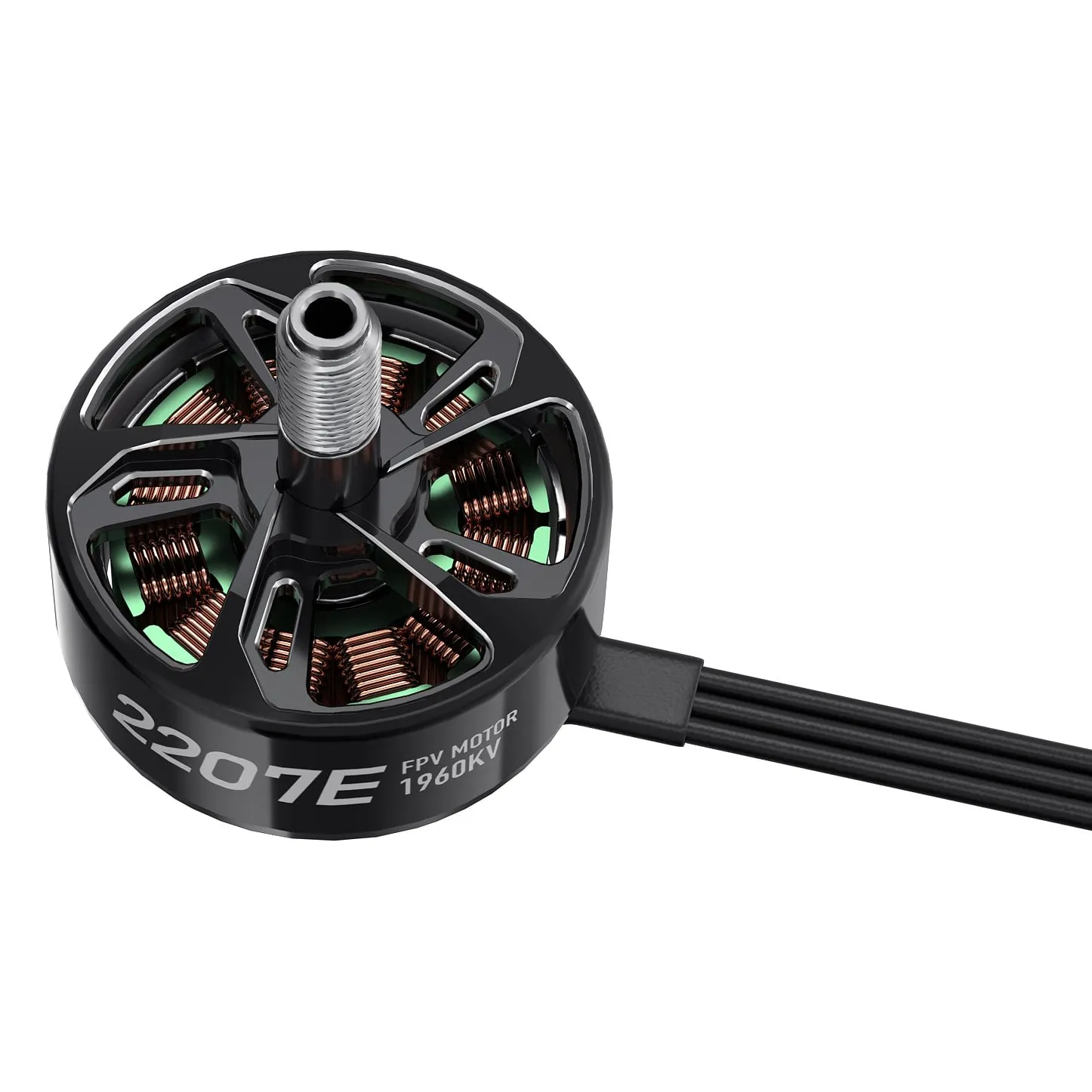

The GEPRC SPEEDX2 2207E is a 1960KV brushless motor built for 5-inch freestyle and racing quads running 6S power. Its all-black glossy shell has extensive cutouts for heat dissipation, while precision-machined 7075 aerospace-grade aluminium keeps the rotor light without sacrificing strength, and the design carries over the responsive feel of GEPRC's earlier SPEEDX motors.

Key features

• Reduced rotor-to-stator gap sharpens throttle response for freestyle and racing manoeuvres.

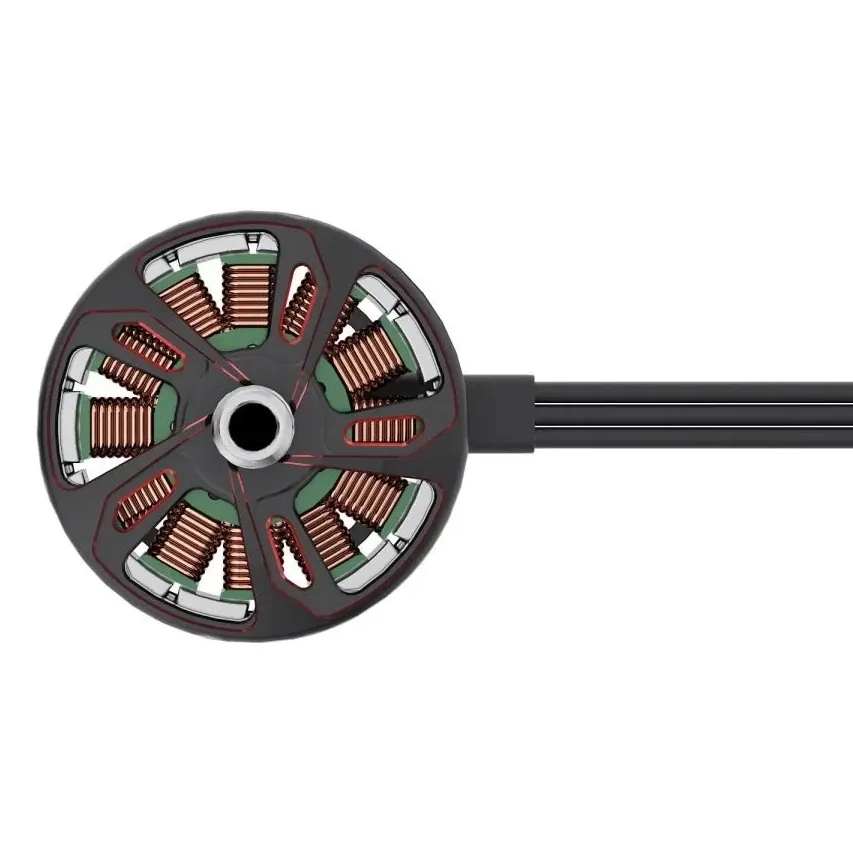

• N52H magnets and a 12N14P stator configuration deliver strong, consistent thrust under load.
• NMB/NSK bearings and CNC-machined 7075 aluminium construction balance durability with low weight.
• Standard 16x16mm M3 mounting pattern fits virtually all modern 5-inch frames.
• Rated for a 50A-or-higher 6S ESC, matching typical 5-inch freestyle and racing power stages.

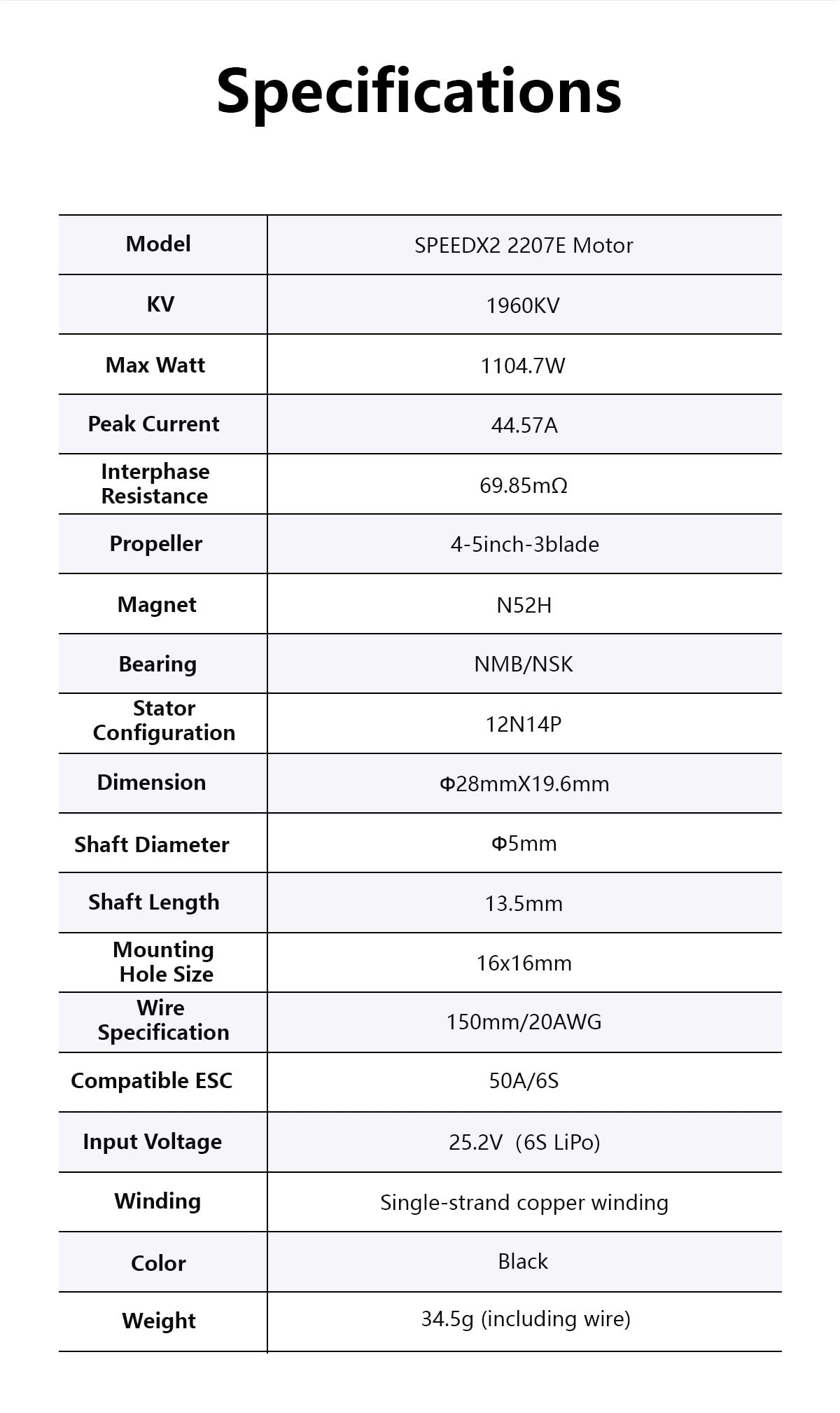

Specifications

• Stator size: 2207
• KV: 1960
• Input voltage: 6S LiPo
• Max power: 1104.7W
• Peak current: 44.57A
• Interphase resistance: 69.85 mOhm
• Shaft diameter: 5mm
• Shaft length: 13.5 mm

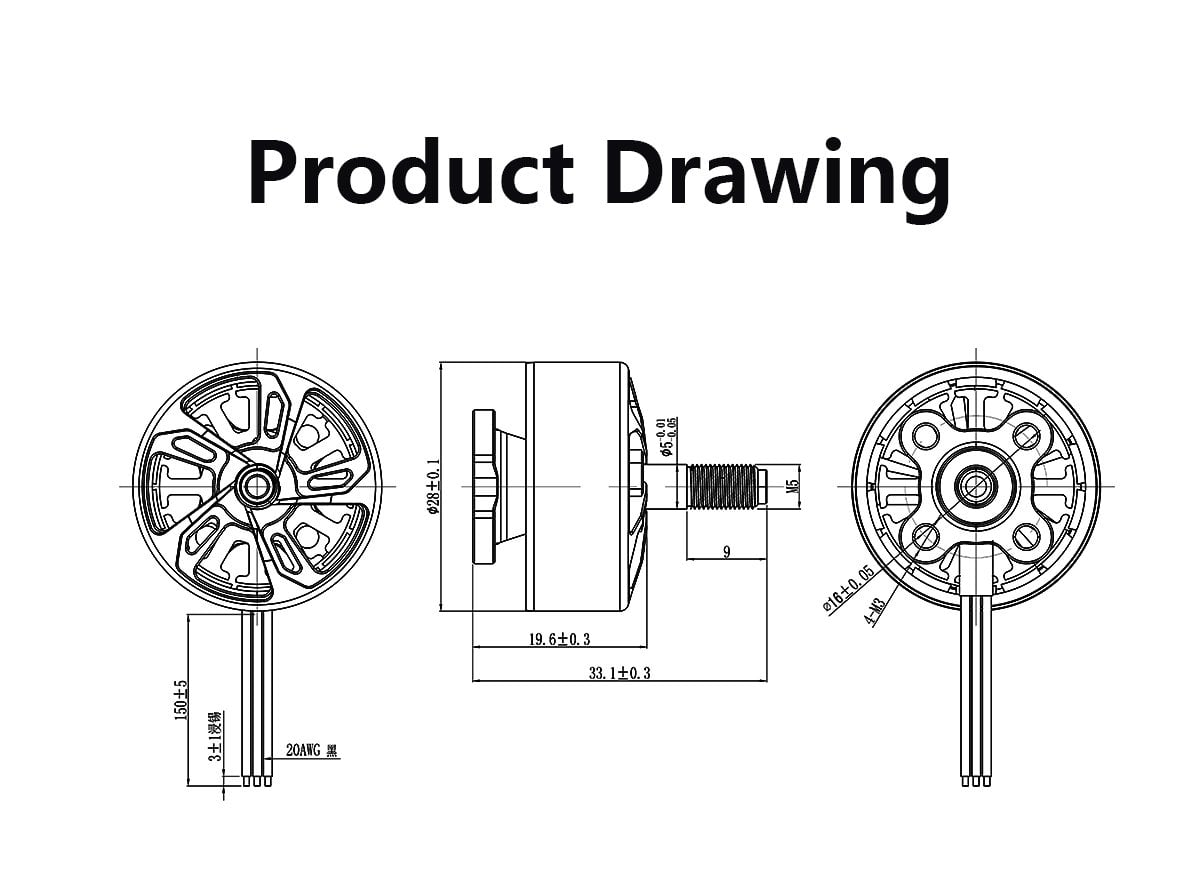

• Motor dimensions: 28 x 19.6 mm
• Motor wire: 20AWG, 150 mm
• Mounting pattern: 16x16mm (M3)
• Colour: Black
• Weight: 34.5g (including wire)

Use 4-5 inch, three-blade propellers with this motor for punchy freestyle or racing performance on 6S packs.
