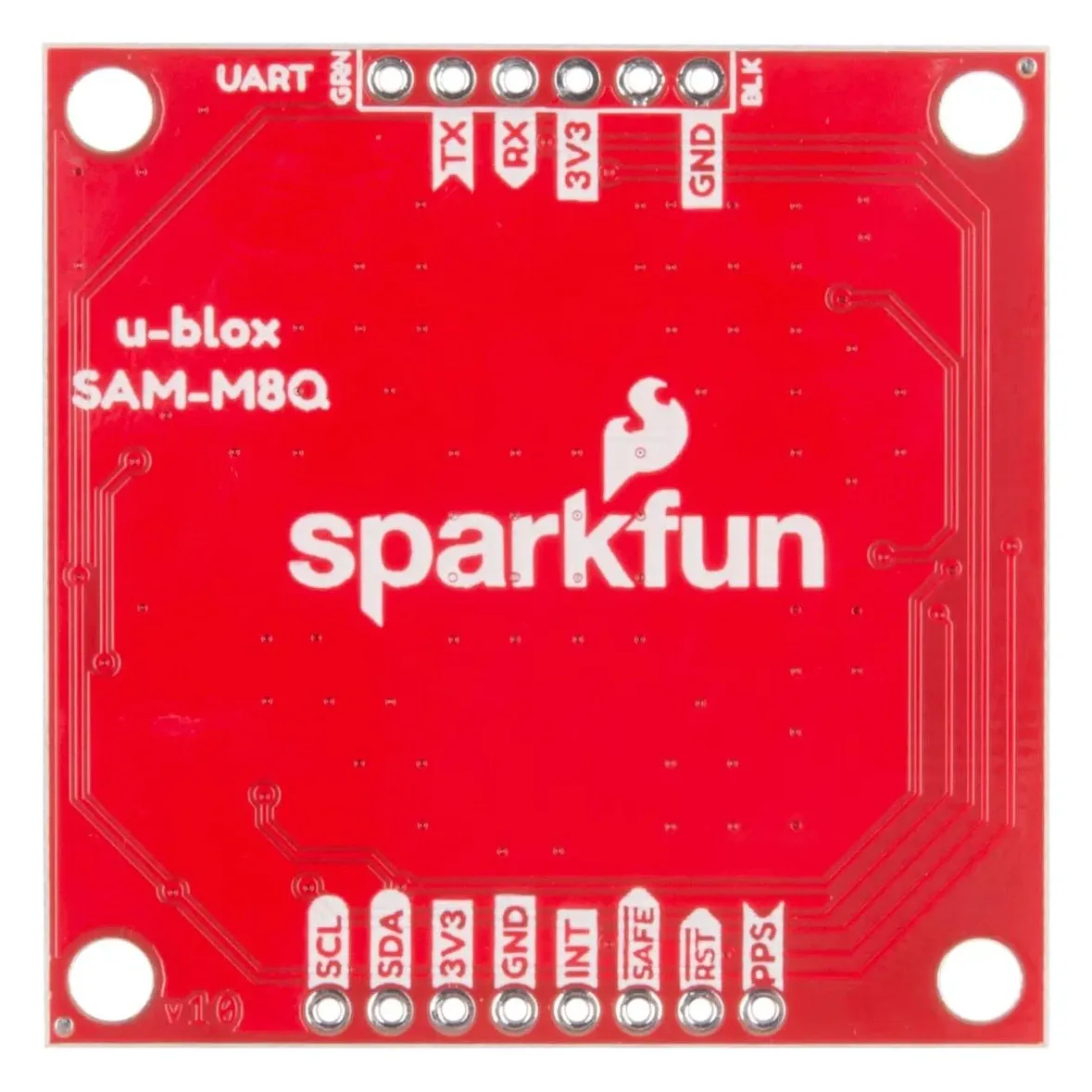

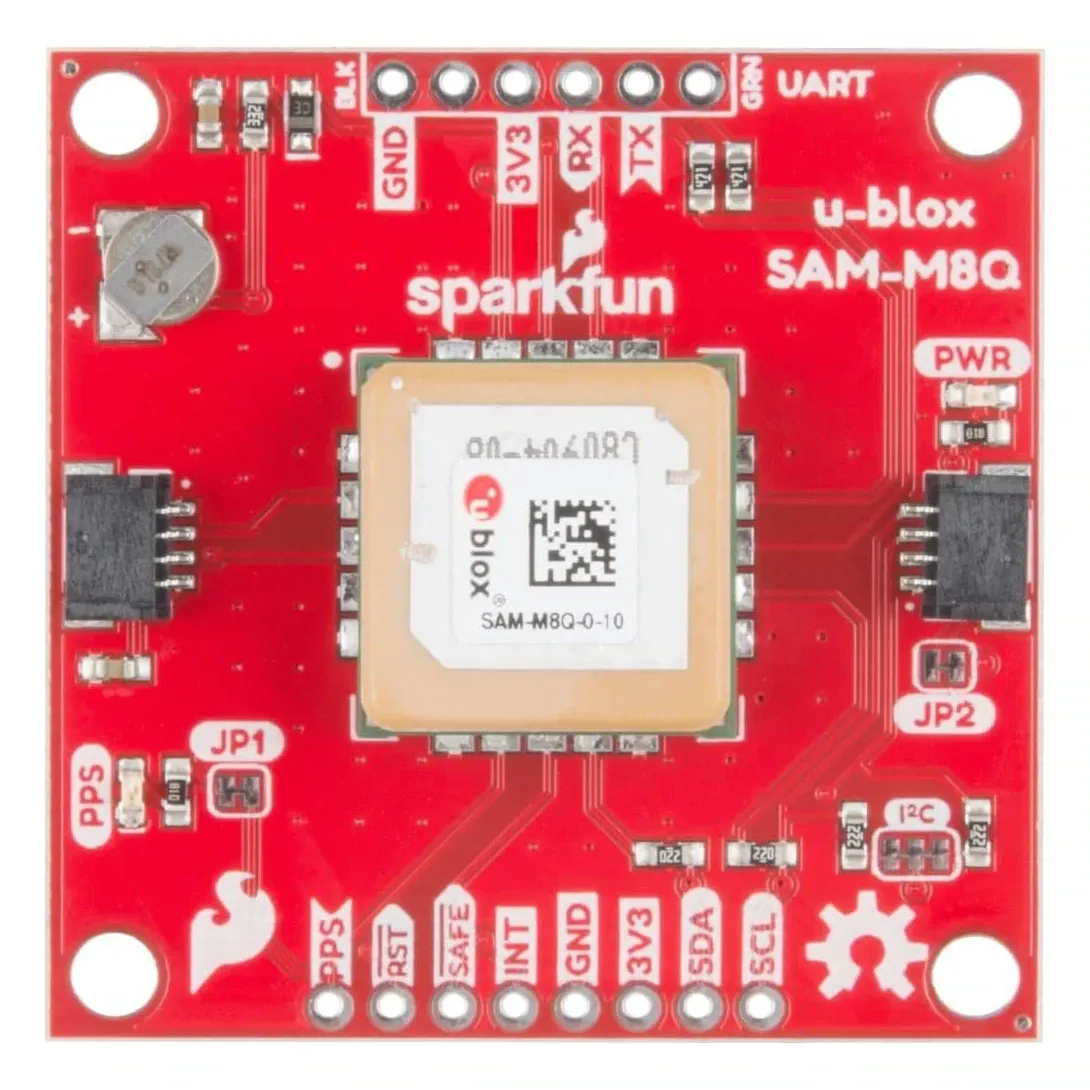

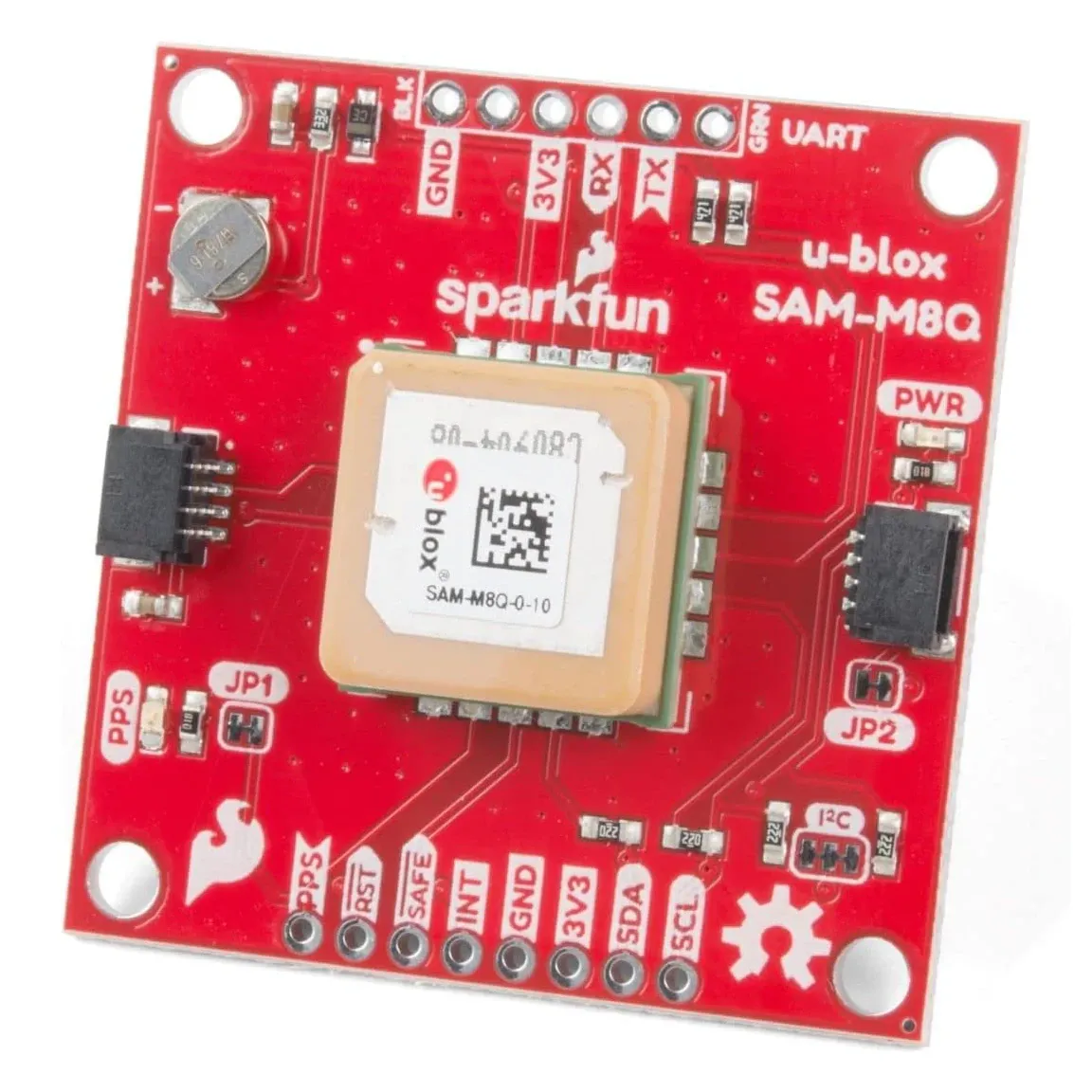

SparkFun GPS-15210 SAM-M8Q GPS Breakout, Chip Antenna

The SparkFun GPS-15210 is a GNSS breakout board built around the u-blox SAM-M8Q receiver, with an integrated antenna and Qwiic I2C connector for drone navigation and embedded positioning projects.

Key features

• 72-channel SAM-M8Q engine tracks GPS, GLONASS and Galileo simultaneously for better accuracy and lock reliability.
• Integrated patch antenna, SAW filter and LNA remove the need for external RF wiring.
• Qwiic connectors give solder-free I2C wiring, with legacy 0.1in pins also broken out.
• Onboard backup battery preserves orbit data, cutting hot-start lock time to around 1 second against a 26 second cold start.
• Board measures 40.64 x 40.64mm with four 4-40 mounting holes, and runs from a 2.7-3.6V supply.

Specifications

• GNSS module: u-blox SAM-M8Q, 72 channels
• Constellations: GPS, GLONASS, Galileo
• Antenna: integrated chip antenna
• Max update rate: 18 Hz
• Interfaces: UART, I2C (Qwiic), PPS, interrupt
• Protocols: NMEA, UBX, RTCM
• Supply voltage: 2.7-3.6 V
• Current draw: approx. 29 mA continuous, 9.5 mA in power-save

Confirm the host flight controller or microcontroller supports Qwiic/I2C or UART GNSS input before wiring it in.
