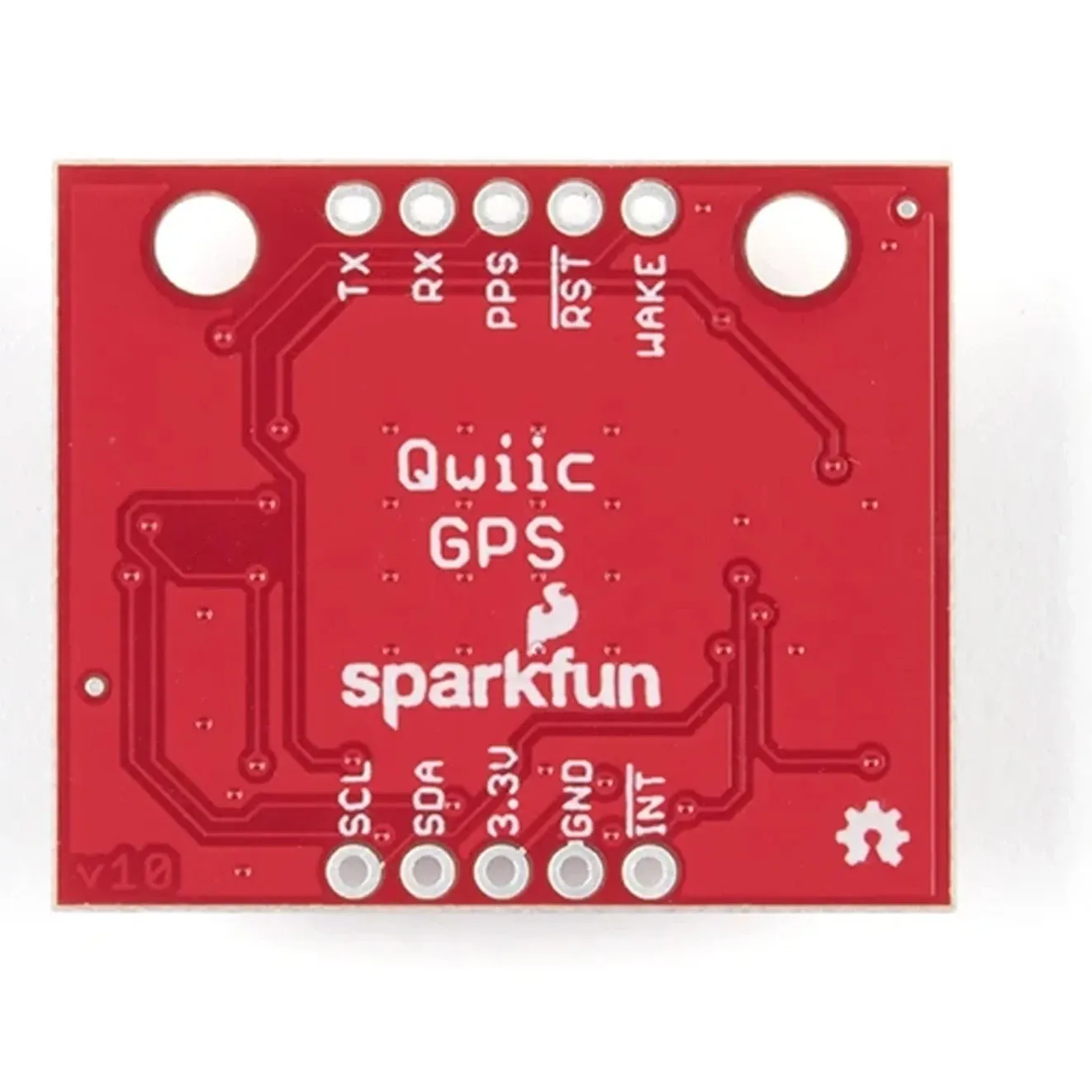

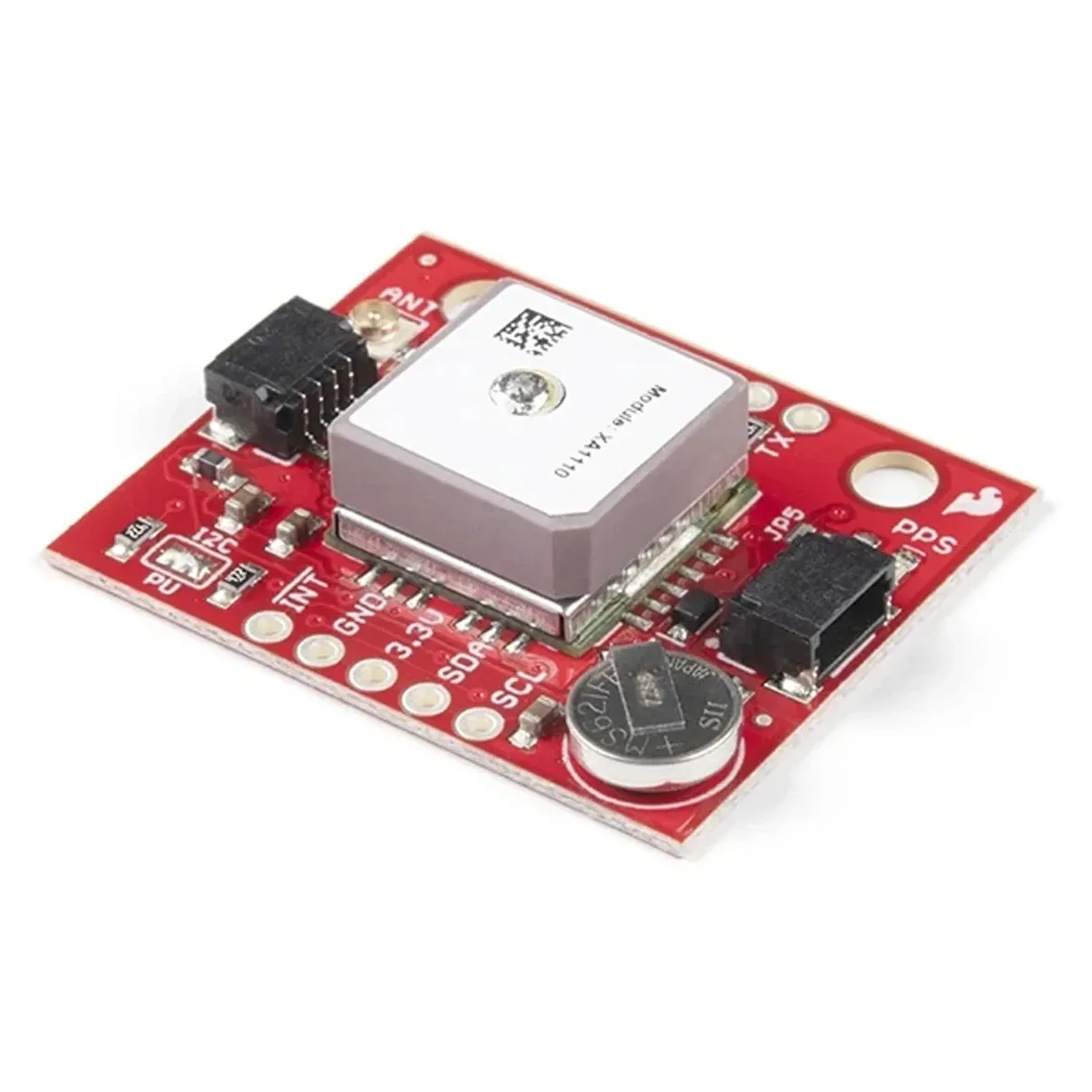

SparkFun GPS-14414 XA1110 GPS Breakout
₹5,499Incl. GST
SKU SPARKFUN-GPS-14414-XA1110
Made in India: NoBrand: SparkFunGNSS Chipset: XA1110Antenna Connector: U.FL
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SparkFun GPS-14414 is a GPS breakout board built around the XA1110 receiver. Its Qwiic interface makes it suitable for embedded navigation projects and drone electronics that support this connection.
Key features
- XA1110 GPS receiver
- Qwiic interface for compatible development hardware
- Suitable for navigation and positioning experiments
- I2C and serial communication at the same time, leaving the serial port free for other devices
- Onboard RTC battery for faster warm starts, plus a U.FL connector for an external antenna
Confirm the flight controller or companion computer interface before wiring this breakout into a drone system.
Specifications
- Receiver: XA1110
- Chipset: MediaTek MT3333
- Constellations: GPS, GLONASS, QZSS, SBAS
- Channels: 99 search, 33 simultaneous tracking (up to 210 PRN)
- Interface: Qwiic
- Communication: I2C, serial
- Antenna connector: U.FL
- Dimensions: 31 x 26 x 5 mm
- Weight: 5 g
| Made in India | No |
|---|---|
| Brand | SparkFun |
| GNSS Chipset | XA1110 |
| Antenna Connector | U.FL |
