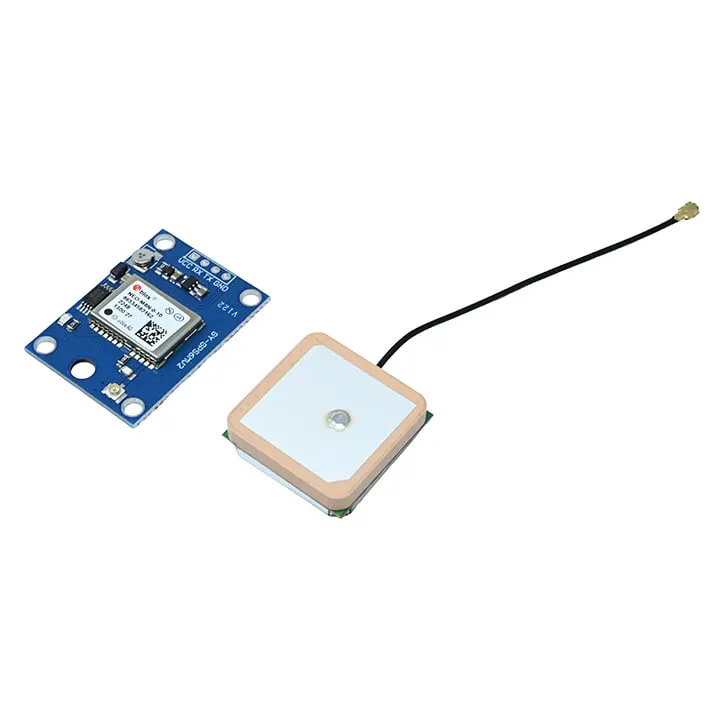

NEO-M8N GPS Module with Ceramic Active Antenna
₹999Incl. GST
SKU NEO-M8N-GPS-CERAMIC
Compass Included: NoMade in India: NoBrand: GenericRTK Support: No
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The NEO-M8N GPS module pairs the NEO-M8N GNSS chipset with a ceramic active antenna, adding satellite positioning to a compatible flight controller.
Key features
- Ceramic active antenna gives a stronger GNSS signal than a passive antenna.
- TCXO oscillator and a battery-backed RTC crystal support a fast position fix.
- 64KB of onboard flash stores AssistNow offline data, for faster fixes without a live network connection.
- LED status indicator shows GNSS lock at a glance, without needing a ground-station link.
- Default UART baud rate of 9600, matching most flight-controller GPS ports.
- Backed-up EEPROM retains configuration data through power cycles.
Specifications
- GNSS chipset: NEO-M8N
- Receiver: 72-channel u-blox M8 engine
- Antenna: Ceramic active
- Input voltage: 3-5 V
- Onboard flash: 64KB
- Default baud rate: 9600
- Dimensions: module 26 x 36 x 4 mm; antenna 26 x 26 x 9 mm
- In the box: GPS module, ceramic active antenna
Connect it to a flight controller with a free GPS/UART port, and enable GPS-assisted modes such as position hold and return-to-home in the firmware.
| Compass Included | No |
|---|---|
| Made in India | No |
| Brand | Generic |
| RTK Support | No |
| GNSS Chipset | NEO-M8N |
| Supported Firmware | ArduPilot |
