Product details

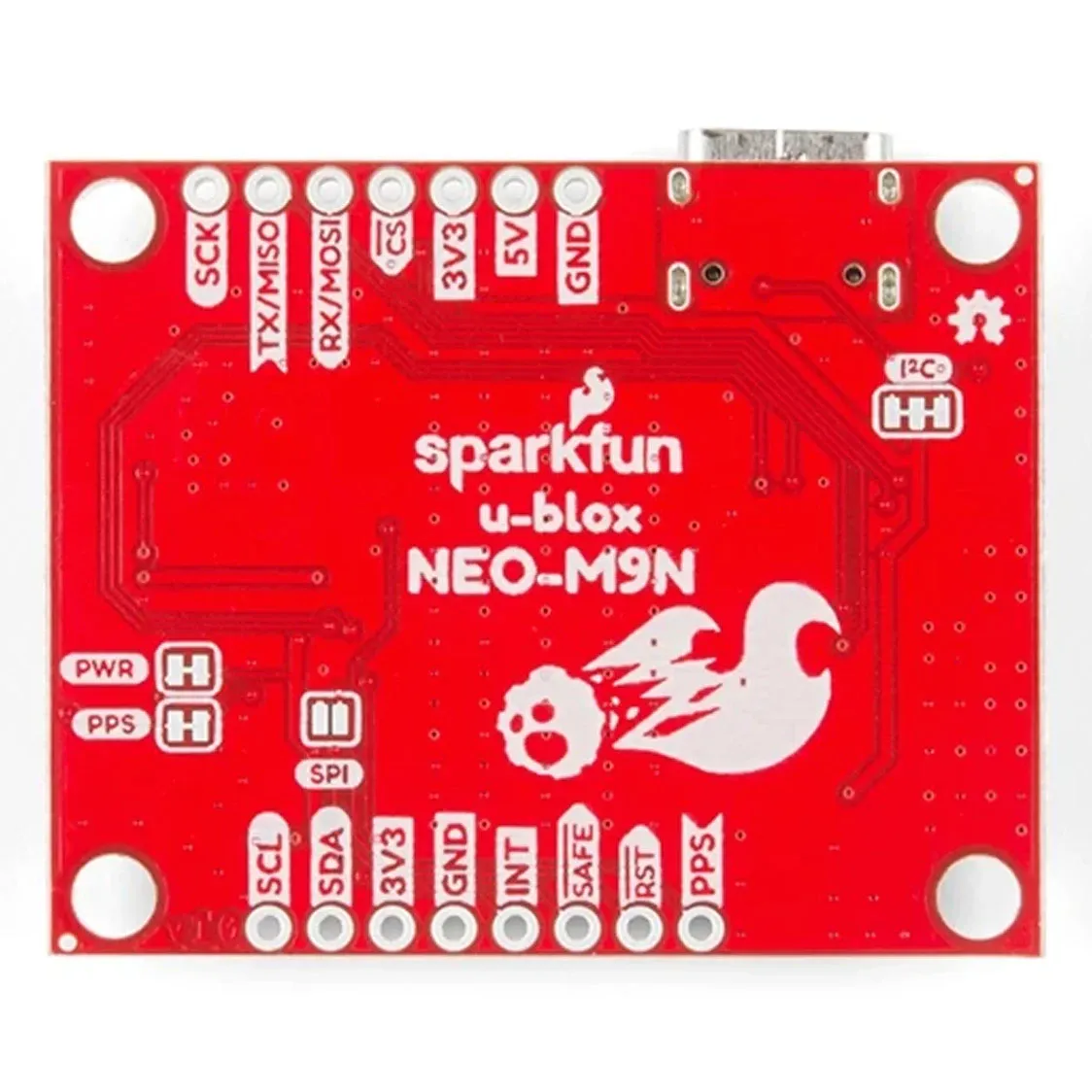

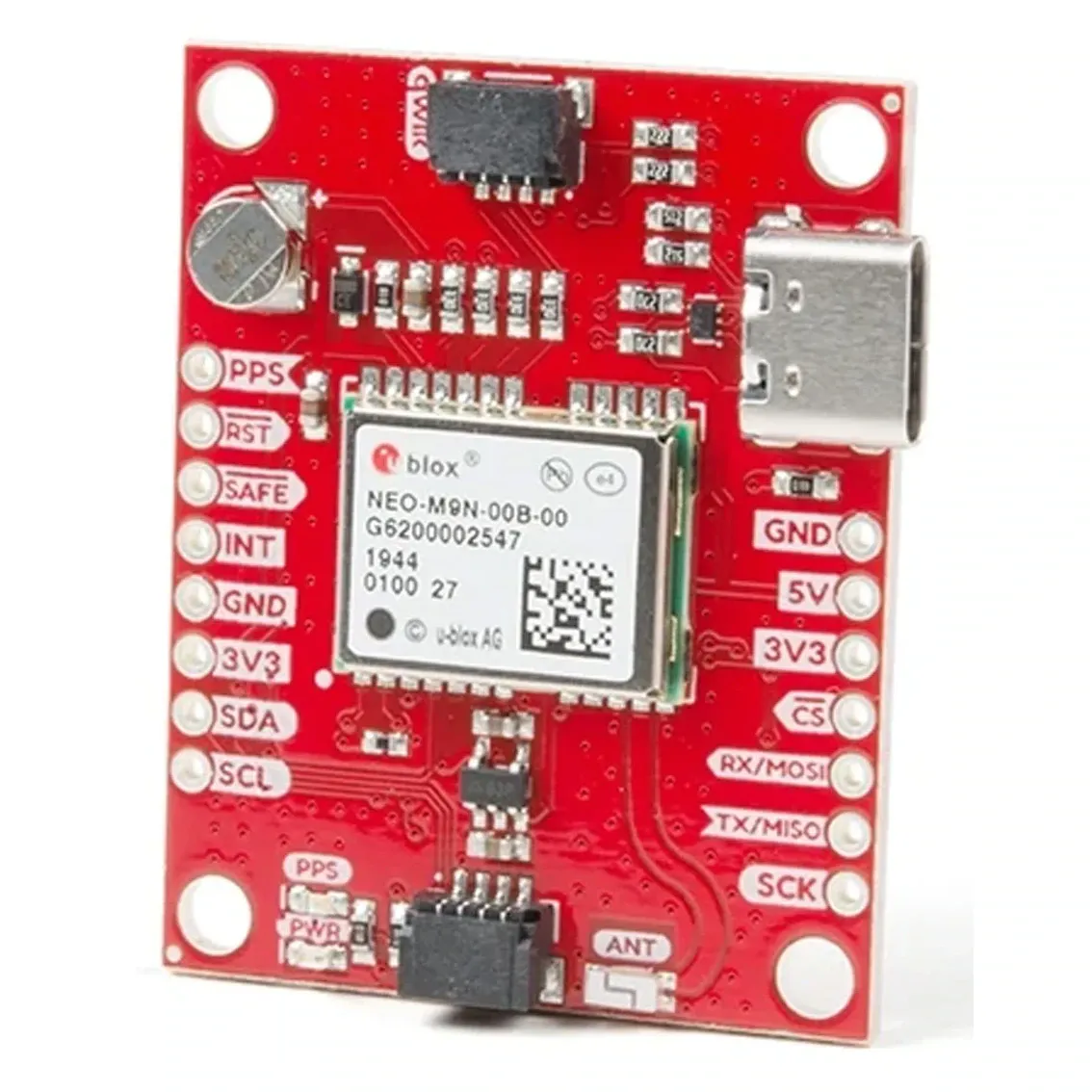

The SparkFun GPS-15733 is a NEO-M9N GPS breakout board with an onboard chip antenna, built for accurate positioning in drone, robotics and embedded navigation projects.
Key features
- 92-channel u-blox NEO-M9N receiver tracks GPS, GLONASS, Galileo and BeiDou concurrently for a strong fix.
- About 1.5m horizontal accuracy with a 25Hz maximum update rate, fast enough for responsive navigation.
- Onboard rechargeable battery cuts hot-start time to around 2 seconds, against roughly 24 seconds cold.
- Qwiic I2C connector plus broken-out UART pins; supports NMEA, UBX and RTCM protocols for varied setups.
- Runs on 3.3V and draws about 31mA while tracking, light on a small autopilot's power budget.
Specifications
- GNSS module: u-blox NEO-M9N
- Antenna: integrated chip antenna
- Interfaces: I2C (Qwiic), UART
- Operating voltage: 3.3 V
- Dimensions: 40.64 x 40.64 mm
- Weight: 10 g
Suited to flight controllers and companion computers that need a compact, high-accuracy GNSS receiver with built-in geofencing and spoofing detection.
| Made in India | No |
|---|---|
| Brand | SparkFun |
| GNSS Chipset | NEO-M9N |
