ReadyToSky Mini OSD Module for Pixhawk

This mini OSD module adds flight telemetry to Pixhawk and APM-based drones using an analogue FPV video feed.

Key features

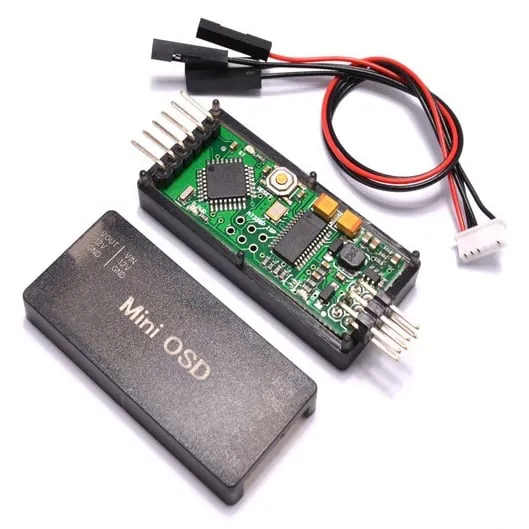

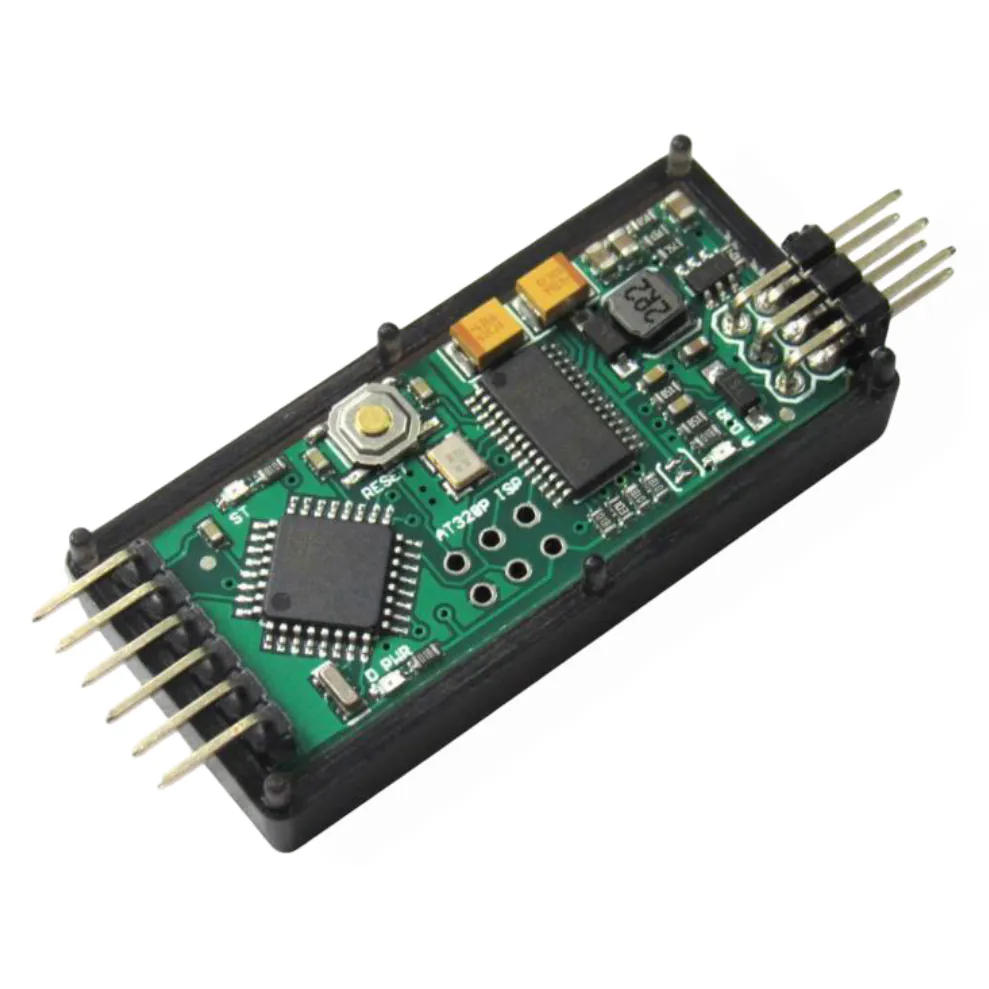

• Built around an ATmega328P with an Arduino bootloader and a MAX7456 monochrome on-screen-display chip.
• Compatible with APM 2.5, APM 2.6, APM 2.8 and Pixhawk PX4 flight controllers.
• Overlays GPS position, altitude, battery voltage and flight mode on the live analogue video feed.
• Two independent power sections, each with its own LED indicator, with solder jumpers to combine them.
• Onboard 5V regulator accepts up to 12V input; a solder jumper selects PAL video.

Specifications

• Microcontroller: ATmega328P (Arduino bootloader)
• OSD chip: MAX7456
• Regulator: 5 V, 500 mA, up to 12 V input

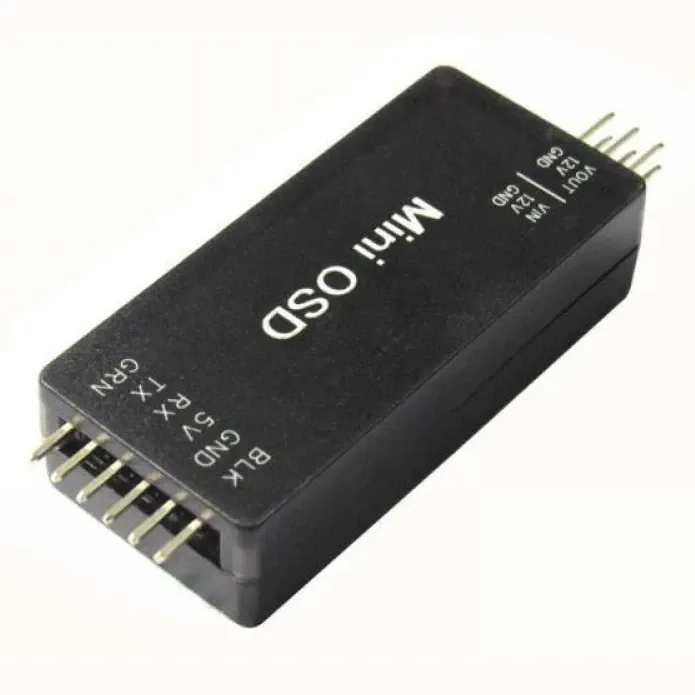

• Interfaces: FTDI-compatible pinout, standard 6-pin ISP header, exposed HSYNC and LOS test points
• Weight: 12 g

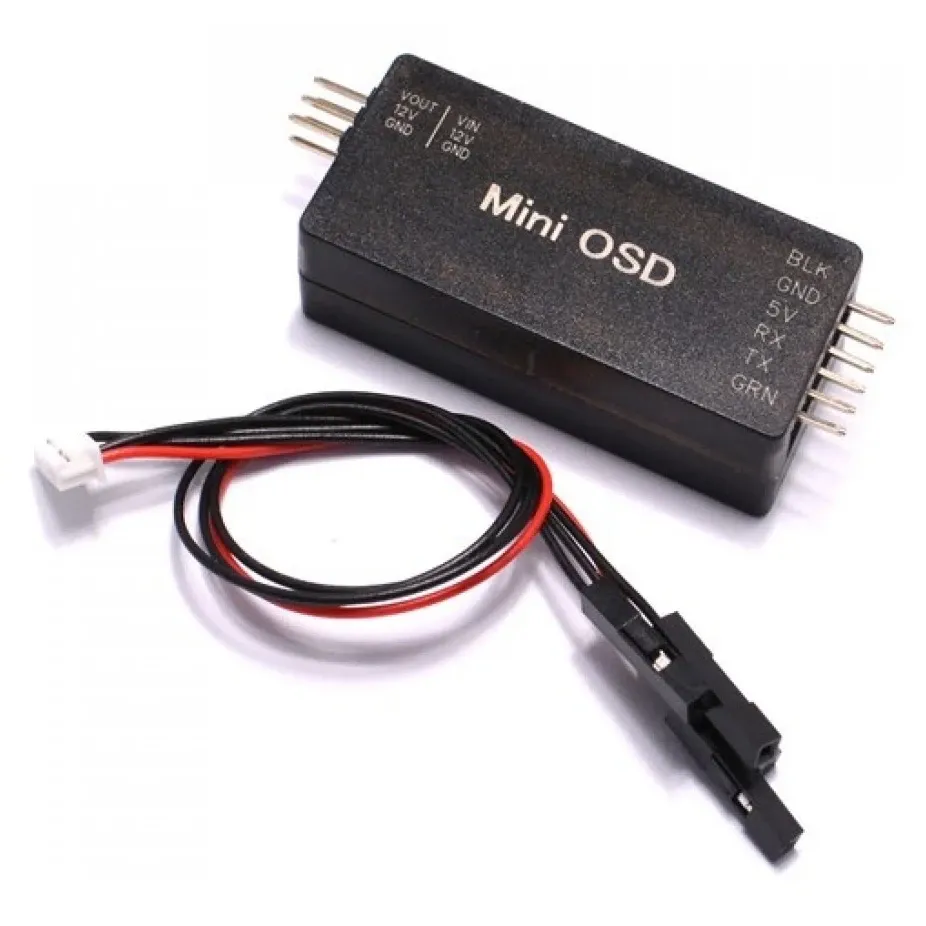

• In the box: OSD module, connecting cable

On APM 2 boards the OSD and USB connection share the same port, so disconnect USB before using the OSD.
