Holybro Micro OSD V2 On-Screen Display for Pixhawk
₹3,199Incl. GST
SKU HOLYBRO-MICRO-OSD-V2
Brand: HolybroMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Holybro Micro OSD V2 overlays live flight data from a Pixhawk-style flight controller onto an analogue FPV video feed, putting battery voltage, flight time, altitude and flight mode on the pilot's screen. It is plug-and-play with the Holybro Pixhawk 4 series (full and mini) and Holybro Durandal, and arrives preconfigured to show the basics.
Key features

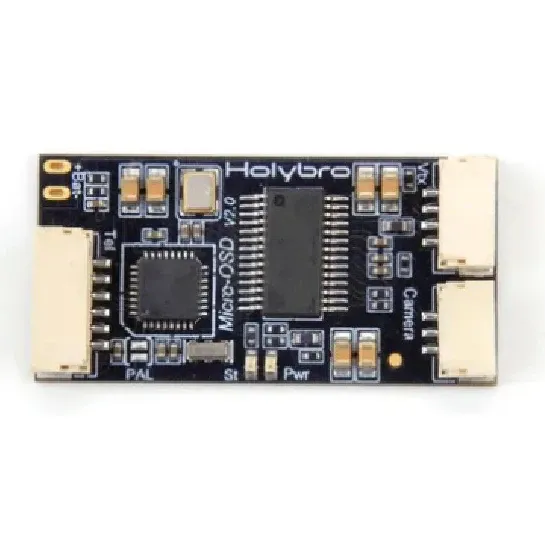

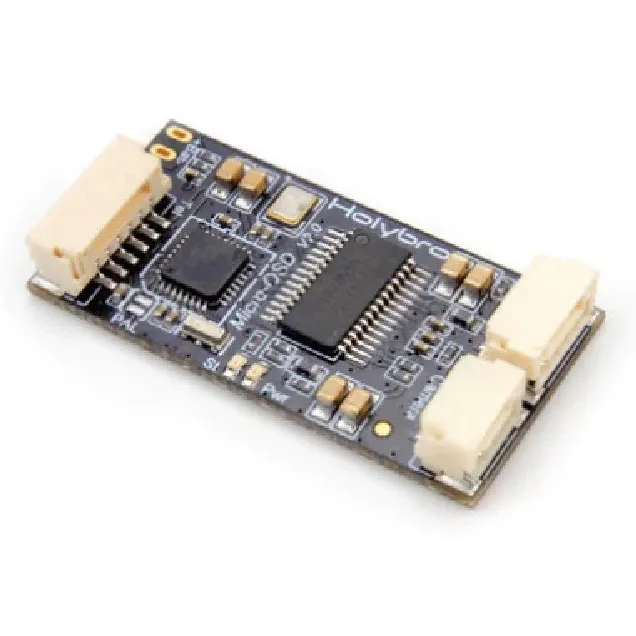

- ATmega328P with Arduino bootloader driving a MAX7456 monochrome OSD chip.
- PAL or NTSC video: a solder jumper selects PAL.
- Custom layouts through the configuration software, connected via an FTDI programmer (not included) on the standard 6-pin ISP header.

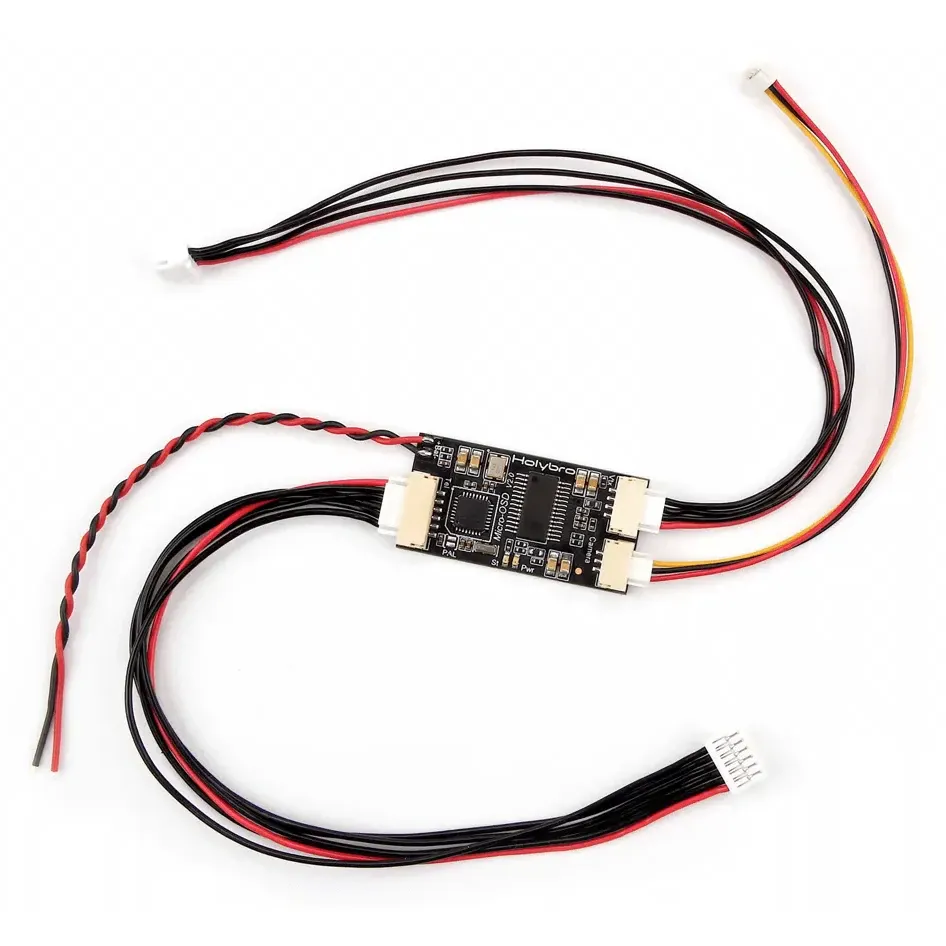

- GH cables included: 6-pin, 4-pin and 3-pin.
- Exposed HSYNC and LOS test points for troubleshooting.
Specifications
- Processor: ATmega328P
- OSD chip: MAX7456, monochrome
- Video standard: PAL / NTSC
- Programming header: 6-pin ISP
- Dimensions: 17.5 × 35 mm

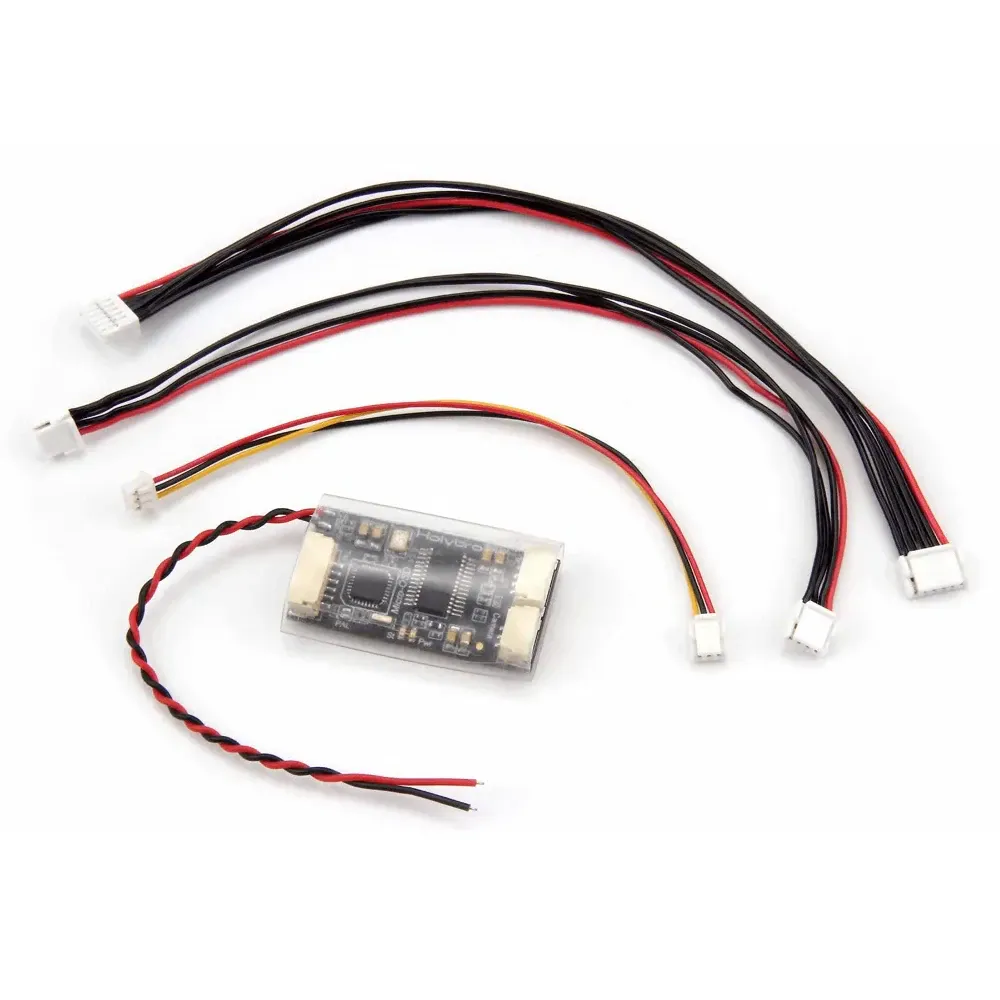

- In the box: Micro OSD, GH 6-pin, 4-pin and 3-pin cables

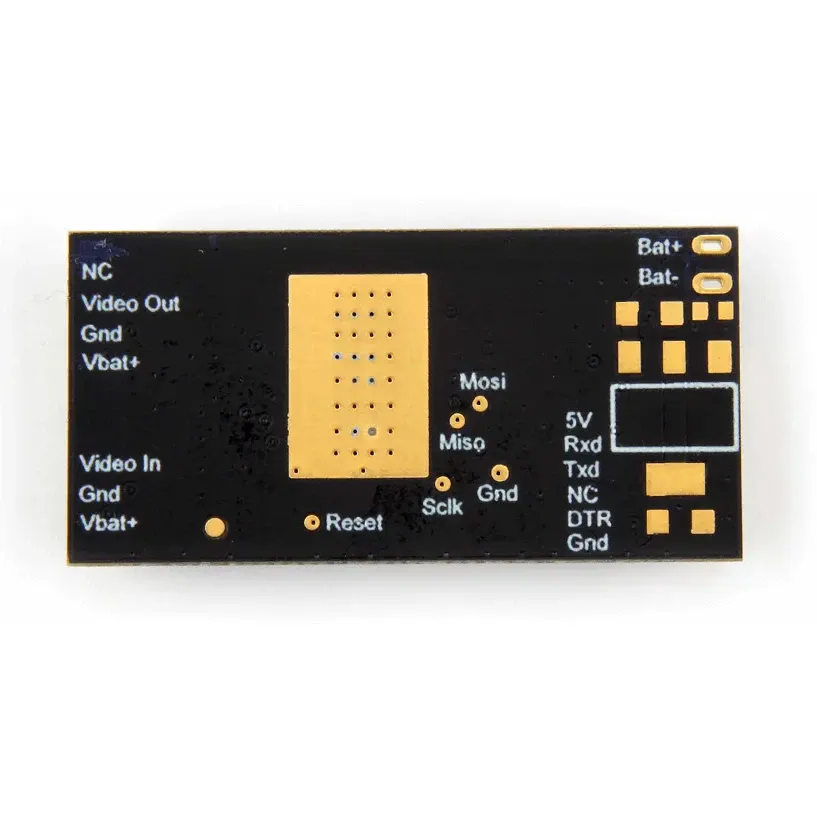

BAT+ on the board connects straight through to the VTX and camera, so check that both accept your pack voltage before powering up.
| Brand | Holybro |
|---|---|
| Made in India | No |
