CubePilot Mini Carrier Board Cable Set V2.1 (HX4-06224)
₹1,749Incl. GST
SKU CUBEPILOT-MINI-CARRIER-CBL-V21
Made in India: NoBrand: CubePilotConnector Type: JST-GHCable Length: 100 mm, 150 mm, 200 mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

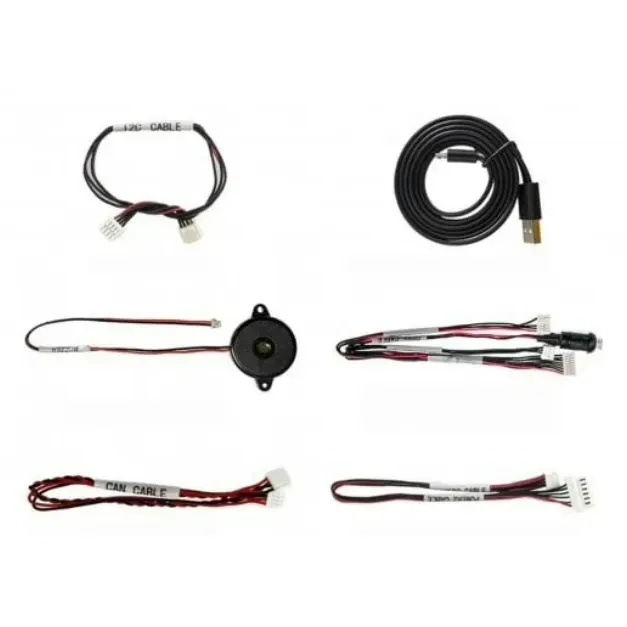

A complete replacement cable set for the CubePilot (HEX) Mini Carrier Board, the compact baseboard that hosts a Cube flight controller. Use it to wire up a new build or to replace damaged or missing leads without buying another carrier board. The Cube and the Mini Carrier Board are not included.
Key features

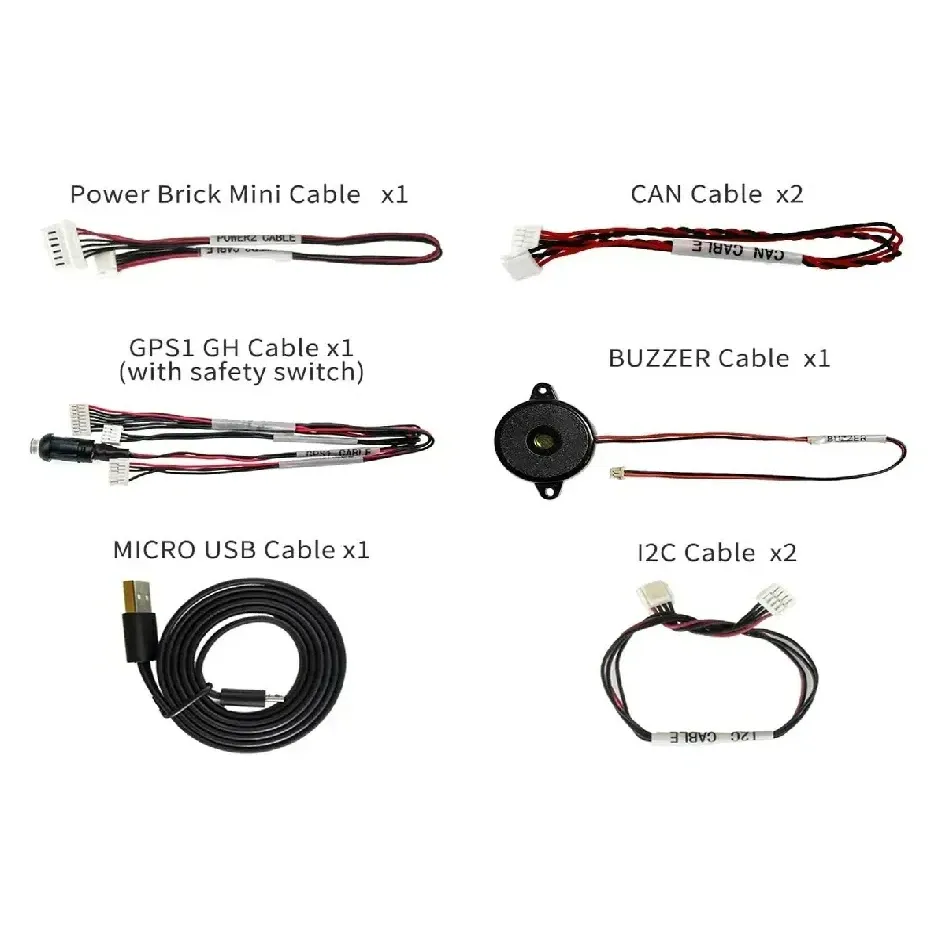

- Two CAN cables and two I2C cables (150 mm each) for CAN peripherals, external compasses and sensors
- GPS1 cable (200 mm) with JST-GH connectors for the primary GPS port
- Power Brick Mini cable (100 mm) to power the board from a CubePilot Power Brick Mini
- Micro USB cable (150 mm) for setup and firmware updates from a ground station
- Buzzer cable (100 mm) for the external buzzer
Specifications
- Part number: HX4-06224
- Version: V2.1
- CAN cables: 2 × 150 mm
- I2C cables: 2 × 150 mm
- GPS1 GH cable: 200 mm
- Micro USB cable: 150 mm
- Buzzer cable: 100 mm
- Power Brick Mini cable: 100 mm
The set is specified for the Mini Carrier Board, so confirm your carrier board model before ordering.
| Made in India | No |
|---|---|
| Brand | CubePilot |
| Connector Type | JST-GH |
| Cable Length | 100 mm, 150 mm, 200 mm |
