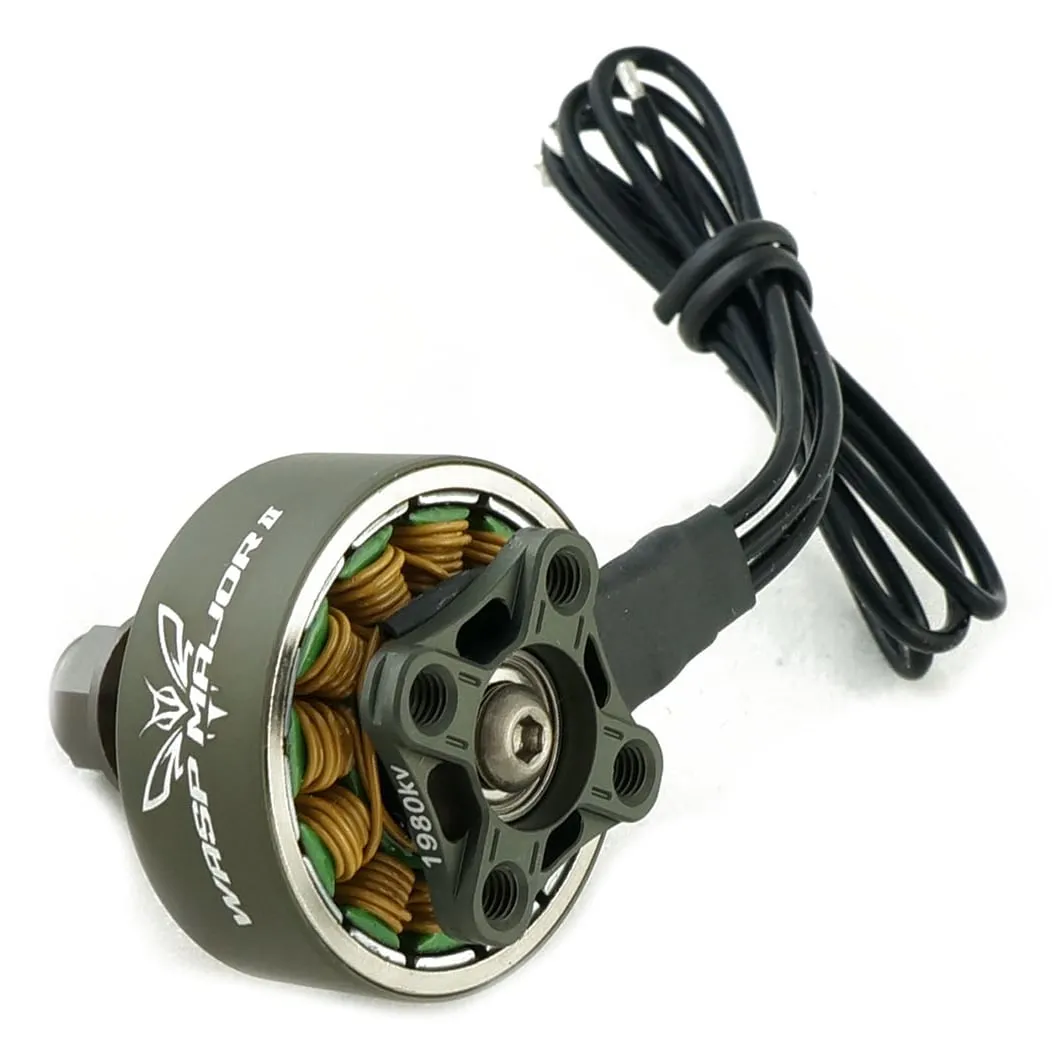

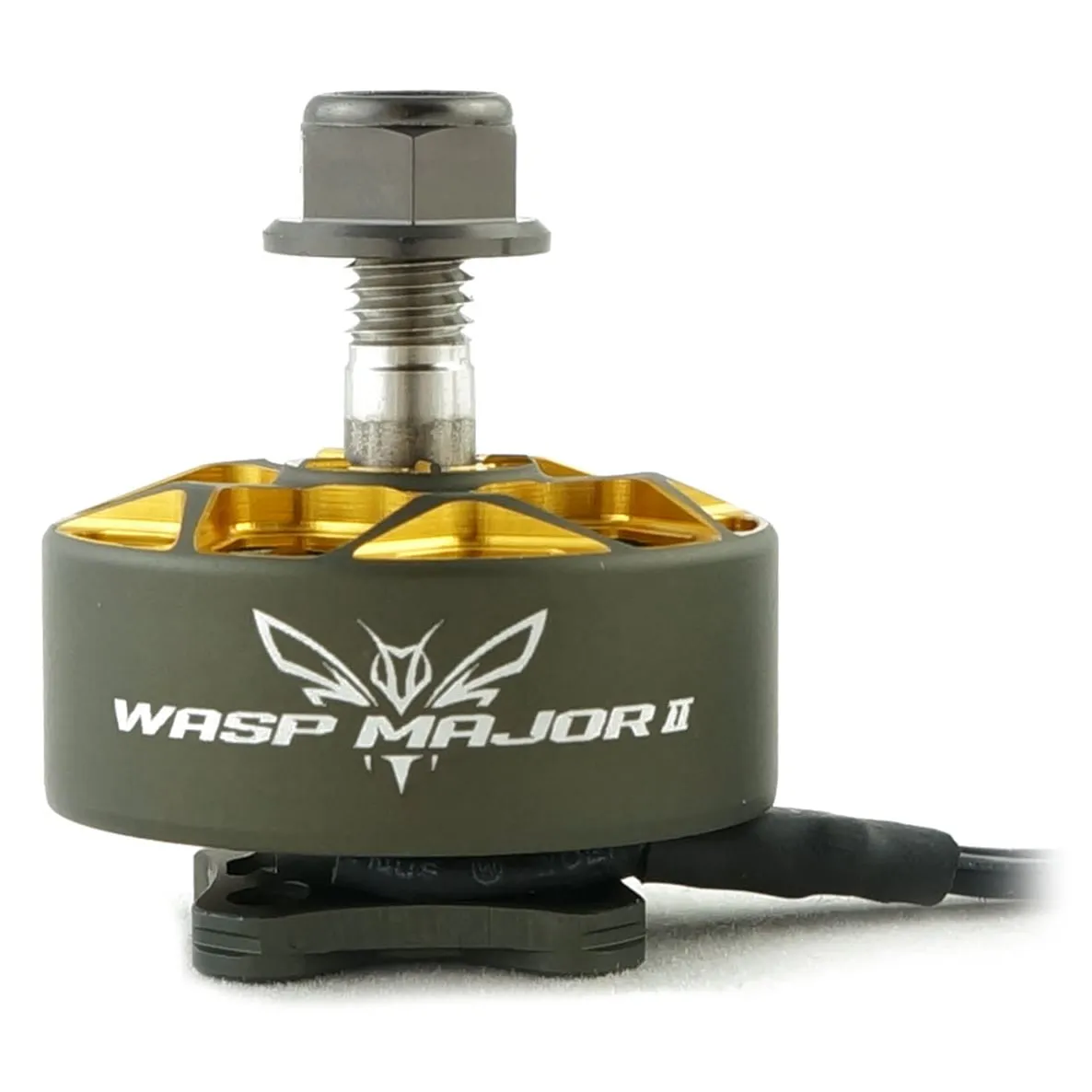

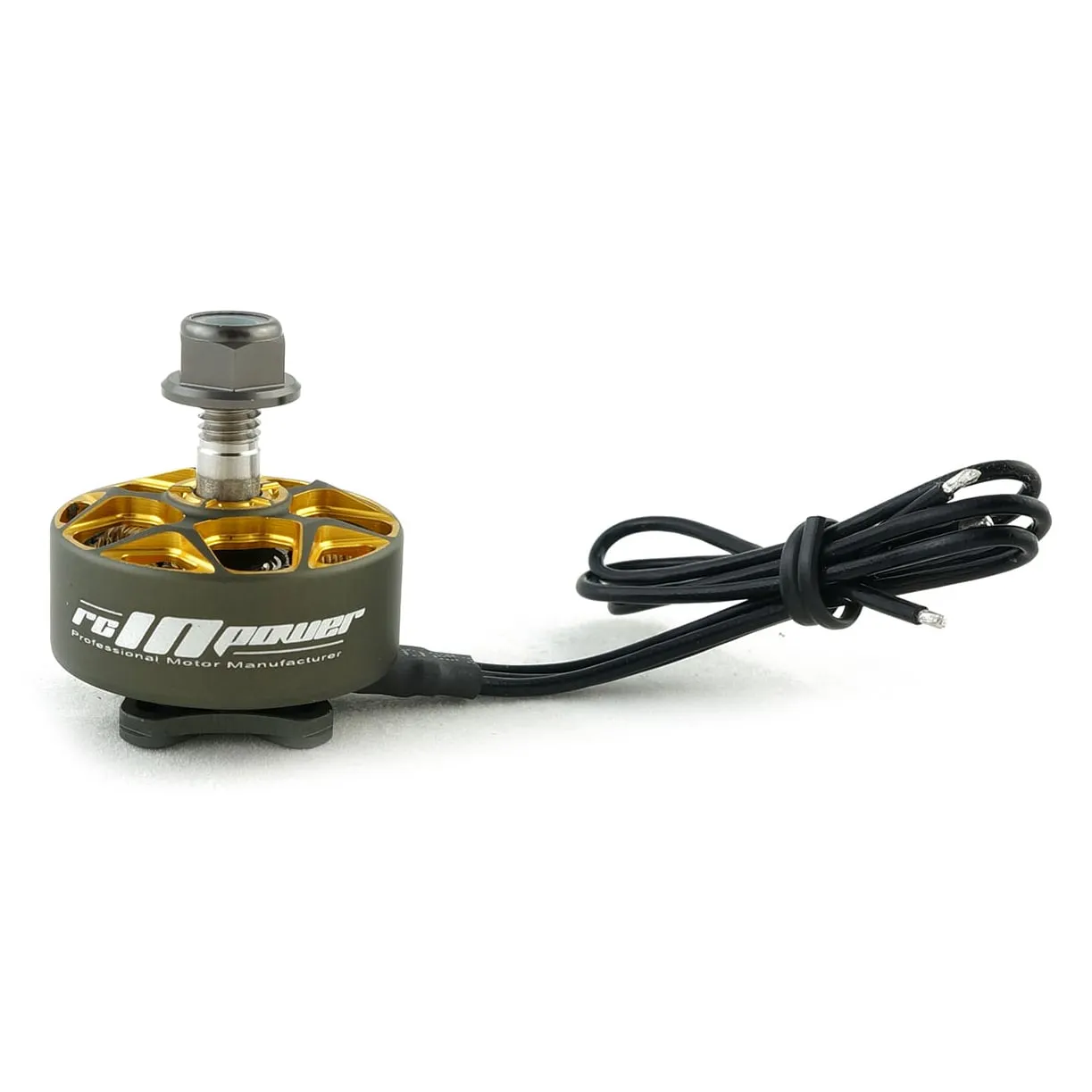

RCINPower Wasp Major V2 2206.6 1980KV Motor

The RCINPower Wasp Major V2 2206.6 1980KV is a high-performance brushless motor engineered specifically for 6S 5-inch freestyle, racing, and cinematic FPV drones. By utilising a unique 2206.6 stator size, this motor bridges the gap between the fast, immediate throttle response of a 2206 and the top-end torque of a 2207, giving pilots crisp low-end punch alongside outstanding efficiency.

Key features

• Unique 2206.6 stator geometry balances rapid spool-up speed with consistent torque for 6S 5-inch builds.
• Machined from aerospace-grade 7075 aluminium to resist bell deformation during hard freestyle impacts.
• Utilises N52H arc magnets within a 12N14P configuration for precise magnetic field alignment and ultra-smooth rotation.
• Equipped with high-precision Japanese 684ZZ 9x4x4mm bearings to minimise mechanical vibration and bearing wear over time.
• Includes pre-soldered 150mm 20AWG silicone lead wires, providing ample length for direct connection to 4-in-1 ESCs.

Specifications

• Stator Size: 2206.6
• KV Rating: 1980 KV
• Input Voltage: 6S LiPo
• Configuration: 12N14P
• Propeller Shaft: 5mm (M5 thread)
• Mounting Pattern: 16x16mm (M3)
• Lead Wires: 20AWG, 150mm
• Weight: 33 g with the 150 mm leads (29.5 g with 3 cm leads)

The 1980KV rating is optimised for 6S power systems running standard 5-inch or 5.1-inch tri-blade propellers. For optimal performance and thermal headroom, pair this motor with a 45A to 55A ESC on a sturdy carbon fibre frame with standard 16x16mm arm mounting holes.
