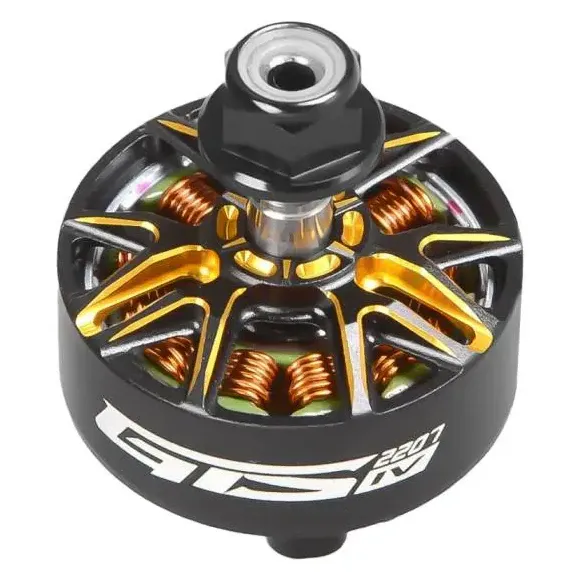

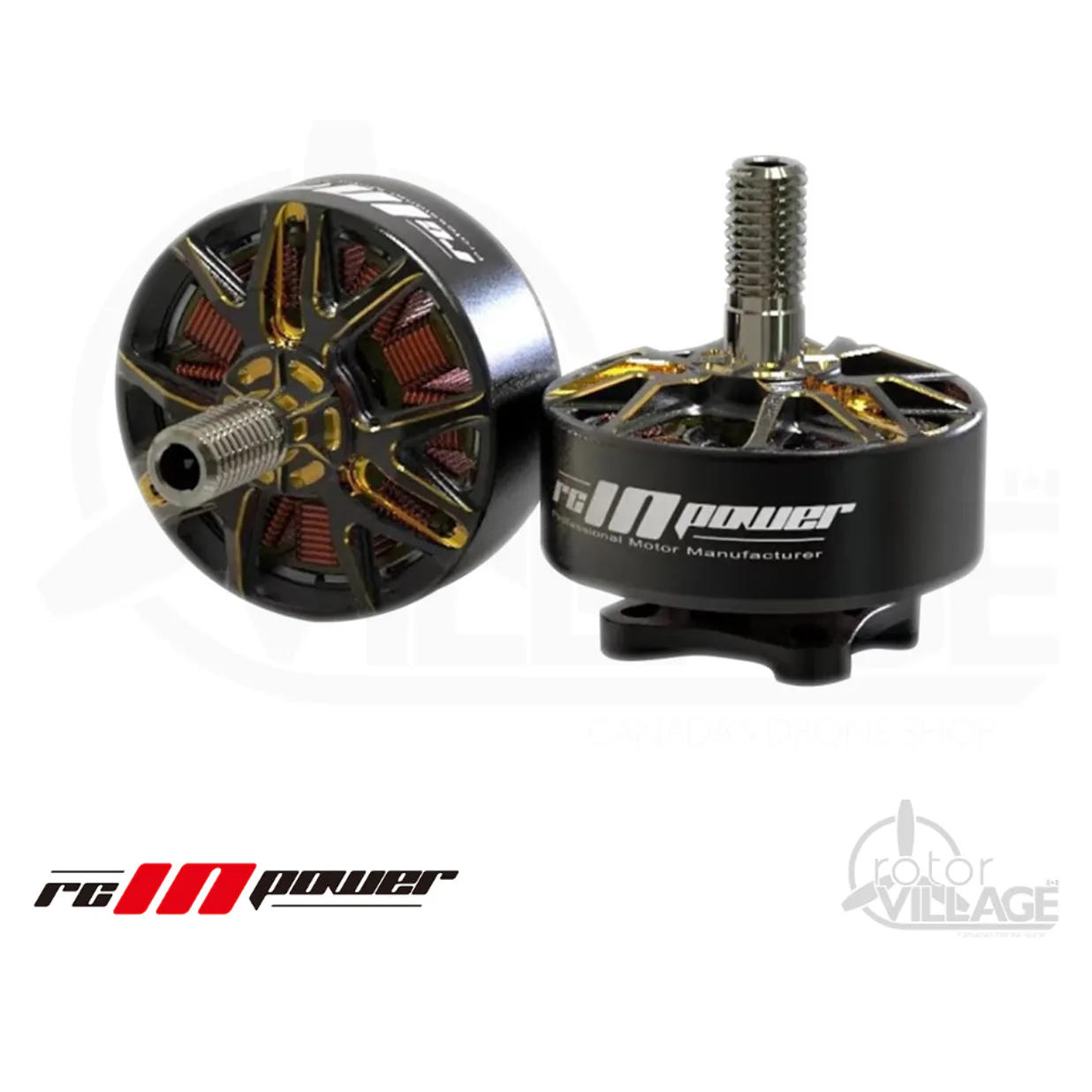

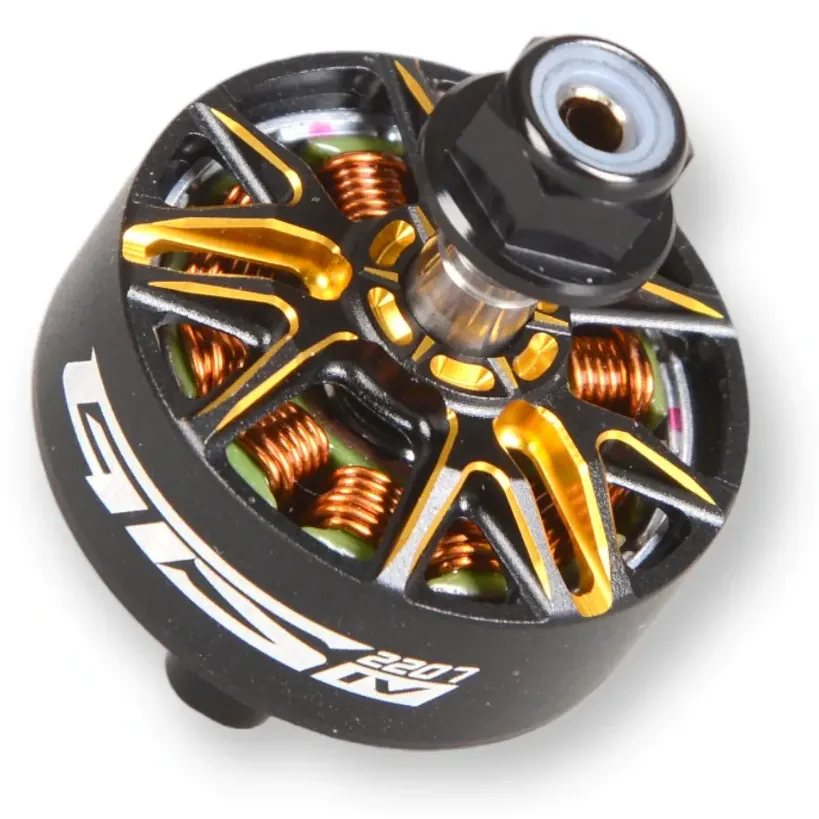

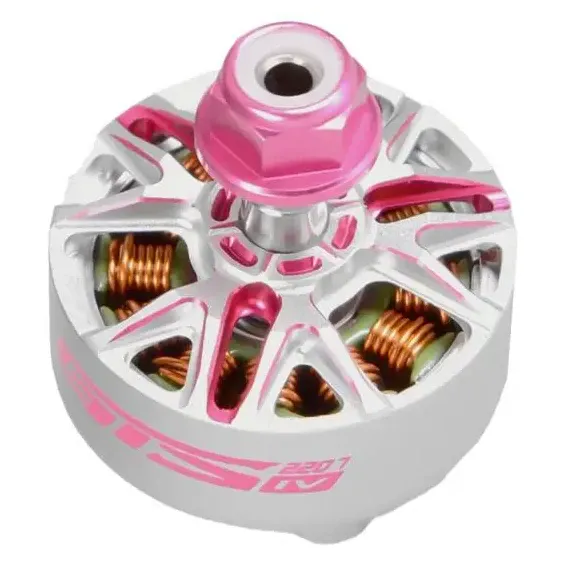

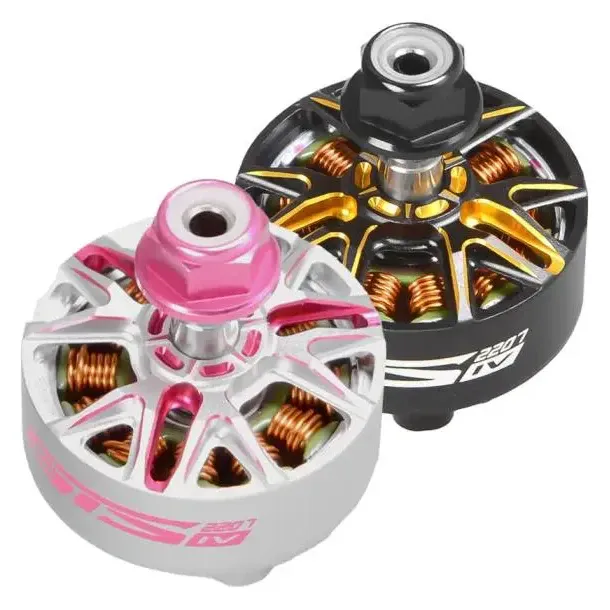

RCINPower GTS V4 2207 2040KV Motor

The RCINPOWER GTS V4 2207 2040KV brushless motor is engineered for 5-inch FPV freestyle and racing drones. Featuring the V4 iteration's refined unibody bell, this motor is designed to balance torque and thermal efficiency. The 2040KV rating makes it a versatile choice, delivering aggressive top-end thrust for heavy 4S setups or a highly responsive, high-RPM powerband for 5S builds.

Key features

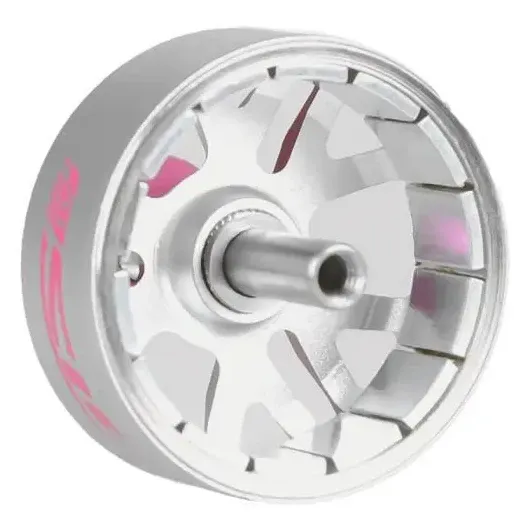

• Unibody bell design improves structural durability against prop strikes and hard crashes.
• Hollow titanium alloy shaft reduces rotational mass for faster, crisper throttle response.
• Optimised airflow pathing through the bell provides active cooling to the stator during sustained high-throttle flights.
• Standard M3 16x16mm mounting base ensures direct compatibility with nearly all modern 5-inch frames.

Specifications

• Stator Size: 2207
• KV: 2040

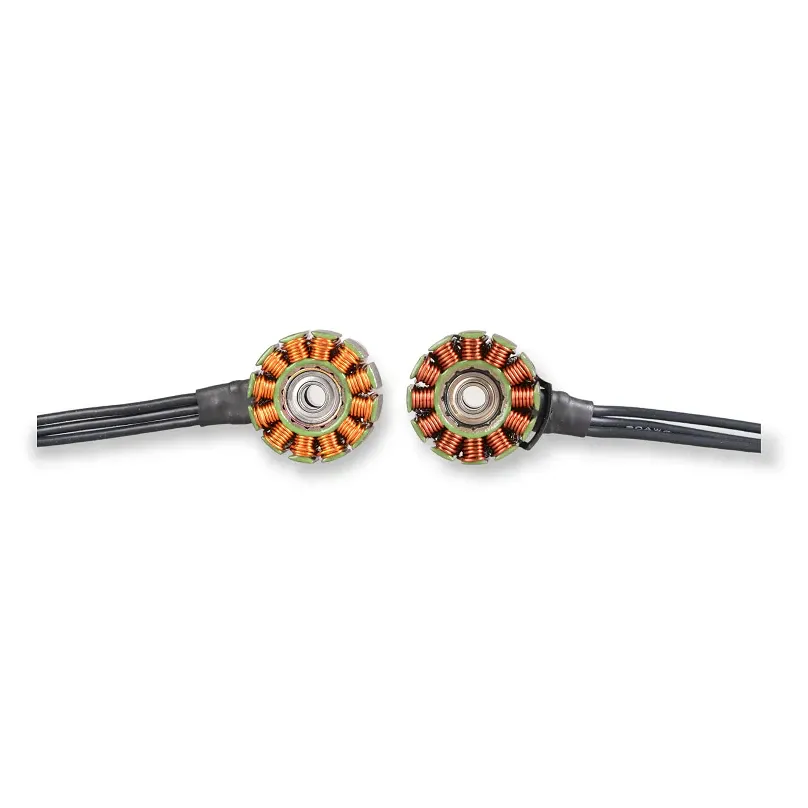

• Configuration: 12N14P
• Propeller Shaft: 5mm
• Internal Shaft: 4mm Titanium Alloy
• Mounting Pattern: 16x16mm (M3)
• Wire Gauge: 20AWG

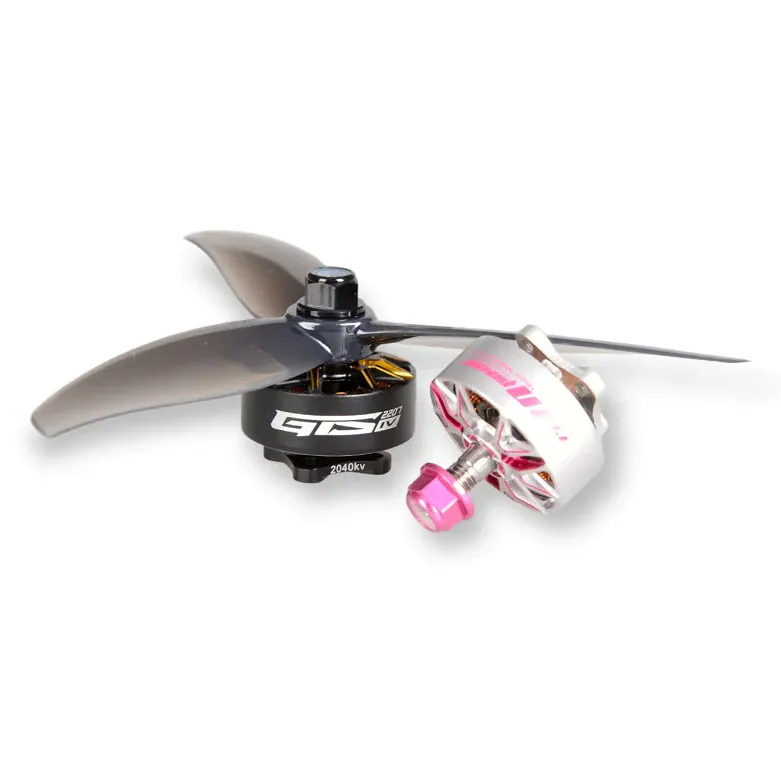

Pair this motor with a 50A or higher ESC and an aggressive 5-inch propeller (like a 5143 or 5147) for optimal performance on freestyle and track builds.
