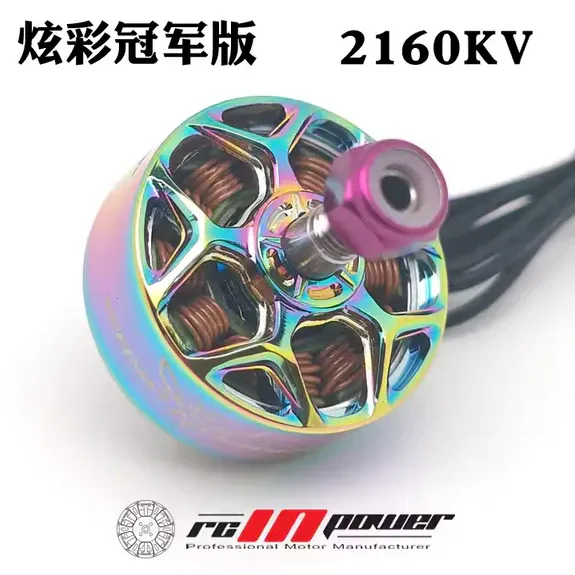

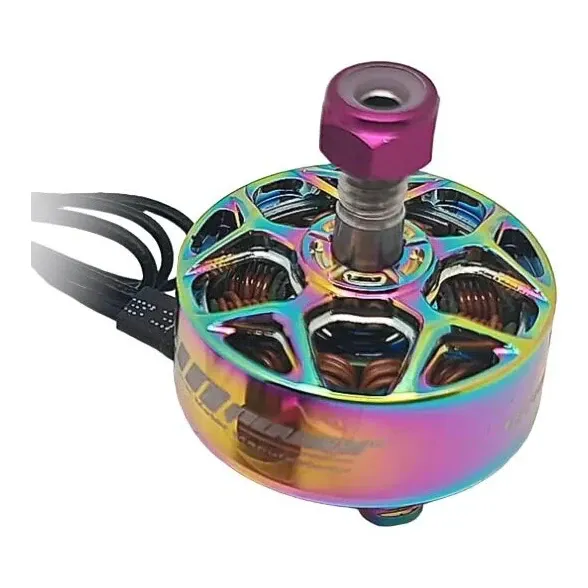

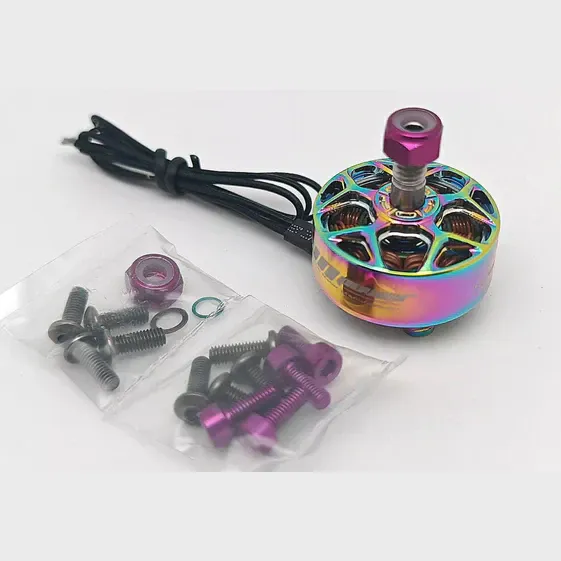

RCINPower Wasp Major V2 22.6-6.6 Champion Edition Motor

The RCINPower Wasp Major V2 22.6-6.6 Champion Edition introduces a unique stator geometry to 5-inch freestyle and racing builds. By splitting the difference with a 22.6mm width and 6.6mm height, this motor is engineered to combine the low-end torque characteristics of a 2306 with the rapid top-end throttle response of a 2207.

Key features

• Custom 22.6x6.6mm stator sizing bridges the performance gap between traditional 2207 and 2306 motors
• Hollow 5mm titanium alloy shaft provides excellent durability without excess weight
• One-piece machined bell maintains structural integrity during high-impact crashes
• Standard 16x16mm mounting base drops directly into modern 5-inch frames

Specifications

• Stator size: 22.6x6.6mm
• Configuration: 12N14P
• Shaft diameter: 5mm
• Shaft material: Titanium alloy
• Mounting pattern: 16x16mm (M3)
• Weight: 30.5g (including wires)

Ideal for aggressive 5-inch freestyle or racing platforms running a 50A or higher ESC, providing precise control and immediate spool-up across the entire throttle band.
