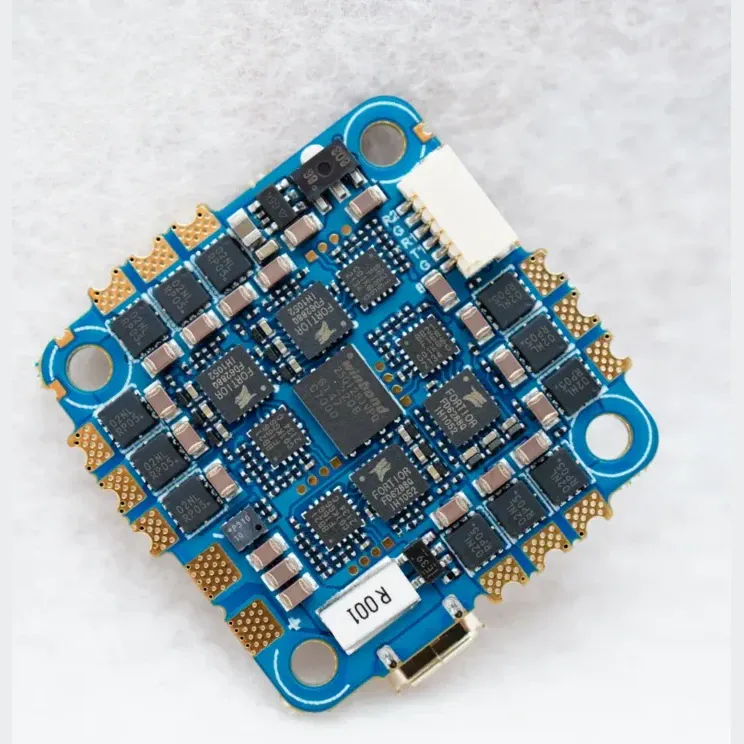

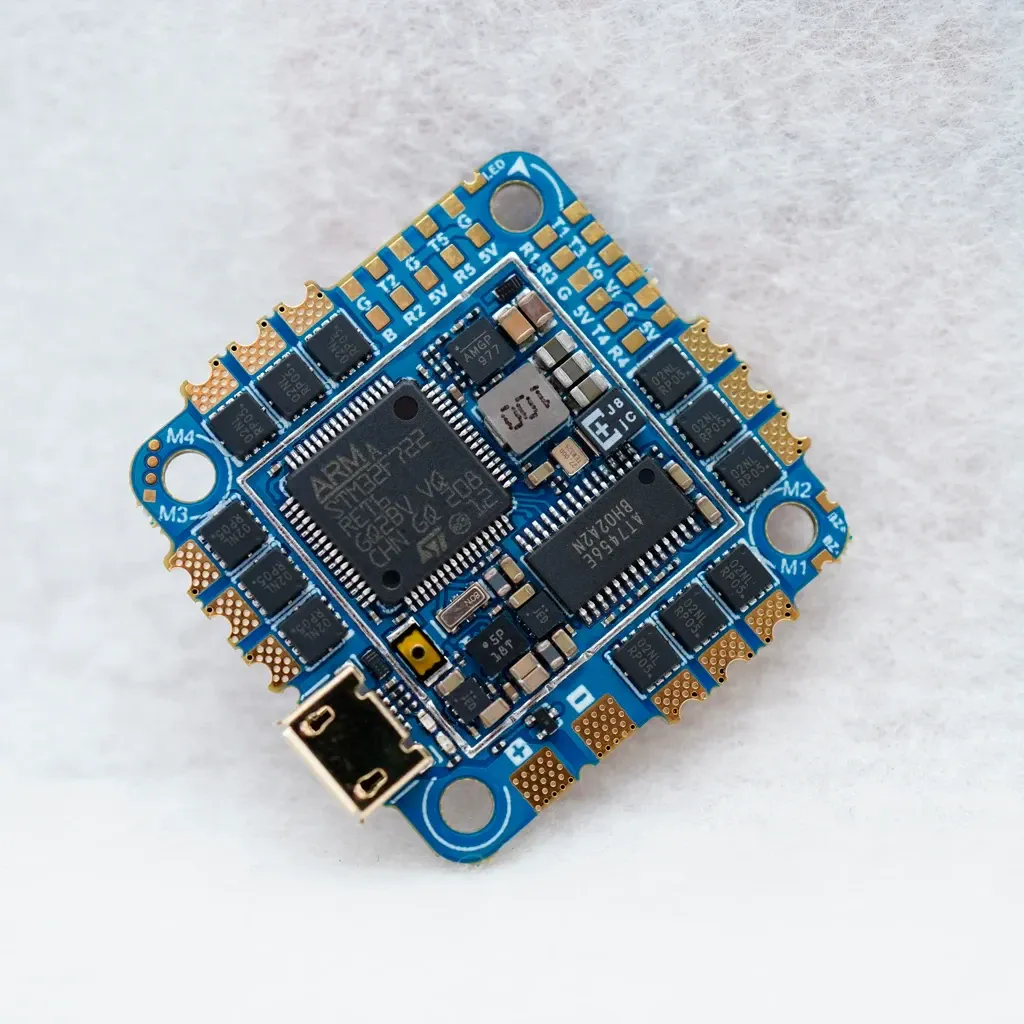

NeutronRC F722 45A 2-6S AIO

The NeutronRC F722 45A 2-6S AIO combines a high-speed STM32F722 flight controller with a robust 45A ESC on a single board. Designed for demanding 3.5-inch to 5-inch ultralight freestyle builds and heavy-duty cinewhoops, this all-in-one unit comfortably handles up to 6S battery voltage while keeping your centre of gravity low and wiring minimal.

Key features

• High-current 45A continuous (60A maximum on 5S) ESC architecture supports aggressive 6S throttle punches on larger toothpick motors.
• A 5V 2A BEC (2.5A maximum) powers the receiver and peripherals, and an SH1.0 6-pin plug connects DJI or Vista air units directly.
• Generous hardware UART allocation ensures seamless integration with modern serial receivers, GPS modules and VTX telemetry.
• Durable, oversized motor solder pads are positioned at the corners for clean, straightforward wire routing.

Specifications

• MCU: STM32F722
• Gyro: BMI270
• Barometer: DPS310
• OSD: AT7456E
• Blackbox: 16MB flash
• UARTs: 5
• Input Voltage: 2-6S
• Continuous Current: 45A
• Maximum Current: 60A (5S)
• ESC Firmware: BLHeli_S / Bluejay
• BEC: 5V 2A (2.5A max)
• HD VTX Plug: SH1.0 6-pin, DJI / Vista
• Sensors: current and voltage
• Mounting Size: 25.5x25.5
• Board Size: 34 x 34 x 7 mm
• Weight: 8 g
• USB Port: Type-C
• Supported Firmware: Betaflight (target NeutronRCF722AIO), INAV

With its direct-plug connector for digital VTX units, this AIO significantly reduces build complexity and soldering time for HD platforms like the DJI O3, Caddx Vista and Walksnail Avatar.
