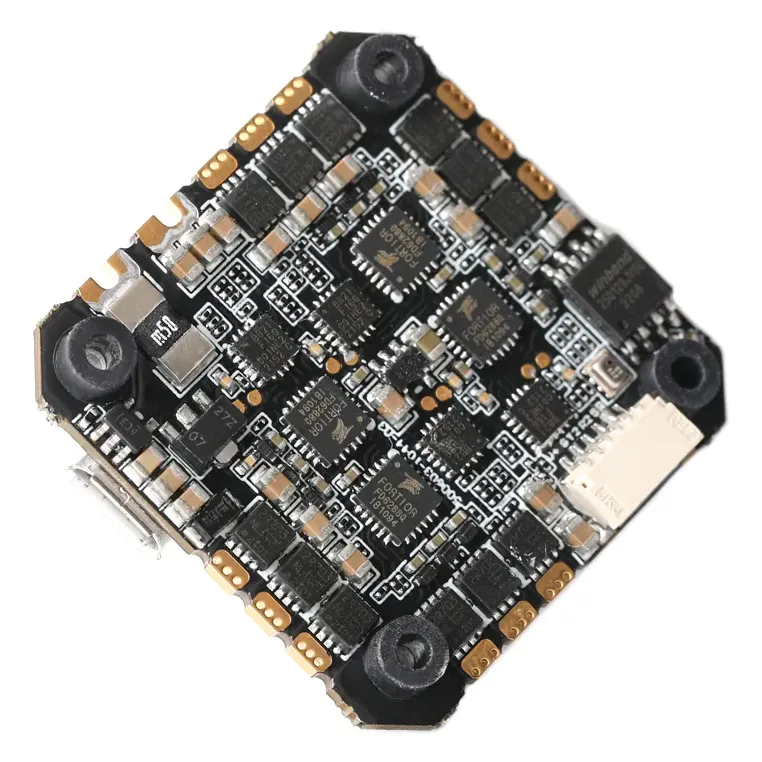

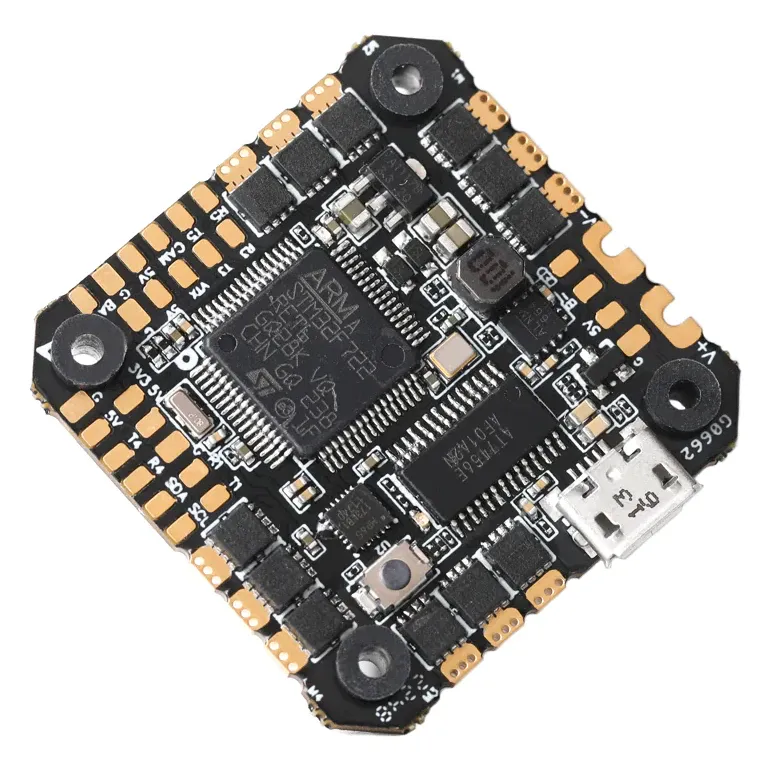

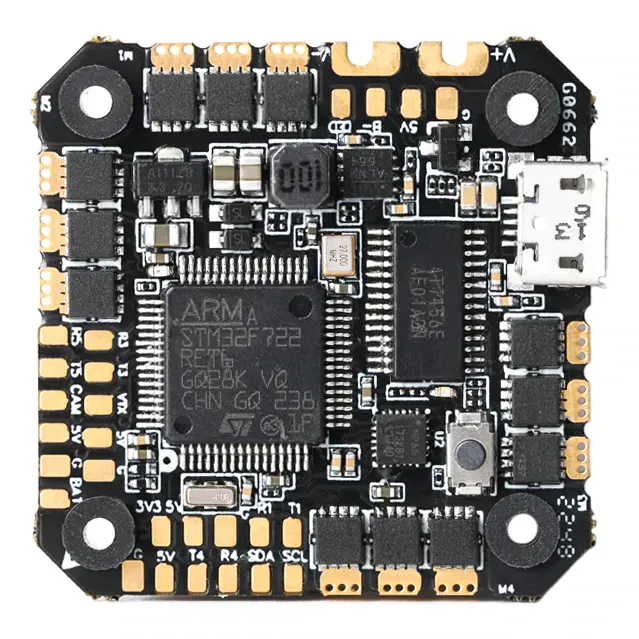

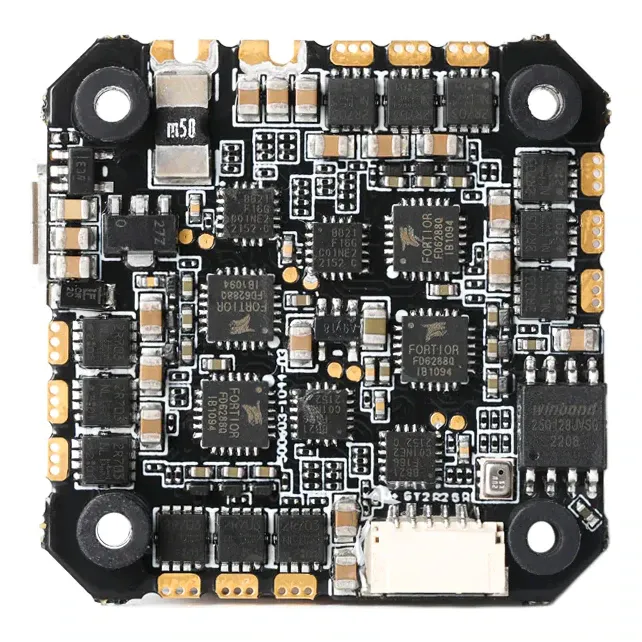

T-Motor F7 AIO F722 FC + 35A 3–6S ESC (HD + Analog)

The T-Motor F7 35A AIO merges a high-performance STM32F722 flight controller and a robust 35A BLHeli_S ESC into a space-saving whoop format. Engineered for 3-inch to 5-inch ultralight builds, cinewhoops, and toothpick drones running up to 6S power, this board comes ready for both digital HD and traditional analogue FPV setups.

Key features

• STM32F722 processor handles complex Betaflight filtering and high loop rates without CPU overload.
• Continuous 35A output with 3-6S LiPo support allows for heavy throttle punches on demanding micro frames.
• Integrated OSD chip for analogue video and dedicated connection pads for HD digital VTX setups.
• Generous pad layout provides multiple hardware UARTs for your receiver, GPS, and additional peripherals.

Specifications

• Processor: STM32F722
• Gyro: MPU6500
• Barometer: BMP280
• OSD: AT7456, plus HD VTX socket
• Blackbox: 16MB
• Input Voltage: 3-6S LiPo
• Continuous Current: 35A
• Peak Current: 40A
• ESC Firmware: BLHeli_S / Bluejay
• BEC: 5V 1.5A
• Mounting Pattern: 25.5x25.5mm, M3
• Board Size: 39 x 39 mm
• Recommended Motors: 1804, 2004, 2203.5

This flight controller is ideal for builders aiming to shave weight off a 4-inch long-range setup or a punchy 3.5-inch freestyle quad without sacrificing processing headroom or power delivery.
