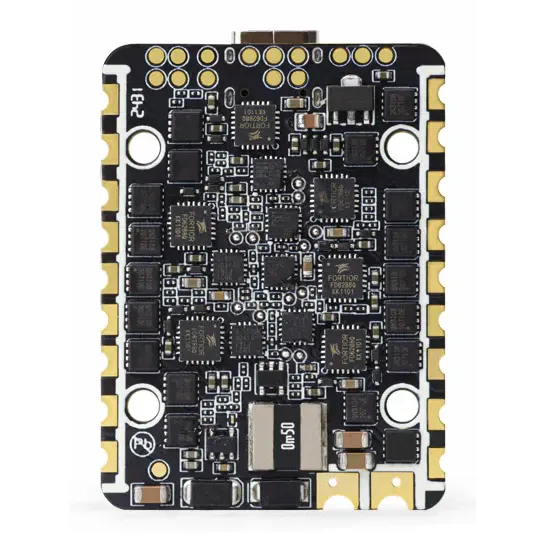

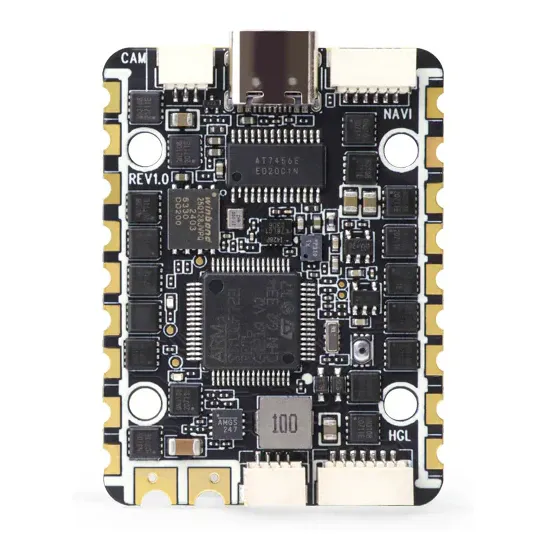

HGLRC SPECTER F722 40A 6-in-1 AIO Flight Controller

The HGLRC Specter F722 40A 6-in-1 AIO flight controller is engineered for custom FPV hexacopters and heavy-lift cinewhoops where canopy space is strictly limited. By merging a fast STM32F722 processor and a high-capacity 6-channel ESC onto a single low-profile board, it drastically reduces wiring complexity and overall build weight compared to traditional two-tier stacks.

Key features

• Integrated 6-in-1 ESC natively drives up to six discrete motors directly from the board.

• High-performance STM32F722 MCU ensures rapid loop times and provides the overhead needed for complex Betaflight PID filtering.

• Delivers 40A of continuous current per channel to support aggressive flying and heavy payload demands.

• Consolidated whoop-style footprint eliminates the vertical bulk of separate ESC and flight controller layers.

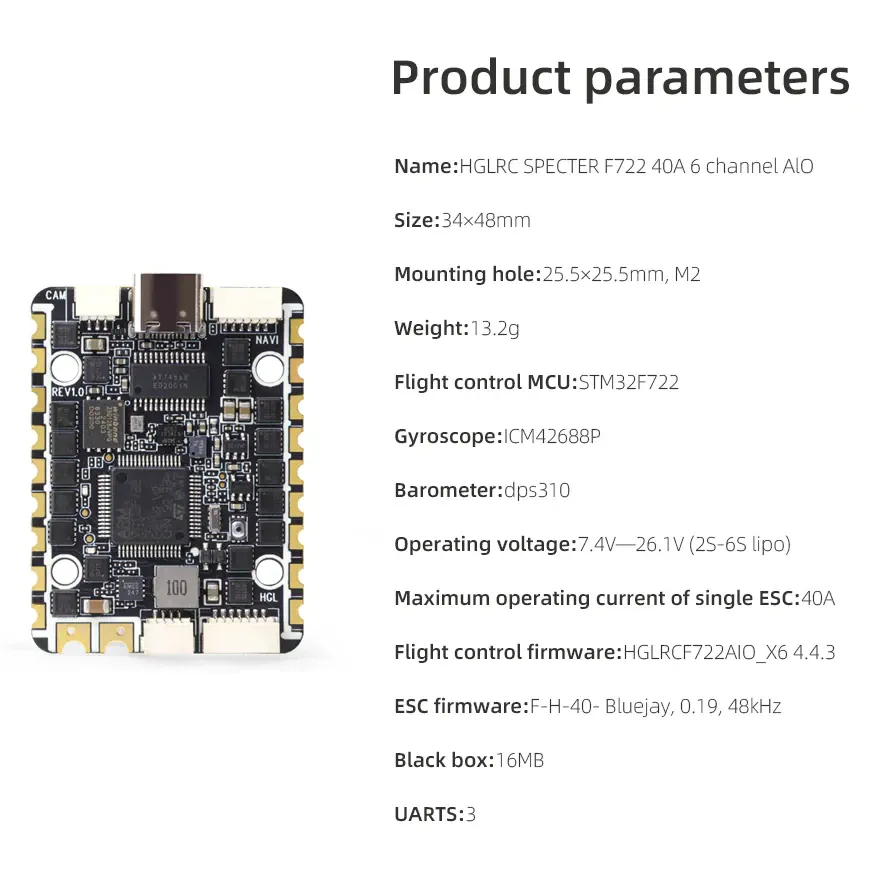

Specifications

• Processor: STM32F722

• Gyro: ICM42688P

• Barometer: DPS310

• Input voltage: 2-6S LiPo (8.4-26 V)

• ESC continuous current: 40A

• ESC firmware: Bluejay 0.19 (F-H-40, 48 kHz)

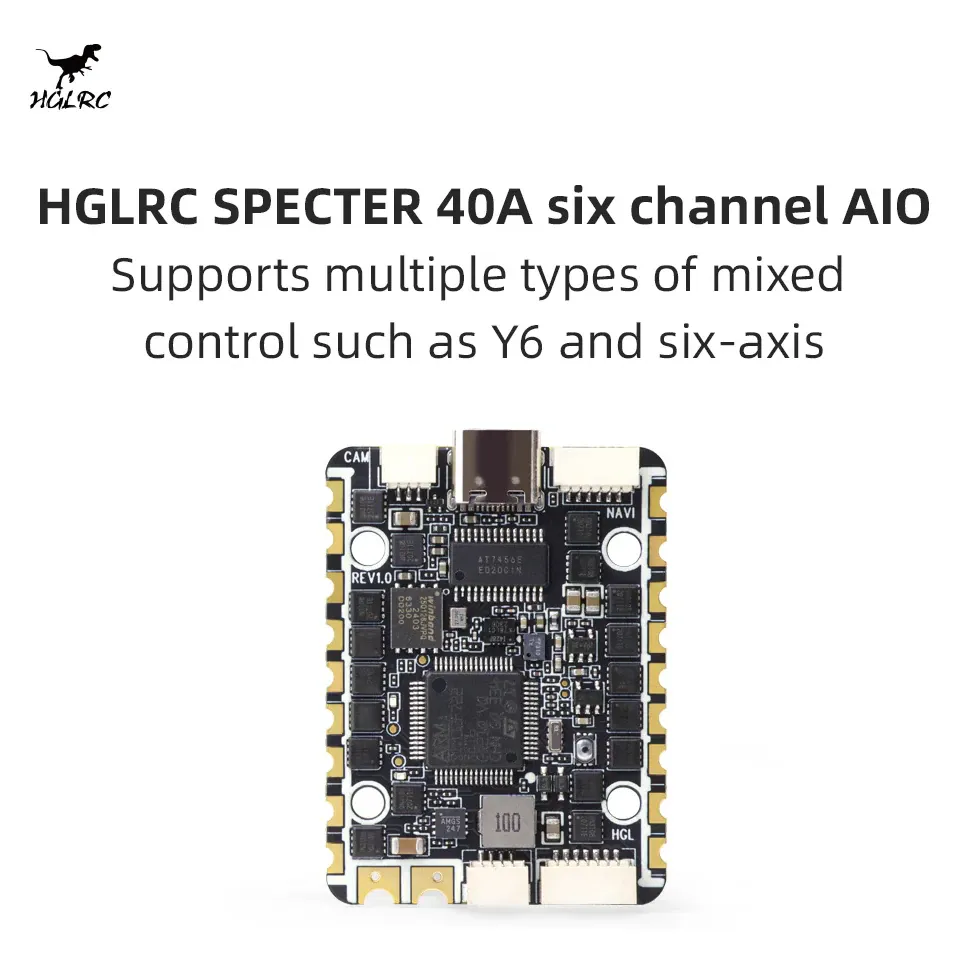

• Motor outputs: 6 (6-in-1 integration; designed for Y6, also hexacopter and other mixes)

• Blackbox: 16MB

• UARTs: 3

• Video: plug-in connectors for HD air units and analogue VTX

• Supported firmware: Betaflight (target HGLRCF722AIO_X6)

• Mounting: 25.5x25.5mm, M2

• Board size: 34 x 48 mm

• Weight: 14 g

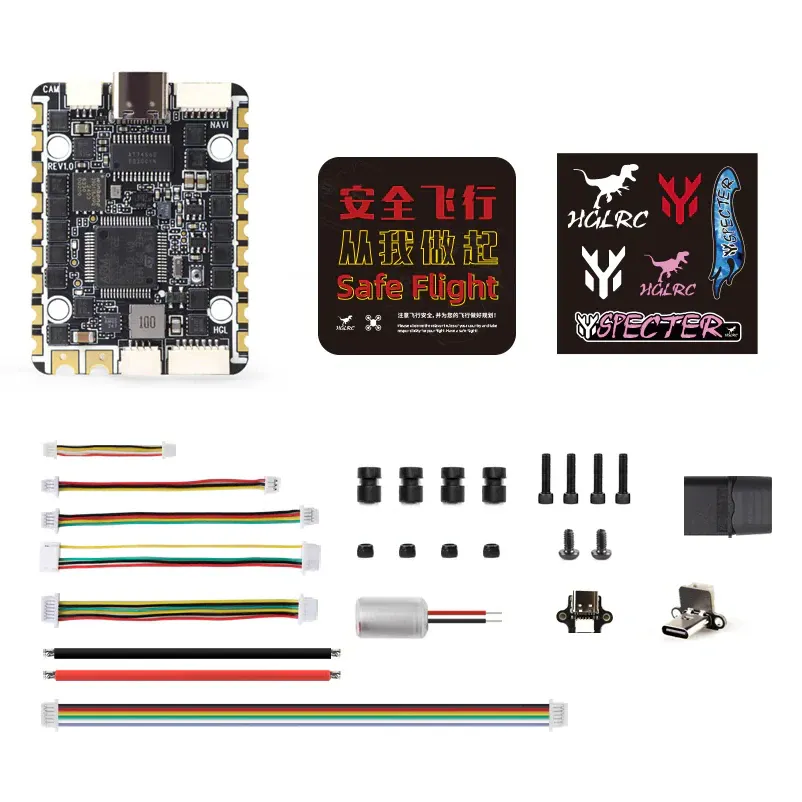

• In the box: DJI cable, analogue VTX cable, GPS cable, receiver cable, camera cable, power lead, four M2 grommets with screws and nuts, Type-C adapter module

Ideal for specialised hex-rotor freestyle rigs and cinematic platforms, this flight controller delivers maximum processing power and motor distribution in a simplified, space-saving layout.
