GEPRC GEP-F722-35A AIO Flight Controller (2-6S)

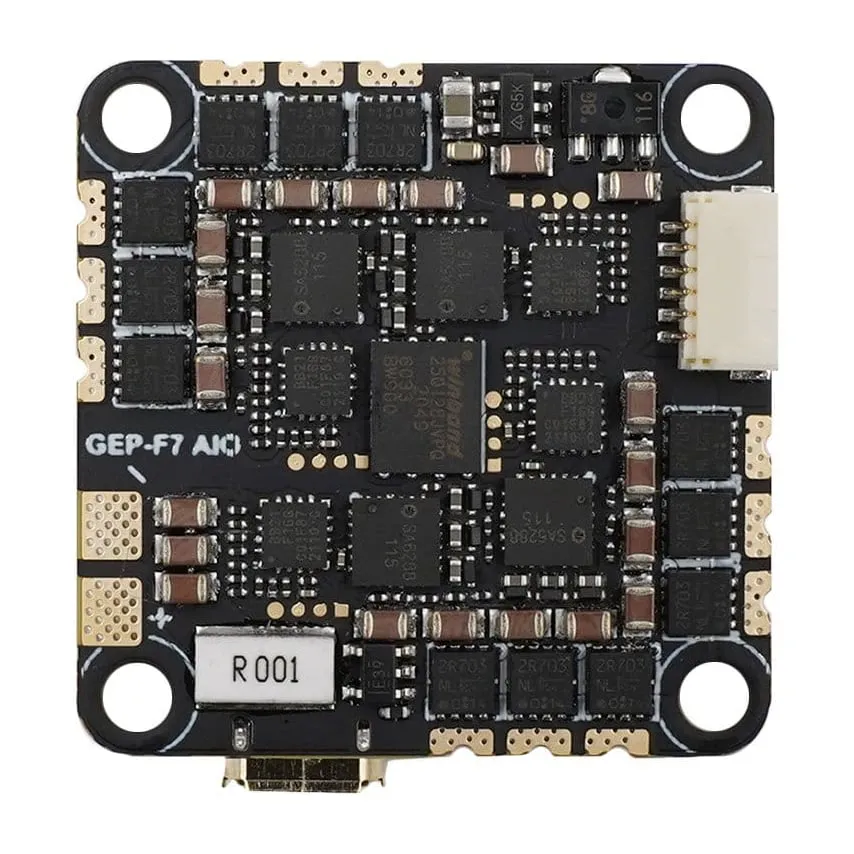

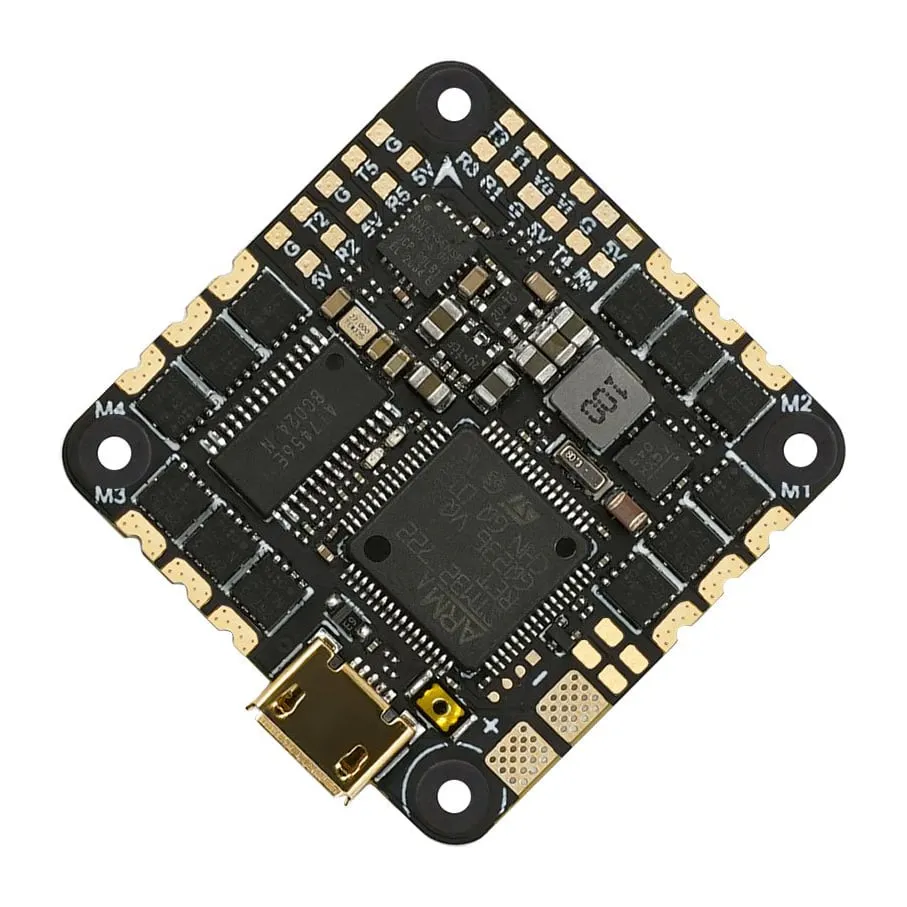

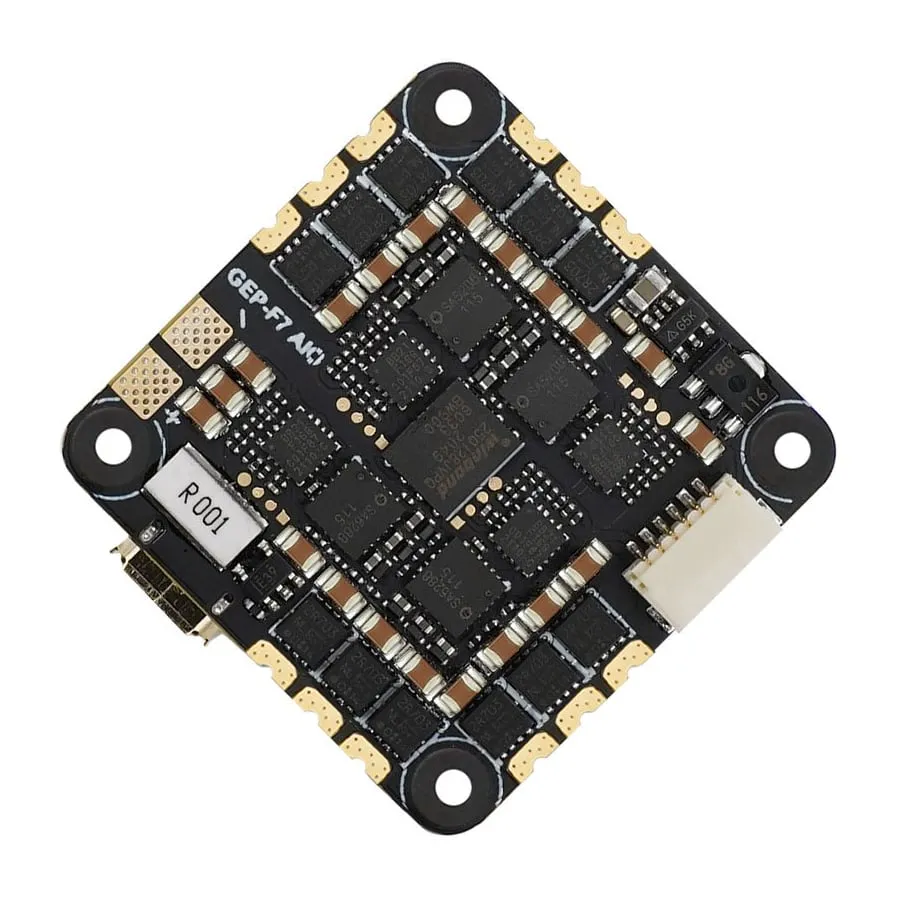

The GEPRC GEP-F722-35A is an all-in-one board that puts an STM32F722 flight controller and a 35A 8-bit BLHeli_S 4-in-1 ESC on one 32 x 32 mm PCB. At 8.8 g with 25.5 x 25.5 mm mounting, it suits 3 to 3.5-inch cinewhoops and light freestyle builds on 2-6S, where a separate FC and ESC stack would add height and weight.

Key features

• STM32F722 MCU with five full UARTs for receiver, GPS and video peripherals
• 35A continuous (40A for 10 s) BLHeli_S ESC with DShot600, Oneshot and Multishot

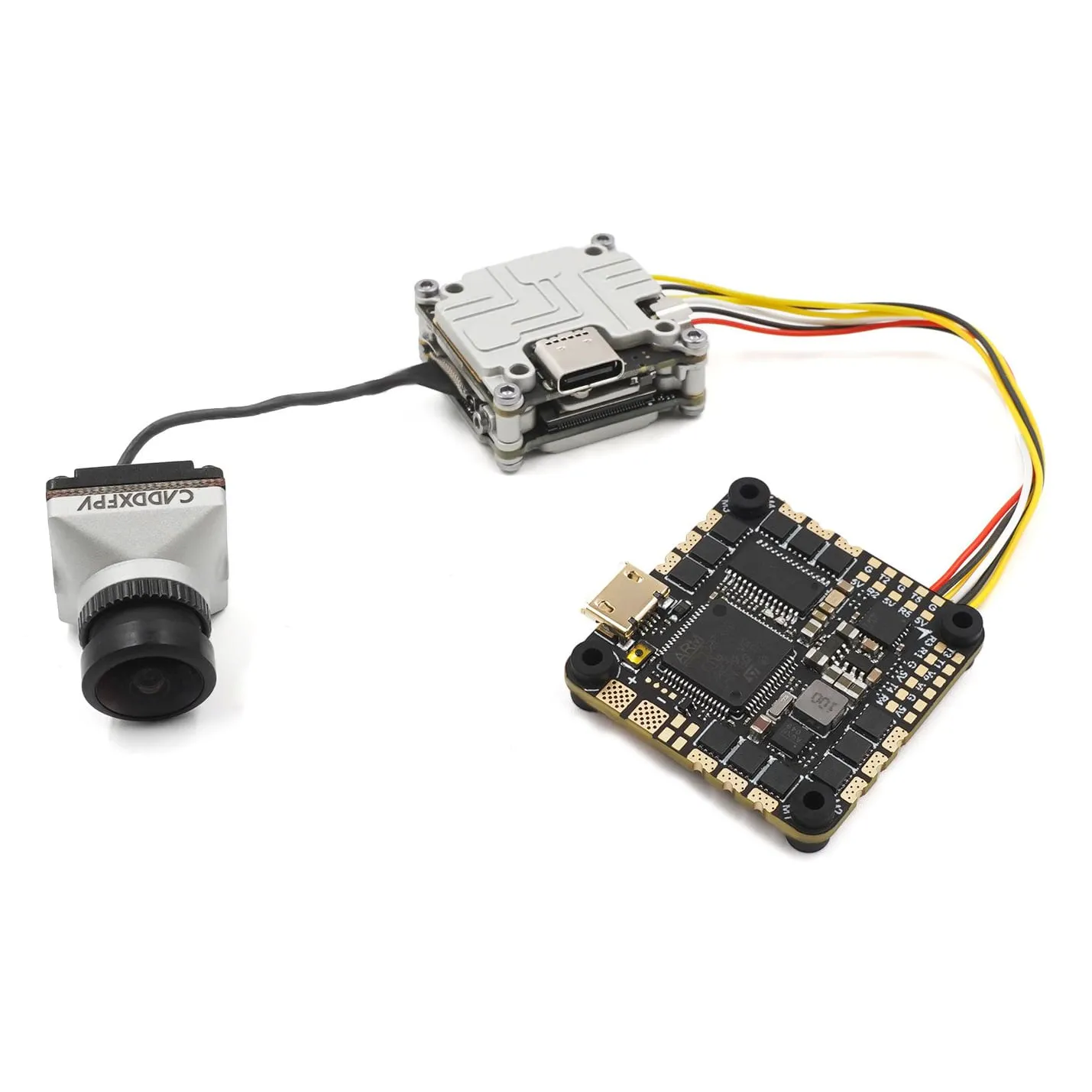

• Six-pin plug-and-play connector for a DJI air unit, plus AT7456E Betaflight OSD for analog cameras
• 5V 1A BEC, integrated LC filter and 16Mb blackbox
• Buzzer and LED outputs; Micro USB for configuration

Specifications

• MCU: STM32F722
• Gyro: BMI270 or ICM42688 (varies by batch), SPI
• OSD: Betaflight OSD, AT7456E
• Firmware target: GEPRC_F722_AIO
• ESC MCU: BB21F16G, target G_H_30
• Input voltage: 2-6S LiPo
• ESC current: 35A continuous, 40A burst (10 s)
• BEC: 5V @ 1A
• UARTs: 5
• Blackbox: 16Mb
• Board size: 32 x 32 mm
• Mounting: 25.5 x 25.5 mm

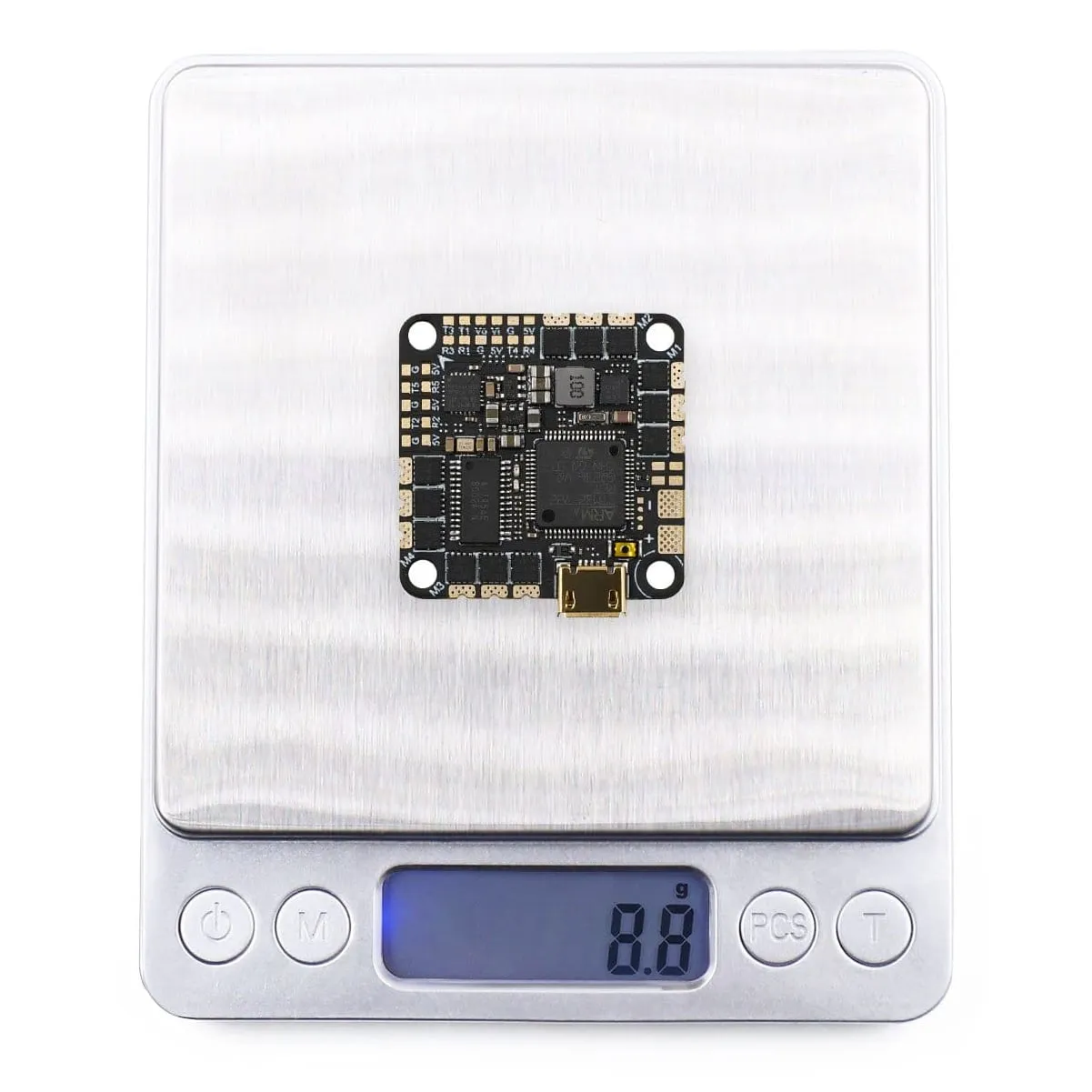

• Weight: 8.8 g

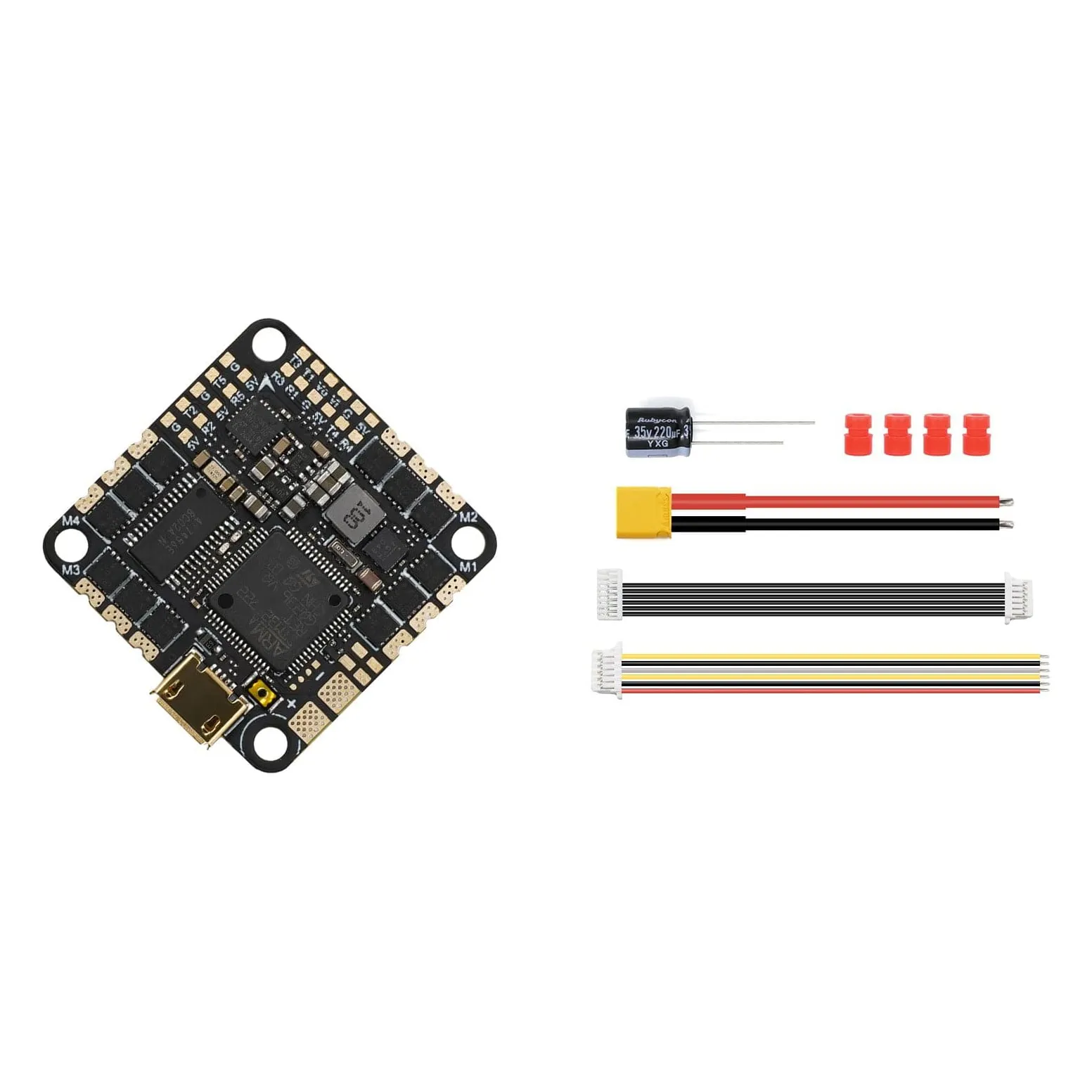

In the box: the AIO board, a 7 cm 18AWG XT30 power lead, a 35V 220uF capacitor, an SH1.0 6-pin to GH1.25 8-pin cable and eight M2 x 6.5 mm damping rings. The 25.5 x 25.5 mm pattern drops straight onto 3.5-inch cinewhoop frames with that FC mount, such as GEPRC's own CL35 V3.
