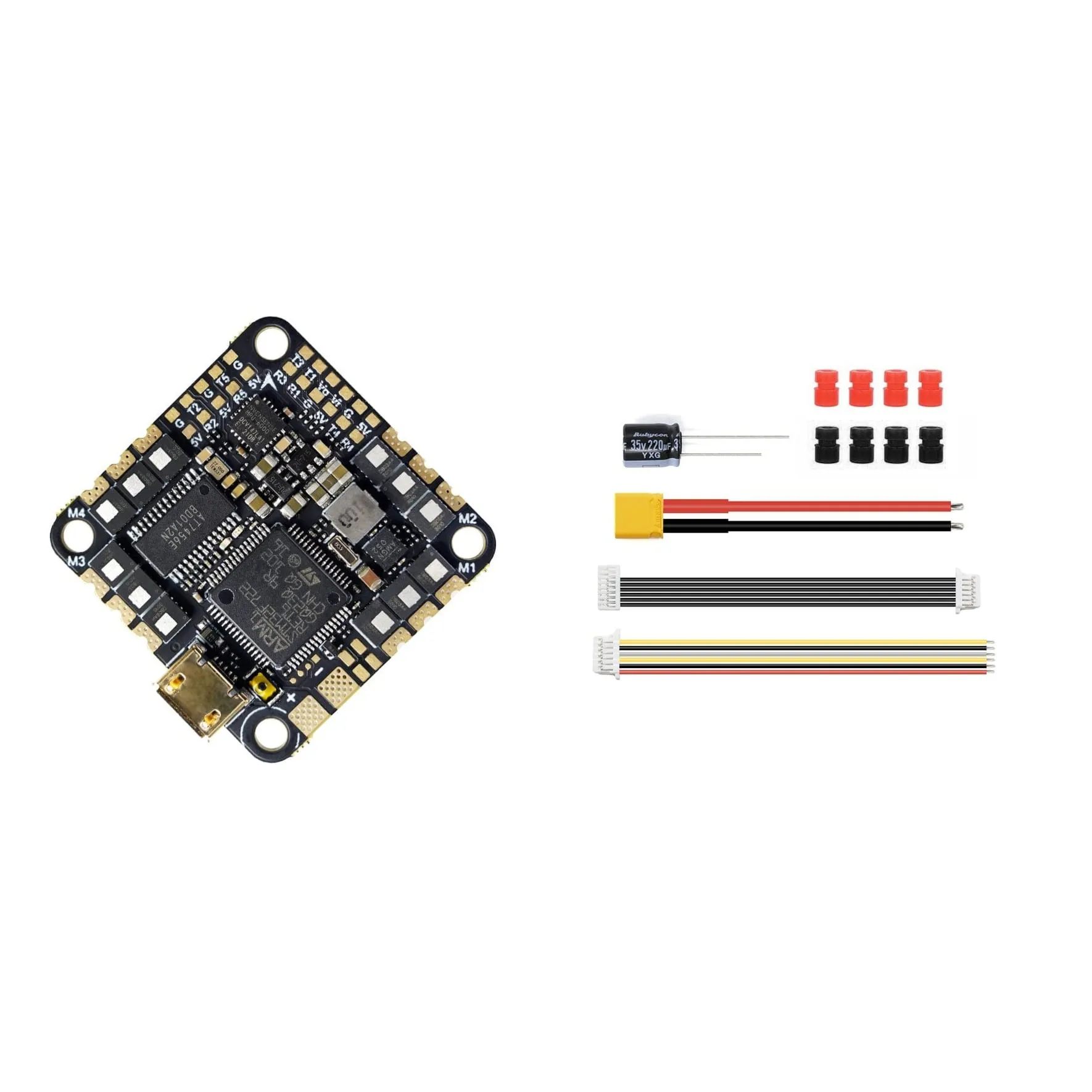

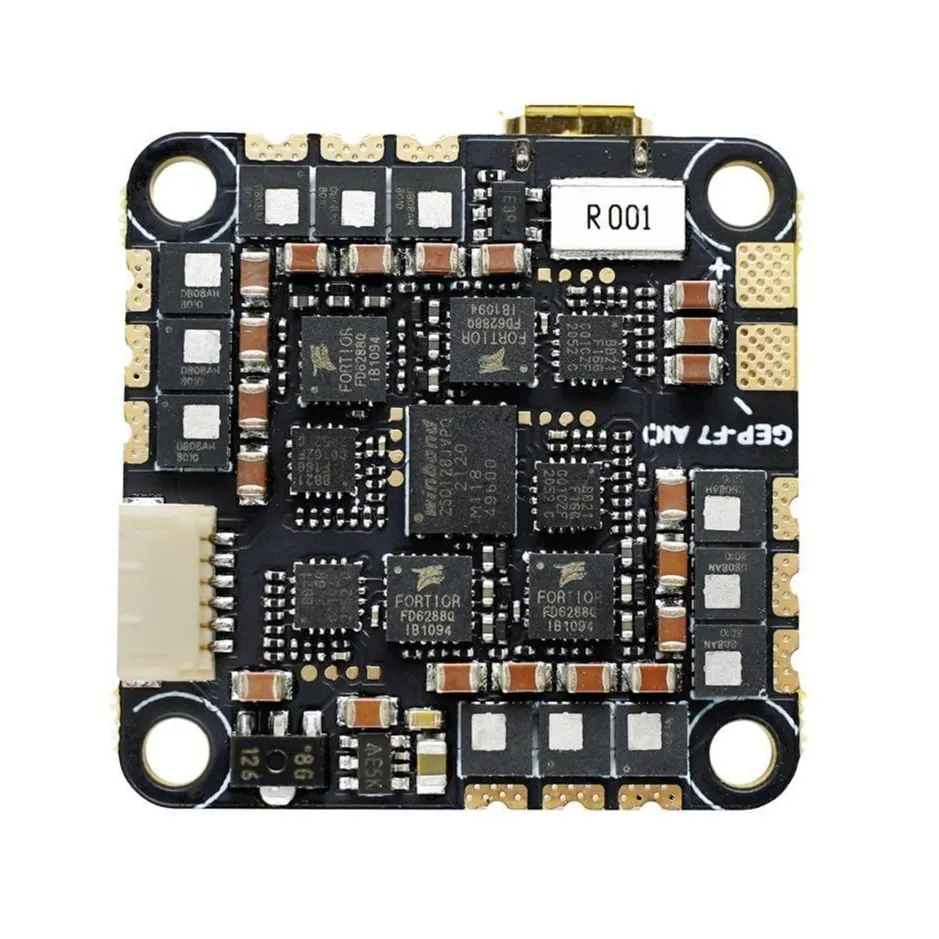

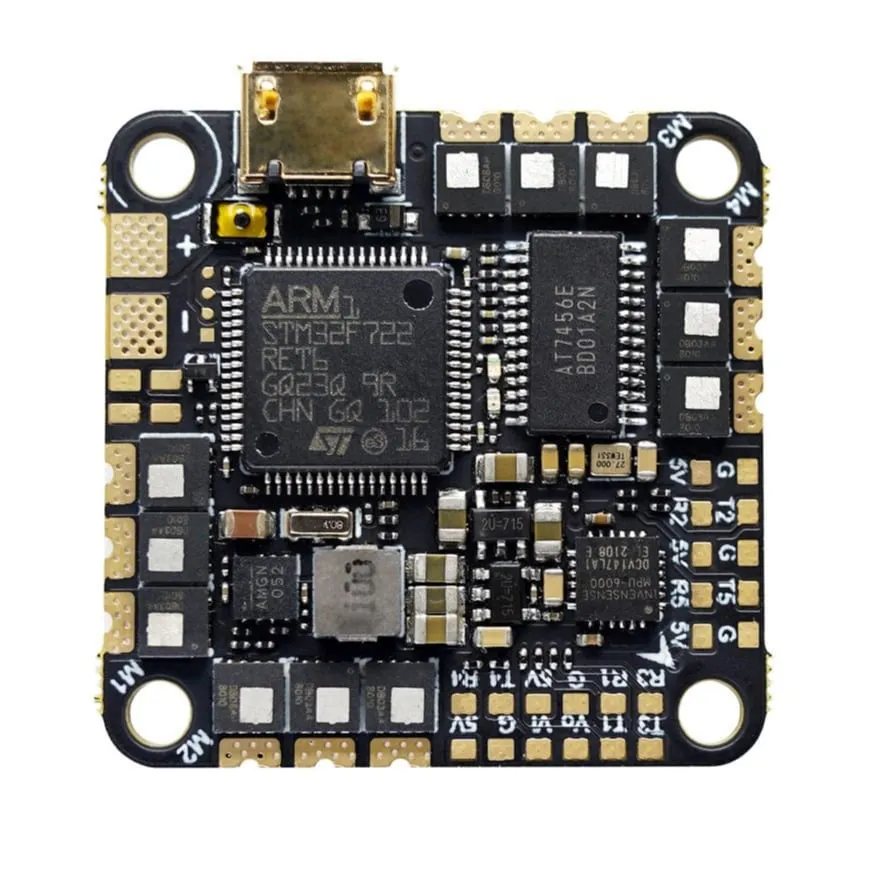

GEPRC GEP-F722-45A AIO V2 Flight Controller

The GEPRC GEP-F722-45A AIO V2 is a high-performance all-in-one board engineered for 3-inch to 5-inch toothpick, cinewhoop, and ultralight freestyle builds. By combining an STM32F722 processor with a 45A ESC, it delivers the processing speed and current headroom necessary for aggressive 6S flying without the bulk or weight of a traditional multi-board stack.

Key features

• STM32F722 MCU provides faster loop times and additional hardware UARTs compared to standard F411 flight controllers.

• Continuous 45A current delivery (55A burst) readily supports heavy-duty micro motors on high-voltage setups.

• Equipped with an ICM42688P gyroscope and onboard blackbox flash memory for precision PID tuning and vibration analysis.

• Features a 5V/1A BEC and a durable, side-mounted USB Type-C connector for easy access in tight canopies.

• Includes dedicated solder pads mapped for straightforward integration with digital video systems like the DJI O3 Air Unit or Caddx Vista.

Specifications

• MCU: STM32F722

• IMU (Gyro): ICM42688P

• Input Voltage: 2-6S LiPo

• Continuous Current: 45A (55A Burst)

• BEC: 5V at 1A

• OSD: Betaflight OSD (AT7456E)

• Firmware Target: GEPRC_F722_AIO

• ESC Protocol: Dshot300 / Dshot600

• Mounting: 25.5x25.5mm (M2 holes)

• Weight: 8.8g

Utilising the standard whoop mounting pattern, this AIO provides a clean, single-board routing solution for space-constrained digital frames that still demand high amperage and full F7 hardware capabilities.
