MIKROE GNSS 10 Click NEO-M8J Receiver

₹5,699Incl. GST

SKU MIKROE-GNSS-10-CLICK

Compass Included: NoMade in India: NoBrand: MIKROERTK Support: No
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

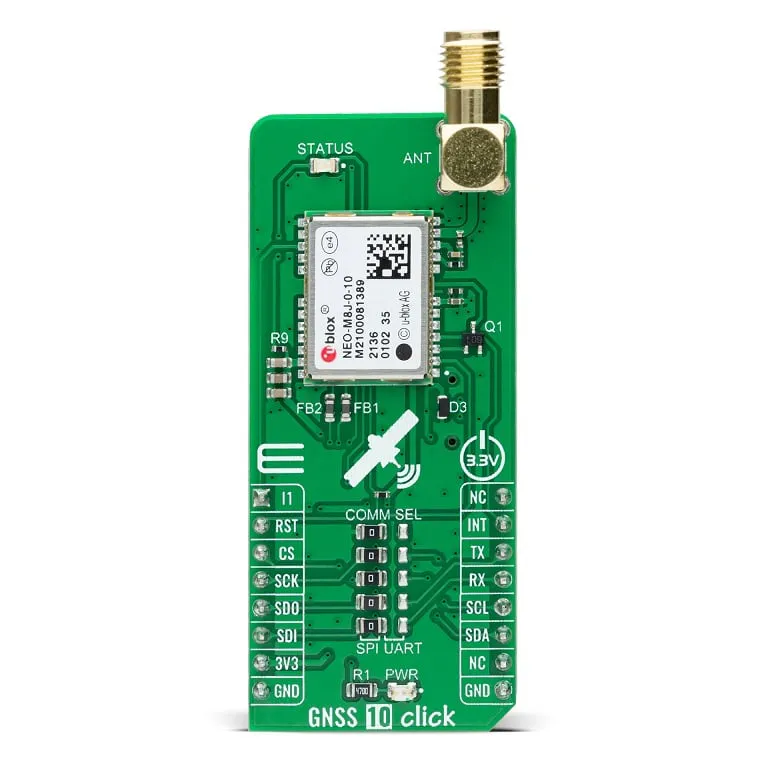

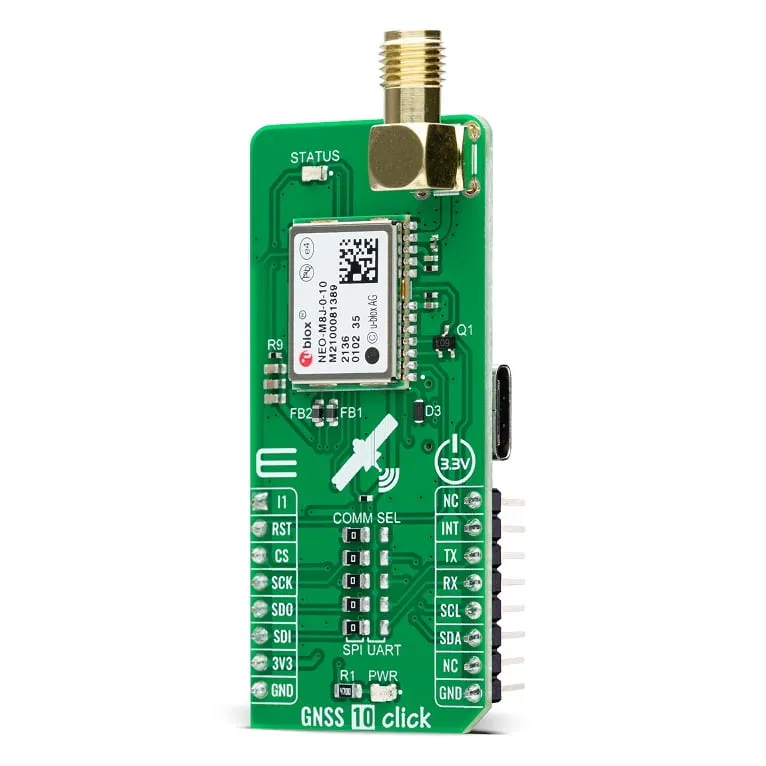

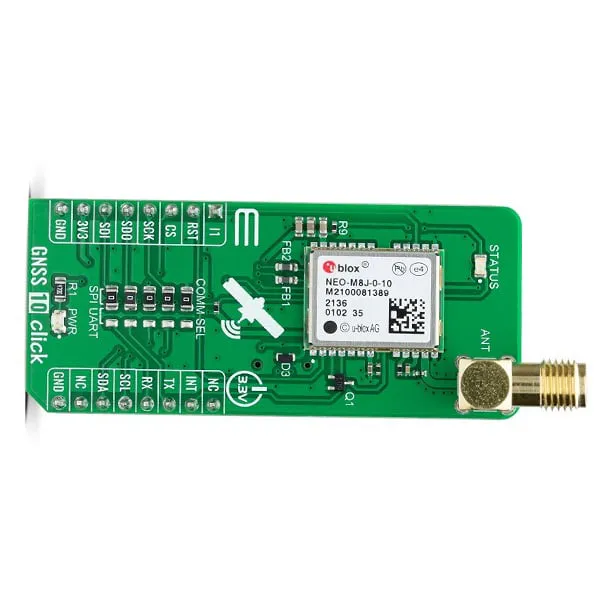

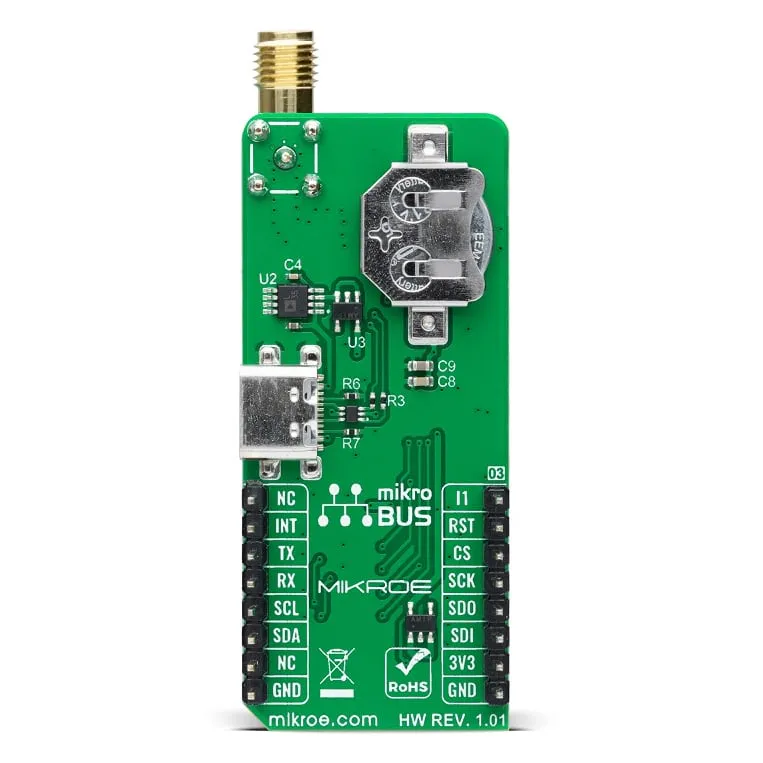

The MIKROE GNSS 10 Click is a multi-constellation GNSS receiver board built around the NEO-M8J chipset. Its mikroBUS interface suits embedded navigation projects and drone electronics that accept Click boards.

Key features

  • NEO-M8J GNSS receiver chipset.
  • Supports multi-constellation GNSS operation.

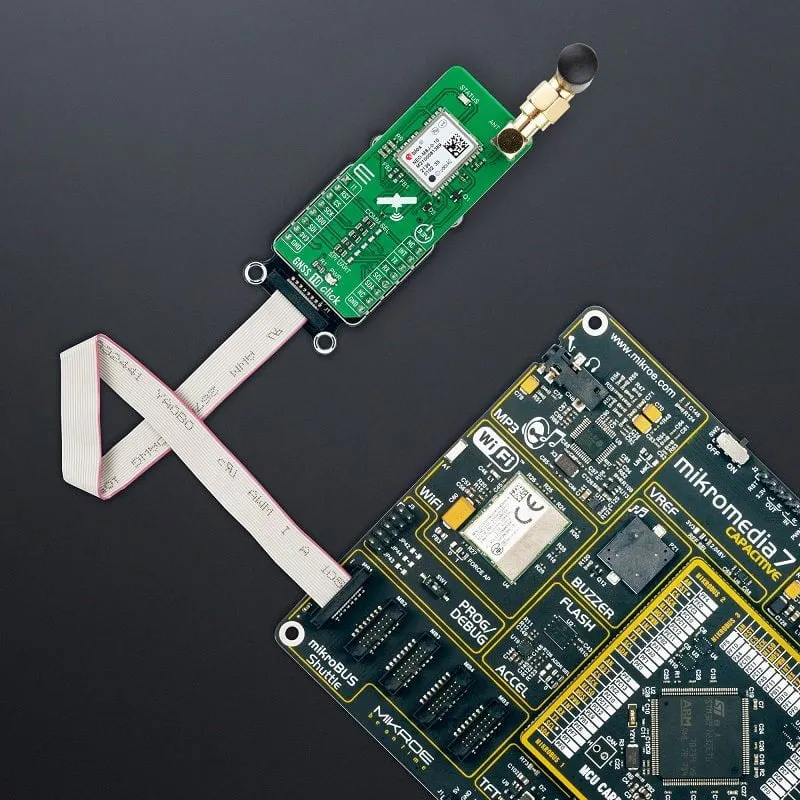

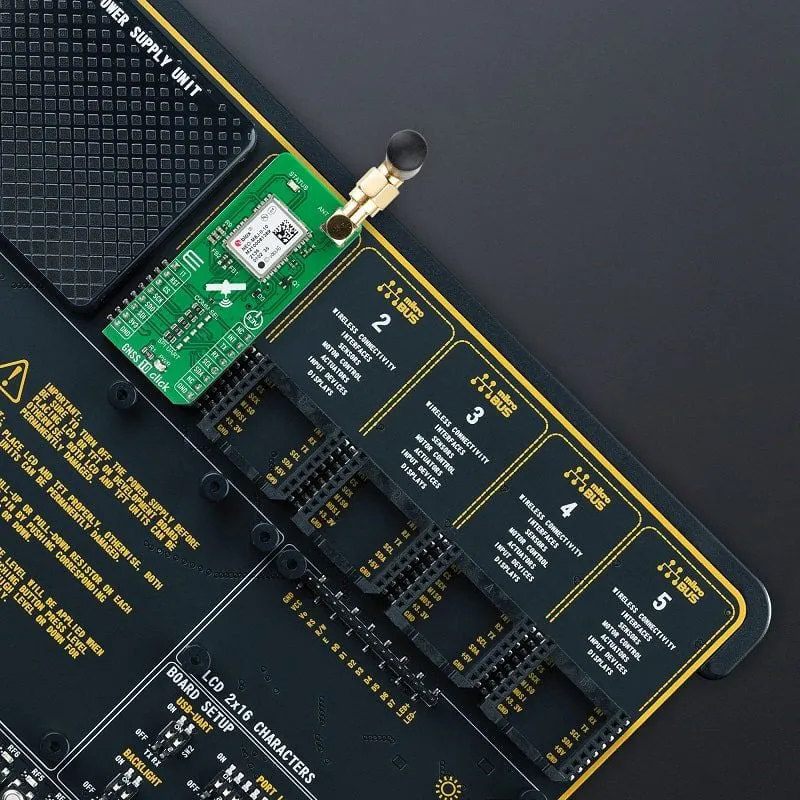

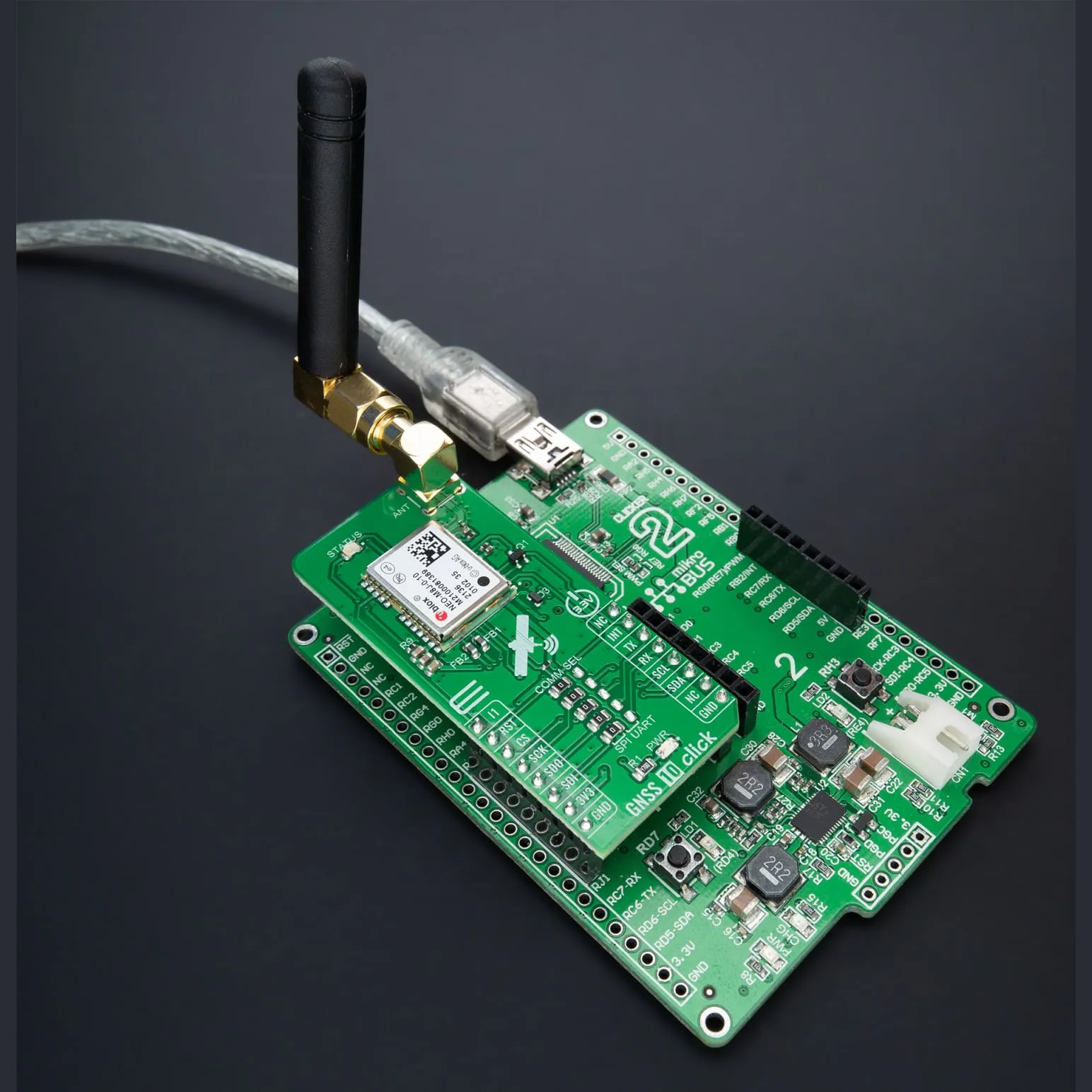

  • mikroBUS interface for compatible controller and development boards.
  • Useful for embedded navigation, position logging and drone control projects.

Specifications

  • Brand: MIKROE
  • GNSS Chipset: NEO-M8J
  • Concurrent GNSS: up to 3 (GPS/Galileo with BeiDou or GLONASS)
  • Interfaces: I2C, SPI, UART, USB
  • Input voltage: 3.3 V
  • Navigation sensitivity: -167 dBm
  • Board size: 57.15 x 25.4 mm (Click size L)

Check that the host controller provides a compatible mikroBUS interface before installation.
