T-Motor Q1418 Quick-Attach-Detach Propeller Adapter (CW & CCW Pair)

T-Motor Q1418 quick-attach-detach adapters let you fit and remove 14–18 inch propellers by hand, with no screws to tighten in the field. The pair contains one CW adapter in black and one CCW adapter in silver, so each prop goes on the correct motor first time.

Key features

• Tool-free prop changes: plug-and-play locking lets you keep spare props ready and swap them in seconds at the field.
• Colour-coded rotation: black for CW, silver for CCW, to prevent mixed-up props.
• Sized for mid-size UAV motors: designed for T-Motor 35xx–41xx motors such as the U3 and U5, on 4 mm or 6 mm shafts.
• Rated load: up to 5 kg of thrust per rotor, with a 400-hour MTBF.
• Aluminium construction for a light, rigid mount.

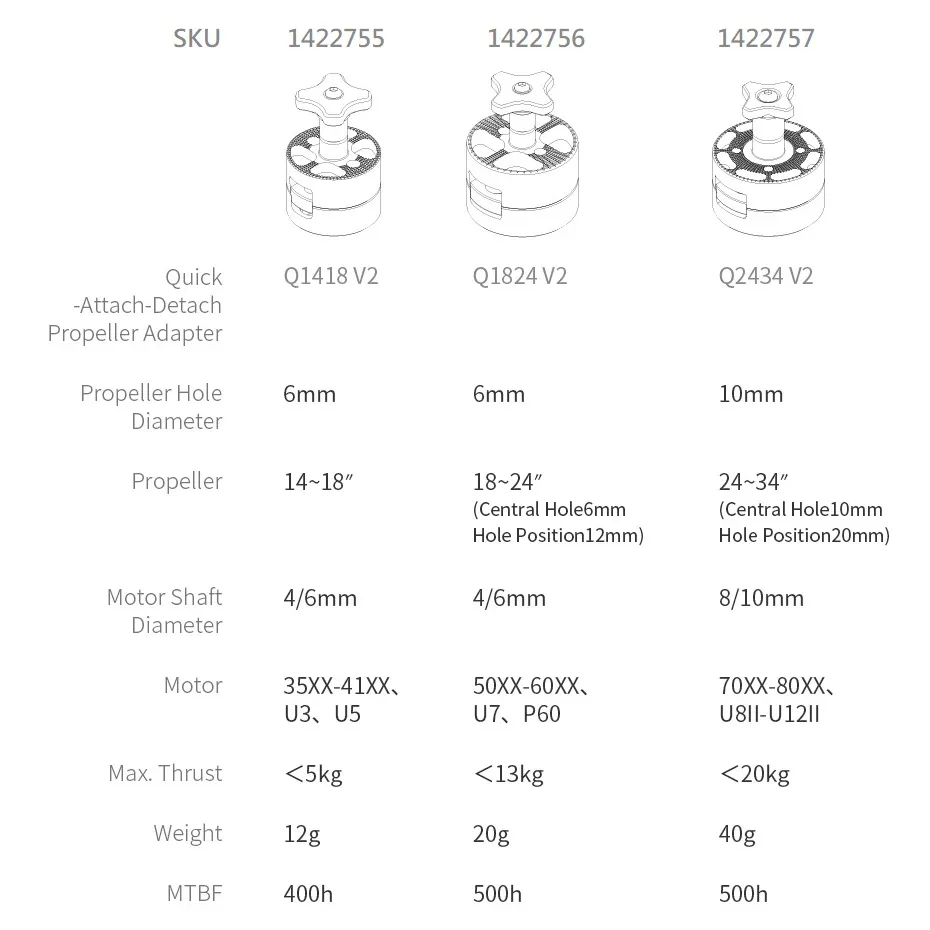

Specifications

• Prop range: 14–18 in
• Prop centre hole: 6 mm
• Motor shaft: 4 mm or 6 mm
• Motor class: 35xx–41xx (T-Motor U3, U5)
• Maximum thrust: under 5 kg
• MTBF: 400 h
• Material: Aluminium
• Pack: 1 CW (black) + 1 CCW (silver)

One pair covers two motors, so a quad needs two pairs. Confirm your props have a 6 mm centre hole and your motors a 4 mm or 6 mm shaft before ordering; for 18–24 inch props, the Q1824 is the larger version.
