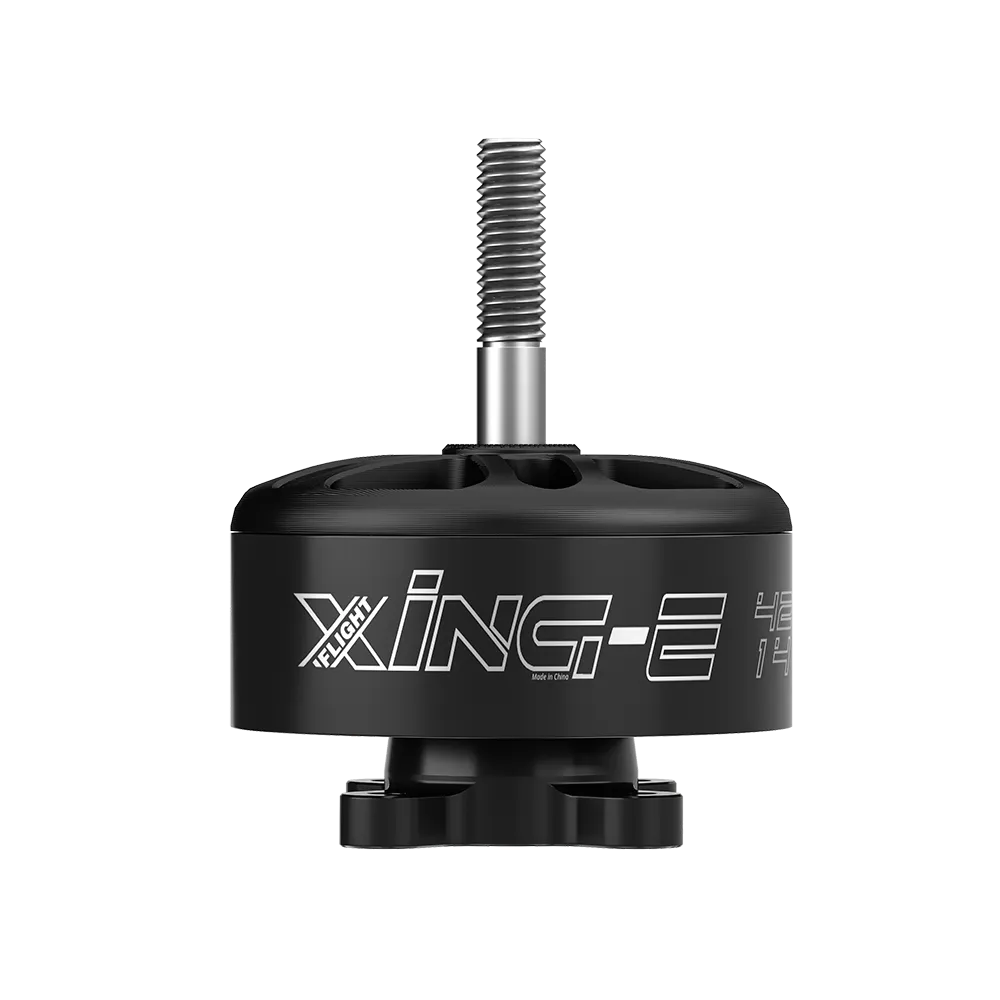

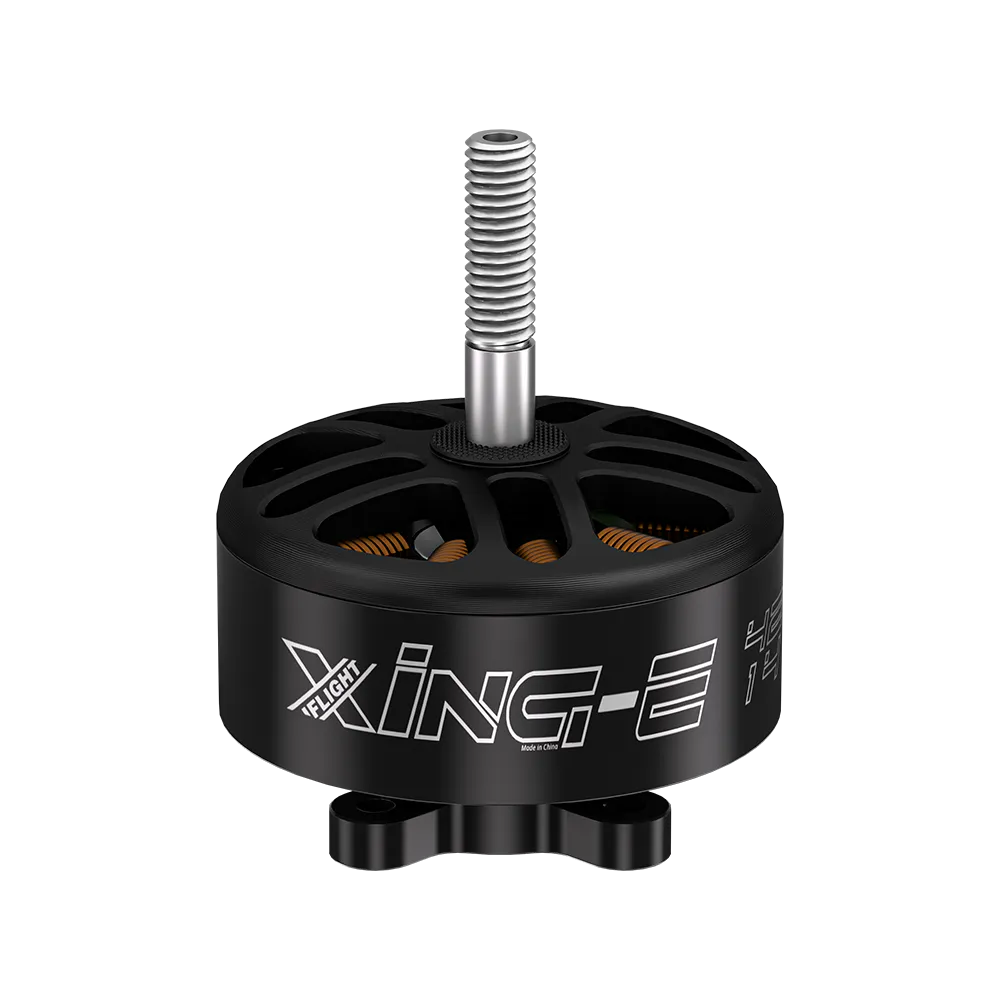

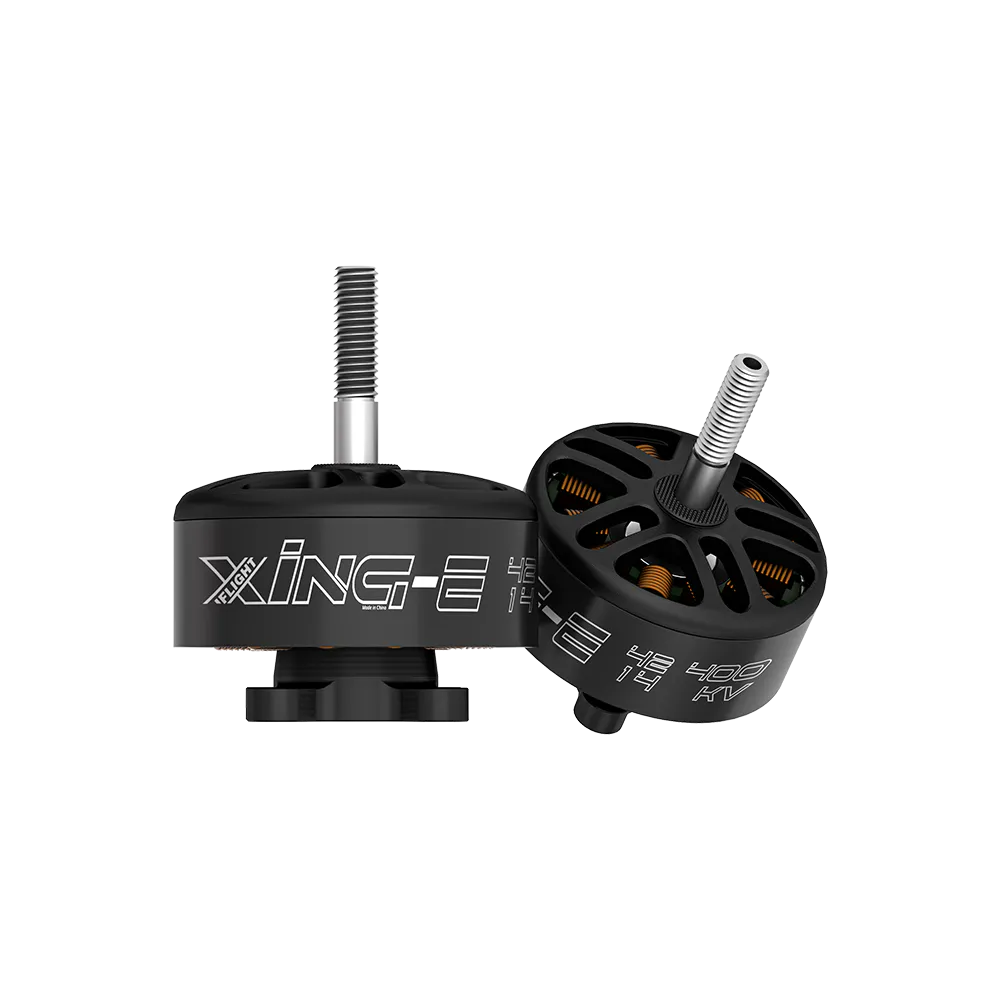

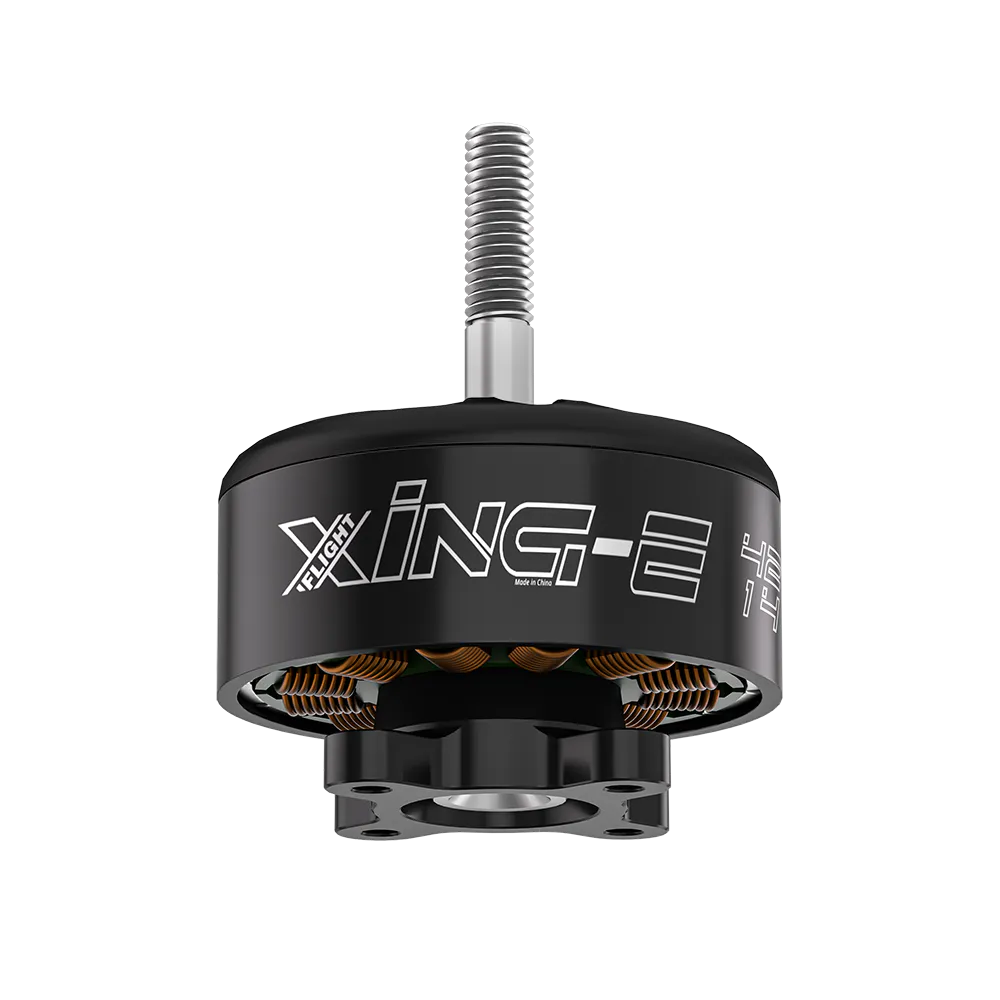

iFlight XING-E 4214 400KV FPV Motor

The iFlight XING-E 4214 400KV is a high-torque motor engineered specifically for X-Class racing drones and heavy-lift cinelifters. Built around a massive 42mm by 14mm stator, this motor delivers the sustained thrust required to carry cinema-grade payloads or drive oversized racing frames. The 400KV rating is rigorously optimised for 6S to 8S LiPo configurations swinging 13-inch to 15-inch propellers, balancing raw lifting power with manageable current draw to protect high-voltage ESCs.

Key features

• Oversized 4214 stator provides immense low-end torque for heavy payloads and rapid acceleration

• Optimised for high-voltage 6S to 8S power systems on large-scale builds

• High-temperature single-strand copper windings ensure thermal stability during sustained heavy loads

• Extended 14AWG silicone motor wires easily reach ESCs on long frame arms

Specifications

• Stator Size: 42mm x 14mm

• KV: 400

• Configuration: 12N14P

• Recommended Voltage: 6-8S LiPo

• Wire Gauge: 14AWG

• Lead length: 800 mm

• Weight: 239 g (including wire)

• Dimensions: 48.6 x 60.5 mm

• Mounting holes: 30x30mm, M4

• Shaft: 6 mm, 26.5 mm protrusion

• Peak current: 65.54 A

• Max power: 3229 W

• Interphase resistance: 83.4 mOhm

• In the box: motor, 4x M4x8 screws, M6 flange nut
