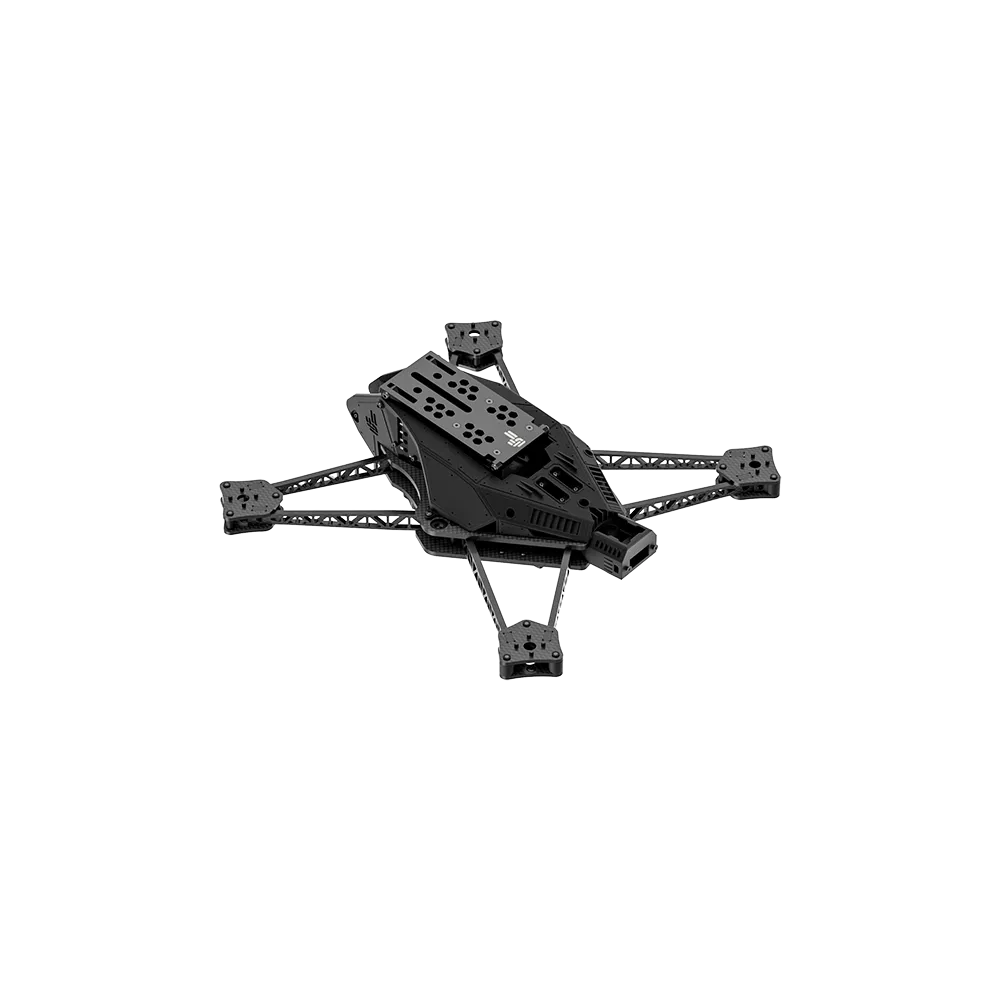

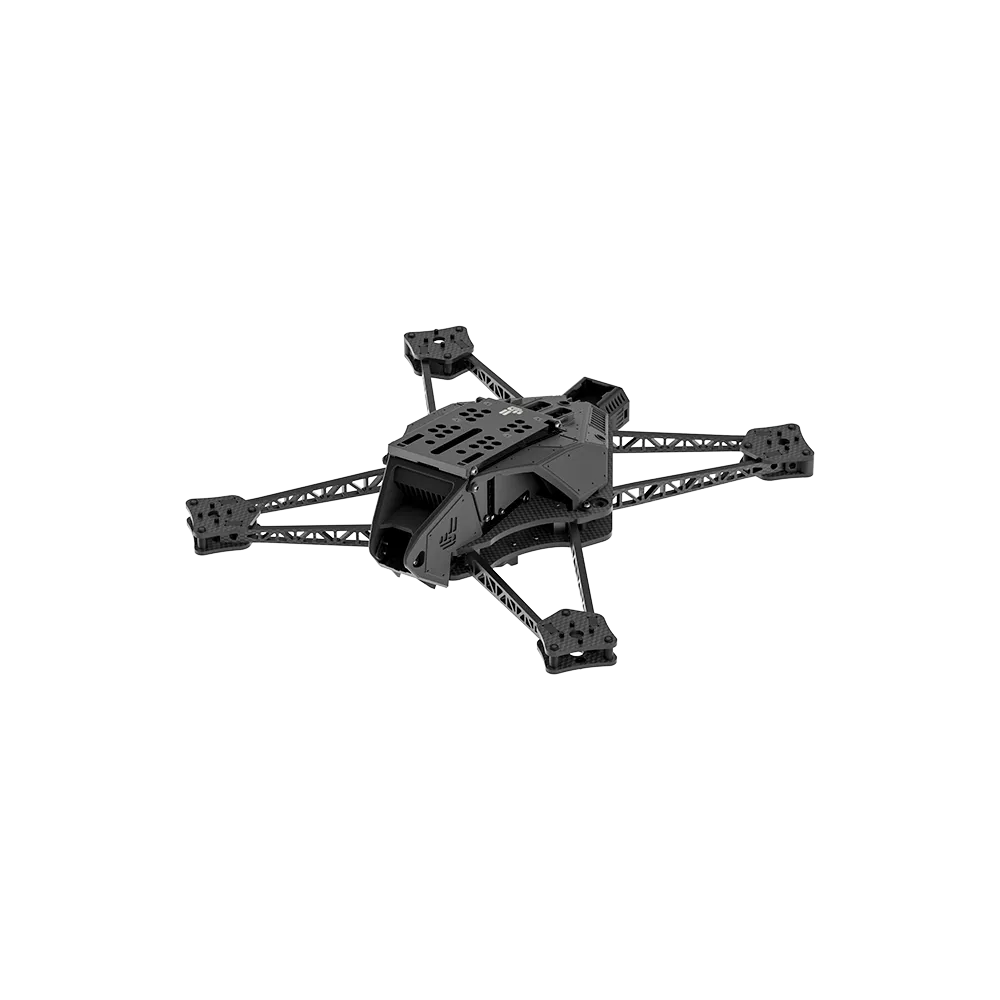

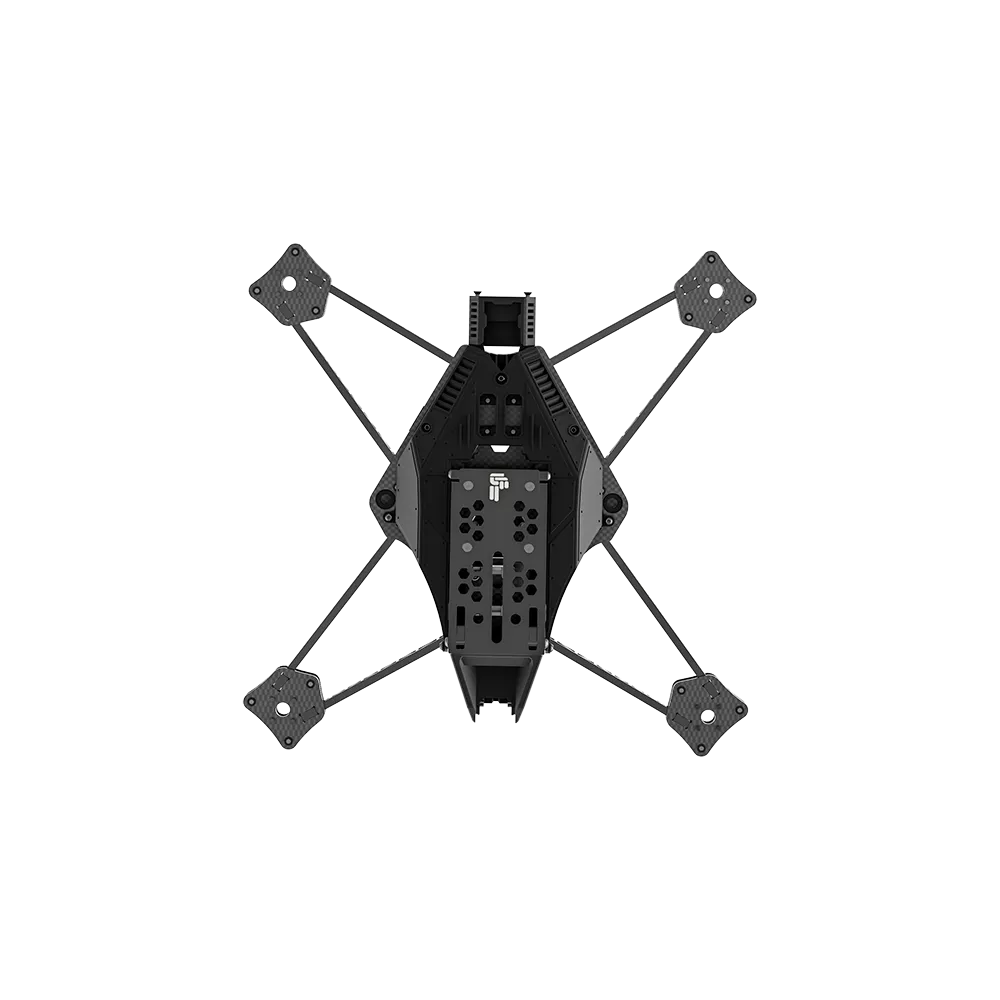

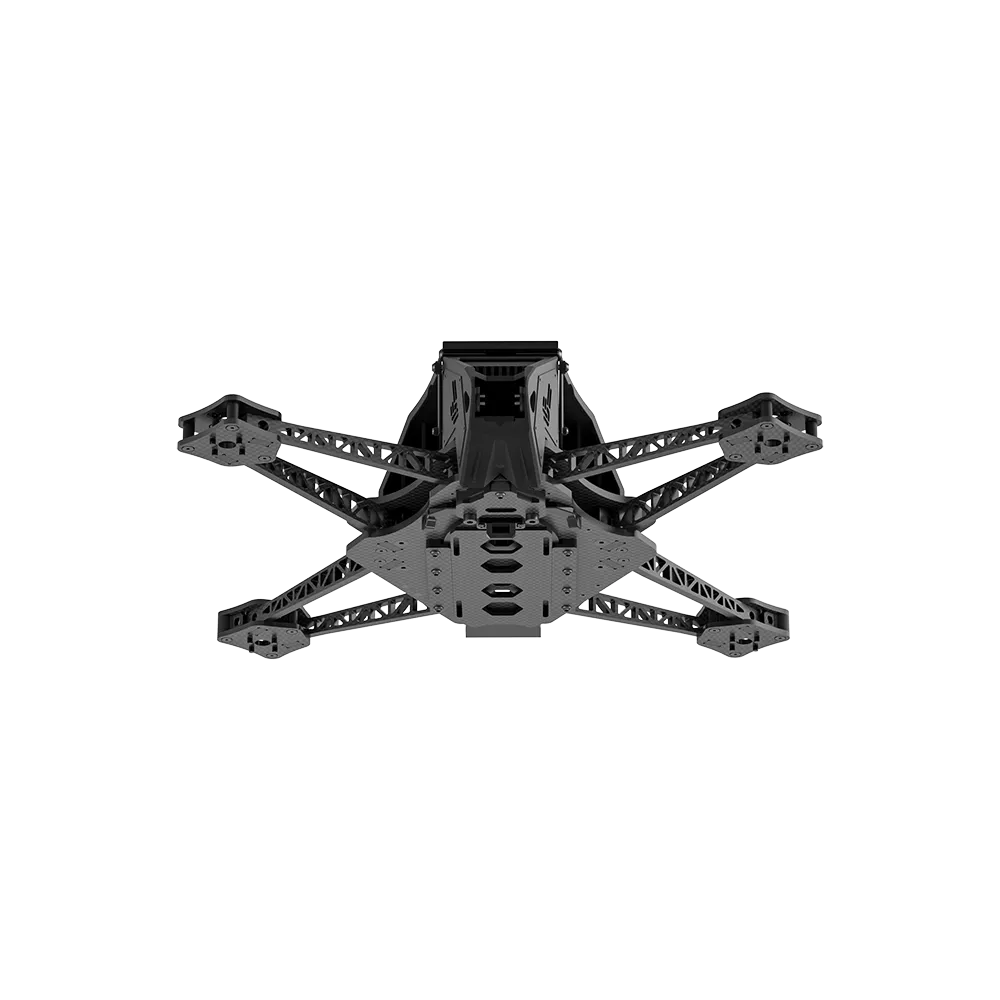

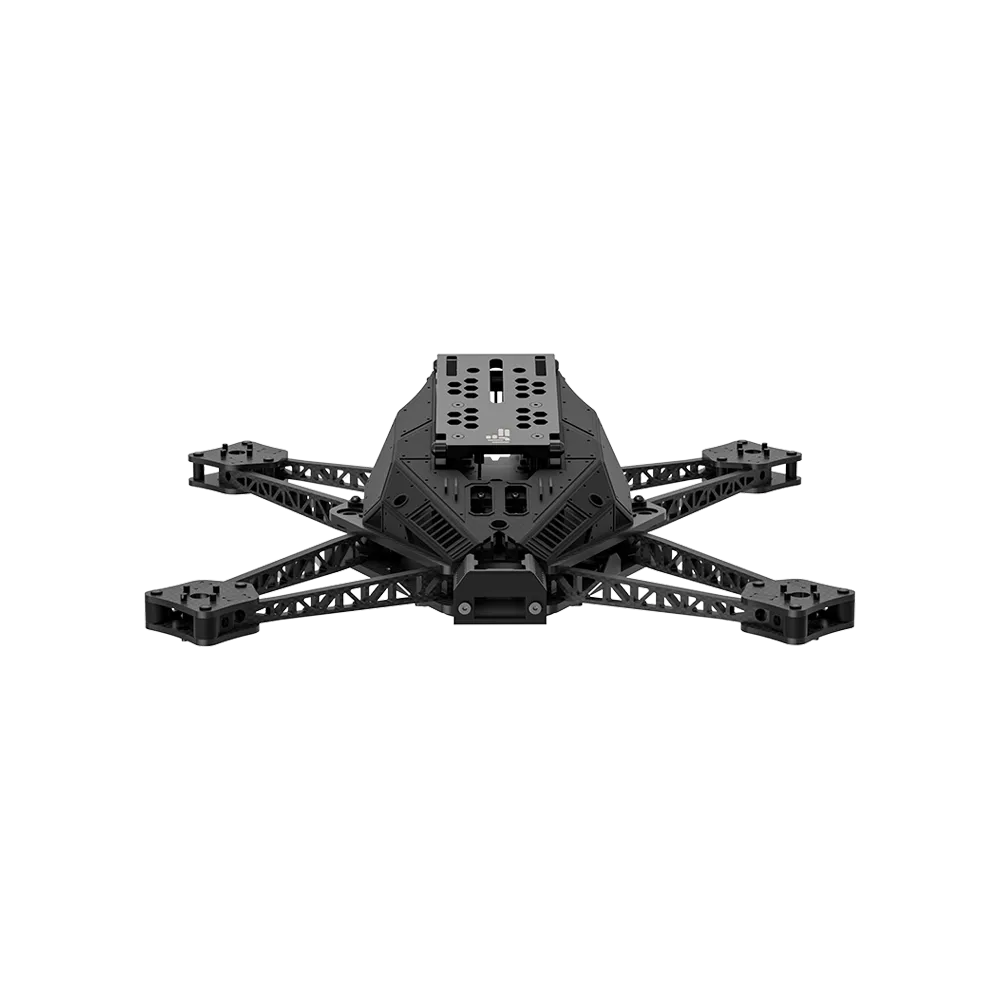

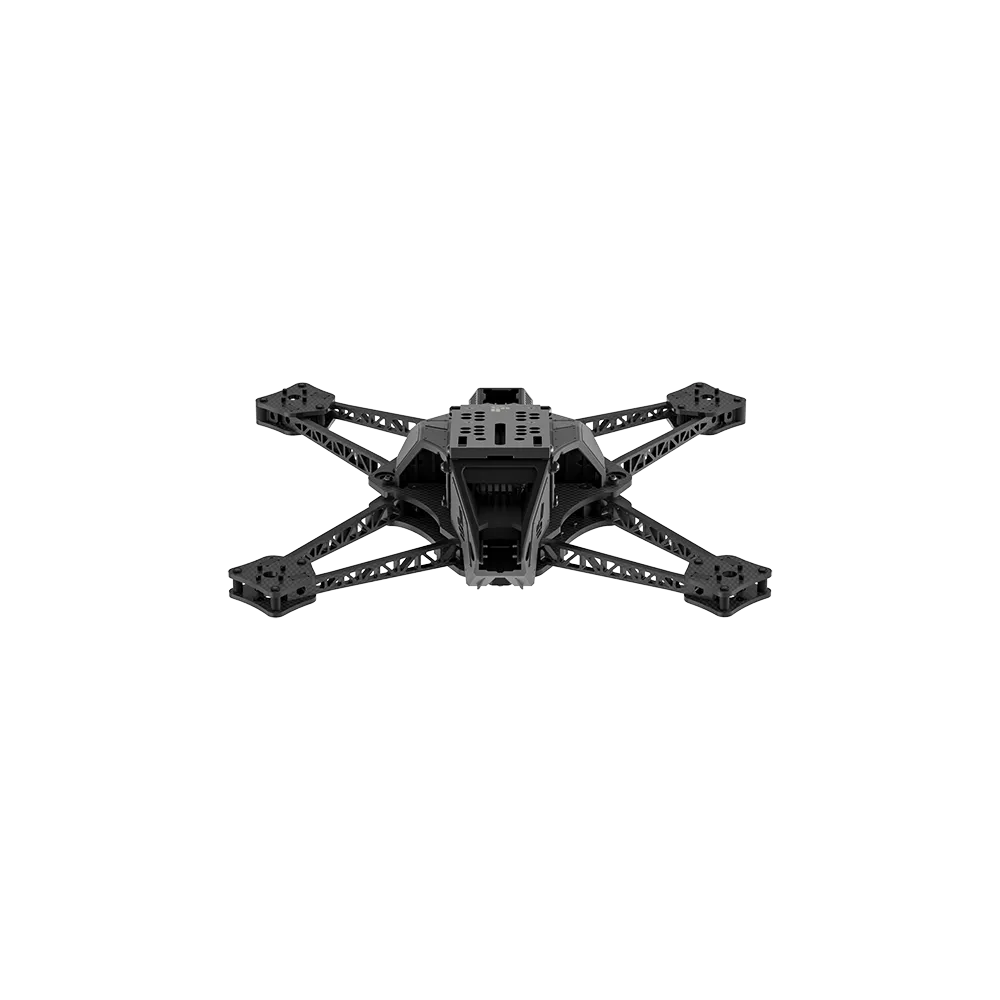

iFlight Centurion X8 Cinelifter Frame Kit

The iFlight Centurion X8 is a cinelifter frame kit for 8-inch propellers, developed with 2RAW Aerials for professional aerial cinematography. Its Squashed-X truss-arm geometry and aerodynamic AeroShell keep the build stiff, cool and ready for full-size camera payloads.

Key features

• Truss-reinforced Squashed-X arms deliver high stiffness without adding excess weight, for smooth, resonance-free footage.
• The adjustable 10-50 degree camera mount is machined from 7075 aluminium and braced on both axes to resist payload resonance as the angle steepens.
• The AeroShell draws air through front intakes to cool the ESC and vents it out the rear, while also shielding the electronics from dirt.
• A quick-release battery system uses straps and carbon plates instead of individual tie-downs, so a flight pack can be swapped in seconds.
• Built-in DJI O3 Air Unit support includes an aluminium heatsink and cooling fan, with separate front and rear USB ports for the air unit and flight controller.

Specifications

• Geometry: Squashed-X
• Wheelbase: 384 mm
• Frame dimensions: 272 x 272 x 96 mm
• Arm thickness: 5 mm
• Top and bottom plate thickness: 4 mm
• FC mounting: 30.5x30.5mm
• VTX mounting: 25.5x25.5mm
• Motor mounting: 19x19mm
• Weight: 969 g

Built for 28xx-class cinelifter motors on a standard quad power system, this frame suits pilots running full-frame or cinema cameras who need fast pit-lane battery changes.
