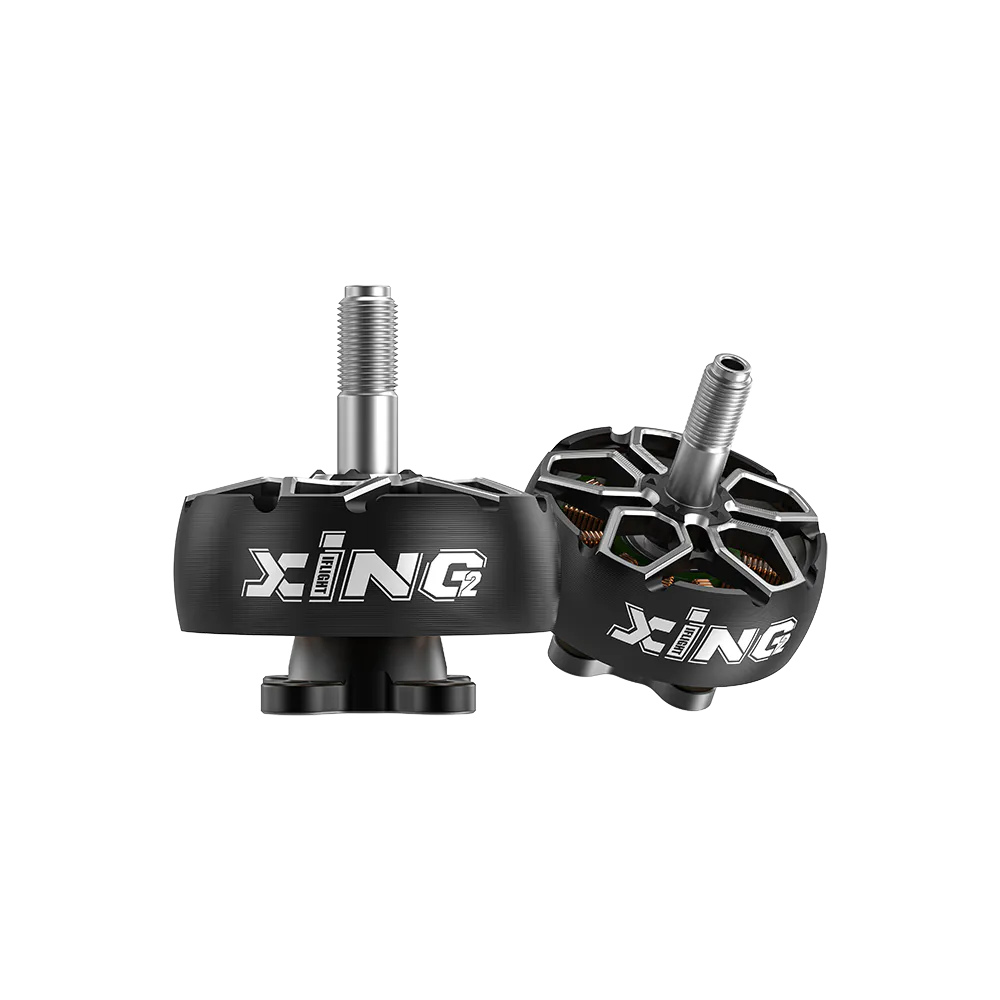

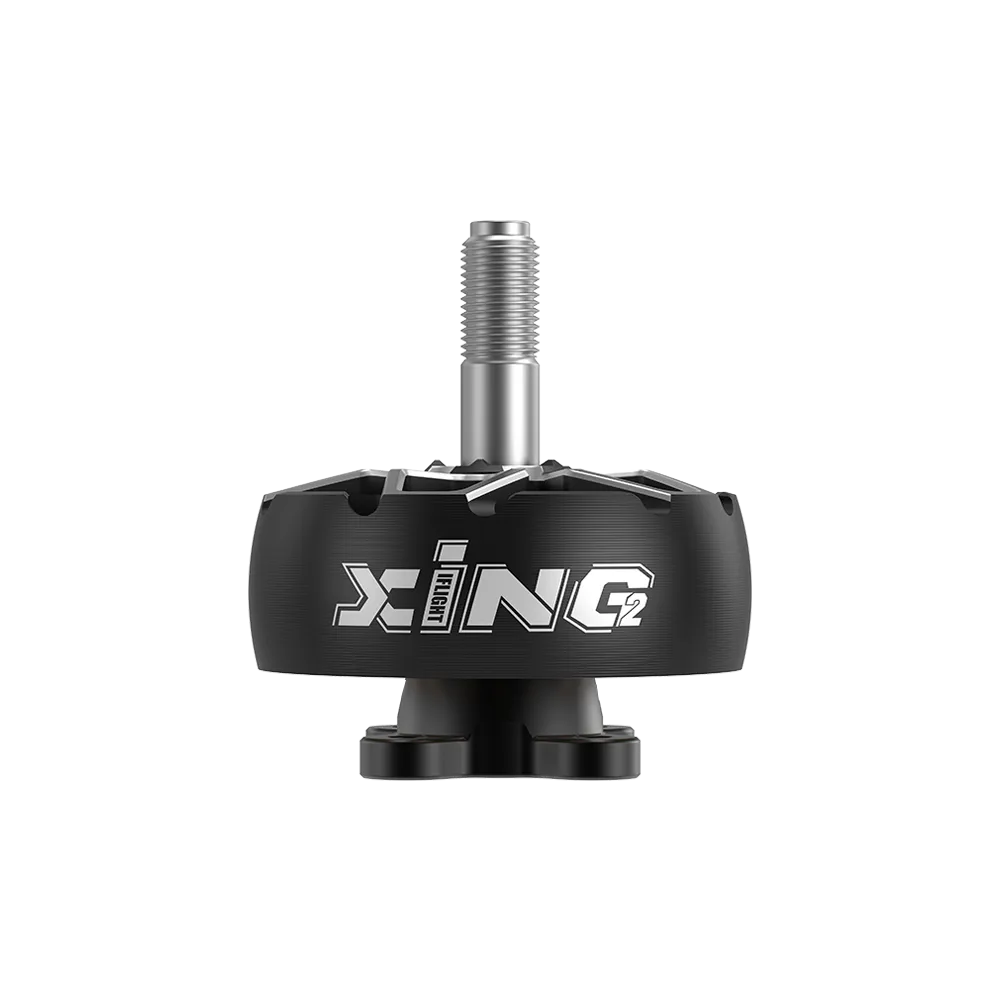

iFlight XING2 2506 FPV Motor Unibell 1500KV

The iFlight XING2 2506 1500KV brushless motor is engineered for heavy-payload 5-inch cinematic builds, 6-inch cruisers, and long-range FPV drones running on 6S LiPo power. Featuring a wider and taller 2506 stator, it delivers significantly higher torque and thermal mass than standard 2207 or 2306 motors, making it ideal for turning heavier propellers without overheating during sustained high-throttle flights.

Key features

• Machined 7075 aluminium Unibell construction paired with high-temperature N52H arc magnets for maximum efficiency and structural rigidity.
• Signature XING2 O-ring damping gap absorbs axial rotor impacts, protecting the internal NSK 9x4x4mm bearings during hard crashes.
• Lightweight yet durable titanium alloy internal shaft paired with standard M5 outer propeller threads.
• Pre-tinned 160mm 20AWG silicone motor wires allow clean, direct soldering to your ESC across wider frame arms.

Specifications

• KV Rating: 1500 KV
• Configuration: 12N14P
• Stator Dimensions: 25 x 6 mm
• Input Voltage: 4-6S LiPo
• Propeller Shaft Thread: M5
• Internal Shaft Diameter: 4 mm (Titanium alloy)
• Mounting Pattern: 16x16mm (M3)
• Lead Wires: 20AWG, 160mm
• Weight: 38.2g (including wires)

Pair this 1500KV variant with a 50A to 60A ESC and 6S LiPo battery packs for smooth, high-torque cinematic flying while carrying full-size action cameras, or for efficiency-focused 6-inch long-range cruising.
