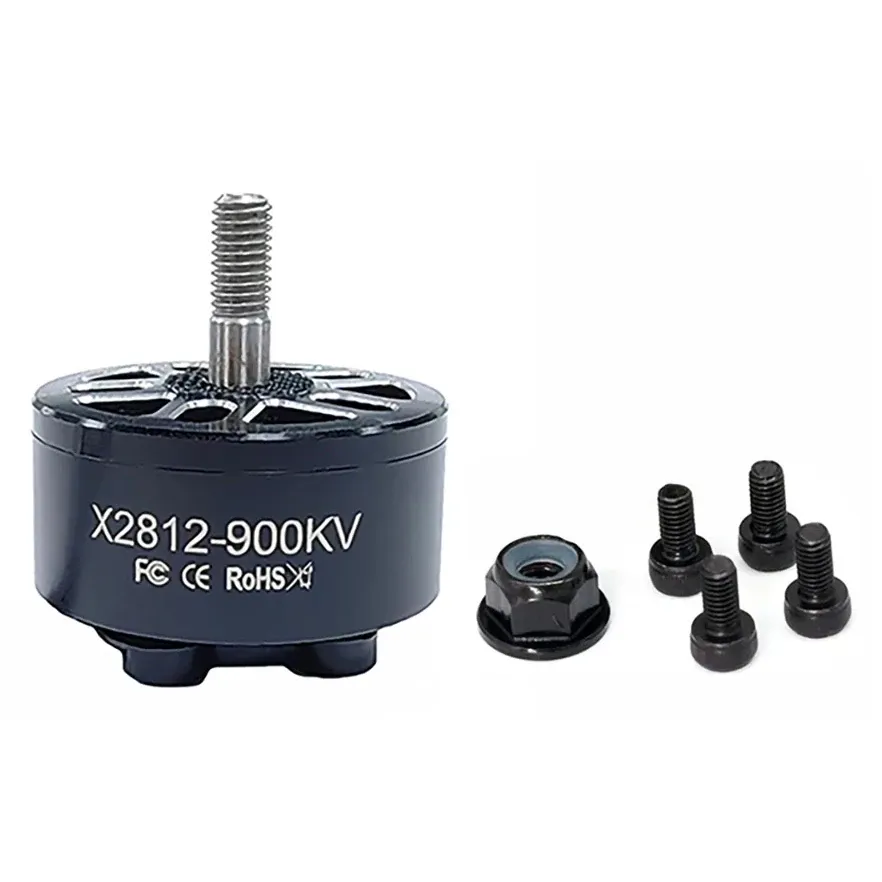

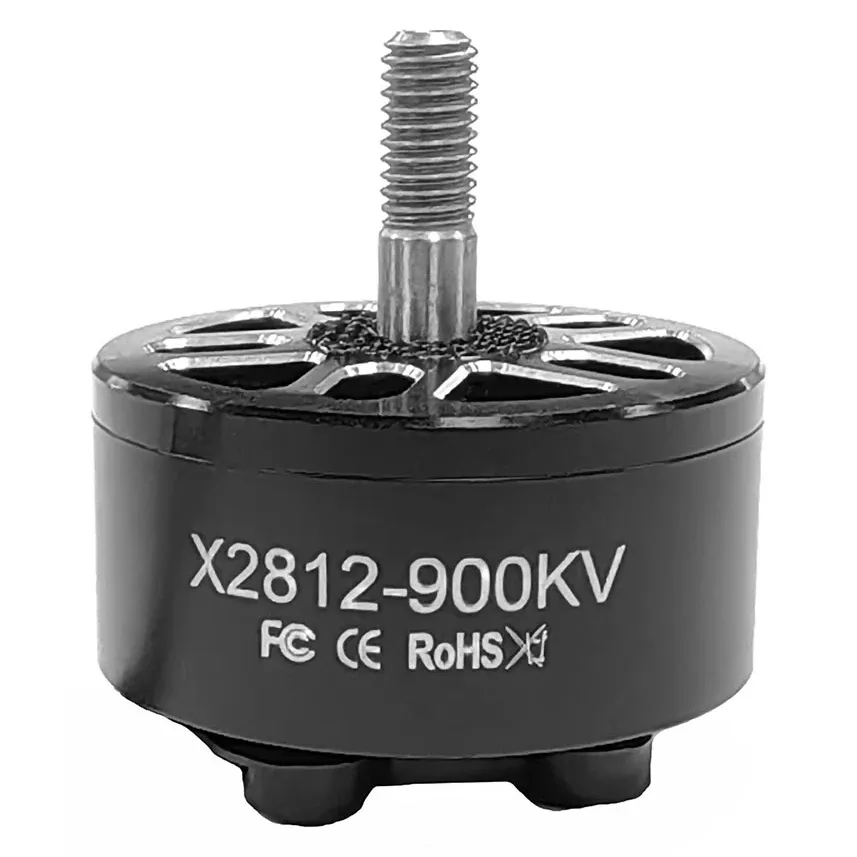

DYS X2812 900KV Brushless Motor

The DYS X2812 900KV is a long-range motor for freestyle and long-distance quads, sized to swing 9-inch props such as a 9 x 4.7 carbon prop. It is rated for 2-6S, and the 900KV winding is at its best on 6S, where it gives efficient cruising and steady throttle control for long flights and cinematic freestyle.

Key features

• 28 x 12 mm stator in a 12N14P configuration for strong torque

• Dynamically balanced rotor for low vibration

• High-purity copper windings for efficiency and heat resistance

• 72 g per motor

• M5 prop shaft

Specifications

• Stator: 28 x 12 mm (2812)

• KV: 900KV

• Configuration: 12N14P

• Input: 2-6S LiPo (6S recommended)

• Shaft: M5

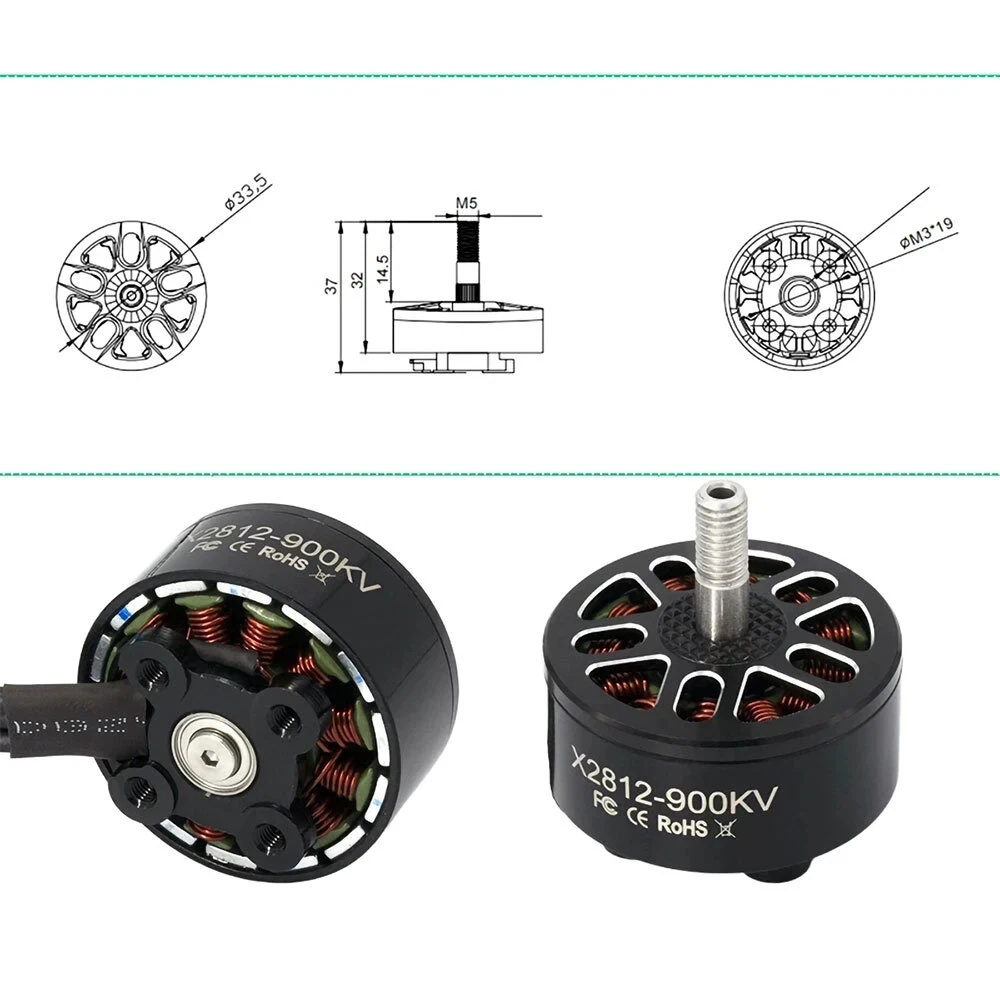

• Dimensions: 33.5 x 37 mm (diameter x length)

• Weight: 72 g

• Suggested prop: 9 x 4.7 inch carbon fibre

It takes CW or CCW props, with spin direction set in the ESC configurator. On 4S or lower, 900KV feels soft with 9-inch props; choose a higher-KV 2812 for those packs.
