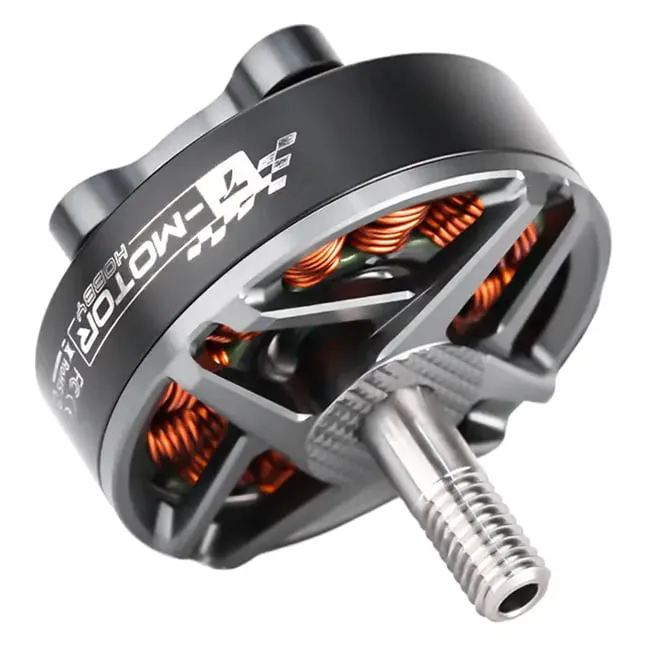

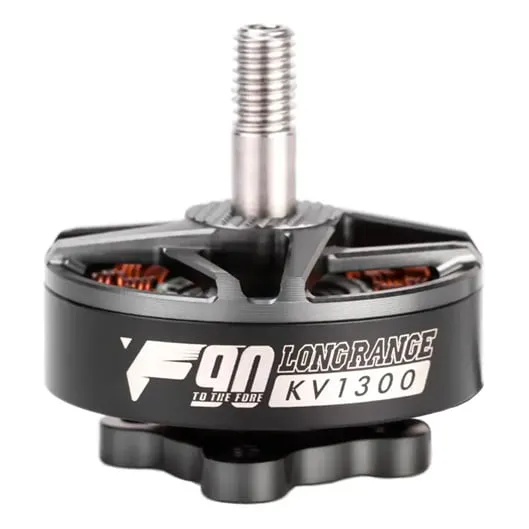

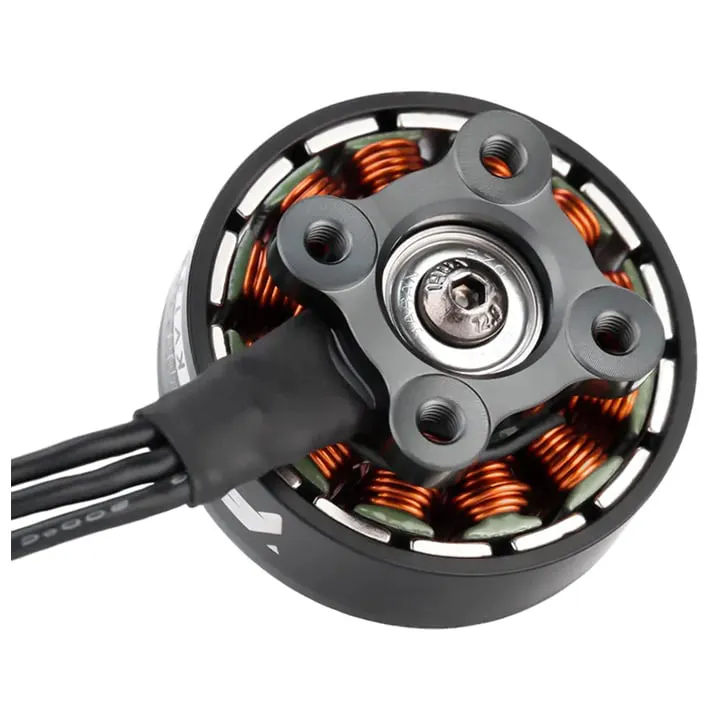

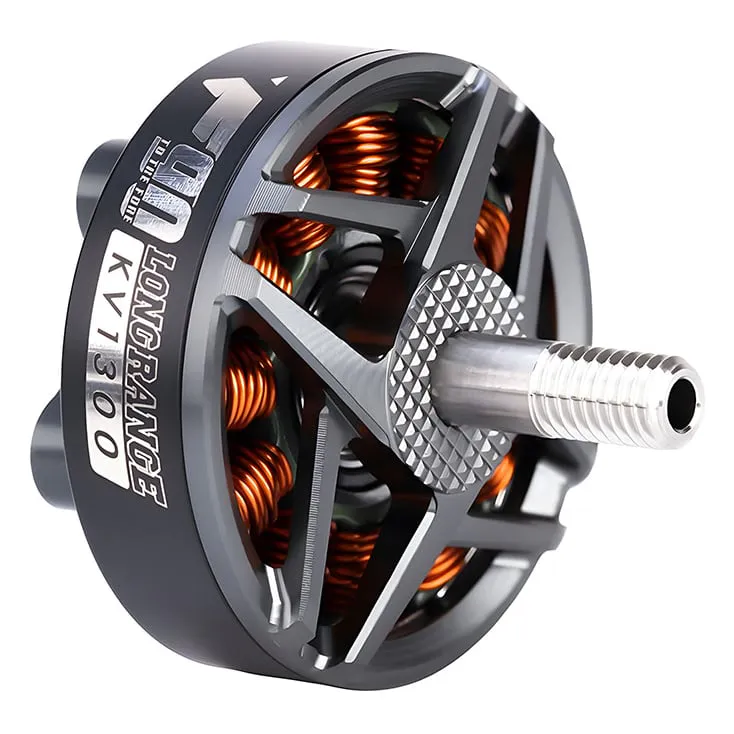

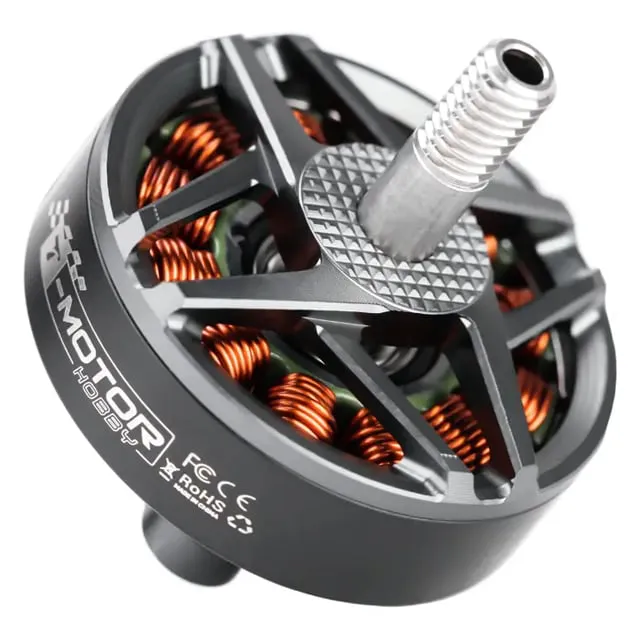

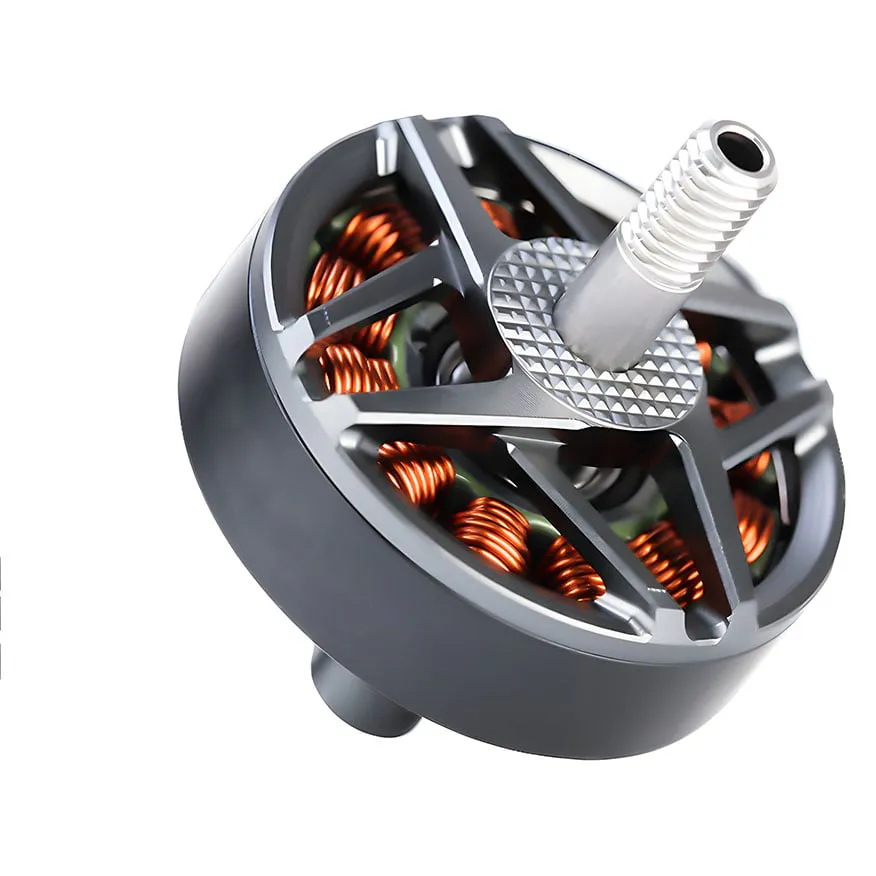

T-Motor F90 2806.5 Long Range FPV Motor

The T-Motor F90 is a 2806.5 brushless motor from T-Motor's F-series, built for 7-inch long-range quads, cinematic rigs and X8 cinelifters that lift heavier cameras. It is offered in 1300KV and 1500KV, both set up for 5–6S LiPo, and is tuned for efficiency and smooth throttle rather than outright top speed.

Key features

• 2806.5 stator (28 mm diameter, 6.5 mm height) sized for 6–7 inch propellers
• 1300KV favours efficiency and flight time; 1500KV gives more RPM and punch for heavier rigs
• Ventilation holes in the top and bottom of the bell keep the windings cool on long flights
• Machined aluminium housing with a reinforced base where the mounting screws seat
• Mounting screws supplied with each motor

Specifications

• Stator: 2806.5
• KV options: 1300KV, 1500KV
• Battery: 5–6S LiPo
• Shaft: 5 mm
• Weight: 41 g without leads (1500KV)
• In the box: 1 motor, screw set

A quad needs four motors and an X8 cinelifter eight; pair them with a 6S-rated ESC such as T-Motor's F55A Pro II 4-in-1 and 6–7 inch props.
