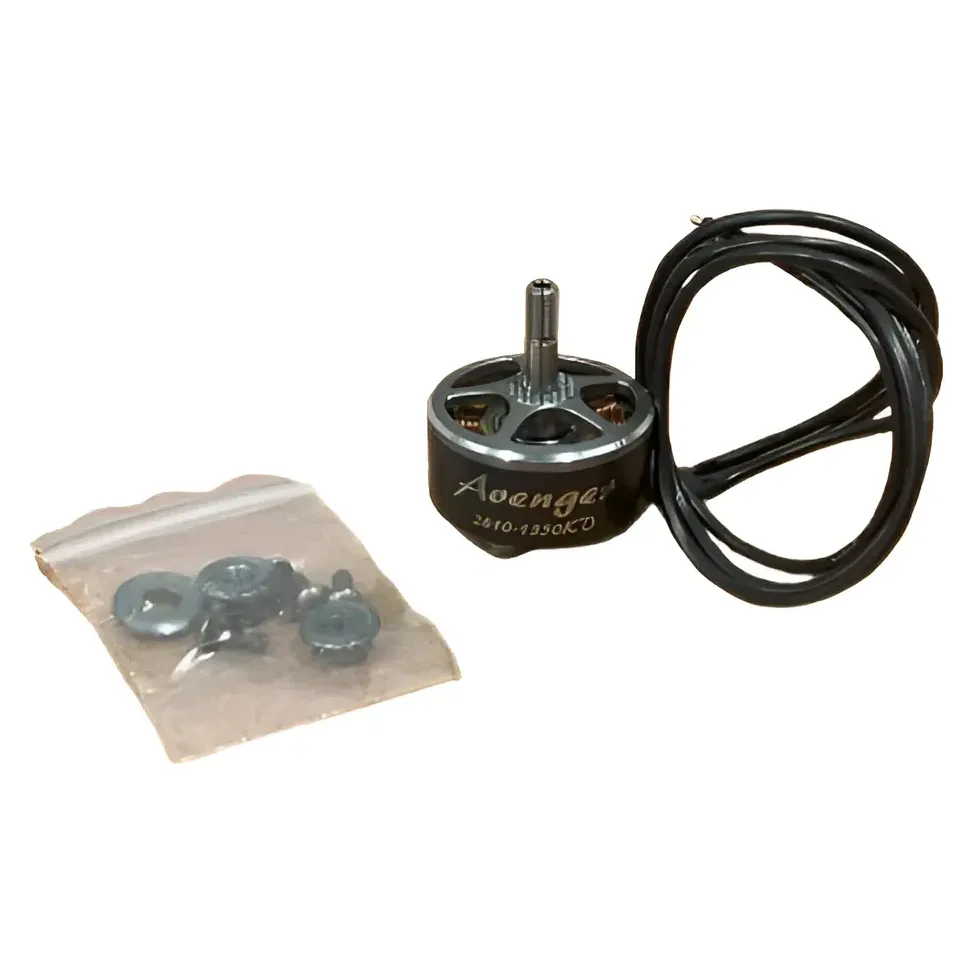

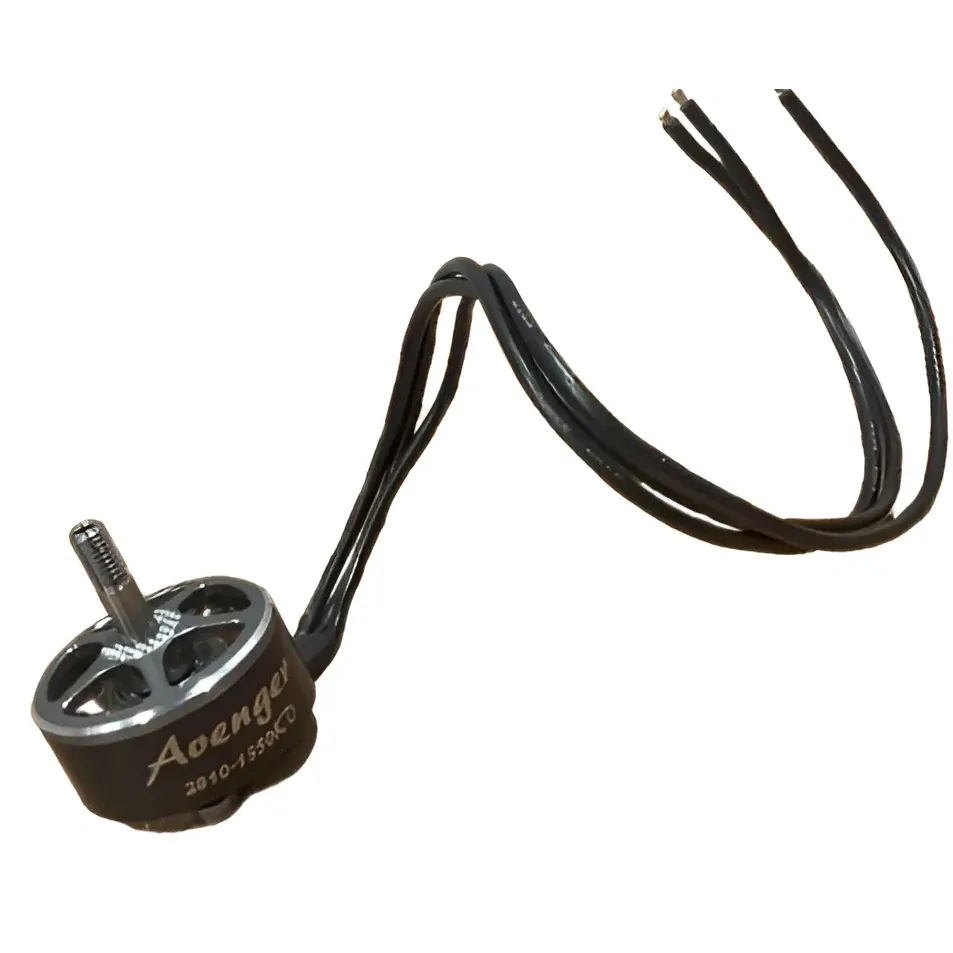

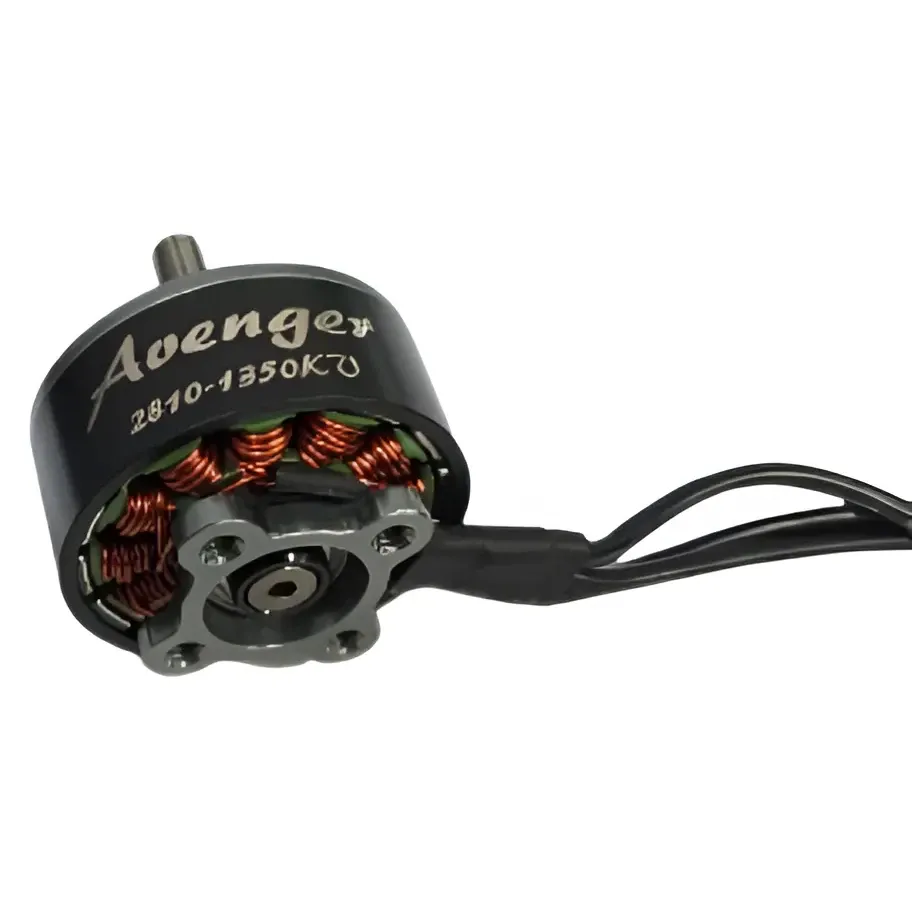

BrotherHobby Avenger 2810 1350KV Brushless Motor

The BrotherHobby Avenger 2810 1350KV is a brushless motor on a 28 x 10 mm stator, rated for 4-6S and aimed at 7-inch long-range and freestyle quads that need torque for bigger props. Japanese NMB bearings, N52H arc magnets and 0.2 mm Kawasaki silicon-steel laminations make up the core, while a titanium-alloy hollow shaft and 7075 aluminium bell and base add crash strength.

Key features

• 12N14P configuration on a wide 28 mm stator, built to swing 7-inch props
• Japanese NMB 12 x 6 x 4 mm bearings
• Titanium-alloy hollow shaft with an M5 prop adapter thread
• 7075 aluminium bell and base
• 65 g including 25 cm 18AWG leads

Specifications

• Stator: 2810 (28 x 10 mm), 0.2 mm Kawasaki silicon steel
• KV: 1350KV
• Configuration: 12N14P
• Battery: 4-6S LiPo (14.8-22.2 V nominal)
• Bearings: Japanese NMB 12 x 6 x 4 mm
• Magnets: N52H arc
• Shaft: Titanium-alloy hollow, M5 prop thread
• Mounting: M3, 19 x 19 mm
• Leads: 18AWG, 25 cm
• Weight: 65 g with leads
• Bell and base: 7075 aluminium

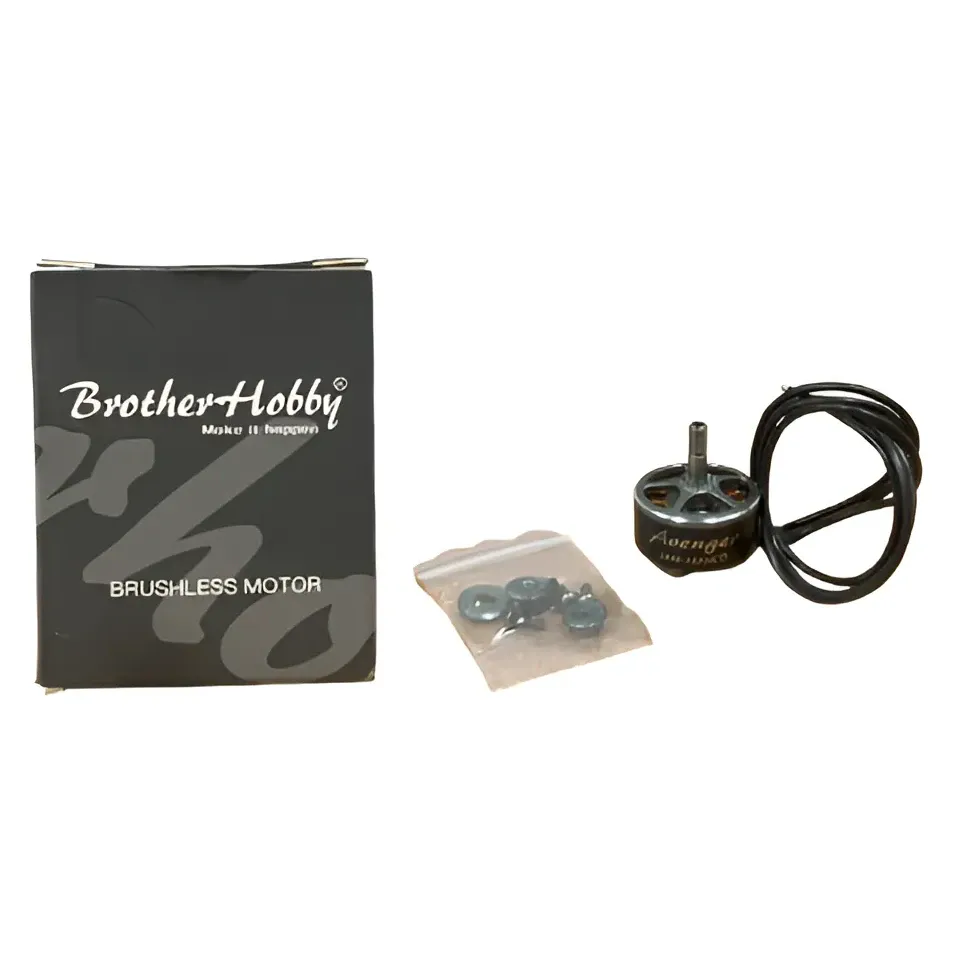

• Package: 1 motor

Order four for a quad. Check that your frame arms carry the 19 x 19 mm M3 hole pattern, and use props with an M5 (5 mm) hub.
