iFlight XING 2814 880KV Race Motor

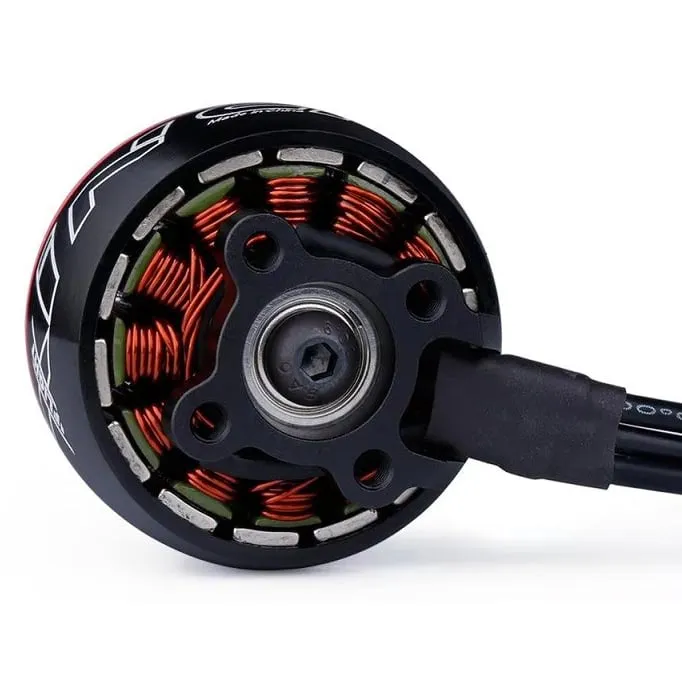

The iFlight XING 2814 880KV is a high-torque, large-stator brushless motor engineered for heavy-lift cinelifters, long-range 7-inch to 10-inch cruisers, and X-Class builds. Utilizing the proven XING series architecture with a unibell CNC-machined 7075 aluminium bell and N52H arc magnets, this motor delivers sustained thrust and exceptional thermal dissipation during prolonged, high-load flights.

Key features

• CNC-machined 7075 aluminium unibell construction for superior crash resilience and rigidity under load
• High-temperature N52H curved magnets paired with a 0.15 mm Kawasaki silicon steel stator for optimized electromagnetic efficiency
• 4 mm hollow titanium alloy internal shaft running on precision Japanese NMB 11x4x4 bearings

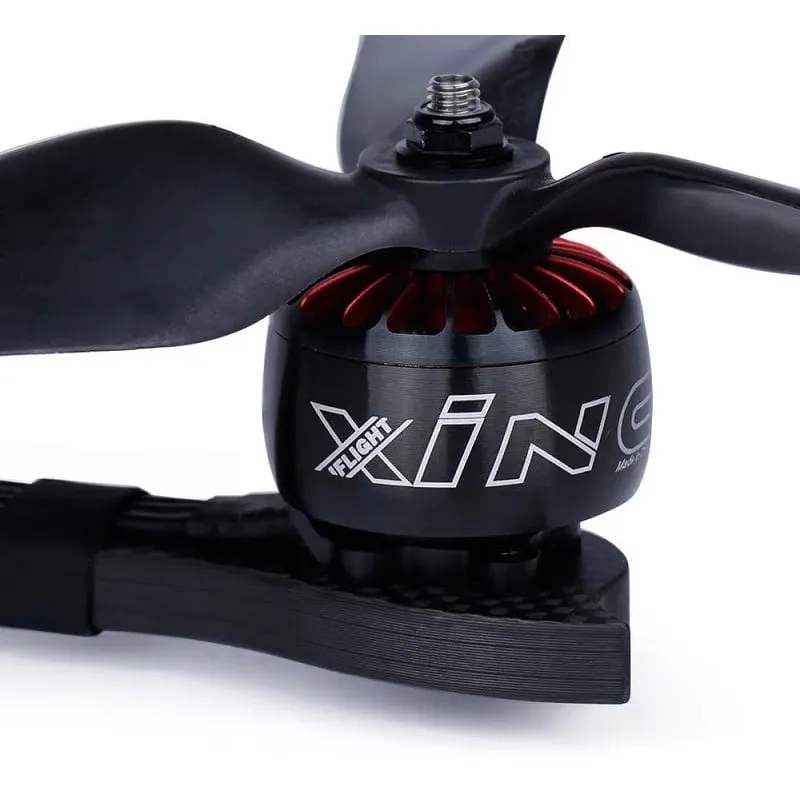

• Standard M5 threaded prop adapter with a knurled bell contact surface to prevent propeller slipping under torque spikes
• Retained using a high-strength hex screw at the base rather than a C-clip for secure shaft retention and straightforward servicing

Specifications

• Stator Size: 2814
• KV: 880 KV
• Configuration: 12N14P
• Input Voltage: 4-6S LiPo
• Shaft Diameter: 4 mm internal / M5 prop shaft
• Mounting Pattern: 19x19 mm M3
• Dimensions (Dia x Len): 36.0 x 30.2 mm
• Weight: 88.3 g (including leads)

The 880KV rating is ideally matched to 6S LiPo setups turning 9-inch to 10-inch propellers on long-range exploration rigs or twin-battery heavy-lifting platforms. Pair with individual or 4-in-1 ESCs rated for at least 50A to comfortably handle sustained current draws when carrying camera payloads.
