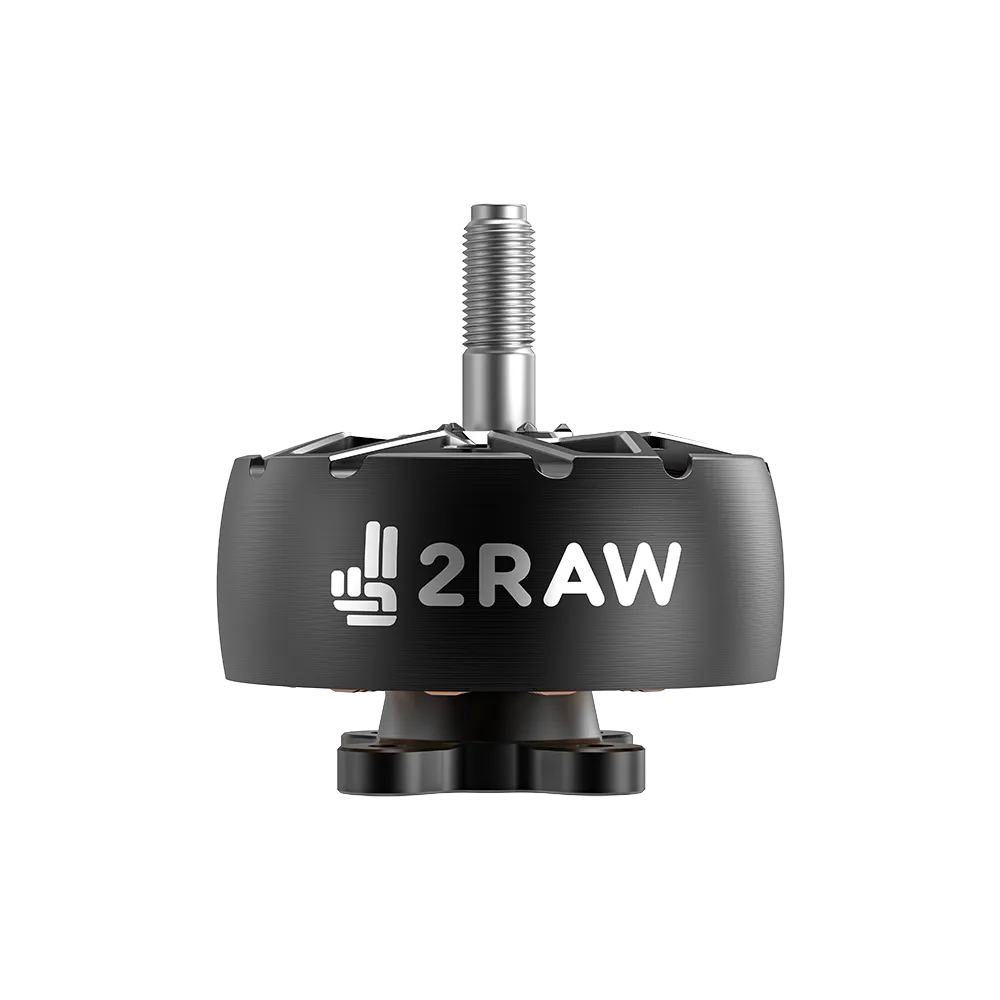

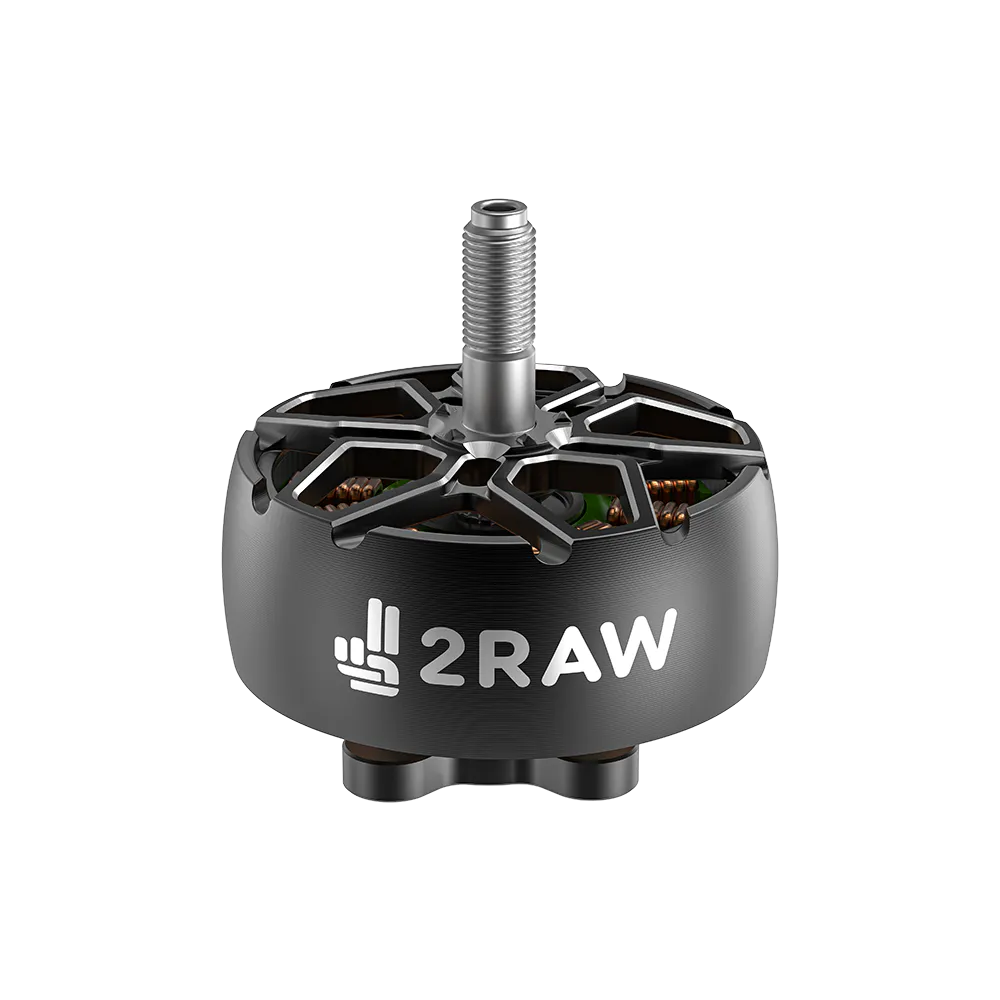

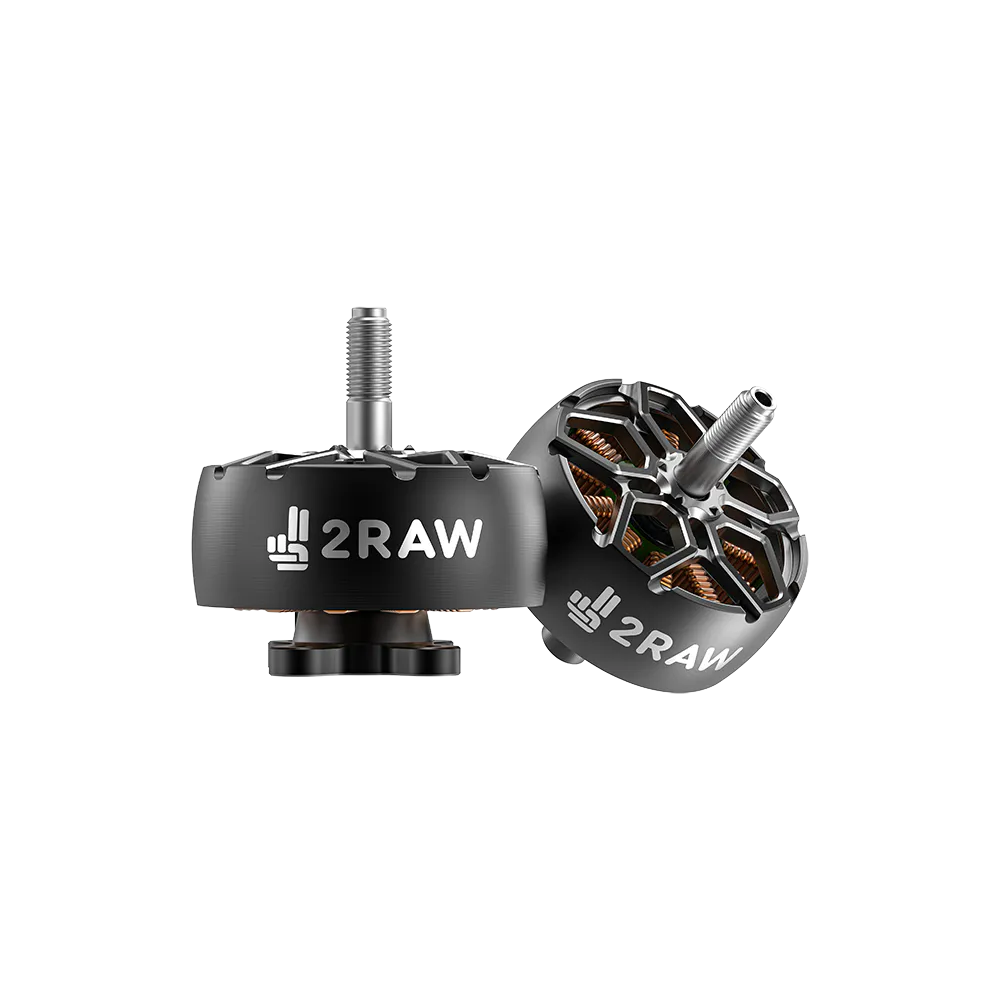

iFlight XING2 2812 1150KV Motor for Centurion X8

The iFlight XING2 2812 1150KV is a heavy-duty brushless motor purpose-built for the Centurion X8 and demanding 7-inch to 8-inch heavy-lift cinelifters. By pairing a massive 28mm wide and 12mm tall stator with an 1150KV winding, this motor delivers the substantial torque required to swing large propellers while carrying heavy cinematic payloads on 6S power systems.

Key features

• Engineered specifically for the Centurion X8 octocopter and custom 7-inch to 8-inch long-range macroquads.
• Features XING2's signature bell-to-bearing O-ring design to dampen high-frequency vibrations and protect the NSK bearings from mechanical shock.
• Built with high-temperature N52H curved arc magnets and a 5mm titanium alloy shaft for maximum rigidity under heavy payload strain.
• Machined from aerospace-grade 7075 aluminium to withstand the rigours of carrying professional camera setups in challenging environments.

Specifications

• Model: XING2 2812
• KV: 1150
• Configuration: 12N14P
• Supported Voltage: 6S LiPo
• Stator Dimensions: 28x12 mm
• Shaft Diameter: 5mm (Titanium alloy)
• Mounting Pattern: 19x19mm, M3
• Weight: 76.5g (including wire)

The standard 19x19mm mounting footprint matches modern heavy-lift frames. When building the Centurion X8, you will need eight of these motors paired with high-current ESCs capable of handling sustained heavy-throttle output during aggressive cinematic manoeuvres.
