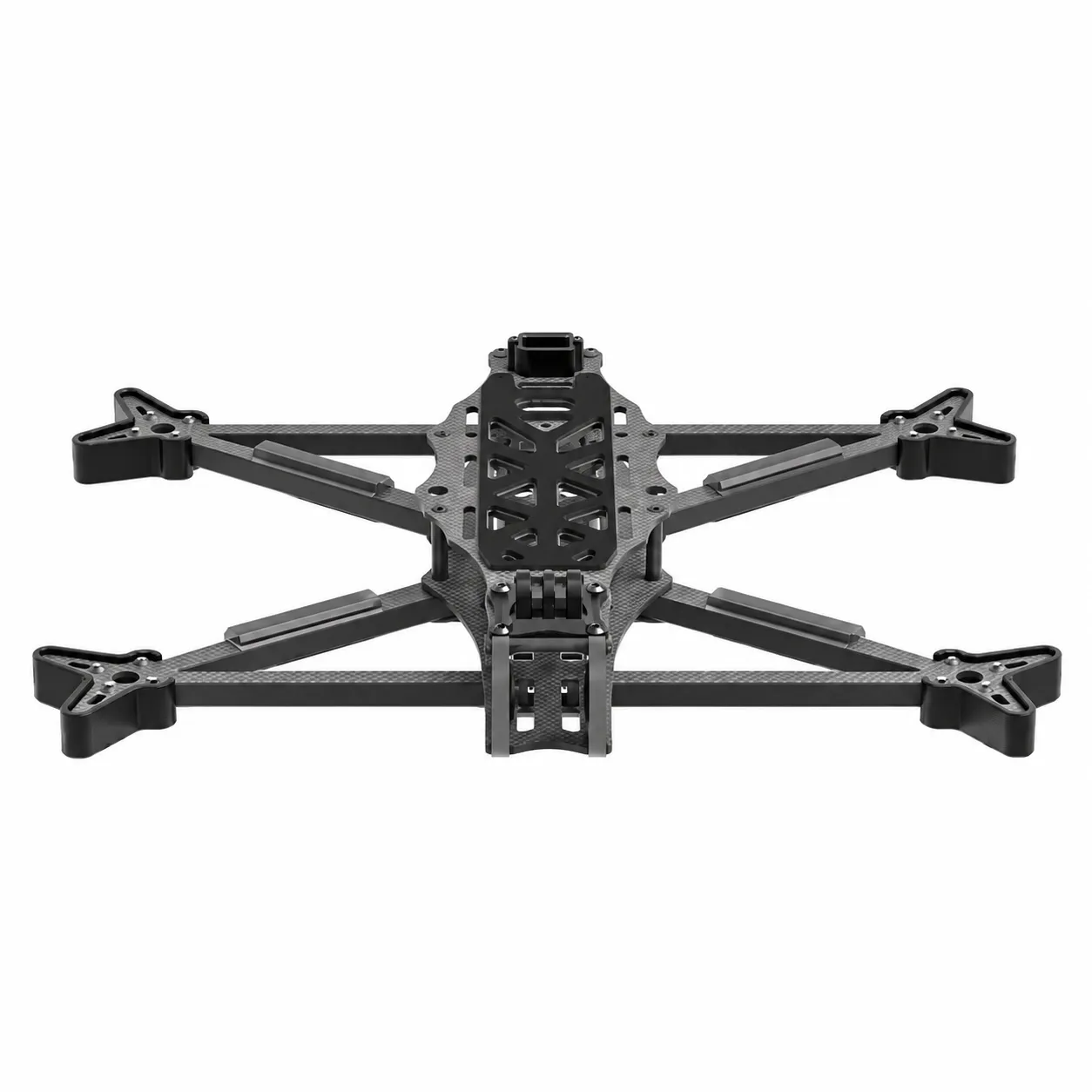

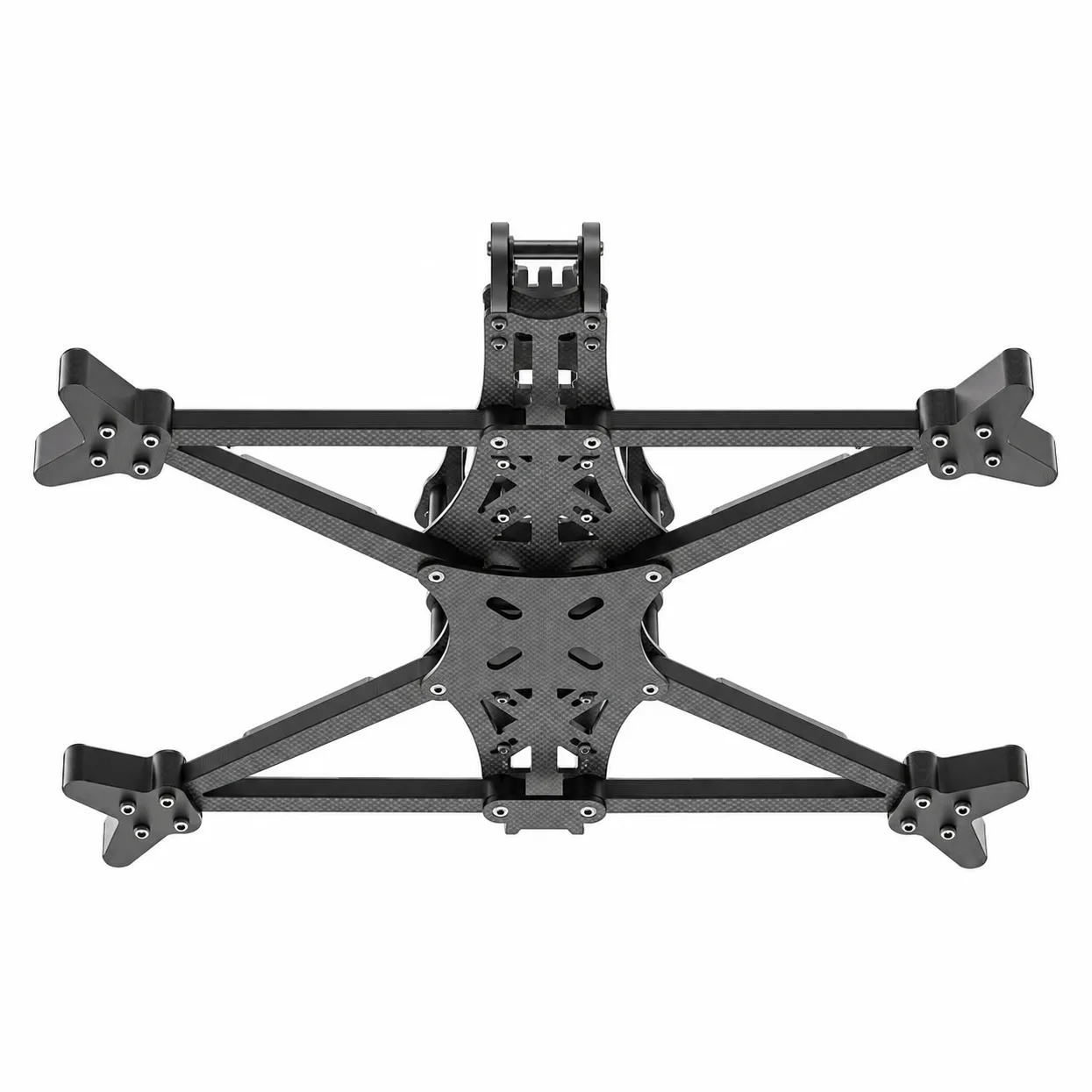

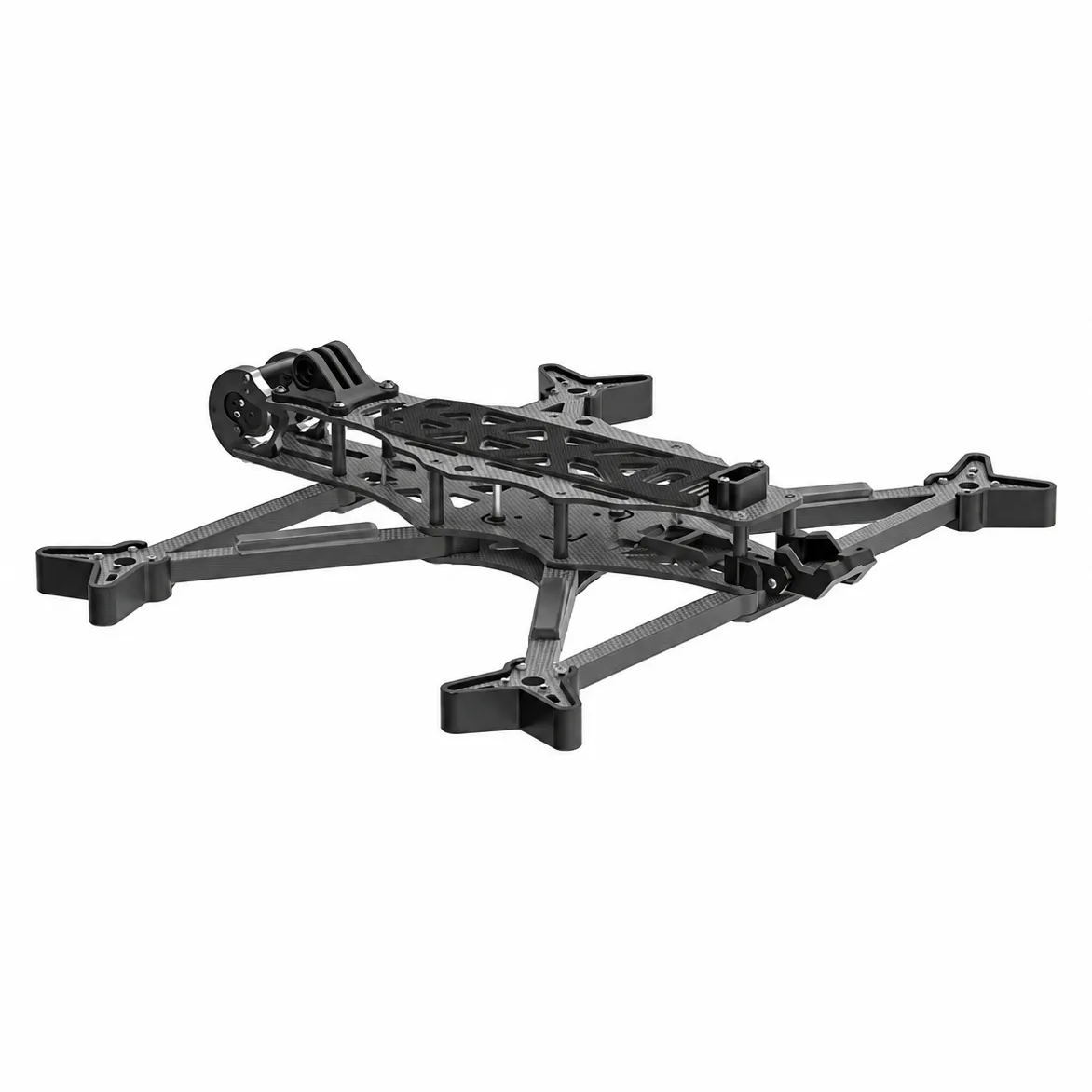

iFlight AOS 7 V5 7-inch Frame Kit with X-Cell FC Mount

The iFlight AOS 7 V5 is a 7-inch carbon fibre frame kit for freestyle and long-range FPV builds, built on 8 mm arms with a 313 mm wheelbase. Its 7075 aluminium camera cage takes 19–20 mm cameras and soft-mounts DJI O4 Pro and O3 cameras, and the frame suits Walksnail, HDZero and analogue setups as well.

Key features

• 8 mm carbon fibre arms with 2 mm top, 2.5 mm bottom and 2 mm upper plates

• 7075 aluminium camera cage with integrated soft mounting for DJI O3/O4 cameras and ND-filter support; 14 mm cameras need an adapter

• Patent-pending AOS X-Cell anti-vibration mount isolates the flight stack

• Three electronics mounting positions, taking 20x20 and 30.5x30.5 stacks and 20x20, 25.5x25.5 or 30.5x30.5 VTX boards

• Supplied with TPU parts, four motor-wire shield tubes, a screw bag and two battery straps

Specifications

• Prop size: 7 in

• Wheelbase: 313 mm

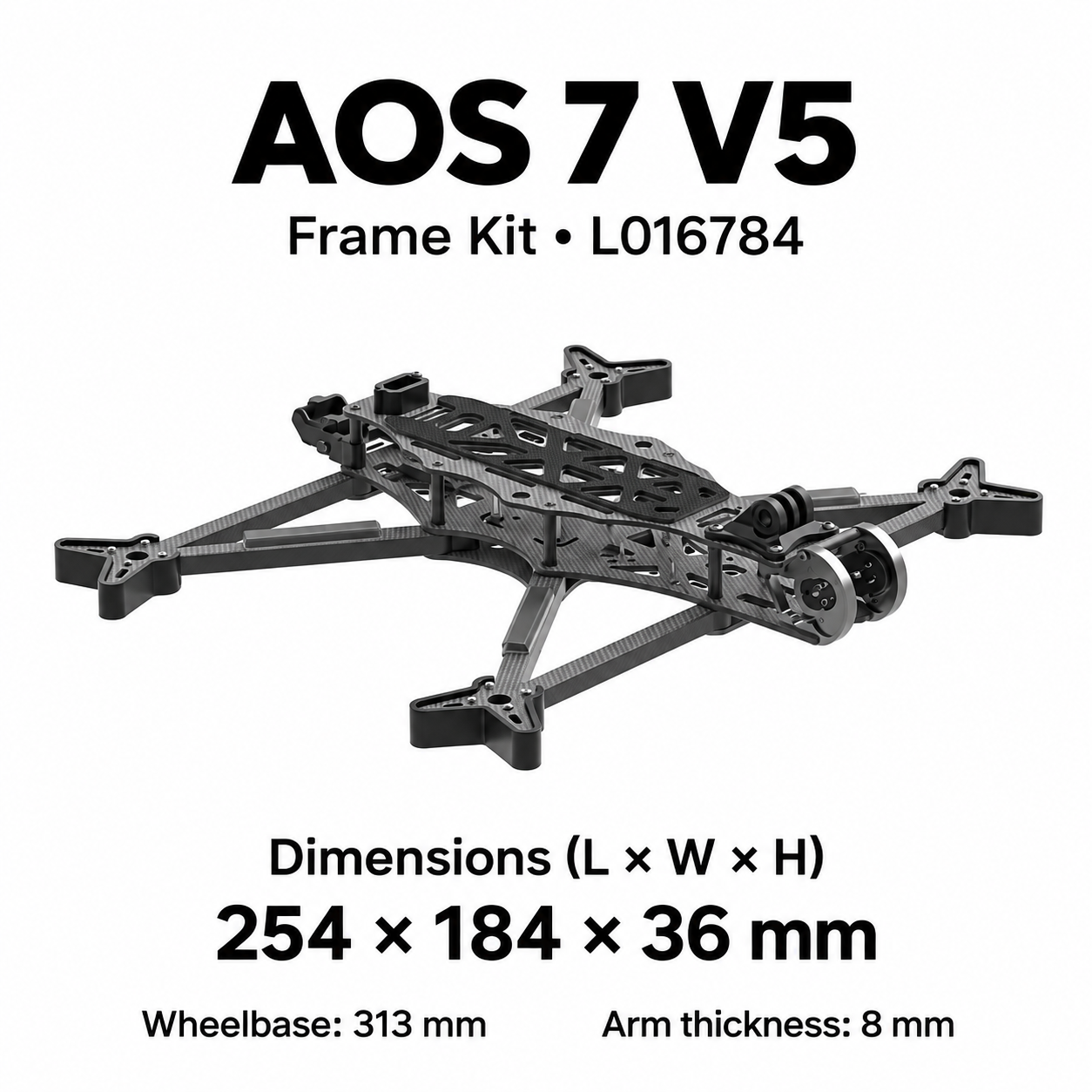

• Dimensions: 254 × 184 × 36 mm (L × W × H)

• Arm thickness: 8 mm

• Plate thickness: 2 mm top, 2.5 mm bottom, 2 mm upper

• Flight stack mounting: 20 × 20 mm and 30.5 × 30.5 mm, M3

• VTX mounting: 20 × 20 mm and 25.5 × 25.5 mm (M2), 30.5 × 30.5 mm (M3)

• Motor mounting: 19 × 19 mm, M3

• Camera width: 19–20 mm

• Weight: 325 g

• Video compatibility: DJI O4 Air Unit Pro, DJI O3 Air Unit, HD Vista, BLITZ Whoop 1.6W VTX

This is a frame kit only: pair it with 7-inch props, motors with a 19 × 19 mm base, a 20x20 or 30.5x30.5 stack and your choice of video system.
