iFlight Chimera7 Pro V2 7" Frame Kit
SKU IFL-CHIM7-PRO-V2
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

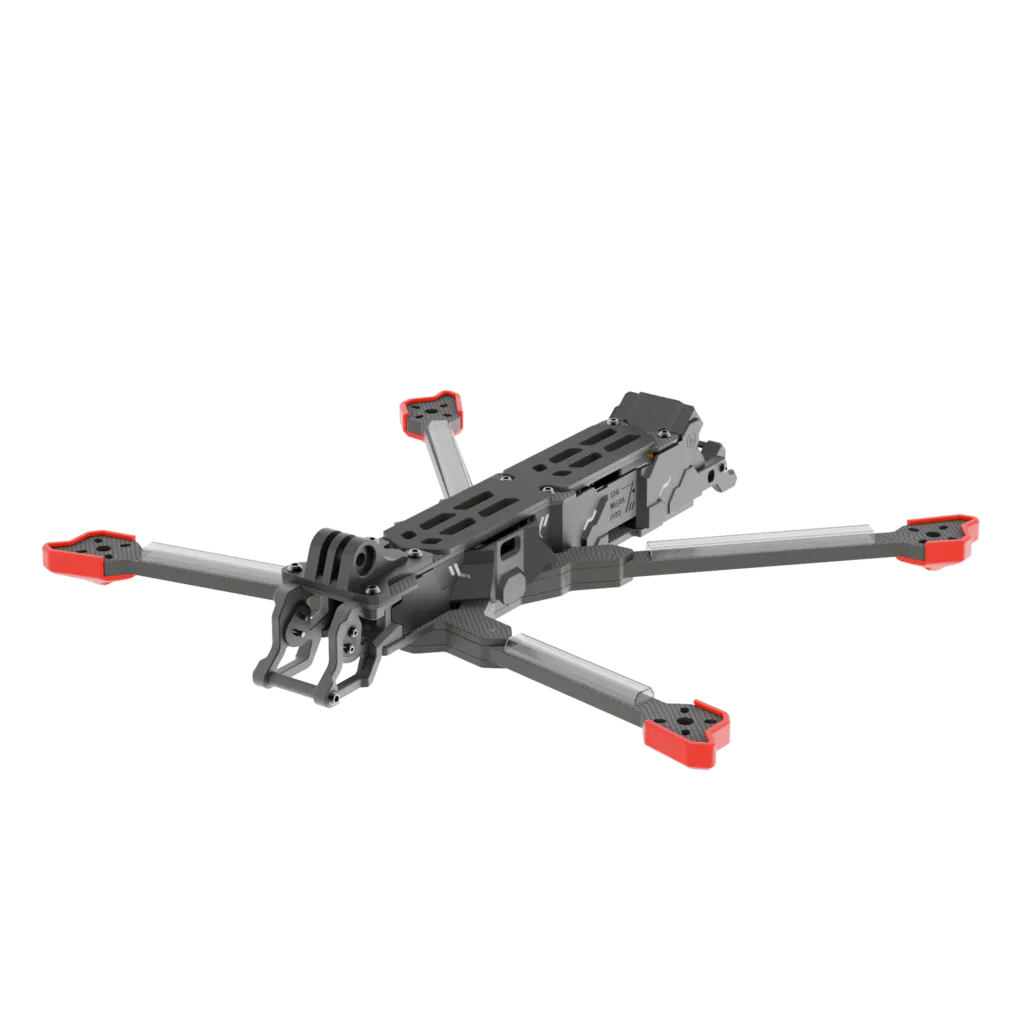

The iFlight Chimera7 Pro V2 is a carbon-fibre long-range frame built around the DJI O3 HD Air Unit, sized for 7.5-inch propellers and 2806.5-class motors for stable, efficient cinematic and expedition flying.
Key features

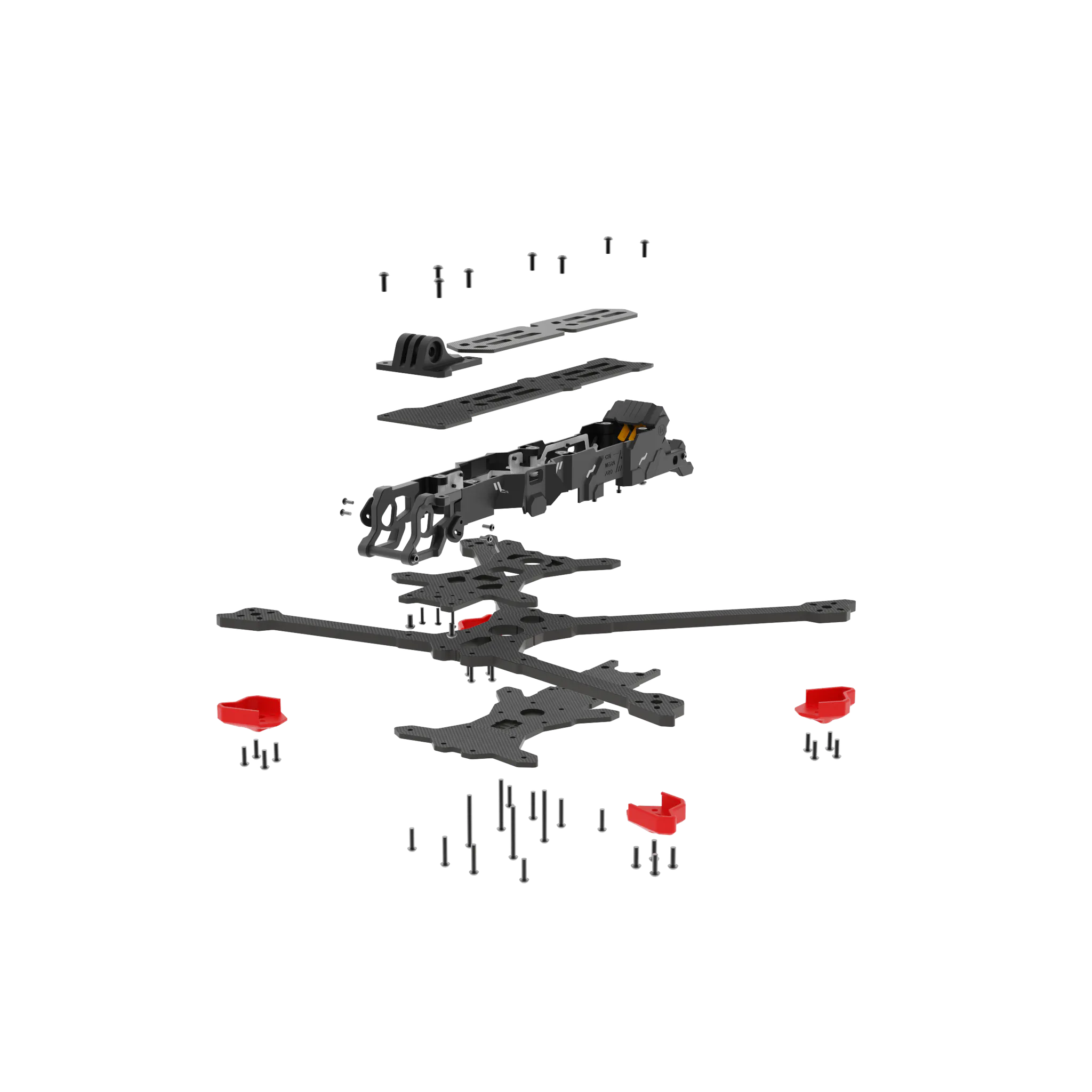

327mm wheelbase carbon frame with 6mm arms, built for 7.5-inch props and recommended 2806.5 motors.
Custom heatsink and a 215mm MIPI video cable route the DJI O3 Air Unit cleanly through the frame.

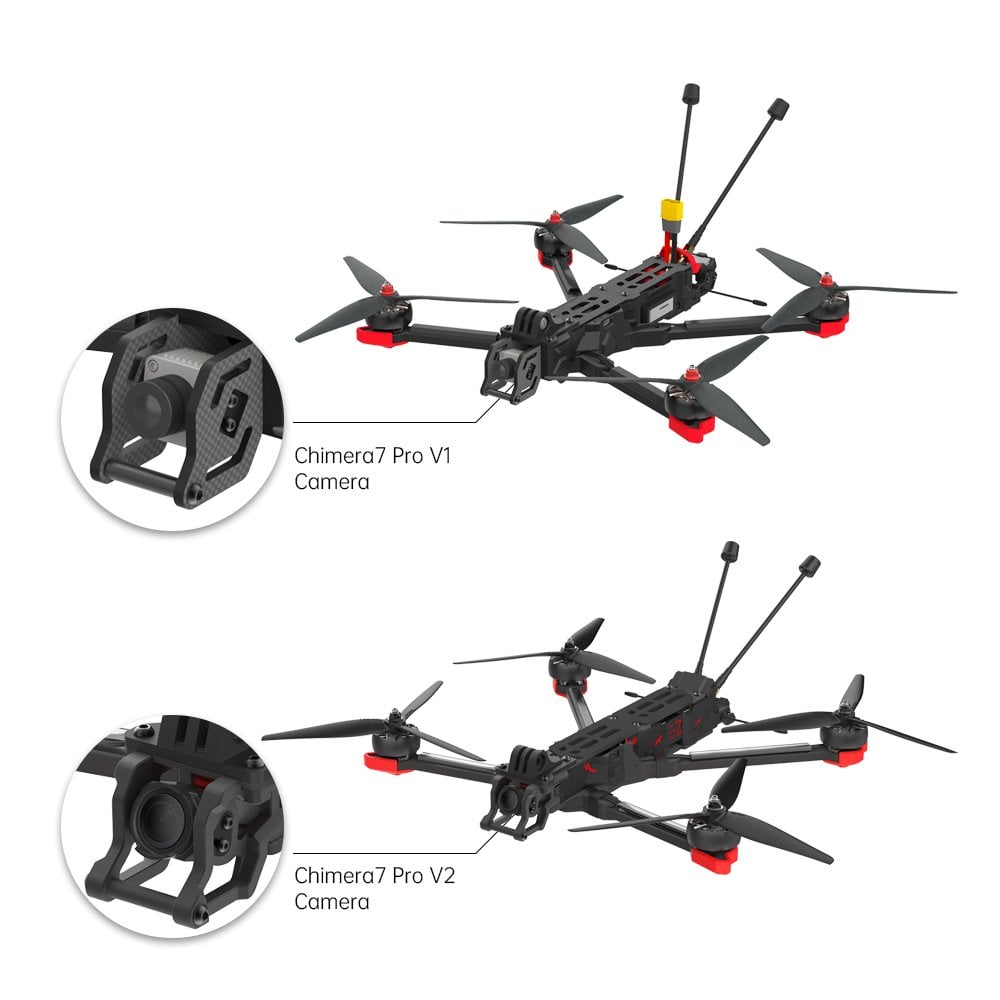

Wide-FOV camera mount with TPU damping inserts, plus redesigned side panels that fit the O3 unit at the rear.
Dual 5.8GHz VTX antenna TPU mount for a two-antenna digital or analogue video setup.
Top- or bottom-mounted battery strapping supports 6-cell packs, or 5-cell for slower, longer cruising.
Specifications
Prop Size: 7.5 inch
Wheelbase: 327mm
Frame dimensions: 270 x 199 x 34mm
Arm thickness: 6mm
Plate thickness: 3mm bottom, 2mm top, 3mm upper, 3mm camera plate
Weight: 175g (frame only, excluding TPU parts)
Material: Carbon fibre
Motor mounting: 16x16mm / 19x19mm
VTX mounting: 30.5x30.5mm / 25x25mm / 20x20mm
Max height: flight stack 21mm, VTX 30mm
Includes the O3 heatsink, MIPI cable, antenna pigtails, dual-antenna TPU, arm guards and battery straps; an anti-spark filter for the O3 Air Unit is sold separately.
| Prop Size | 7", 7.5" |
|---|---|
| Wheelbase | 327 mm |
| Made in India | No |
| Brand | iFlight |
| Weight | 175 g |
