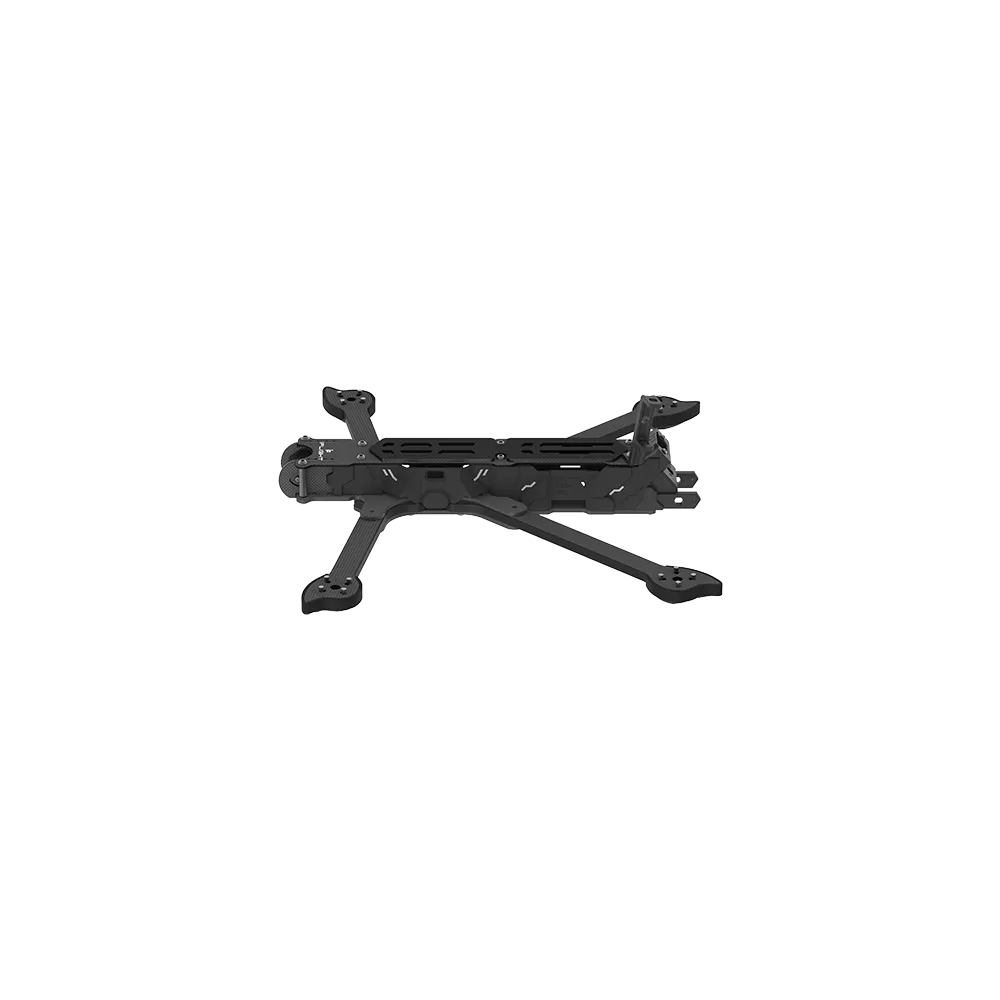

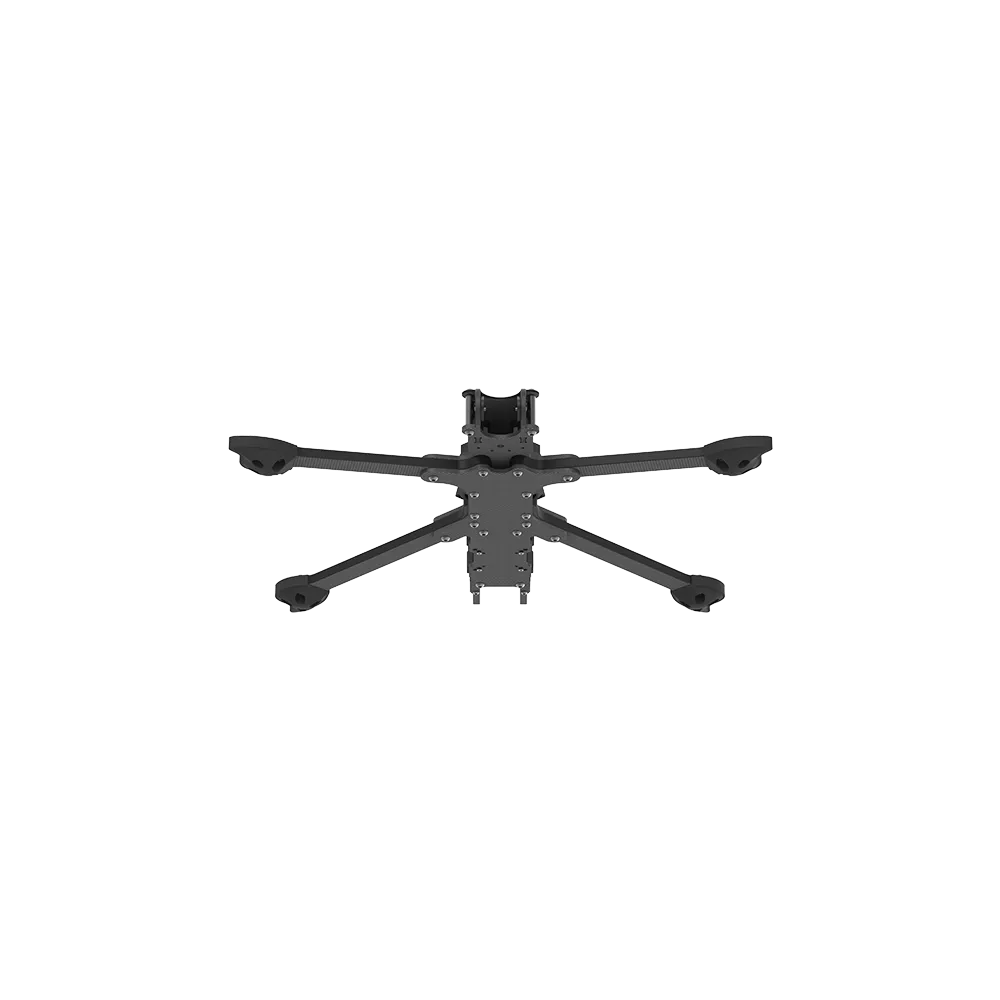

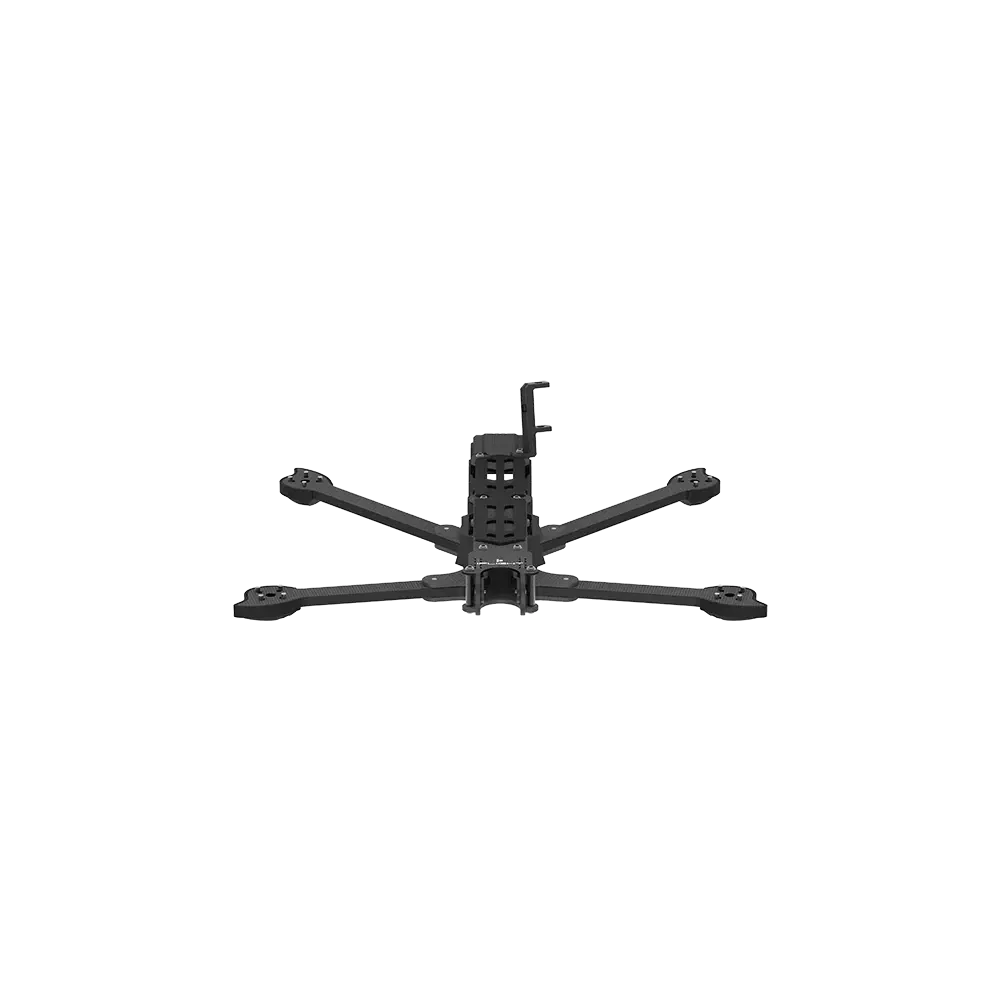

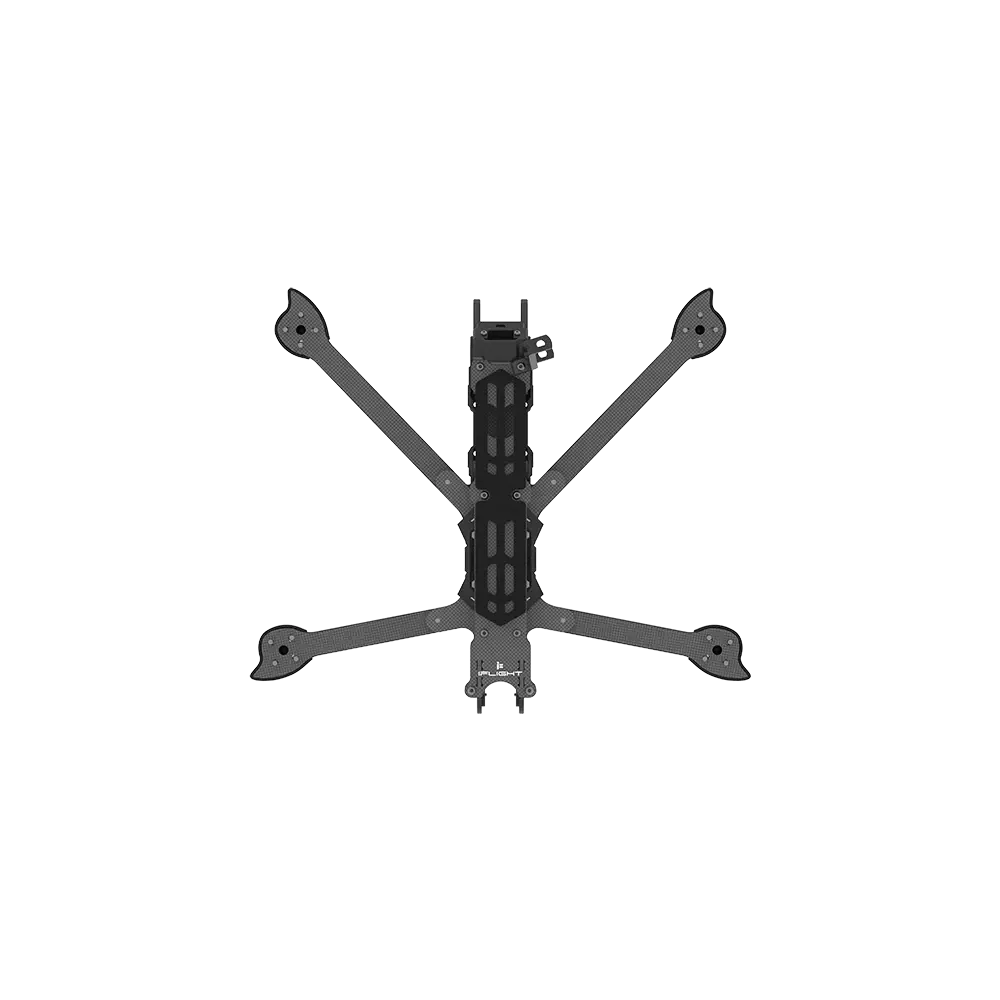

iFlight Chimera7 ECO 7-Inch Frame Kit

The iFlight Chimera7 ECO is a 7.5-inch frame kit built for long-range FPV cruising, mountain surfing and mid-range cinematic flights, with a stiff carbon layout tuned for minimum resonance.

Key features

• 6mm carbon arms with a 3mm bottom plate and 2mm top plate keep the frame stiff enough for a full 6S Li-Ion pack without vibration reaching the video feed.
• Flight stack mounts on the standard 30.5x30.5mm pattern, with VTX mounting at 30.5x30.5mm, 25x25mm or 20x20mm to suit analog, DJI or HDZero video systems.
• Motor mounting covers both 16x16mm and 19x19mm patterns for a wide range of 7-inch motors.
• Ships with a TPU set, anti-slip battery pad, two battery straps and four AMASS MR30 plugs.

Specifications

• Wheelbase: 327 mm
• Frame dimensions: 270 x 199 x 34 mm
• Arm thickness: 6 mm
• Top / bottom plate thickness: 2 mm / 3 mm
• Motor mounting: 16x16 mm, 19x19 mm
• Flight stack / VTX mounting: 30.5x30.5 mm
• Max flight stack / VTX height: 21 mm / 30 mm
• Weight: 357 g

Pair this frame with 2806.5 or 2809-class motors and a large 6S Li-Ion pack for a stable, efficient long-range cruiser.
