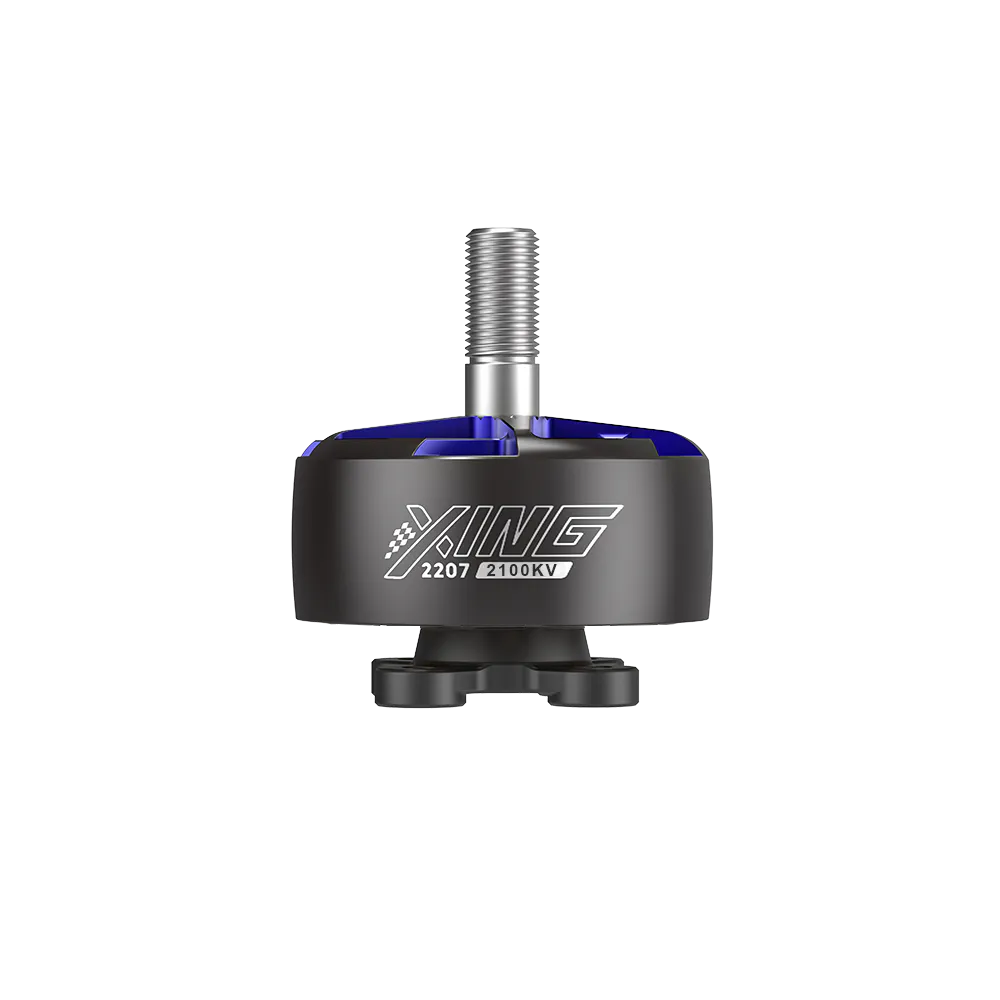

iFlight R5 2207 2100KV FPV Motor

The iFlight R5 2207 2100KV is a high-performance brushless motor engineered for 5-inch freestyle and racing drones. Striking a balance between top-end speed and low-end torque, this 2100KV variant is rated for up to 6S (25.2V) input and suits racing builds such as the Mach R5.

Key features

• 2207 stator size delivers immediate throttle response and excellent torque for demanding freestyle manoeuvres.

• 2100KV rating offers versatile power scaling across 4S to 6S LiPo configurations.

• Standard 16x16mm M3 base easily mounts to almost any modern 5-inch flight frame.

• Robust 5mm shaft ensures secure seating for standard 5-inch racing and freestyle propellers.

Specifications

• Stator Size: 2207

• KV Rating: 2100

• Configuration: 12N14P

• Input Voltage: 4-6S LiPo

• Peak Current: 49.49 A

• Max Power: 1167.5 W

• Interphase Resistance: 56.3 mOhm

• Shaft Diameter: 5mm (12.5 mm protruding)

• Mounting Pattern: 16x16mm (M3)

• Bearings: NSK, 9x4x4 mm

• Magnets: N52H curved

• Motor Wire: 20AWG, 150 mm

• Dimensions: 28.2 x 31.5 mm

• Weight: 34.6 g (including wire)

• In the box: 1 x motor, 4 x M3x8 screws, 1 x M5 flanged nylon lock nut
