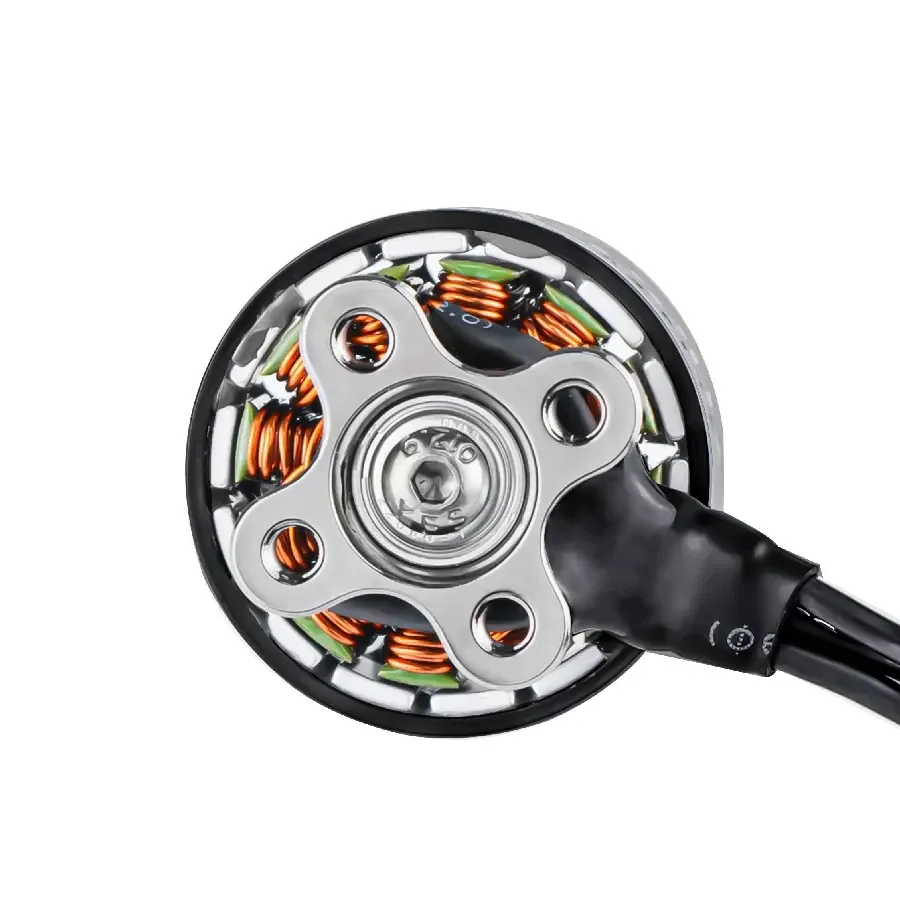

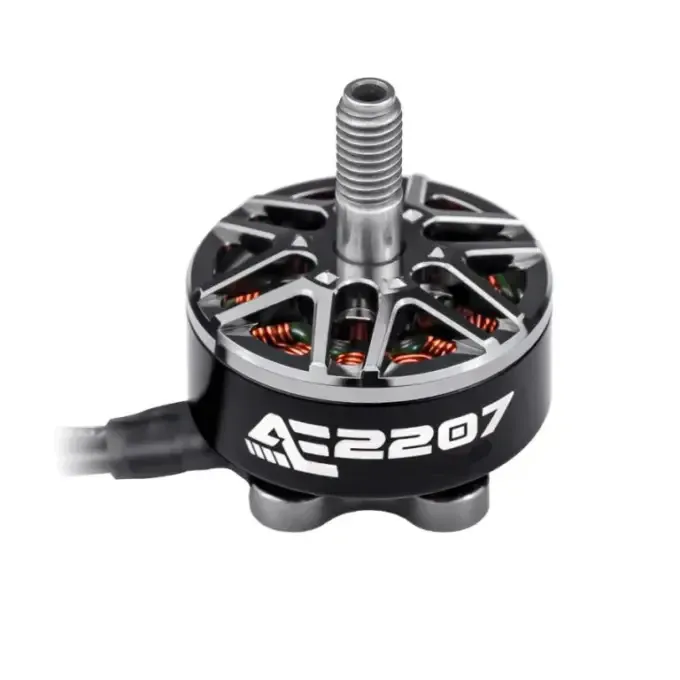

AxisFlying AE2207 V2 5" FPV Brushless Motor (1960KV)

The AxisFlying AE2207 V2 is a brushless motor engineered specifically for 5-inch FPV freestyle, cinematic, and hybrid drone builds. Featuring an updated V2 stator winding architecture, this motor lowers internal resistance and improves thermal dissipation across aggressive throttle transitions compared to the original AE series.

Key features

• Optimised V2 winding design: Updated internal copper windings reduce internal resistance and improve thermal efficiency over the V1 design during sustained, high-current throttle bursts.

• 6S torque profile: The 1960KV rating is tuned for 6S LiPo power systems, delivering snappy low-end torque and precise mid-range throttle control on standard 5-inch propellers.

• 12N14P configuration: Utilises high-grade N52H arc magnets arranged in a 12-slot, 14-pole architecture for smooth rotational feedback and crisp prop braking.

• Standard frame compatibility: Features an industry-standard 16x16mm M3 mounting base that aligns precisely with modern 5-inch freestyle and racing frame arms.

• 150mm silicone leads: Comes pre-tinned with 150mm of flexible 20AWG wire, providing ample reach to route down frame arms directly to a central 4-in-1 ESC.

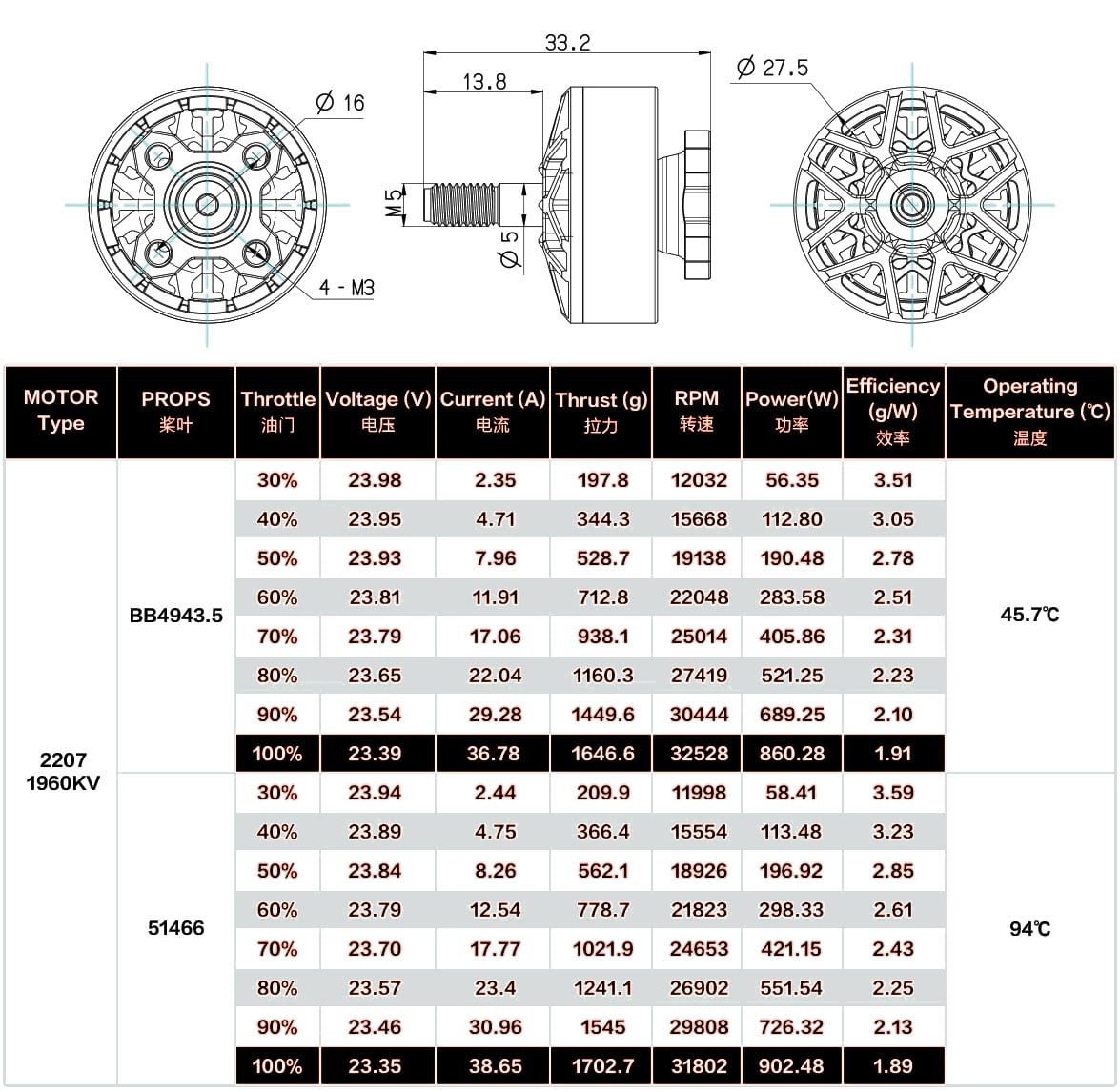

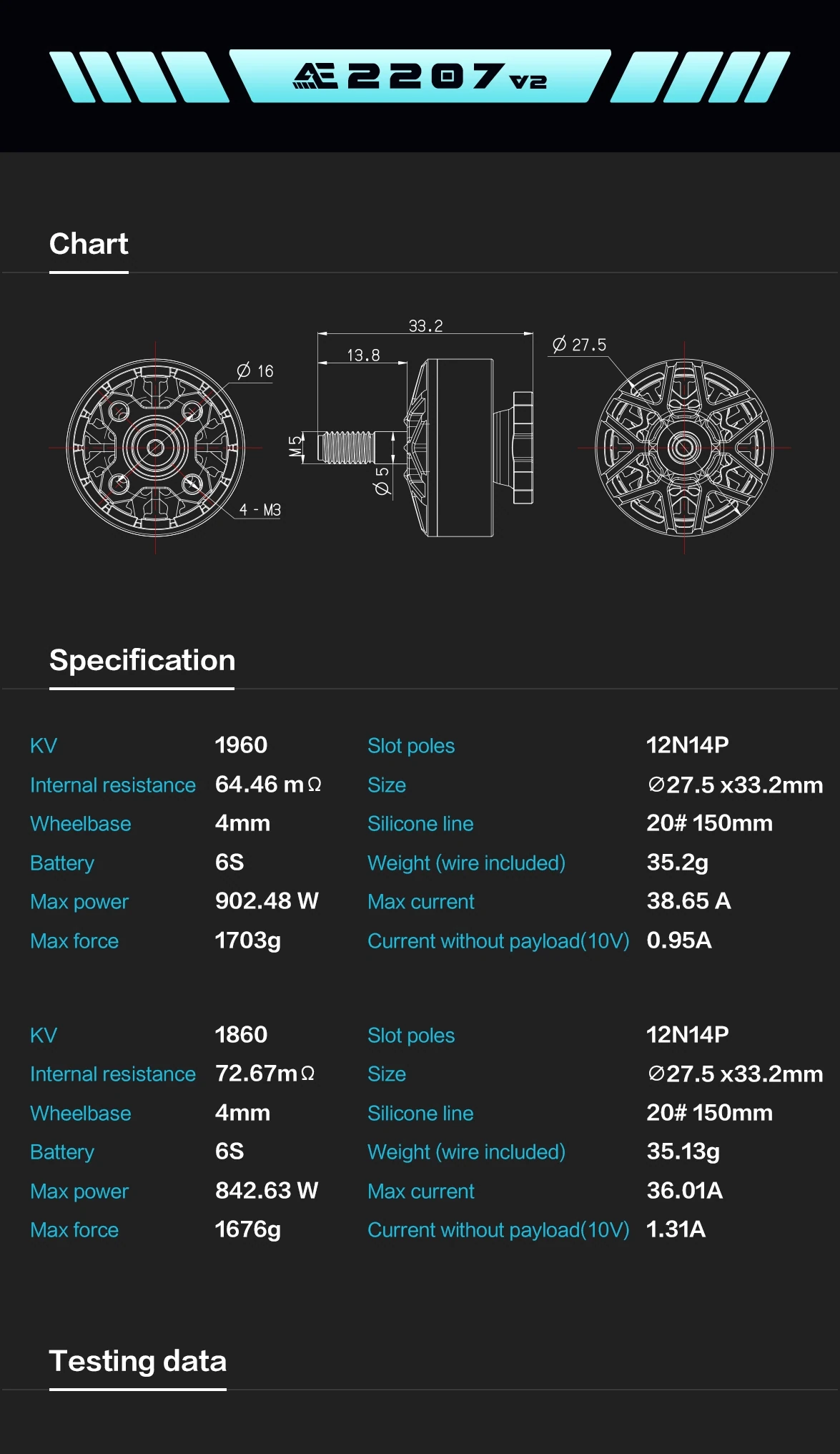

Specifications

• Model: AE2207 V2

• Stator Size: 2207

• KV Rating: 1960KV

• Configuration: 12N14P

• Input Voltage: 4-6S LiPo

• Mounting Pattern: 16x16mm (M3)

• Shaft Diameter: 5mm (M5 prop thread)

• Lead Wires: 20AWG, 150mm

• Weight: 34.6g (including wires)

The 1960KV variant is designed for 6S LiPo builds swinging standard 5-inch tri-blade propellers (such as 51466 or 5040 profiles). For optimal flight performance and reliable current delivery, pair this motor with a 45A–60A 4-in-1 brushless ESC and appropriate M3 mounting bolts.
