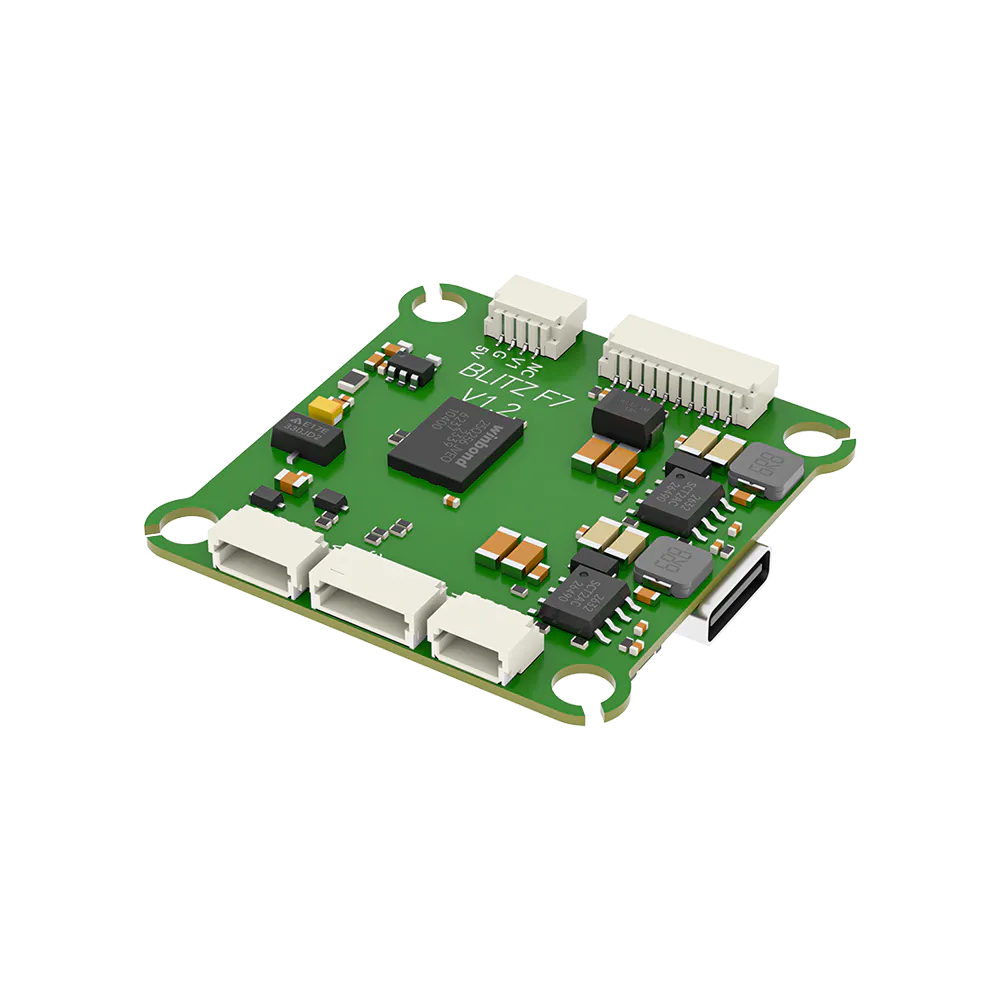

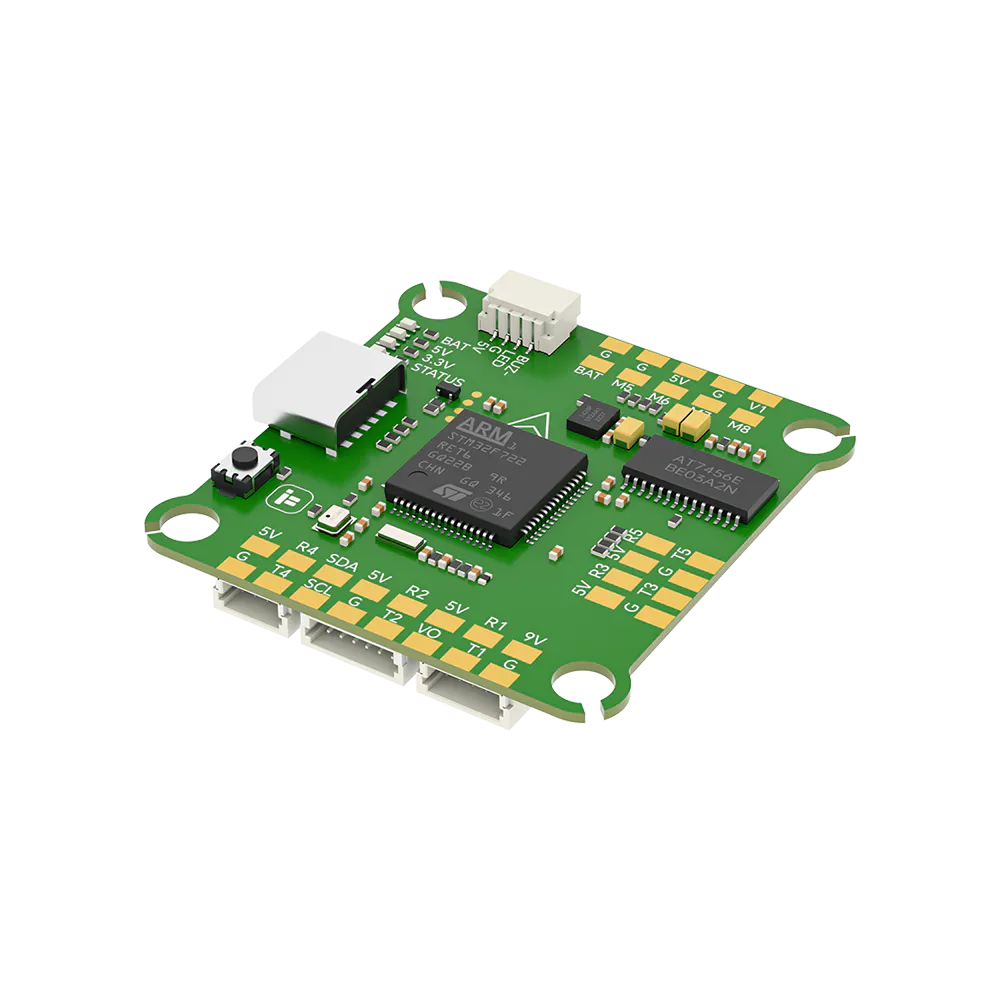

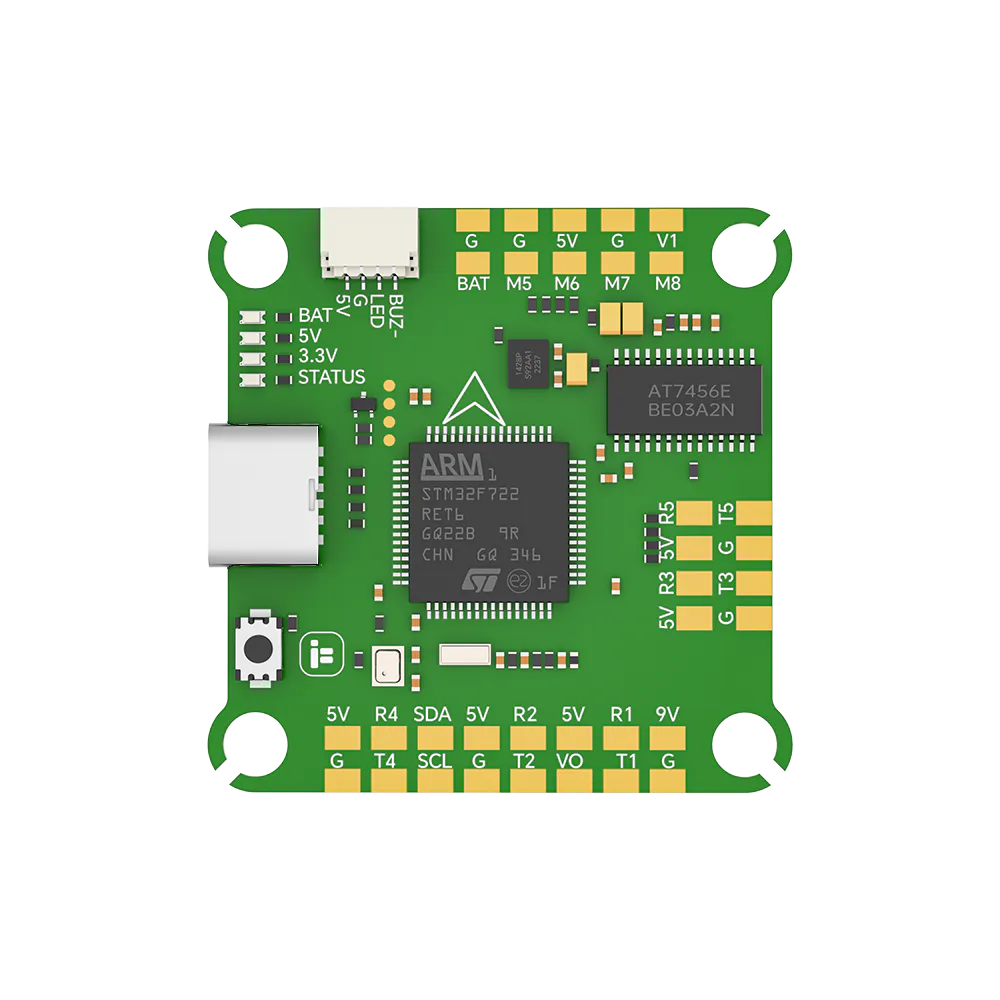

iFlight BLITZ F7 V1.2 Flight Controller
₹5,999Incl. GST
SKU IFLT-BLITZ-F7-V12
Integrated VTX: NoMounting Size: 30.5x30.5Integrated Receiver: NoFC Processor: F722, F7
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight BLITZ F7 V1.2 is an STM32 F722-based flight controller for 5-inch and larger FPV builds, aimed at pilots assembling a new quad or upgrading an existing stack. The V1.2 revision moved to an ICM42688P gyro alongside an onboard DPS310 barometer.
Key features
- STM32 F722 processor with an ICM42688P gyro and DPS310 barometer.
- Six UARTs cover a receiver, HD or analogue VTX, GPS or other sensors, and ESC telemetry.
- Plug-and-play DJI HD VTX connector needs no soldering; SmartAudio and IRC Tramp are also supported for analogue VTX control.
- 32MB of onboard flash for blackbox logging.
- 30.5 x 30.5mm mounting pattern with 4mm PCB holes; board weighs 7.8g.
- Dual BEC outputs at 5V 2.5A and 9V 2A for cameras, receivers and other accessories.
Specifications
- Processor: STM32 F722
- Gyro: ICM42688P
- Barometer: DPS310
- UARTs: 6
- Mounting size: 30.5 x 30.5mm
- Weight: 7.8g
- Dimensions: 36.5 x 35 mm
- OSD: AT7456E
- Motor outputs: 4 (SH1.0 connector)
- BEC: 5 V/2.5 A, 9 V/2 A
- In the box: flight controller, FC connector cables and silicone grommets
Runs Betaflight, targeting IFRC-IFLIGHT_BLITZ_F722; confirm your VTX and receiver protocol against the UART layout before wiring.
| Integrated VTX | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated Receiver | No |
| FC Processor | F722, F7 |
| Gyro | ICM42688P |
| Made in India | No |
| Brand | iFlight |
| Supported Firmware | Betaflight |
| Barometer | Yes |
| UARTs | 6 |
| Weight | 7.8 g |
