iFlight BLITZ F745 Flight Controller
₹6,399Incl. GST
SKU IFL-BLITZ-F745
Integrated Receiver: NoMounting Size: 30.5x30.5Integrated VTX: NoFC Processor: F745
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

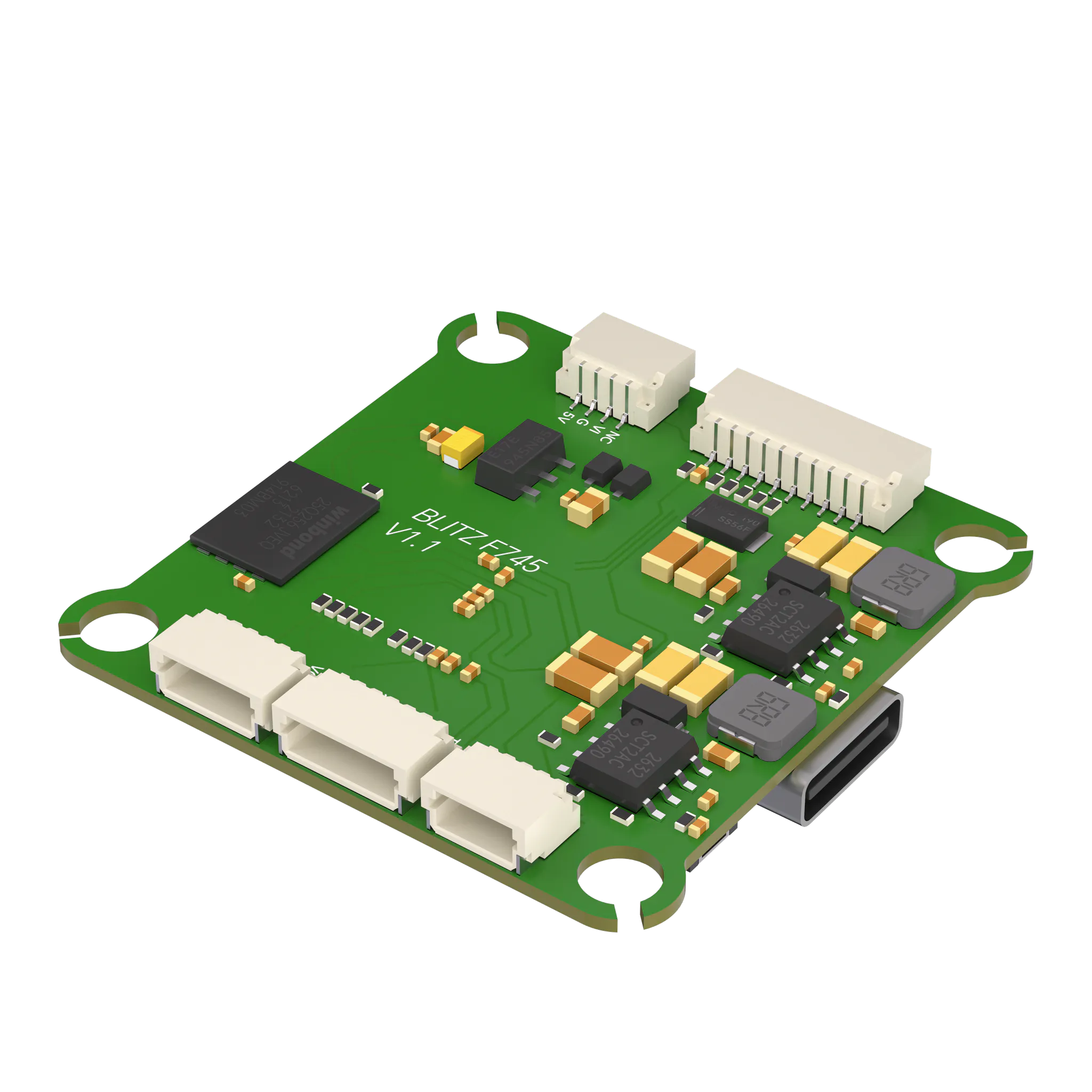

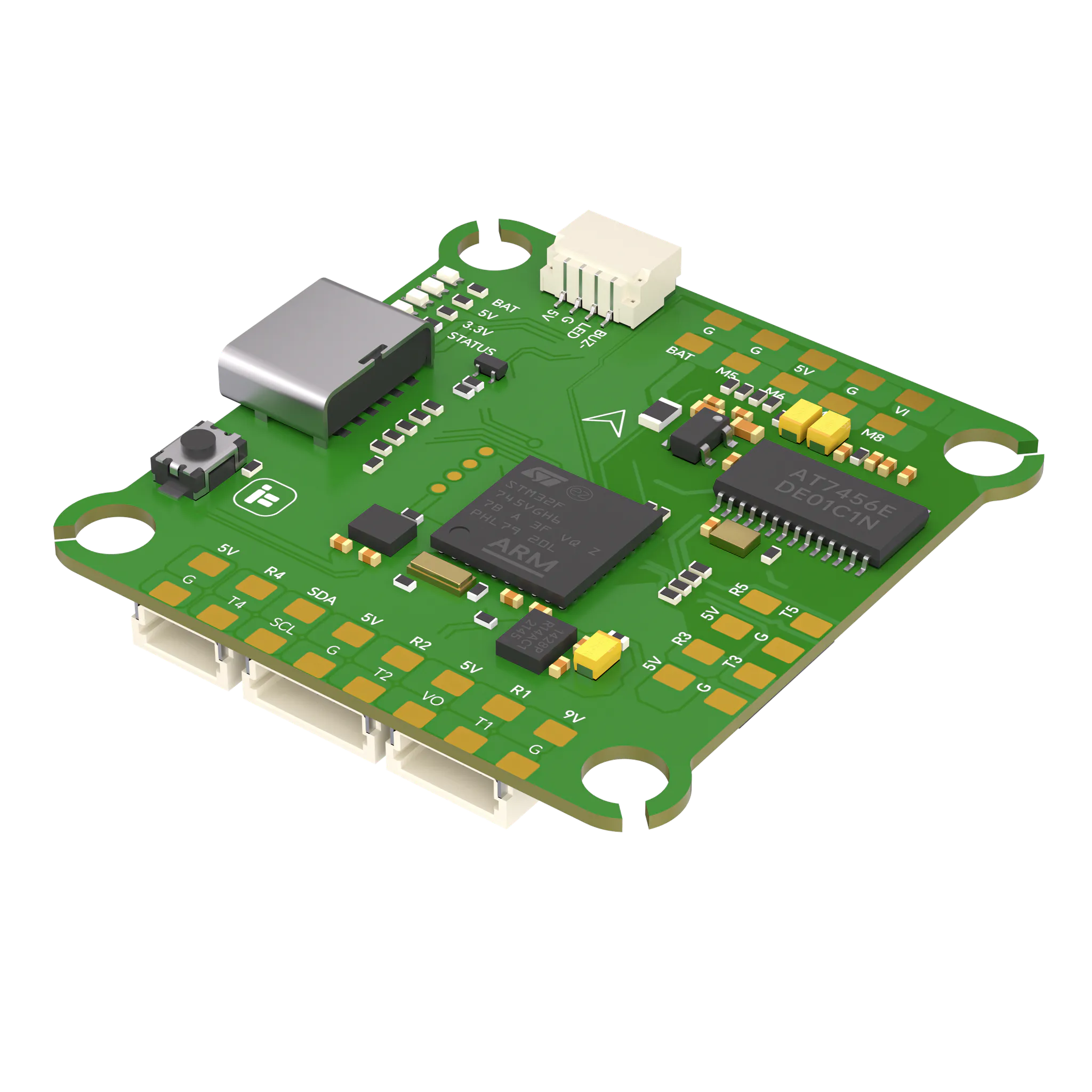

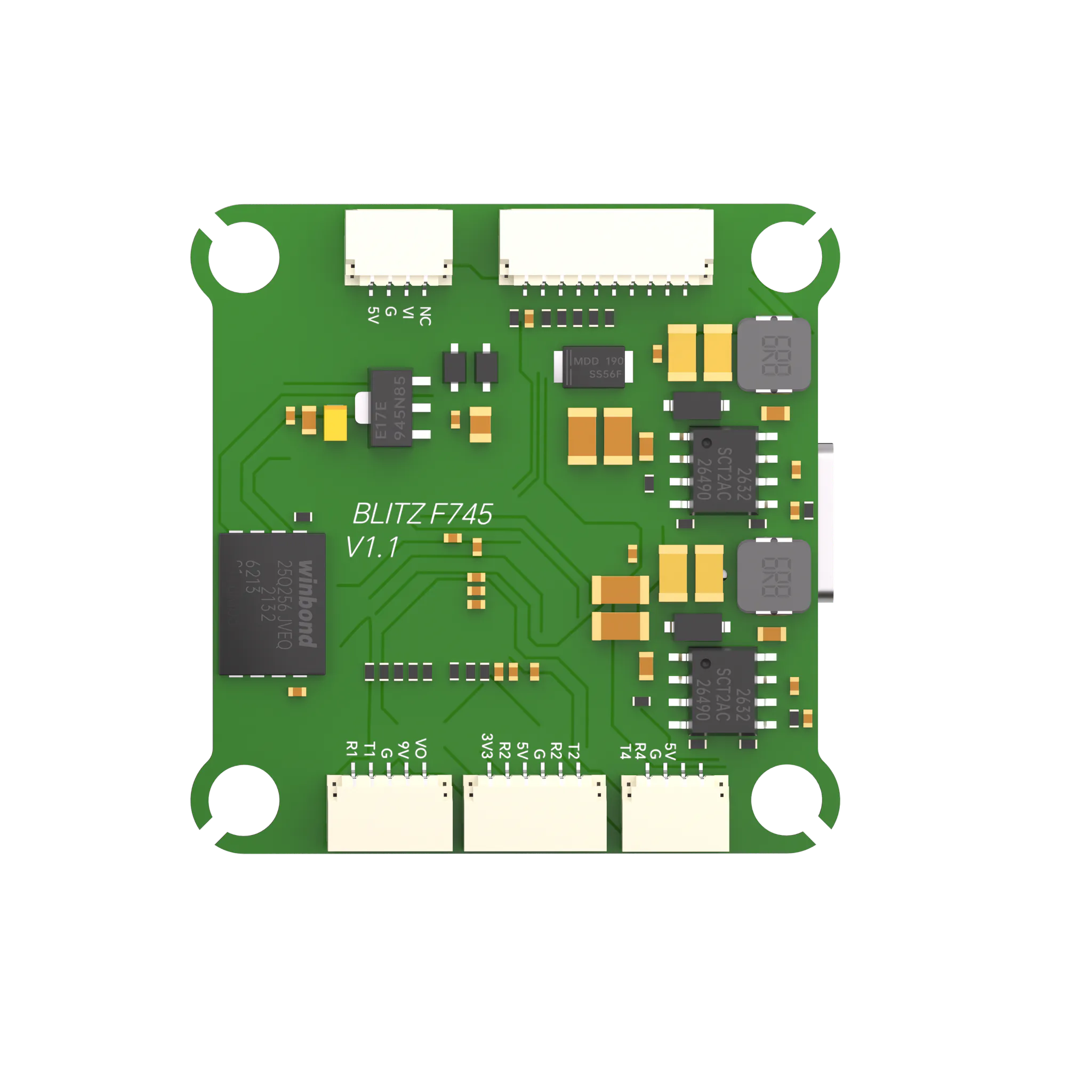

The iFlight BLITZ F745 is a 30.5x30.5mm flight controller for 5 to 7-inch freestyle, racing and long-range builds, built around the STM32F745 processor for the headroom that heavy Betaflight filtering needs.
Key features
- STM32F745 MCU paired with the low-noise ICM42688 gyro and an onboard DPS310 barometer for altitude hold and GPS-assisted modes.
- Six hardware UARTs: dedicated ports for a digital VTX (DJI/Walksnail/HDZero), a receiver, GPS or other serial sensors, and ESC telemetry.
- Plug-and-play DJI HD VTX connector needs no soldering to wire in a digital air unit.
- Dual BEC outputs (5V and 9V, 2.5A continuous / 3A peak) power cameras, VTXs and other 5V or 9V accessories directly.
- 32MB of onboard flash for blackbox logging, plus onboard LEDs for quick visual debugging.
Specifications
- MCU: STM32F745
- Gyro: ICM42688
- Barometer: DPS310
- OSD: AT7456E
- UARTs: 6
- Mounting pattern: 30.5x30.5mm
- Dimensions: 36.5 x 35mm
- Weight: 7.8g
- Supported firmware: Betaflight (target IFLIGHT_BLITZ_F7_AIO), INAV, ArduPilot
Pair it with a 30.5x30.5mm 4-in-1 ESC and your preferred digital or analogue video system for a compact, high-performance flight stack.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | F745 |
| Gyro | ICM42688P |
| Input Voltage | 2–8S |
| Made in India | No |
| Brand | iFlight |
| Supported Firmware | ArduPilot, Betaflight, INAV |
| Barometer | Yes |
| UARTs | 6 |
| Weight | 7.8 g |
| Compass Included | No |
