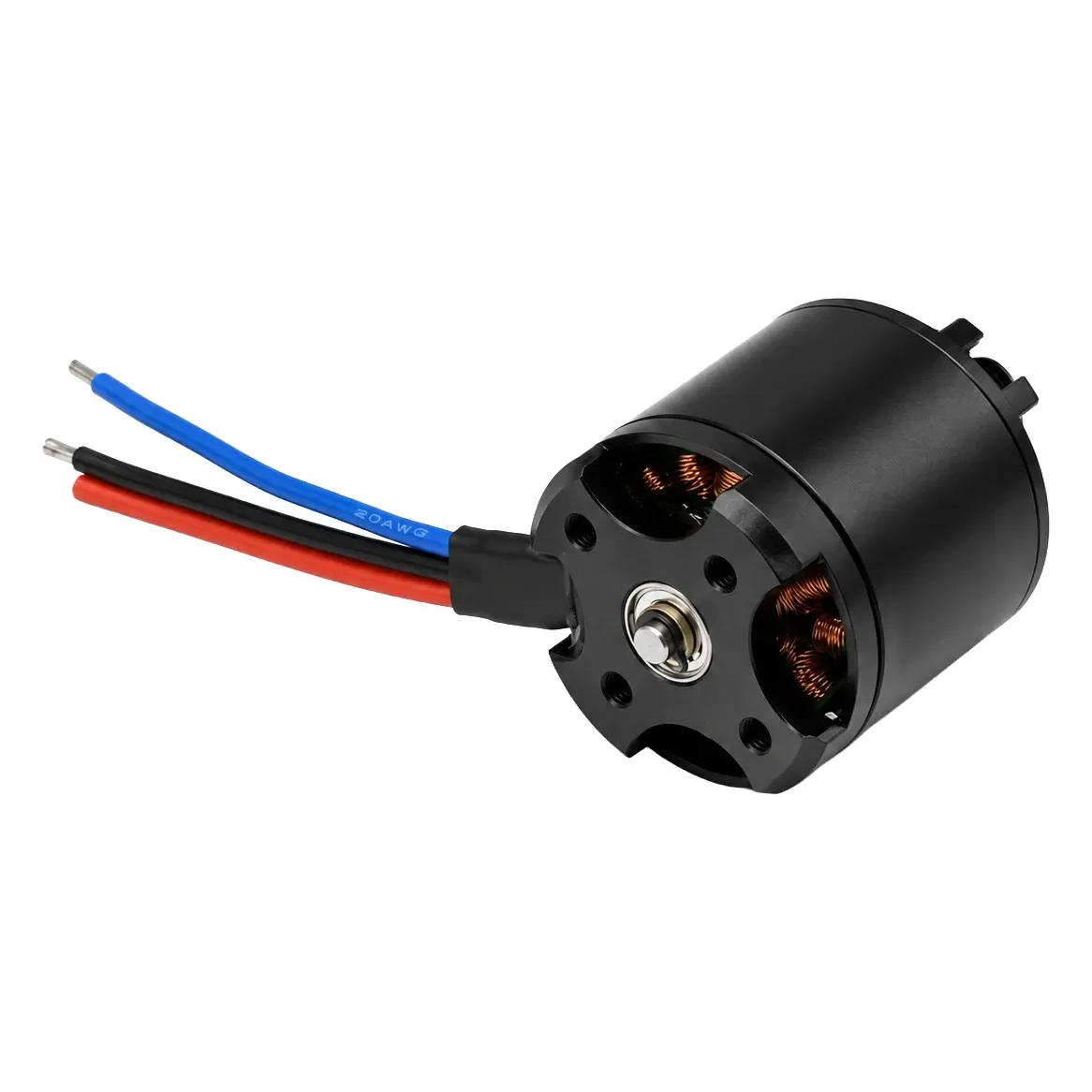

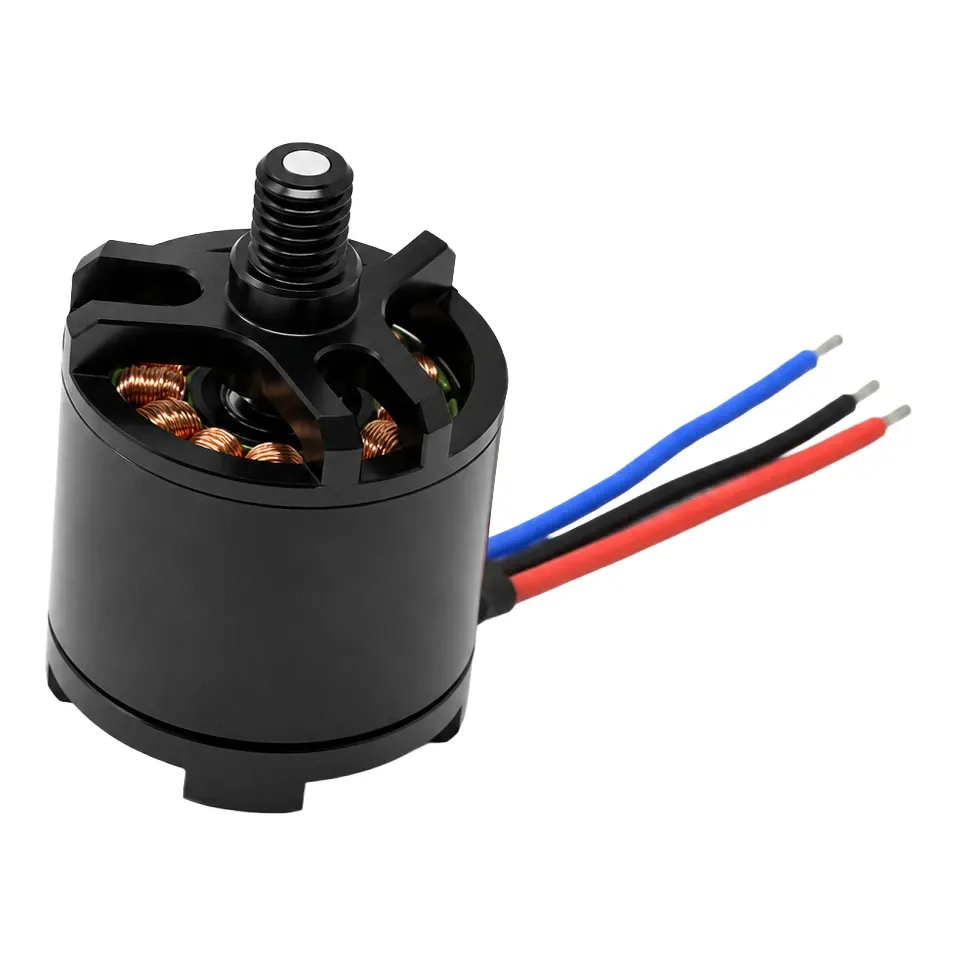

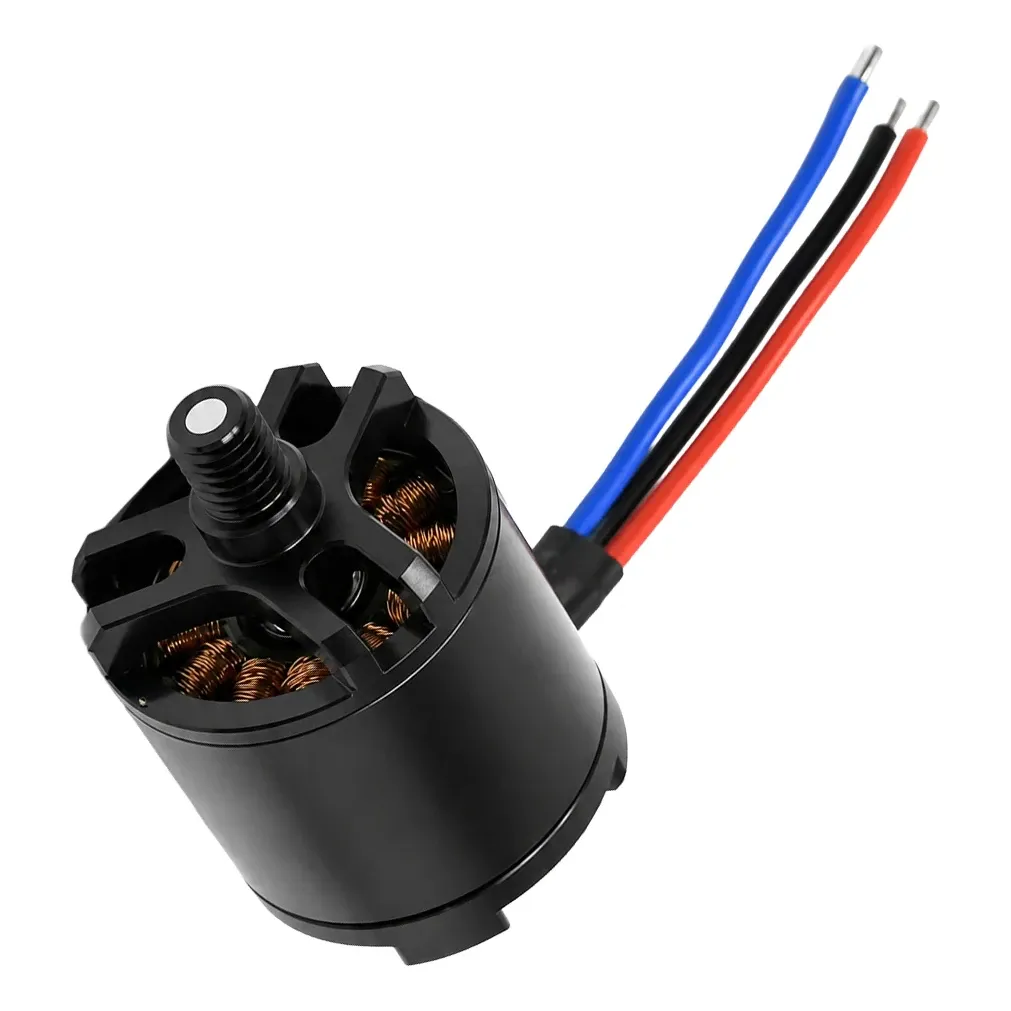

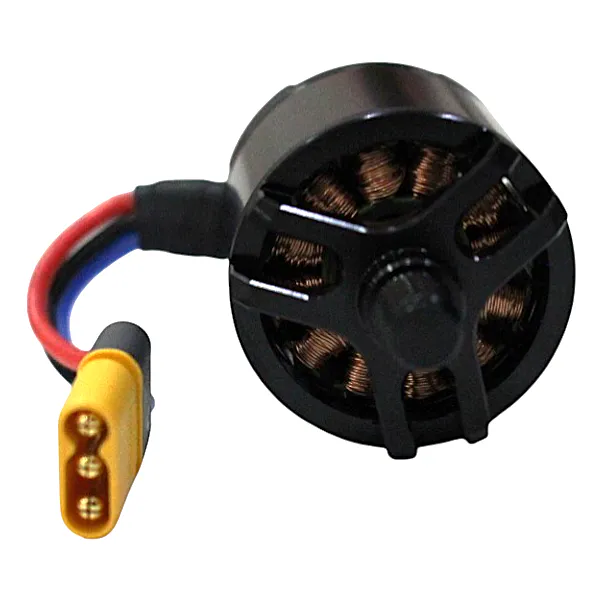

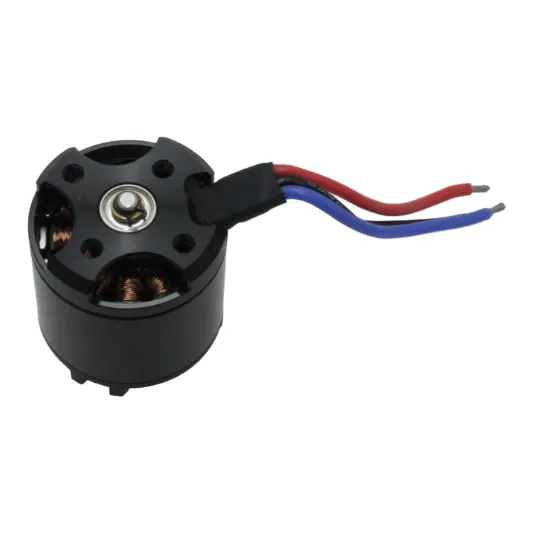

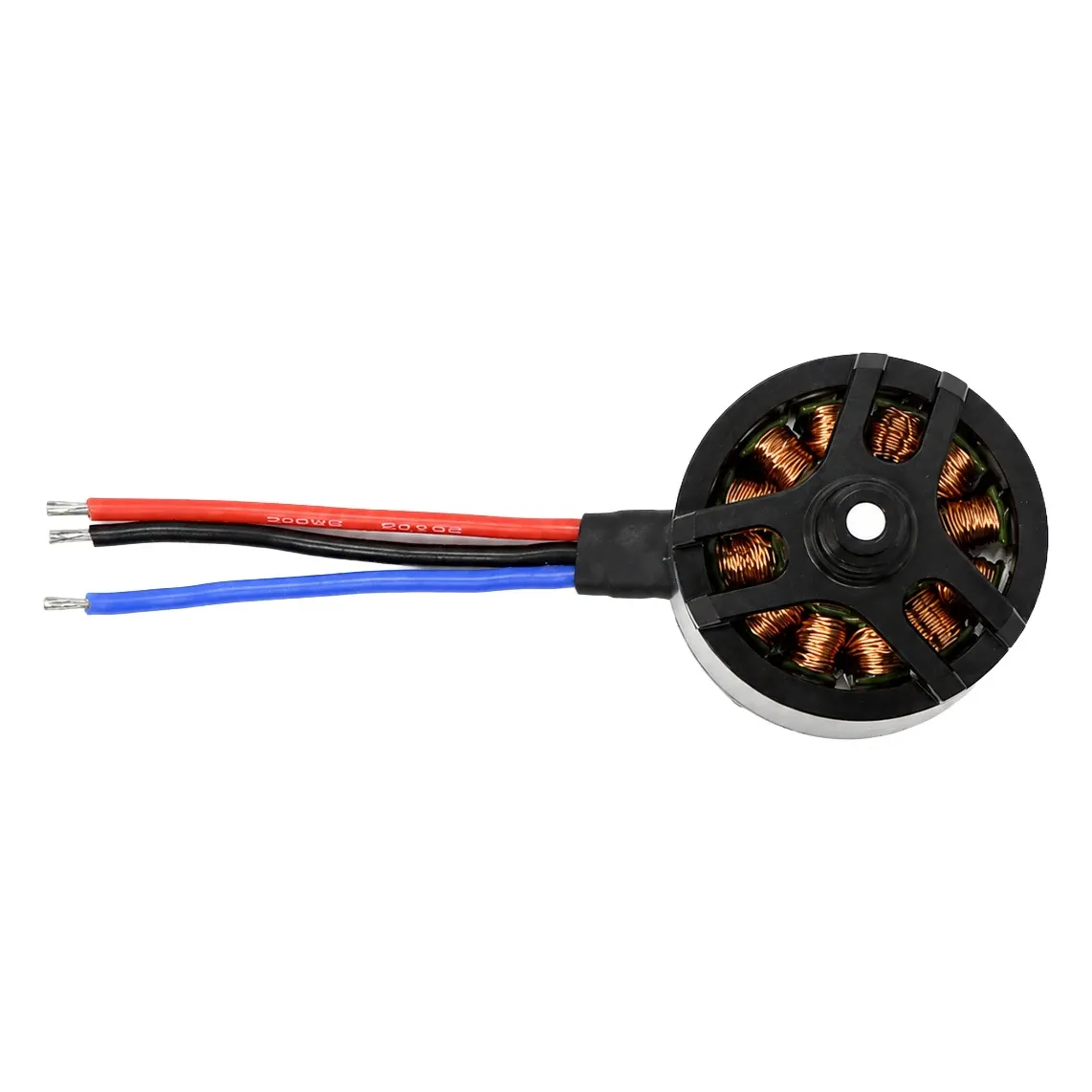

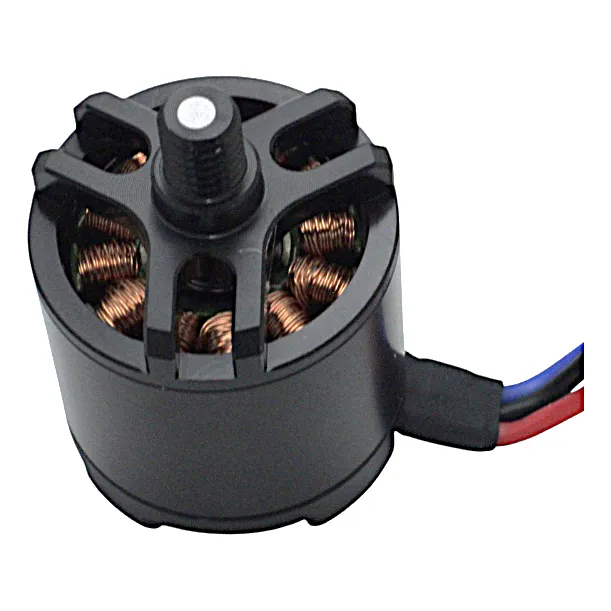

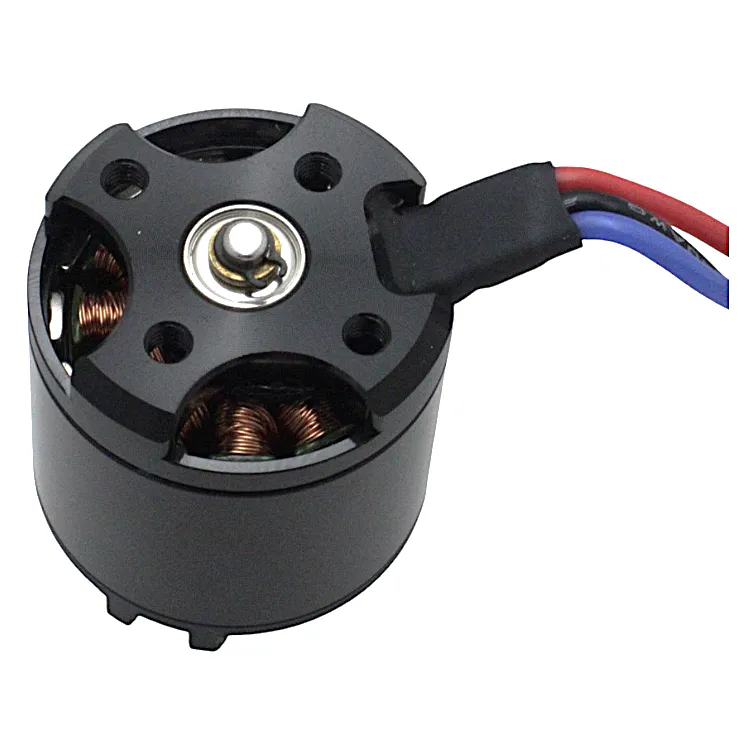

Holybro S500 V2 2216 920KV Brushless Motor

This is the 2216 920KV brushless motor fitted to the Holybro S500 V2 quadcopter kit, sold one motor at a time as a replacement or for building a matching 500 mm-class Pixhawk quad. It runs on 3S or 4S LiPo and suits PX4 and ArduPilot development frames, where steady, efficient lift matters more than outright speed.

Key features

• Available in CW and CCW rotation; a quad needs two of each to keep prop directions correct
• 920KV winding on a 22 × 16 mm stator for low-KV, large-prop efficiency on 3–4S
• 63 g with a 28 mm outer diameter, identical to the motors supplied with the S500 V2
• Direct swap for a damaged S500 V2 motor without changing ESCs or motor mounting

Specifications

• Stator: 2216 (22 mm diameter, 16 mm height)
• KV: 920
• Battery: 3S–4S LiPo (11.1–14.8 V nominal)
• Motor diameter: 28 mm
• Weight: 63 g
• Rotation: CW or CCW (choose the variant)

When replacing a single motor, pick the rotation that matches the arm position it comes off; mixing up CW and CCW units will stop the quad from lifting off level.
