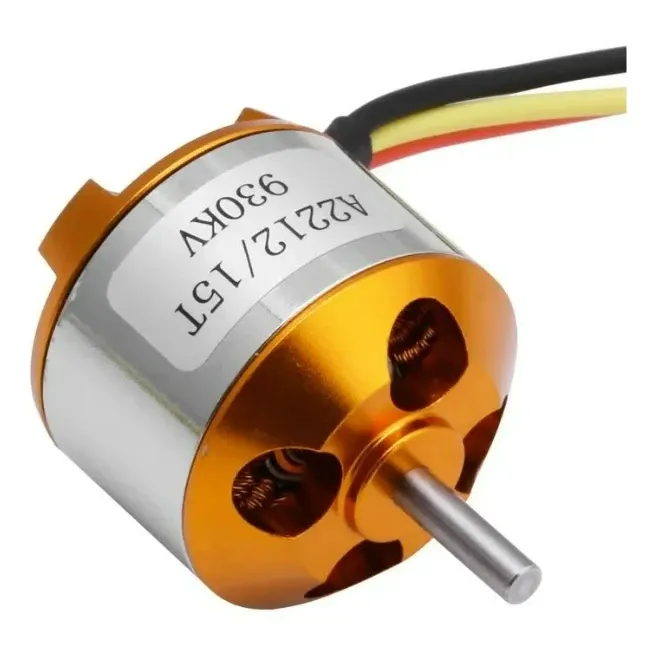

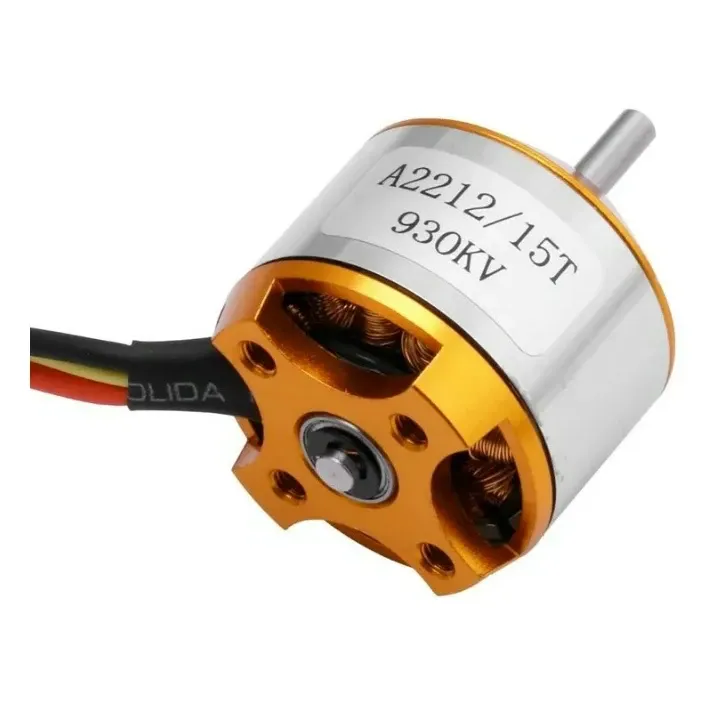

A2212 15T 930KV Brushless Motor without Soldered Connector

An A2212 15-turn 930KV outrunner brushless motor for RC planes, quadcopters and model boats, suited to models weighing roughly 300–1000 g. It is supplied without bullet connectors soldered on, leaving you free to solder straight to the ESC or fit your own connectors.

Key features

• 15-turn winding: lower KV for larger props and efficient cruising on fixed-wing models.
• Up to 280 W: ample power for trainers and park flyers in the 300–1000 g range.
• Hardened steel shaft: 3.17 mm (1/8 in), running on dual ball bearings.

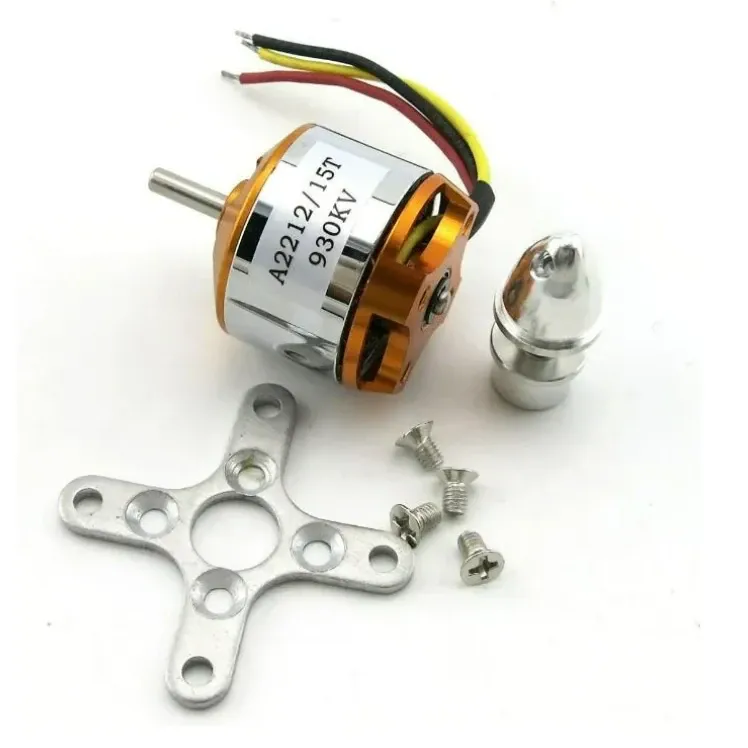

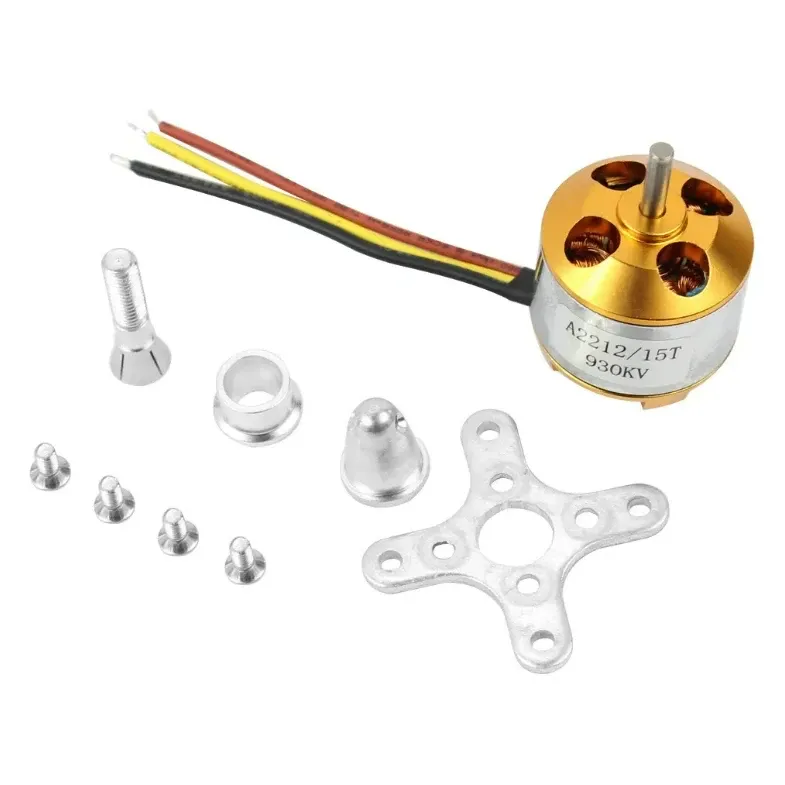

• Complete fitting kit: bullet-style prop adapter, X-plate motor mount and hardware included.
• 52 g: light enough for foam and balsa airframes.

Specifications

• Turns: 15T
• Battery: 2–3S LiPo
• Max power: 280 W
• Shaft: 3.17 mm (1/8 in), hardened steel
• Bearings: Dual ball bearings
• Weight: 52 g
• Model weight: 300–1000 g
• Connectors: Not fitted

At its 280 W ceiling on a 3S pack (11.1 V) the motor draws about 25 A, so a 30 A ESC is the sensible pairing. Solder 3.5 mm bullet connectors to the leads or join them directly to the ESC, and swap any two motor wires to reverse rotation.
