DYS D2836 Brushless Outrunner Motor

The DYS D2836 is a 70g outrunner brushless motor designed for medium-sized multirotors, fixed-wing RC planes, and custom UAV builds. Measuring 28x36mm, it features a durable steel-reinforced construction and is available in 750KV, 880KV, 1120KV, and 1500KV options. To simplify assembly, each motor is pre-wired with 3mm bullet connectors, allowing for a direct, solder-free connection to compatible electronic speed controllers.

Key features

• Steel-reinforced outrunner bell for reliability under flight stress

• Pre-soldered 3mm bullet connectors for direct wiring to a 40A-class ESC

• Yields up to 800g of thrust on a 10-inch propeller

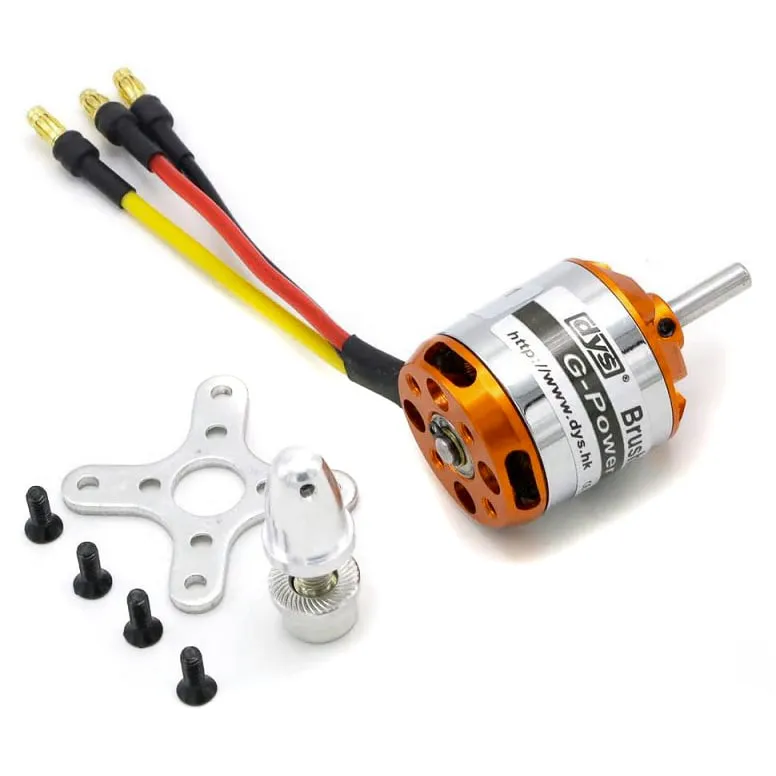

• Includes a bolt-on prop adapter, an X-type motor mount, and installation screws

Specifications

• Stator size: 2836

• KV options: 750KV, 880KV, 1120KV, 1500KV

• Input voltage: 2-4S LiPo

• Recommended ESC: 40A

• Shaft diameter: 4mm

• Motor dimensions: 28x36mm

• Weight: 70g

When selecting a version, choose the 750KV or 880KV motors for 3S to 4S multirotor setups spinning larger 9-inch to 10-inch propellers to maximise flight endurance. The higher 1120KV and 1500KV models are better suited to faster fixed-wing RC aircraft or smaller 7-inch to 8-inch props running on 2S or 3S power. Ensure your build is equipped with a 40A ESC and verify that your frame has clearance for a 28mm motor diameter.
