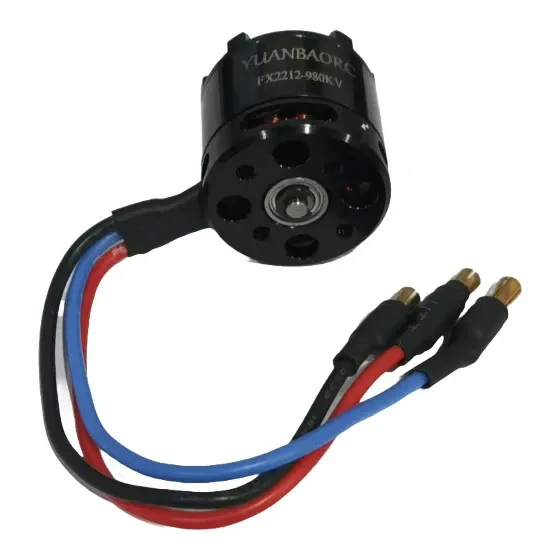

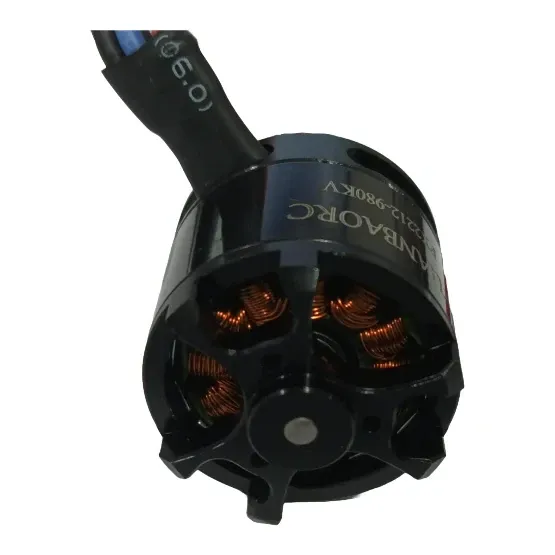

FX2212 980KV Brushless Motor with Soldered Connector

The FX2212 980KV is a 2212-size outrunner brushless motor for fixed-wing RC aircraft and multirotors, with its connector already soldered on so it plugs straight into an ESC. The low KV suits 10-inch props on 2S–3S LiPo, and a prop adapter plus a motor mount with screws come in the box.

Key features

• 980KV winding on a 22 × 12 mm stator, rated for 2S–3S LiPo (7.4–11.1 V)
• Rated thrust of up to 800 g per motor with a 10 × 4.5 prop on 3S, at about 16 A maximum current
• 3.17 mm shaft; the supplied prop adapter takes standard hub props such as 1045 and 8045
• Pre-soldered connector saves a soldering job at the motor end

Specifications

• Stator: 22 × 12 mm (2212)
• KV: 980KV
• Shaft: 3.17 mm
• Battery: 2S–3S LiPo (7.4–11.1 V)
• Max current: about 16 A
• Thrust: up to 800 g (10 × 4.5 prop, 3S)
• Listed props: 1045, 8045
• Weight: 58 g

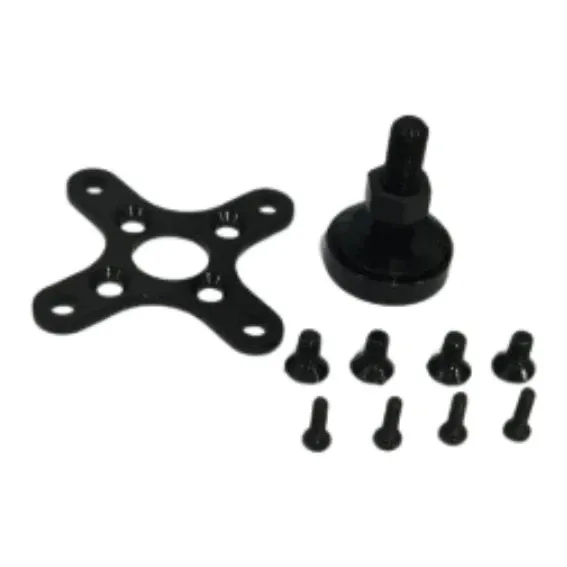

• In the box: motor, prop adapter, motor mount with screws

Pair it with an ESC rated comfortably above 16 A; 20 A or more is a sensible choice. On a quadcopter, four motors at up to 800 g each give roughly 3.2 kg of total thrust, so keep the all-up weight to around half that for a controllable hover with margin for wind.
