Hobbywing FlyFun V5 60A ESC (3–6S)

The Hobbywing FlyFun V5 60A is a robust single ESC engineered for fixed-wing aircraft, scale helicopters, and custom large-scale multirotors running on 3–6S LiPo power. It operates on Hobbywing’s Driving Efficiency Optimization (DEO) technology, implementing active freewheeling to improve throttle linearity and drive down operating temperatures during extended flights.

Key features

• Integrated high-power switch-mode BEC with an 8A continuous output, selectable between 5.2V, 6.0V, and 7.4V to support high-torque servos and advanced flight controllers.

• Active freewheeling circuitry extends flight efficiency and actively cools the ESC during partial-throttle operation.

• Includes normal, proportional, and reverse brake modes, enabling fixed-wing platforms to perform shorter aerodynamic landings.

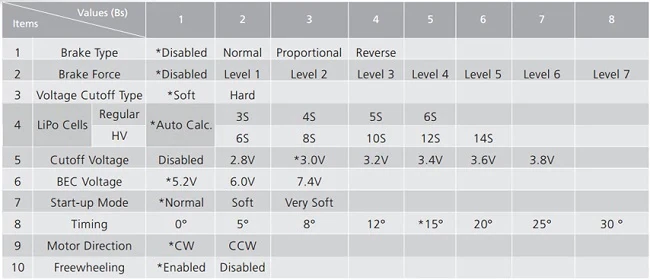

• Fully programmable directly via your transmitter stick inputs or the compatible Hobbywing LED Program Box.

Specifications

• Continuous / Burst Current: 60A / 80A

• Input Voltage: 3–6S LiPo

• BEC Output: Switch-mode, 5.2V / 6.0V / 7.4V adjustable (8A continuous, 20A peak)

• Dimensions: 68.8 x 34.6 x 18 mm

• Weight: 73.5g

• Wire Gauge: 14AWG (Input and Output)

• Lead length: 150 mm (motor and battery side)

• Connectors: 4.0 mm female bullets on the motor leads; battery leads unterminated

Because this ESC integrates a massive 20A-peak variable BEC, it allows builders to safely power complex avionics, mechanical retracts, and heavy-duty servos on 6S rigs without wiring an external voltage regulator into the harness.
