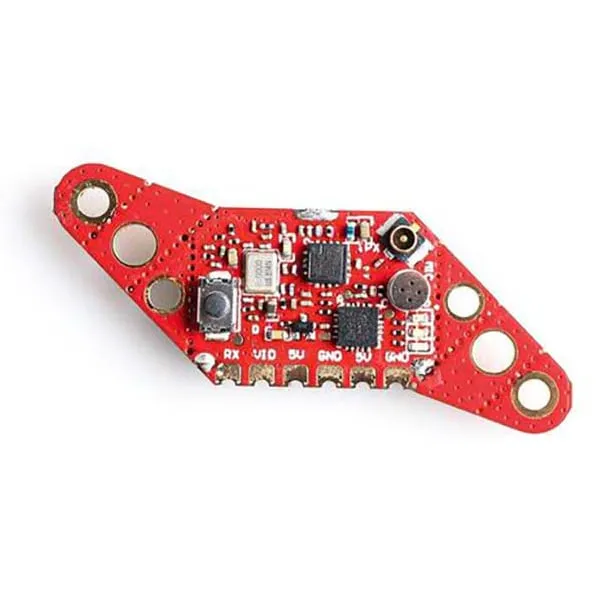

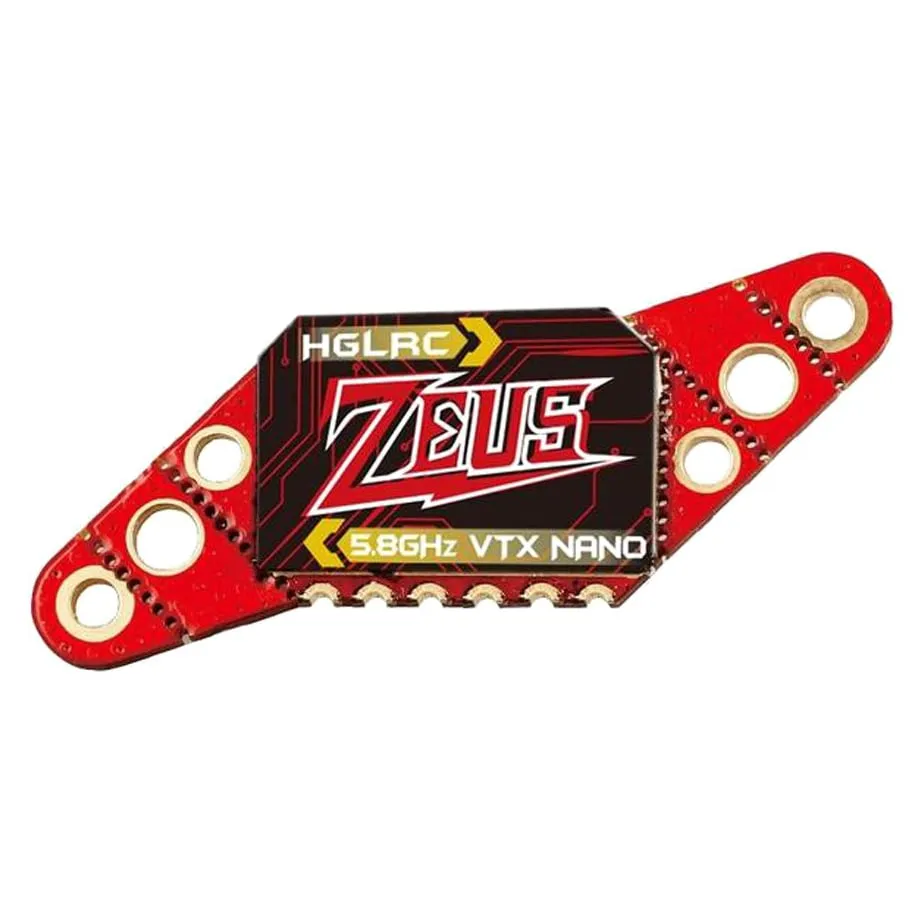

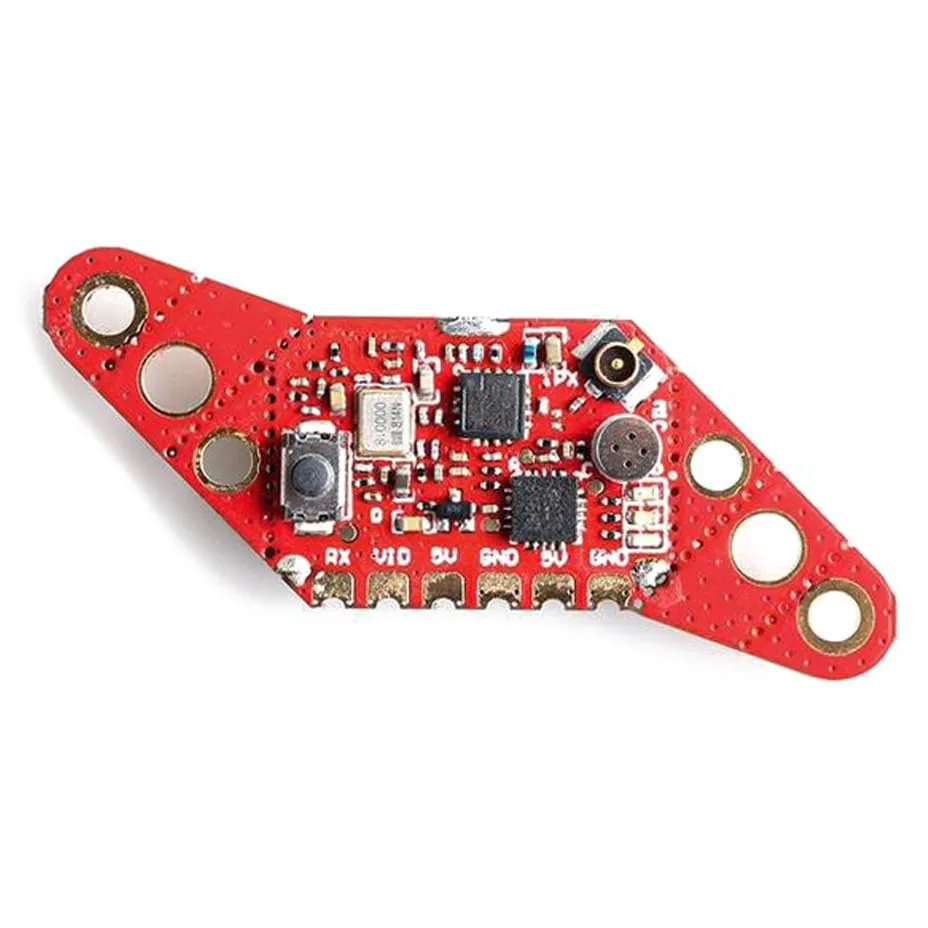

HGLRC Zeus Nano 350mW 16mm/20mm/25.5mm VTX

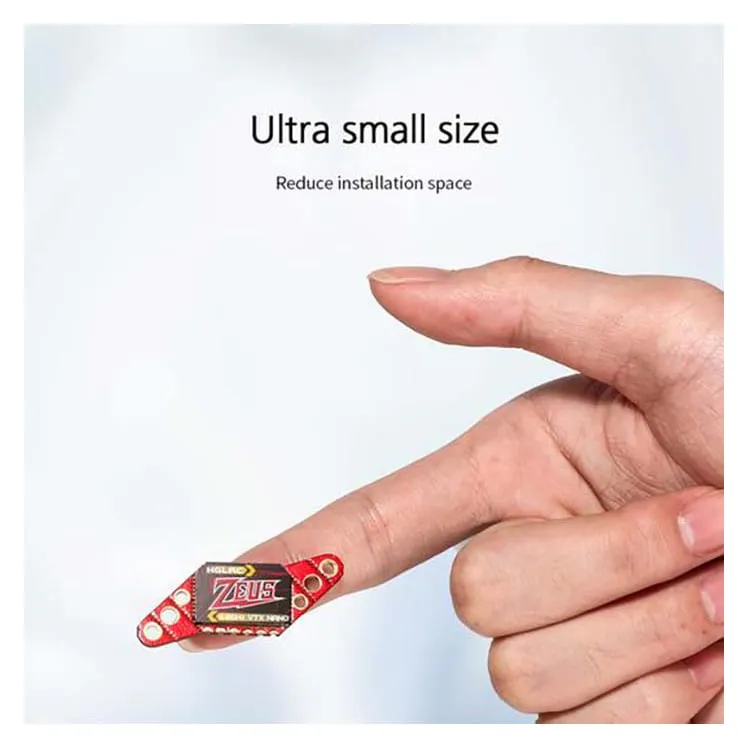

The HGLRC Zeus Nano is an ultra-compact analog video transmitter designed for micro builds, toothpick quads, and tight FPV whoops. Emitting up to 350mW of output power, it provides reliable 5.8GHz video penetration and range while keeping the overall footprint and weight to an absolute minimum.

Key features

• Adjustable output power levels (PIT, 25mW, 100mW, 200mW, 350mW) to suit both indoor tracks and outdoor environments.

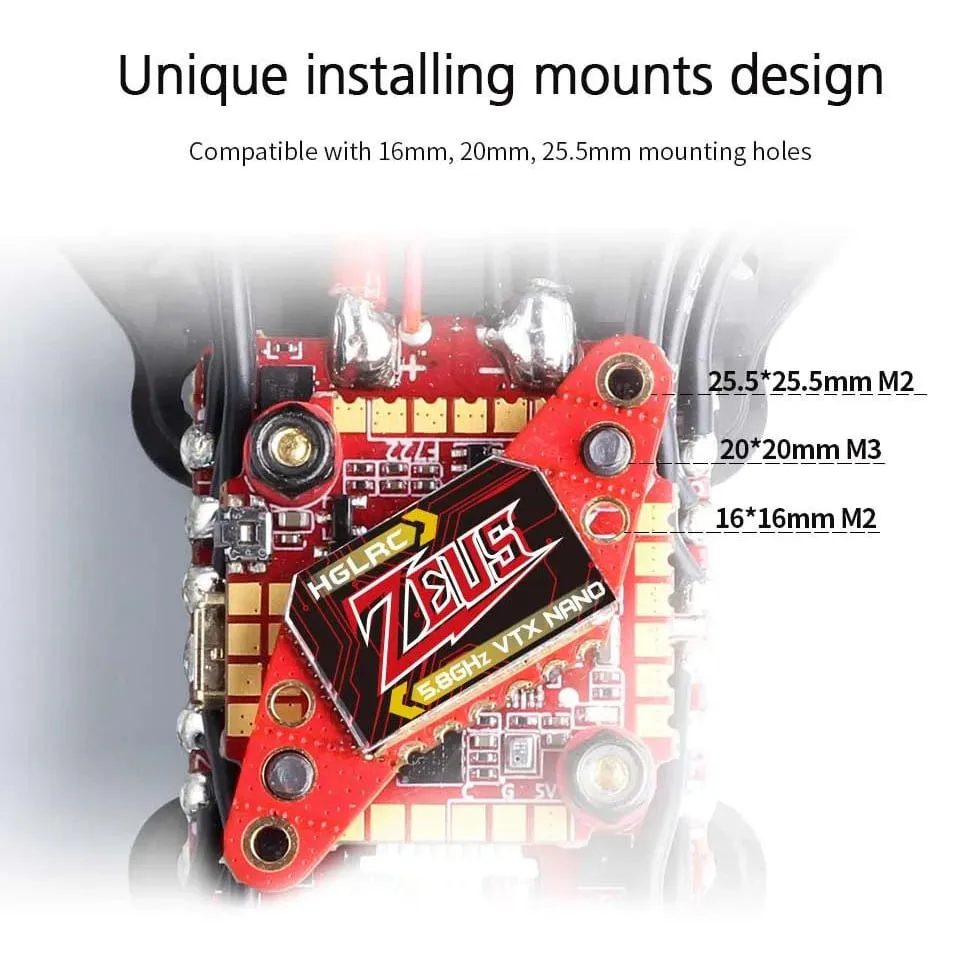

• Versatile snap-off mounting board accommodating 16x16, 20x20, and 25.5x25.5 flight controller stacks.
• Integrated IRC Tramp protocol support allows quick channel and power configuration directly through your Betaflight OSD.

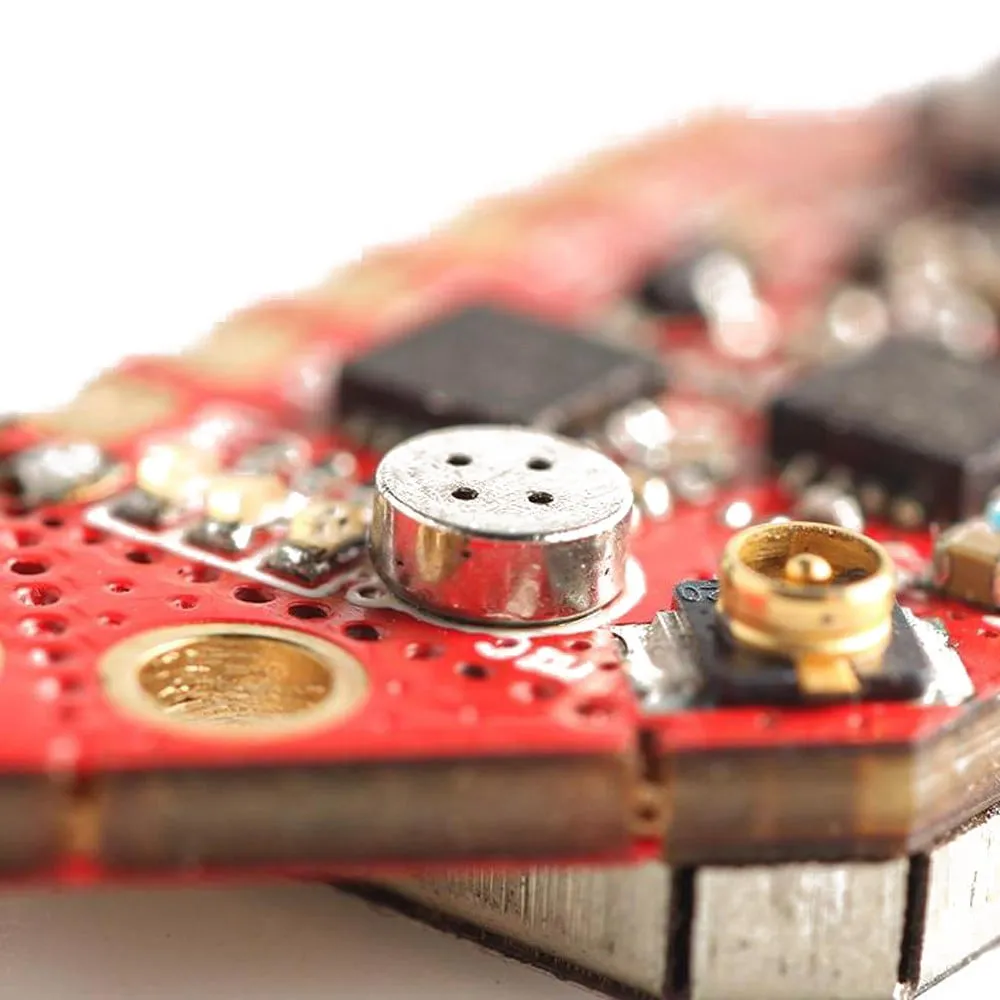

• Built-in microphone transmits real-time motor and prop audio feedback to your analog goggles.

Specifications

• Input voltage: 5V DC
• Output power: PIT, 25, 100, 200, 350 mW
• Frequency: 5.8GHz (40 Channels)
• Protocol: IRC Tramp
• Antenna connector: U.FL
• Mounting pattern: 16x16, 20x20, 25.5x25.5
• Weight: 1.5g (without antenna)

Note: The Zeus Nano requires a clean 5V power source. Do not wire it directly to battery voltage (VBAT), and ensure your flight controller's 5V BEC has enough current headroom to safely supply the transmitter at maximum output.
