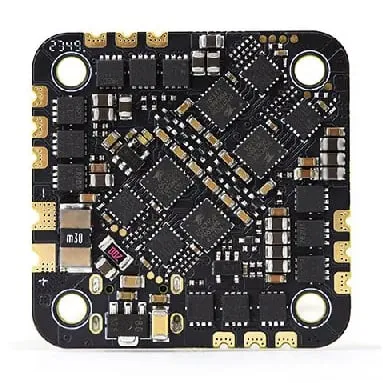

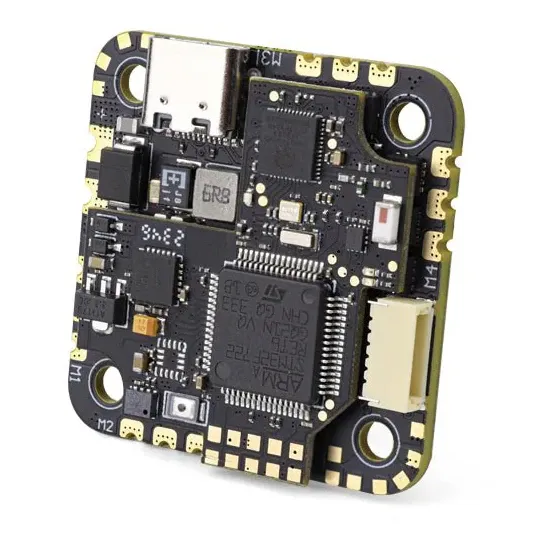

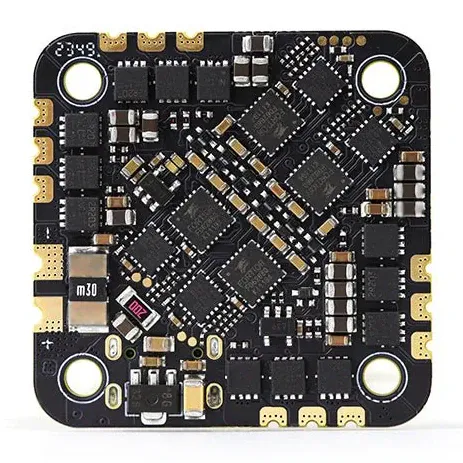

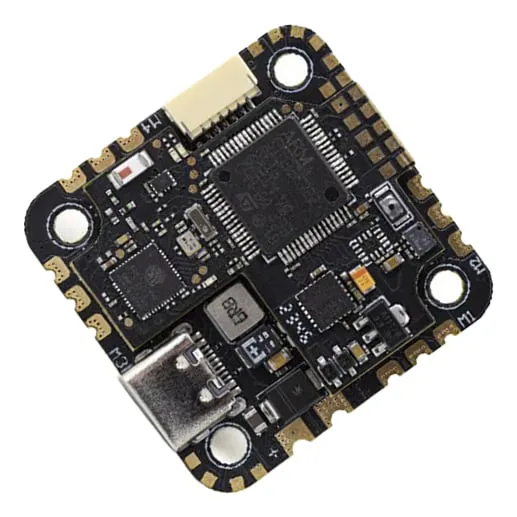

HGLRC Specter 25A AIO Flight Controller

The HGLRC Specter 25A AIO combines a flight controller and a 25A-rated 4-in-1 ESC on one board, built around an STM32F722 processor. It targets lightweight freestyle and toothpick-class builds that need a compact all-in-one stack.

Key features

• STM32F722 MCU paired with an MPU6000 gyro, with pads reserved for an ICM42688 upgrade, for stable flight performance.

• 16MB onboard blackbox logging captures flight data for tuning.

• Built-in Bluetooth lets you adjust ports, PID and other Betaflight parameters wirelessly via the SpeedyBee app.

• Runs on 3-6S LiPo with a 5V, 2A BEC for cameras, receivers and other peripherals.

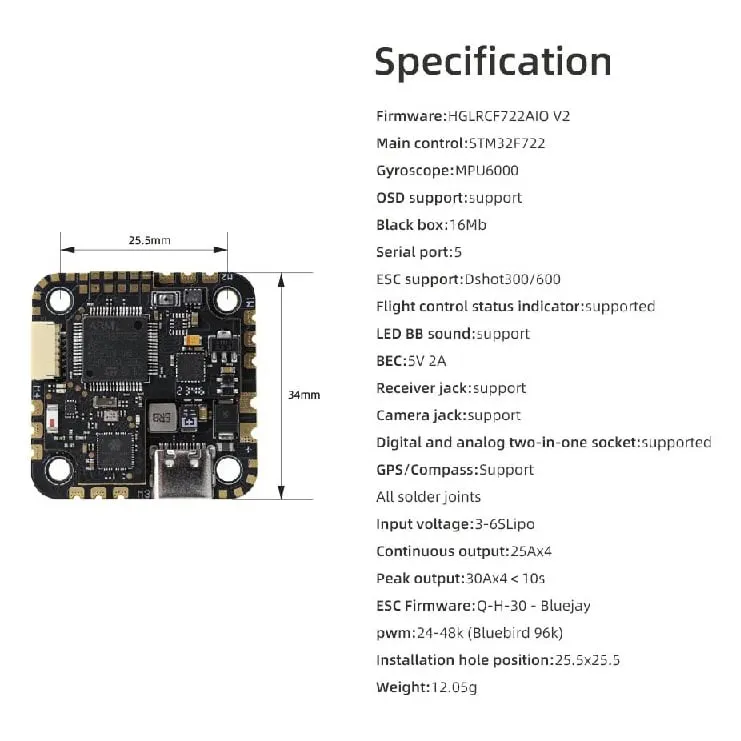

Specifications

• Brand: HGLRC

• MCU: STM32F722

• Gyro: MPU6000

• OSD: AT7456E

• Barometer: DPS310

• UARTs: 5

• Input voltage: 11.1-22.8V (3-6S LiPo)

• ESC current: 25 A

• Mounting: 25.5 x 25.5mm, M2

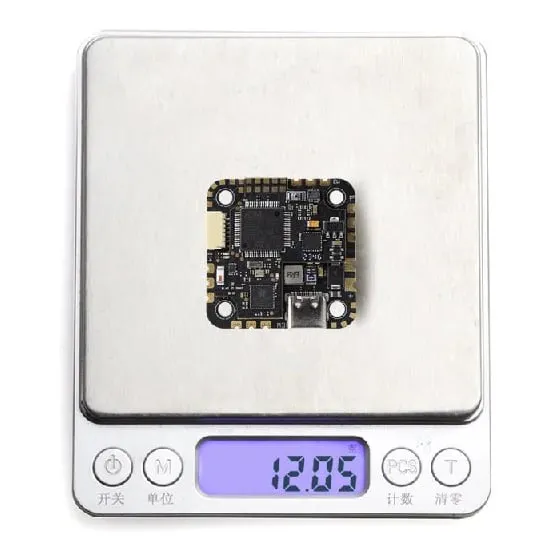

• Weight: 12.05 g

• Board size: 34 x 34 x 6.7 mm

• BEC: 5V 2A

• ESC firmware: Bluejay (Q-H-30)

• Firmware target: HGLRCF722AIOV2

• In the box: AIO board, XT60 power lead (14AWG, 100 mm), XT30 power lead (18AWG, 70 mm), SH1.0 6-pin DJI cable, 1.25 3-pin camera cable, accessory kit

This board suits 2.5 to 3.5-inch builds where a single AIO needs to drive the motors, run Betaflight and provide OSD and blackbox logging without a separate ESC stack.
